Description
Special Order
This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

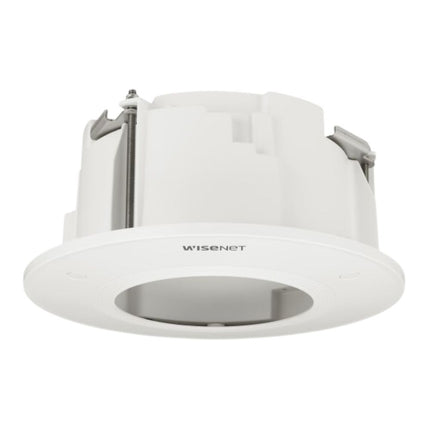

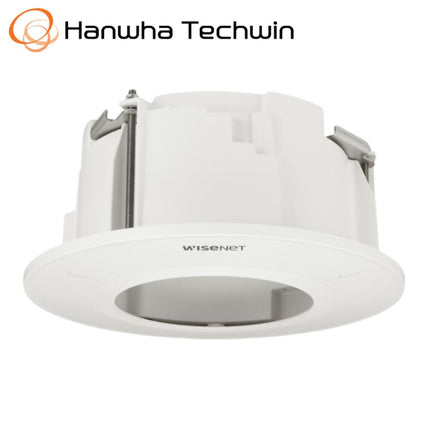

The Hanwha HAN-SHD-1600FPW is an in-ceiling mount to suit SNV & SNF series cameras.
Downloads
Datasheets
Installation Documents
Tech Specs
- Aluminium/Polycarbonate
- Dimensions: 234 x 123.24 mm
- Weight: 1.2kg
- Colour: White
| Mechanical |
|---|
| Color |
White |
| Material |
Enclosure : Aluminum Top cover : Polycarbonate(PC) |
| RAL code |
RAL9003 |
| Product dimensions / weight |
Ø234 X 123.24(9.21" x 4.85"), 1200g(2.65 lb) |
| Tile thickness |
5~70mm |
| Mount Screw size |
None |
| Max. load |
None |
| Conduit hole |
19.1mm(3/4") (M25) 12.7mm(1/2") (M20) |
| Supported products |
PNV-9080R XNF-9010RV/8010R/8010RV XND-6085/6085V XND-C9083RV/C8083RV/C7083RV/C6083RV XNV-C9083R/C8083R/C7083R/C6083R XNV-6085/6120/6120R/8080R/6080R/6080 XNV-L6080R/L6080 ※ For further compatible models, please visit our website or use Toolbox ※ Scan the QR code on the housing. you can find installation guide. ※ camera size A : Ø160 X 140 (H) B : Ø160 X 118.5 (H) C : Ø160 X 128.5 (H) D : Ø160 X 72 (H) E : Ø146 X 65.8 (H) |
