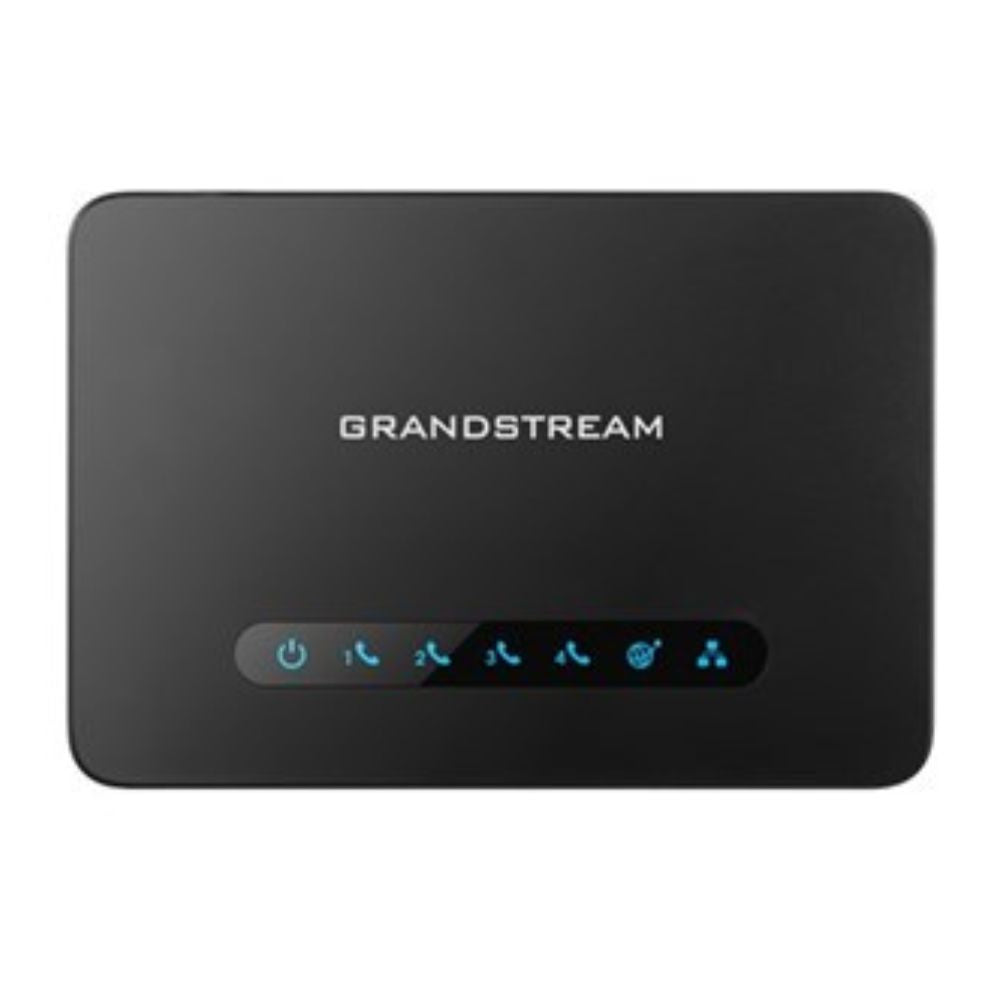

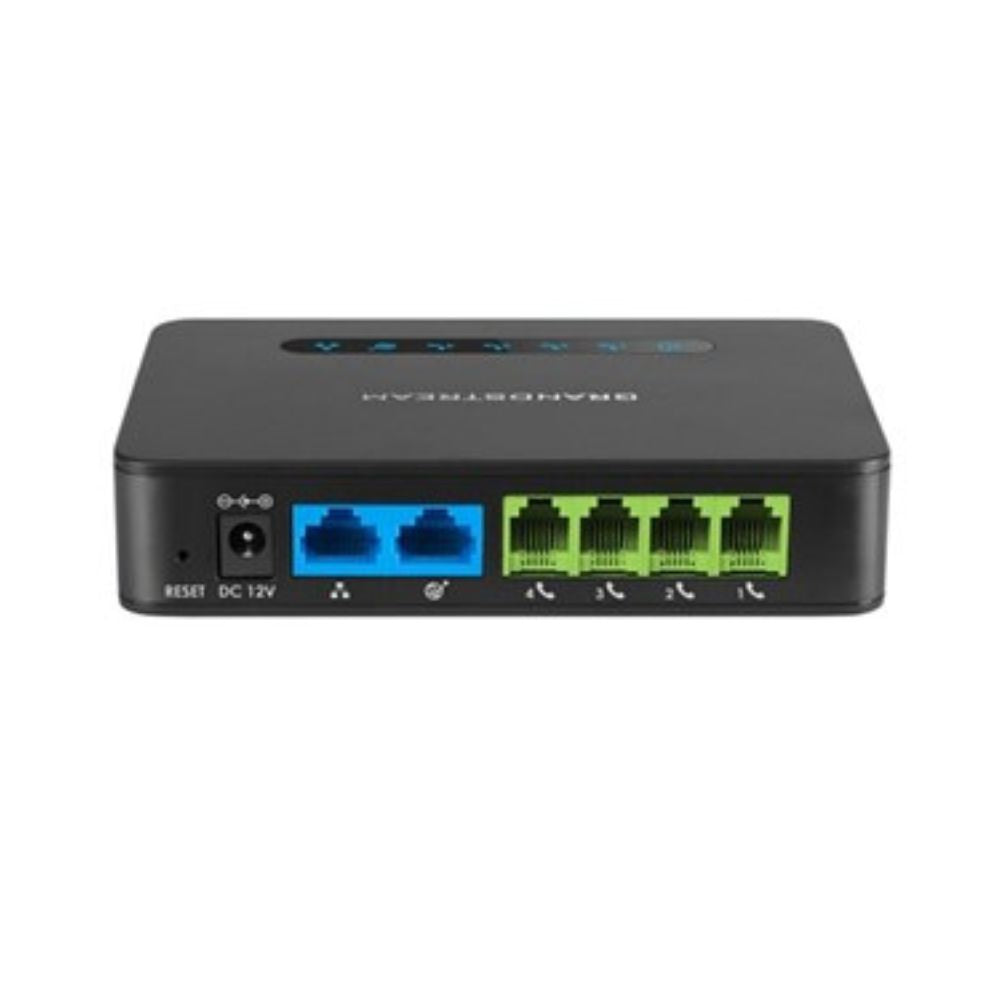

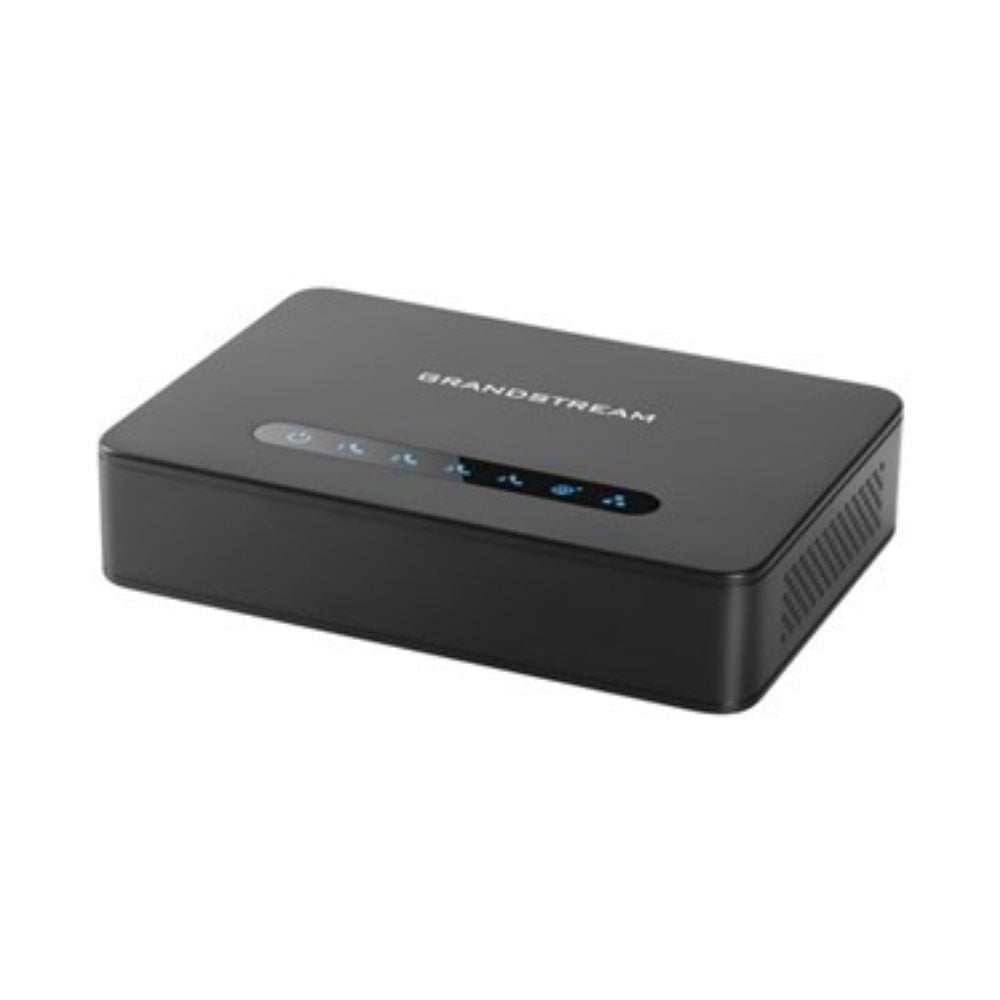

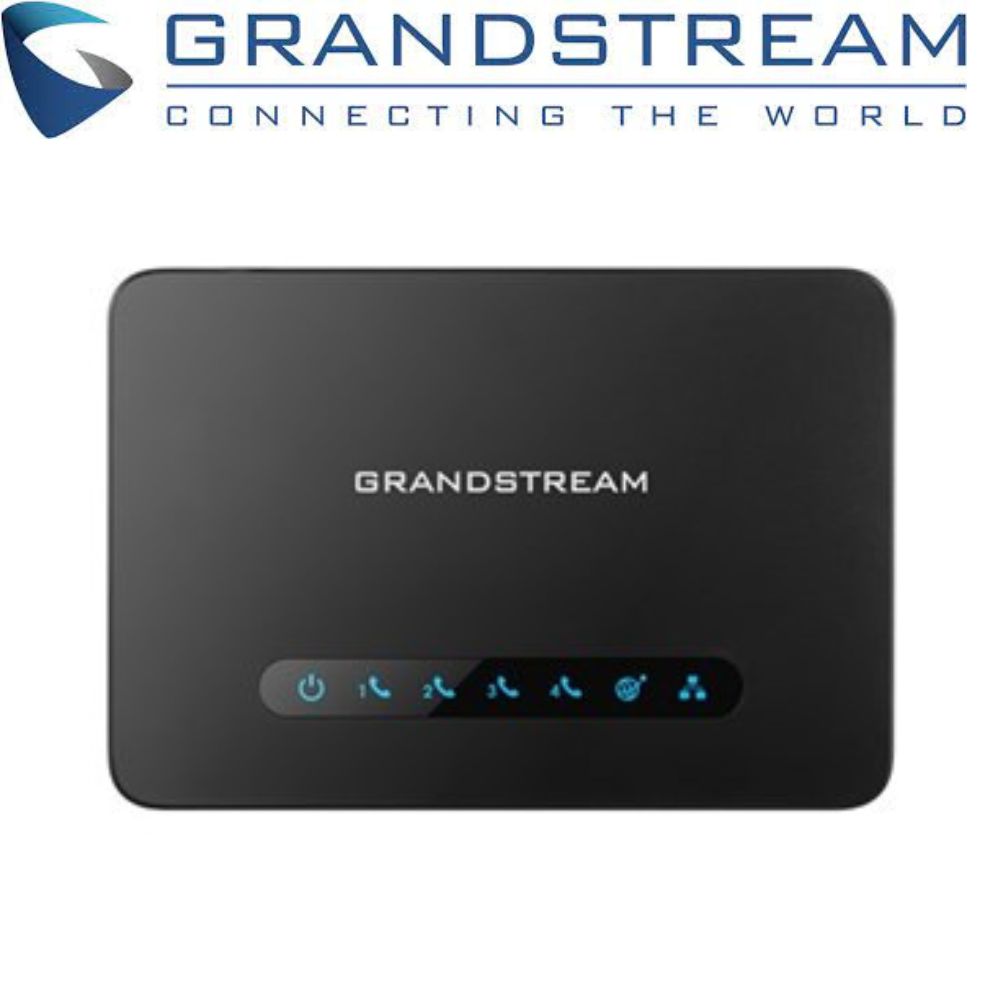

Grandstream Powerful 4 port FXS Gateway with Gigabit NAT Router - HT814

Description

Description

The HT814 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable, robustnetwork. Built using Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT814 comes with 4 easy-to-use FXS ports, an integrated Gigabit NAT router, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

Features

  • Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
  • Includes a built-in NAT router which can handle routing speeds up to 100MBps
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • Supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Datasheet
Tech Specs

Grandstream Powerful 4 port FXS Gateway with Gigabit NAT Router - HT814

Interfaces
Telephone Interfaces Two (2) FXS ports
Network Interfaces Two (2) 10/100/1000Mbps RJ45 ports
LED Indicators POWER, LAN, WAN, PHONE1, PHONE2
Factory Reset Button Yes
Voice, Fax, Modem
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward. hold, do not disturb, 3-way conference
Voice Codecs 6711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, 6.729A/B, G.726, İLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 3 REN, up to 1km on 24AWG line
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261) SIP over TCP/TLS, SRTP, TR-069
QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
DTMF Method In-audio, RFC2833 and/or SIP INFO
Provisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security
Media SRTP
Control TLS/SIPS/HTTPS
Management Syslog support, telnet, remote management using web browser
Physical
Universal Power Supply Input: 100-240VAC, 50-60Hz Output: 12V/0.5A
Environmental

Operational: 32o-104°F or 0°-40°C

Storage: 14-140°F or-10°-60°C

Humidity: 10-90% Non-condensing
Dimension and Weight 28.5 x 130 x 90 mm (HxWxD) 353.33g
Compliance FCC/CE/RCM

Read more

Grandstream Powerful 4 port FXS Gateway with Gigabit NAT Router - HT814

Product form

SKU: HT814

$236.25 $219.00 Incl. GST

    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    The HT814 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable, robustnetwork. Built using Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT814 comes with 4 easy-to-use FXS ports, an integrated Gigabit NAT router, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

    Features

    • Supports 2 SIP profiles through 4 FXS ports and dual Gigabit ports
    • Includes a built-in NAT router which can handle routing speeds up to 100MBps
    • TLS and SRTP security encryption technology to protect calls and accounts
    • Automated provisioning options include TR-069 and XML config files
    • Supports 3-way voice conferencing
    • Failover SIP server automatically switches to secondary server if main server loses connection
    • Supports T.38 Fax for creating Fax-over-IP
    • Supports a wide range of caller ID formats
    • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
    Datasheet
    Tech Specs

    Grandstream Powerful 4 port FXS Gateway with Gigabit NAT Router - HT814

    Interfaces
    Telephone Interfaces Two (2) FXS ports
    Network Interfaces Two (2) 10/100/1000Mbps RJ45 ports
    LED Indicators POWER, LAN, WAN, PHONE1, PHONE2
    Factory Reset Button Yes
    Voice, Fax, Modem
    Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward. hold, do not disturb, 3-way conference
    Voice Codecs 6711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, 6.729A/B, G.726, İLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
    Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
    Short/Long Haul Ring Load 3 REN, up to 1km on 24AWG line
    Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
    Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
    Signaling
    Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261) SIP over TCP/TLS, SRTP, TR-069
    QoS Layer 2 (802.1Q VLAN, SIP/RTP 802.1p) and Layer 3 (ToS, Diffserv, MPLS)
    DTMF Method In-audio, RFC2833 and/or SIP INFO
    Provisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
    Security
    Media SRTP
    Control TLS/SIPS/HTTPS
    Management Syslog support, telnet, remote management using web browser
    Physical
    Universal Power Supply Input: 100-240VAC, 50-60Hz Output: 12V/0.5A
    Environmental

    Operational: 32o-104°F or 0°-40°C

    Storage: 14-140°F or-10°-60°C

    Humidity: 10-90% Non-condensing
    Dimension and Weight 28.5 x 130 x 90 mm (HxWxD) 353.33g
    Compliance FCC/CE/RCM

    Read more
