| Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac (Wave-2) |

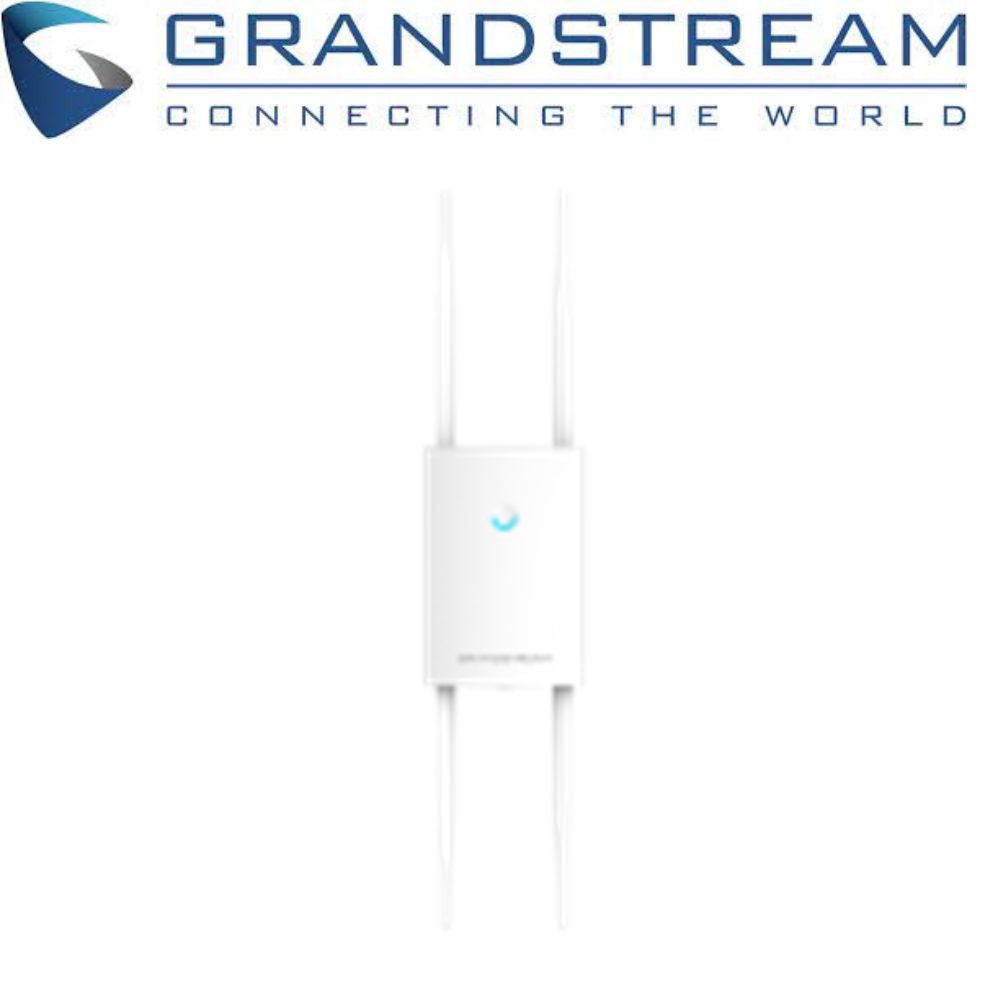

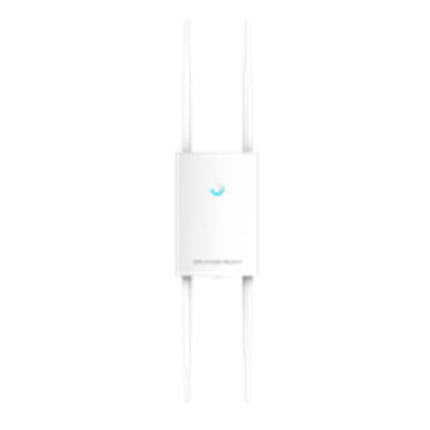

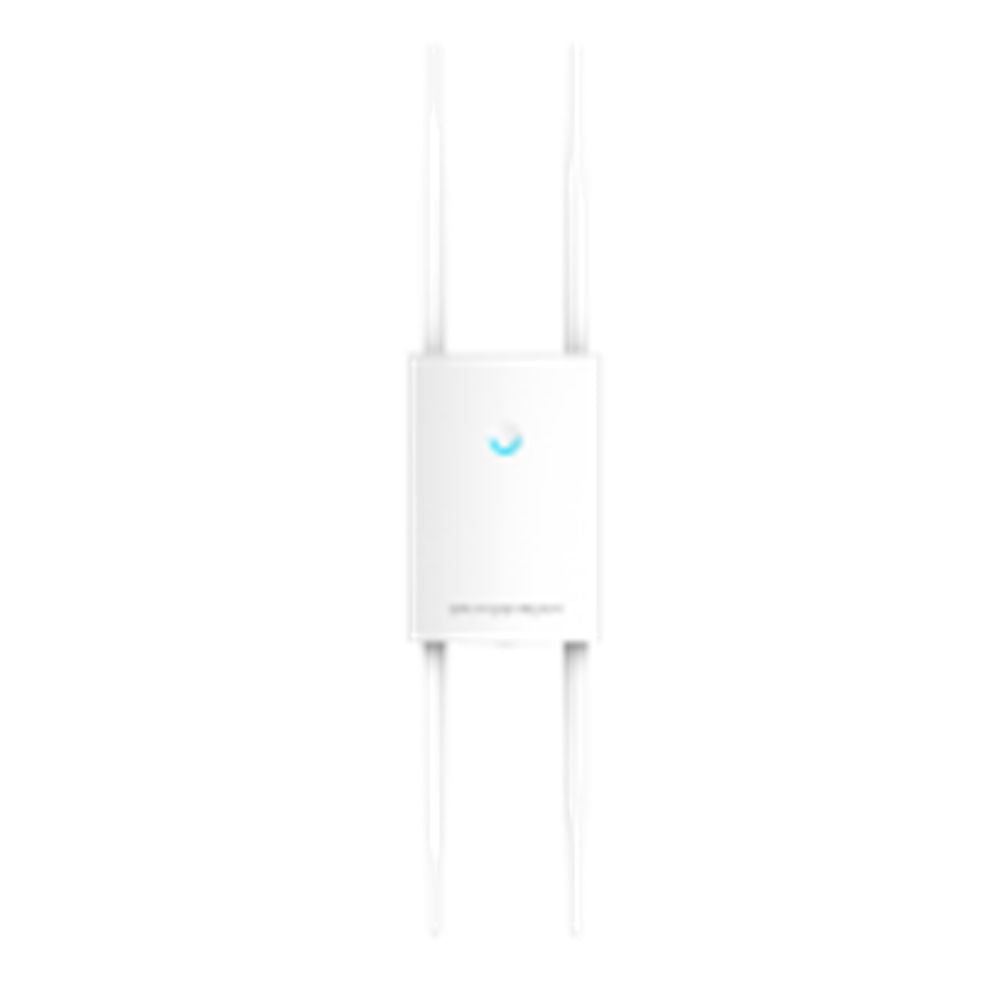

| Antennas |
4 detachable/changeable dual-band omnidirectional antennas
2.4GHz, gain 3.5dBi
5GHz, gain 3.5dBi |
| Wi-Fi Data Rates |
IEEE 802.11ac: 6.5 Mbps to 1733Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 600Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network |
| Frequency Bands |
2.4 GHz Radio: 2412 – 2484 MHz
5GHz Radio: 5150-5250MHz, 5250-5350MHz, 5470-5725MHz, 5725-5850MHz
*Not all frequency bands can be used in all regions. |
| Channel Bandwidth |
h 2.4G: 20 and 40MHz
5G: 20, 40 and 80MHz |
| System Security |
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise, anti-hacking secure boot and critical data/control
lockdown via digital signatures, unique security certificate and random default password per
device |
| MIMO |
4x4:4 2.4G (MIMO), 4x4:4 5G (MU-MIMO) |
| Coverage Range |
Up to 300 meters
*Coverage range can vary based on environment |
| Maximum TX Power |
2.4G: 27 dBm
5G: 25 dBm
*Maximum power varies by country, frequency band, and MCS rate |
| Receiver Sensitivity |
2.4G
802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps;
802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7
5G
802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:-
63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9 |
