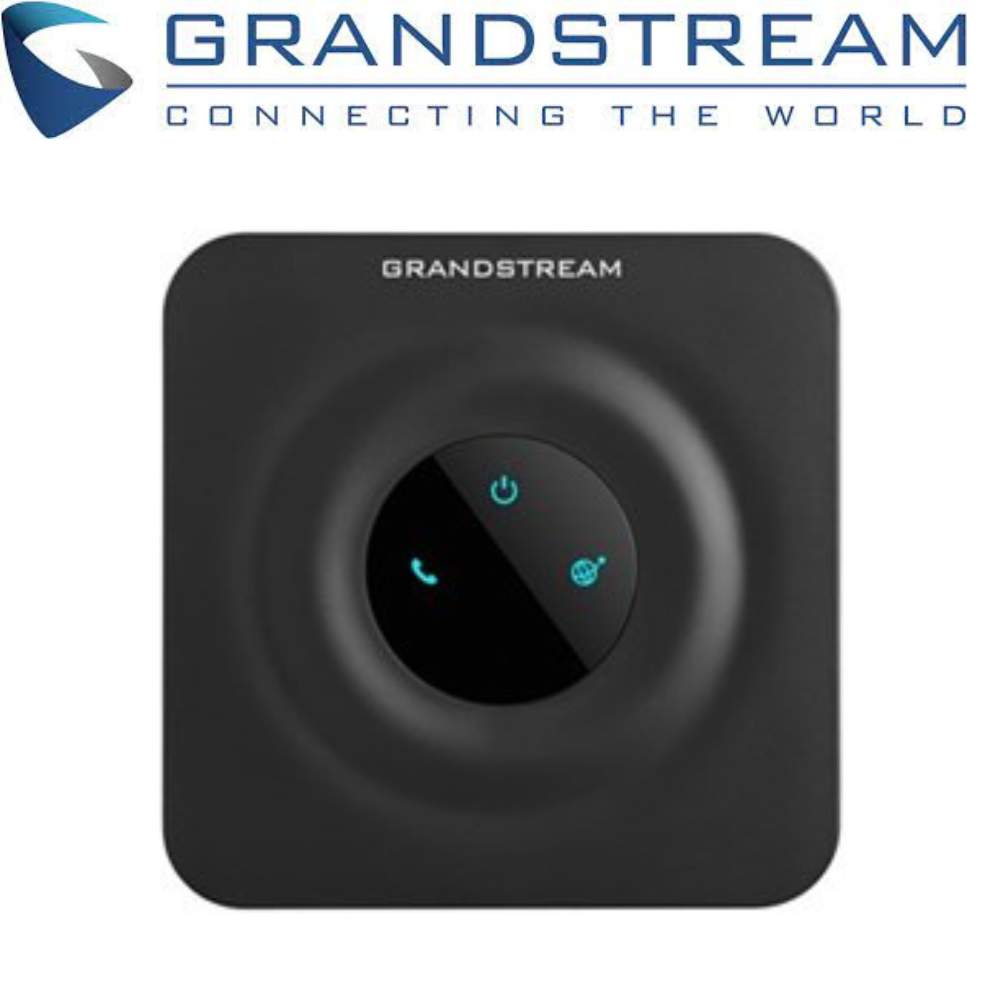

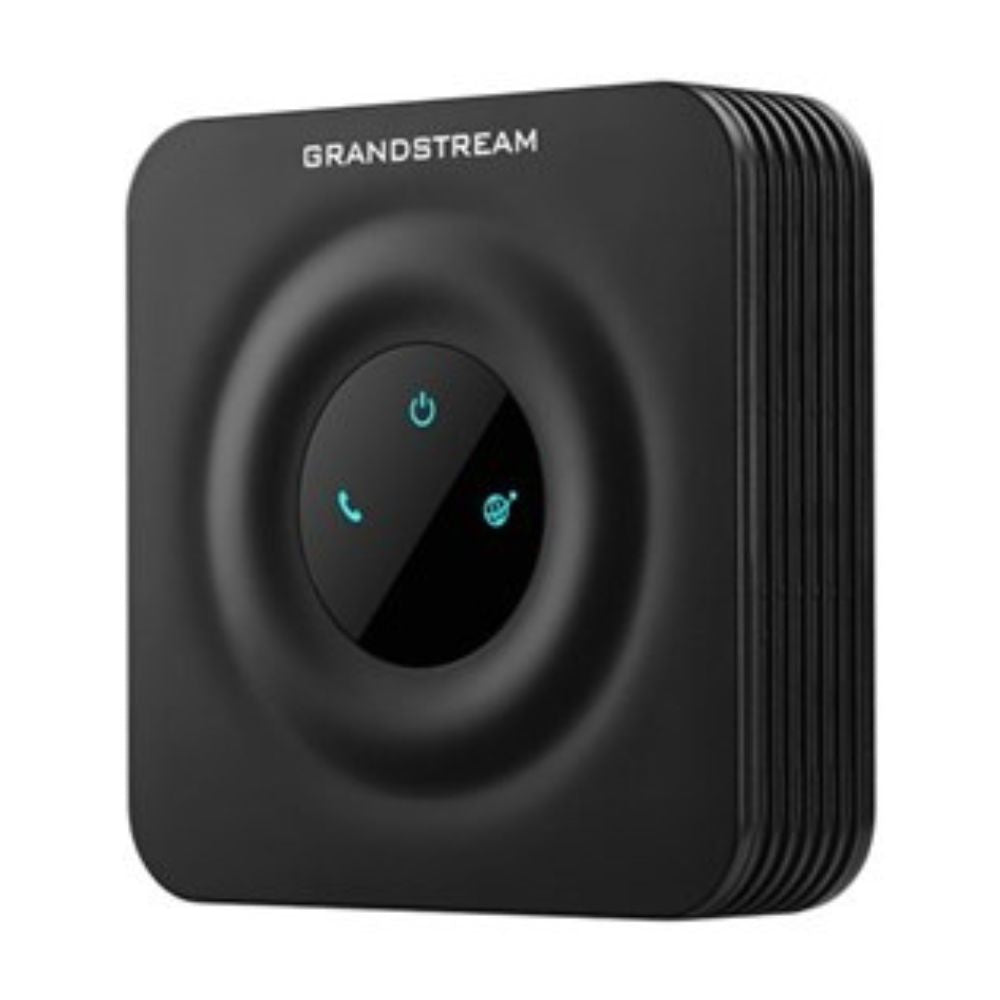

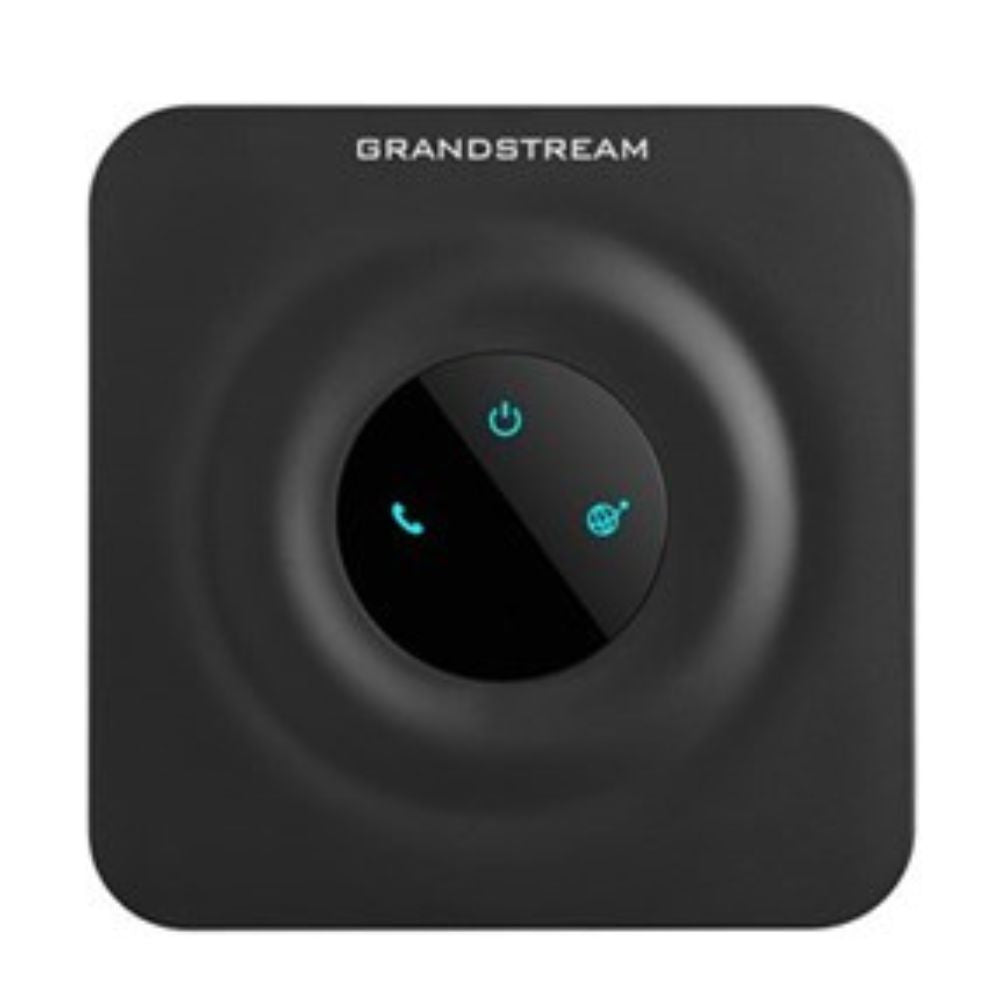

Grandstream An easy-to-use 1 port ATA - HT801

Description

Description

The HT801 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built upon Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

Features

  • Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • Supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
  • Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Datasheet
Tech Specs

Grandstream An easy-to-use 1 port ATA - HT801

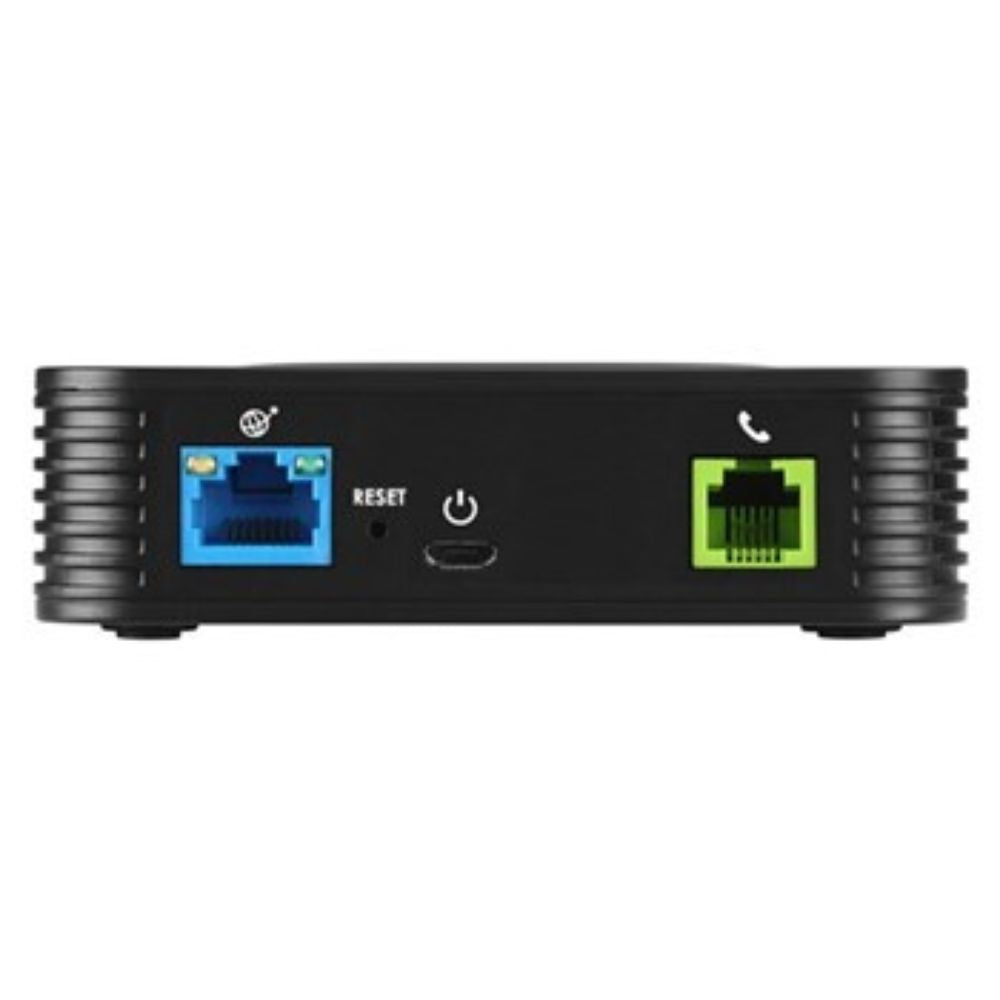

Interfaces
Telophone Interfaces One (1) FXS port
Network Interfaces One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
LED Indicators POWER, INTERNET, PHONE
Factory Resy Button Yes
Voice, Fax, Modem
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs 6.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 2 REN: Up to 1km on 24 AWG
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS Layer 3 (Tos, DiffServ, MPLS)
DTMF Method In-audio, RFC2833 and/or SIP INFO
Provisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security
Media SRTP
Control TLS/SIPS/HTTPS
Management Syslog support, telnet, remote management using web browser
Physical
Universal Power Supply

Input: 100-240VAC, 50-60Hz

Output 5.0VDC/1.0A
Environmental

Operational: 32°-104°F or 0°-40°C

Storage: 14°-140°F or -10° - 60°C

Humidity: 10-90% Non-condensing
Dimension and Weight Dimensions: 100mm x 100mm x 29.5mm Weight: TBD
Compliance FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, 5003

Read more

Grandstream An easy-to-use 1 port ATA - HT801

Product form

SKU: HT801

$101.84 $89.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet
