Description
VE1260
Drop Bolt
The patented VE1260 is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance. It can be installed vertically in the door frame (lock style) or horizontally in the frame header and has a symmetric dead-bolt mechanism to allowing it to be used on 180° degree swing through doors.
The VE1260 consumes an inrush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep Mode), the drop bolt consumes current less than 15mA@12VDC.
We recommend operating the product in 3-Wire-Mode (See installation manual). An optional LED red/green indicator unit is available.
Product Features
- Releases with up to 35kg of Pre-Load/Side Load (3-wire mode)
- Durability tested to 400,000 cycles
- Multi Voltage operation 11-30VDC
- Sleep-Mode Current less than 15mA@12VDC
- Fully monitored including reed switch for door position
- Up to 1000kg Holding Strength
- Up to 4-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)
- Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2 : 1993)
- 5 year warranty
- Retrofit version for Trimec/PADDE ES8000 (VE1260S Square Edge Version)
- HL1260-SMK is an optional accessory
- CE/C-Tick
SKU: VE1260S-ST12

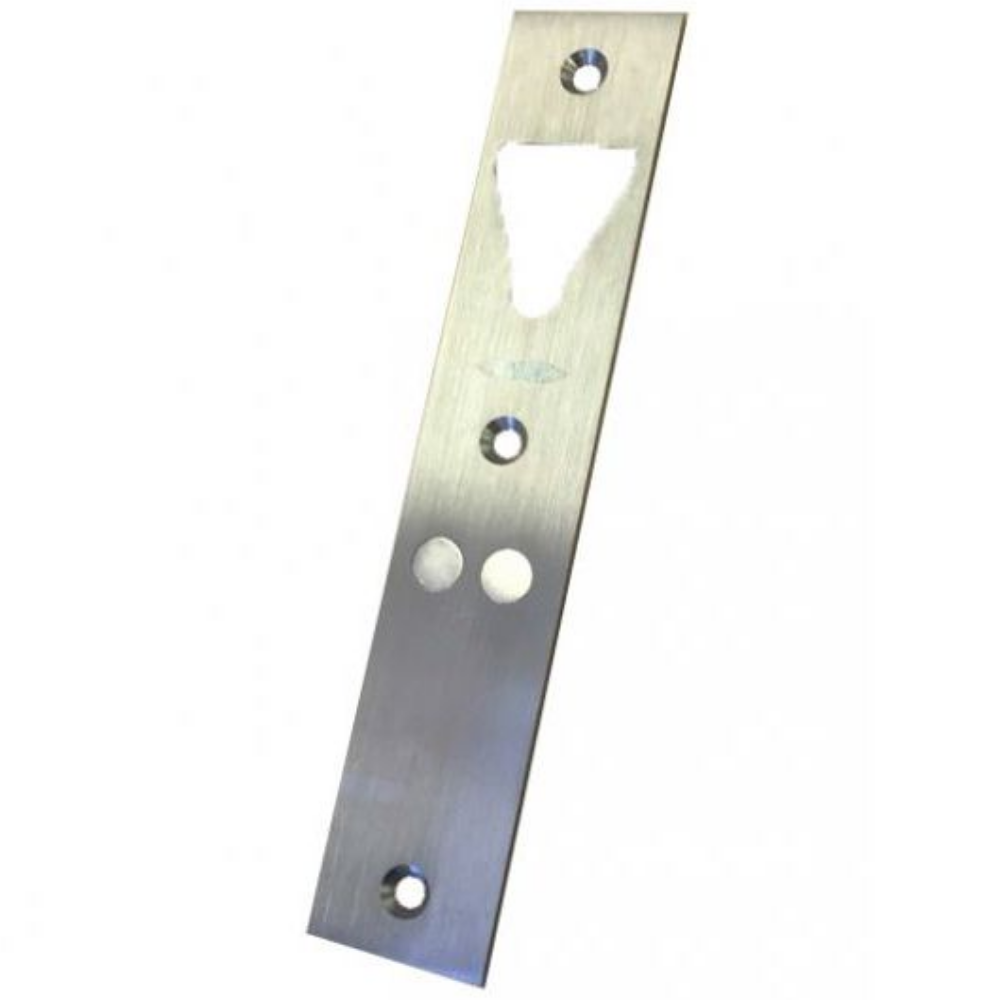

FSH StrikePlate 40mm(-/+12 dr align MIN THICKNES 50mmSQ) - VE1260S-ST12
For additional details including technical specifications, please refer to the official website or the datasheet.
Datasheet for VE1260S-ST12Information for VE1260S-ST12
