Description
FSS1
High Security Sensors
The FSS1 Series of High Security Door Monitoring Sensors are designed to provide a true high security solution for door position monitoring.
It is an award winning, state-of-the-art monitoring solution with a flush mount version for new construction, and surface mount version as a superior replacement for traditional magnetic balanced reed sensors.
Specifically developed for high security applications in government, high risk and defence installations, the FSS1 Series high security door monitoring sensors consist of seven magnetic sensors that are used to detect a unique magnetic footprint from an array of magnets on the magnetic face plate. One sensor is used to detect the position of the magnetic face plate in relation to the device, while the other six sensors are used to determine the polarity, size, strength and position of the magnets on the unique magnetic face plate in relation to the memorised pattern.
The sensor is designed to operate on a hinged door swinging in one direction. The FSS1 is equipped with sophisticated anti-tamper facilities. The product is listed in the Australian Government Security Equipment Evaluated Product List (SEEPL) and UL listed to UL 634.2.
SKU: FSS1-F

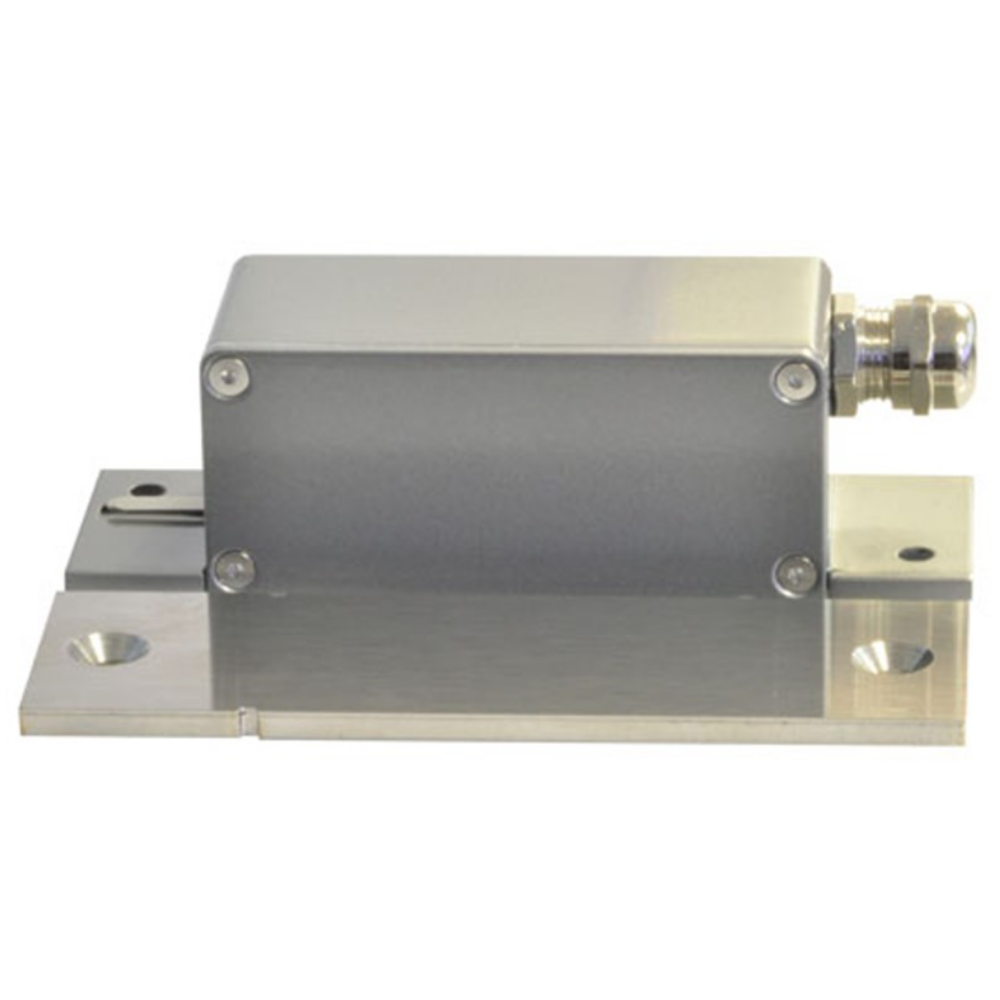

FSH HighSecurity Door Monitoring Sensor FLUSH Mount - FSS1-F
For additional details including technical specifications, please refer to the official website or the datasheet.
Datasheet for FSS1-FInformation for FSS1-F
