Description

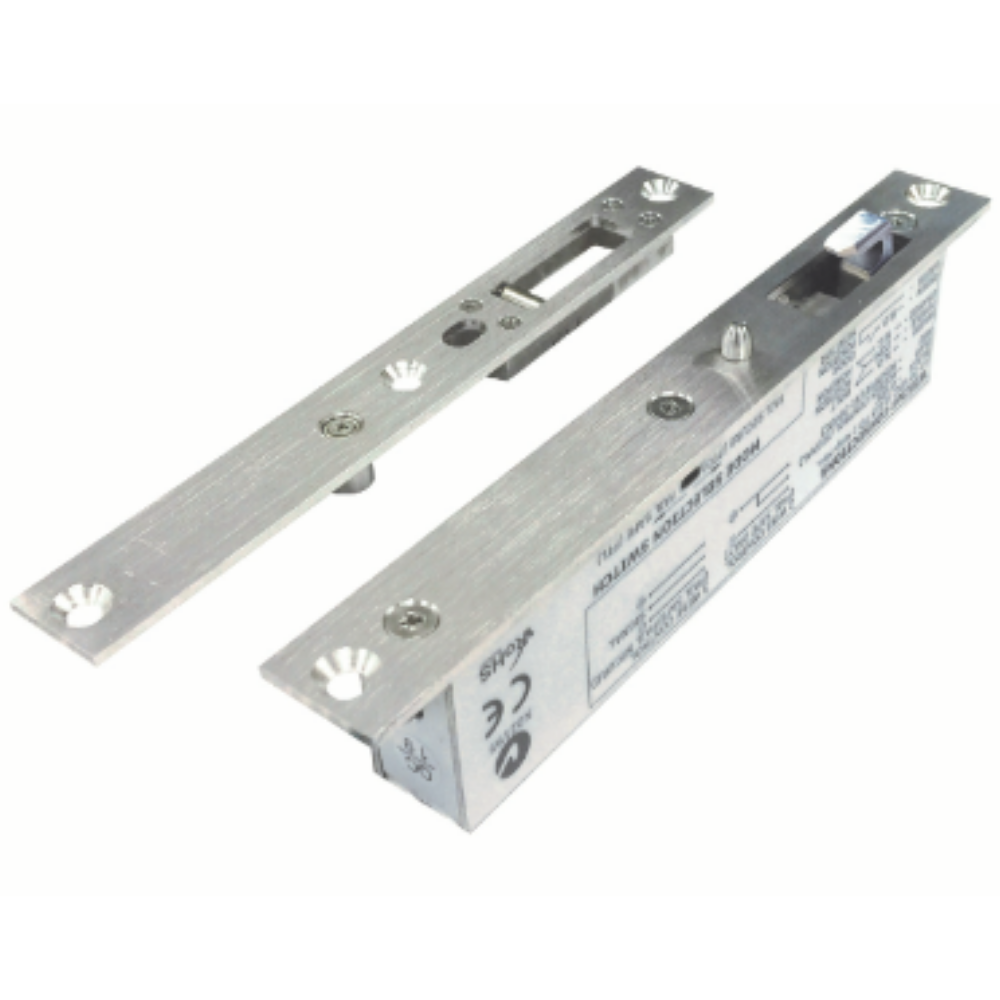

HL1260
High Security Motorised Hook Lock
The patented HL1260 is a high torque motor driven hook lock for a sliding door. It can be installed vertically in the door frame (lock style) with the strike plate mounted on the edge of the door. Alternatively, there is a surface mount box for the strike plate and/or lock for a sliding door.
The HL1260 consumes an in-rush current of 290mA@12VDC only during locking and unlocking action (Active Mode), then in the locked or unlocked state (Sleep-Mode), it consumes current less than 15mA@12VDC.
The HL1260 hook lock should not be exposed to wind and weather as it is not IP rated.
We recommend operating the product in 3-Wire-Mode (See installation manual).
- Motorised locking device
- Durability tested to 400,000 cycles
- Multi Voltage operation 11-30VDC
- Sleep-Mode Current less than 15mA@12VDC
- Fully monitored including reed switch for door position
- Up to 650kg Holding Strength
- 5 year warranty
- Up to 4-hour fire rated in accordance with AS1905.1:2015 (contact Allegion for more details)
- Conforms to S3* (Security) and D3 (Durability) Australian Lock Standard (AS4145.2 : 1993)
- CE/C-Tick
SKU: HL1260
FSH HIGH SECURITY MOTORISED HOOK LOCK 5YR - HL1260
For additional details including technical specifications, please refer to the official website or the datasheet.
Datasheet for HL1260Information for HL1260
