Description

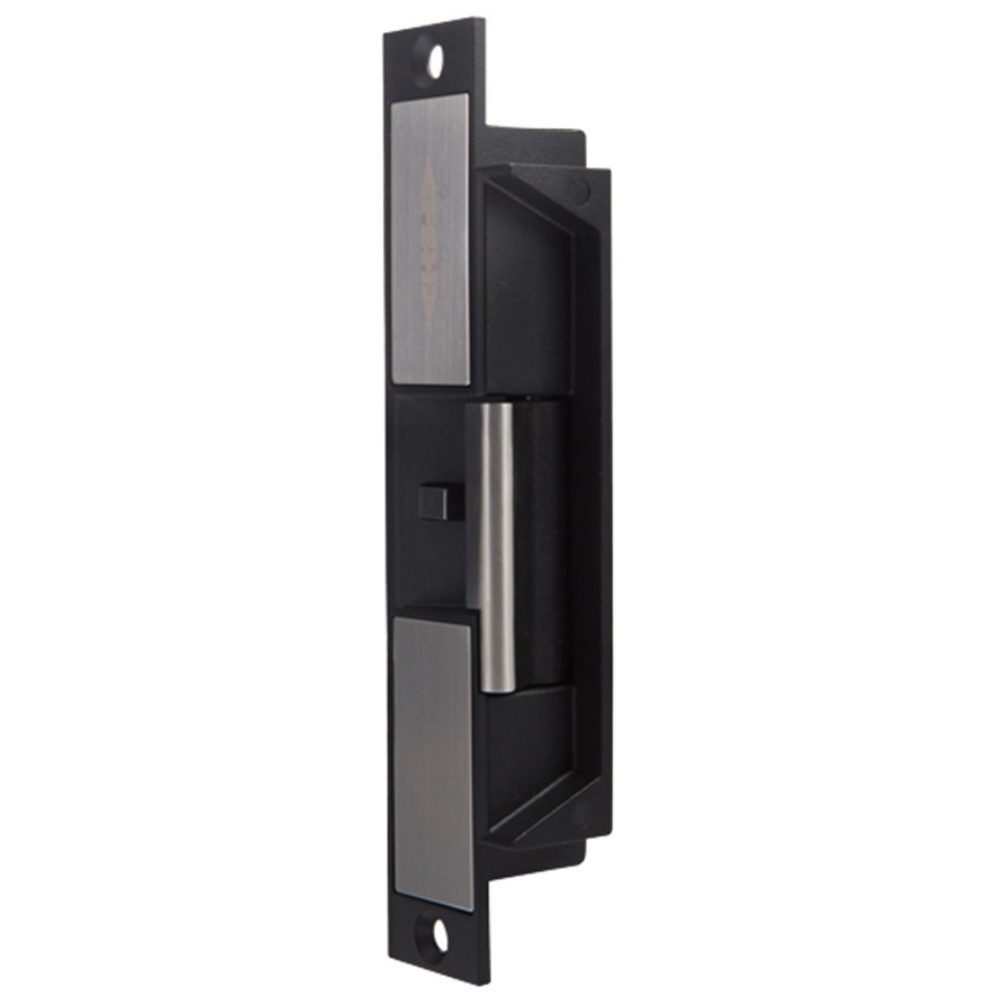

FES90M-P
High Security Electric Strike
The patented FES90M-P motorised high security electric strike is a revolutionary electric locking solution. The high pre-load /side-load tolerance, and minimal energy consumption in Sleep Mode, makes this an economic security solution.
The strike accepts voltages from 10 to 30VDC, is pre-drilled for extension lips and has a unique Power To Lock (PTL) / Power To Open (PTO) field changeable function. The strike consumes current less than 300mA @ 12VDC at full 35kg pre-load only during locking and unlocking action. In the locked or unlocked state (Sleep Mode), the electric strike consumes less than 15mA @ 12VDC.
The FES90M-P provides two forms of monitoring:
•Lock Status Sensor (LSS)
• Door Status Sensor (DSS) FES90M-P comes with a 10mm strike lip as standard.
- Releases with up to 35kg of pre-load / side-load
- Motorised locking device
- Durability tested to 1.5 million full pre-load cycles of 35kg
- Multi voltage from 10 to 30VDC
- Sleep Mode Current less than 15mA@12VDC
- Fully monitored including Reed Switch for door position
- Pre-drilled for extension lips
- Up to 1300kg holding strength
- 5 year warranty
- Guaranteed shock/hammer resistant
SKU: FES90MP
FSH Hi Sec Elect EcoStrike w PreLoad AUS Footprint Mon - FES90MP
For additional details including technical specifications, please refer to the official website or the datasheet.
Datasheet for FES90MPInformation for FES90MP
