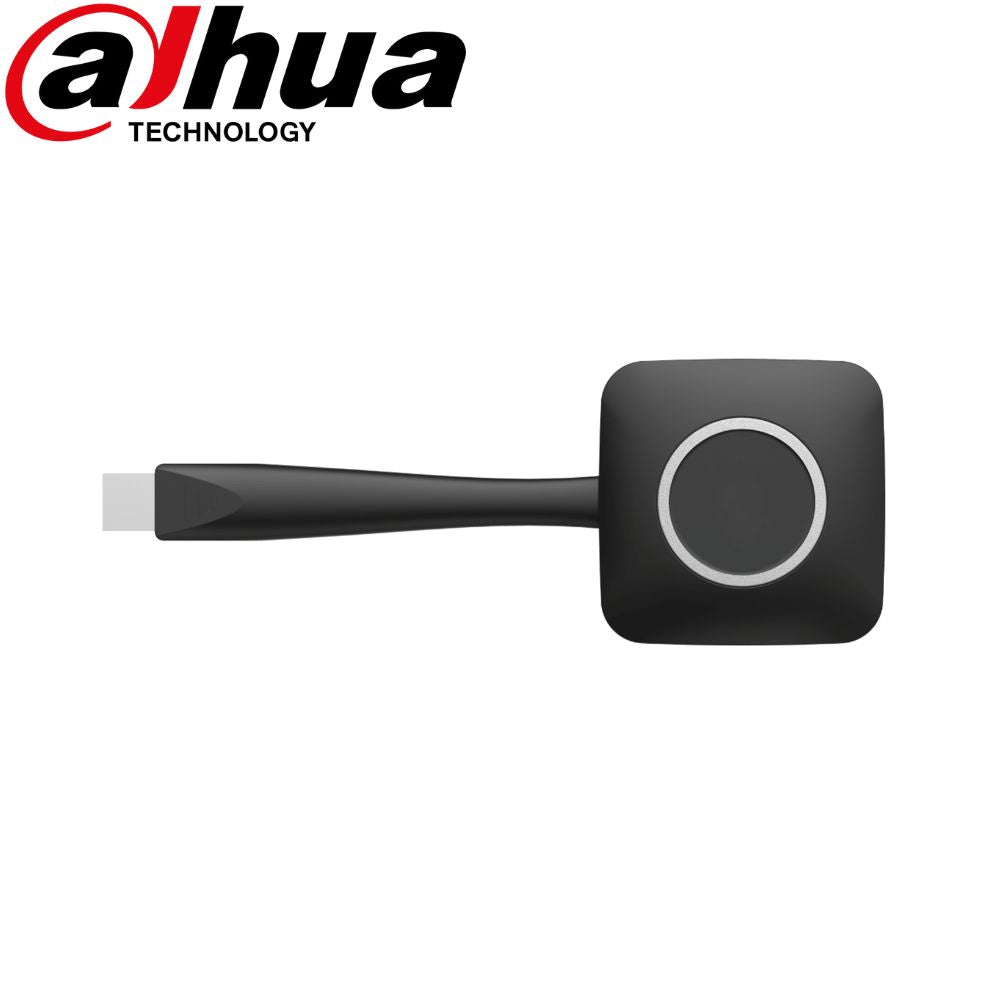

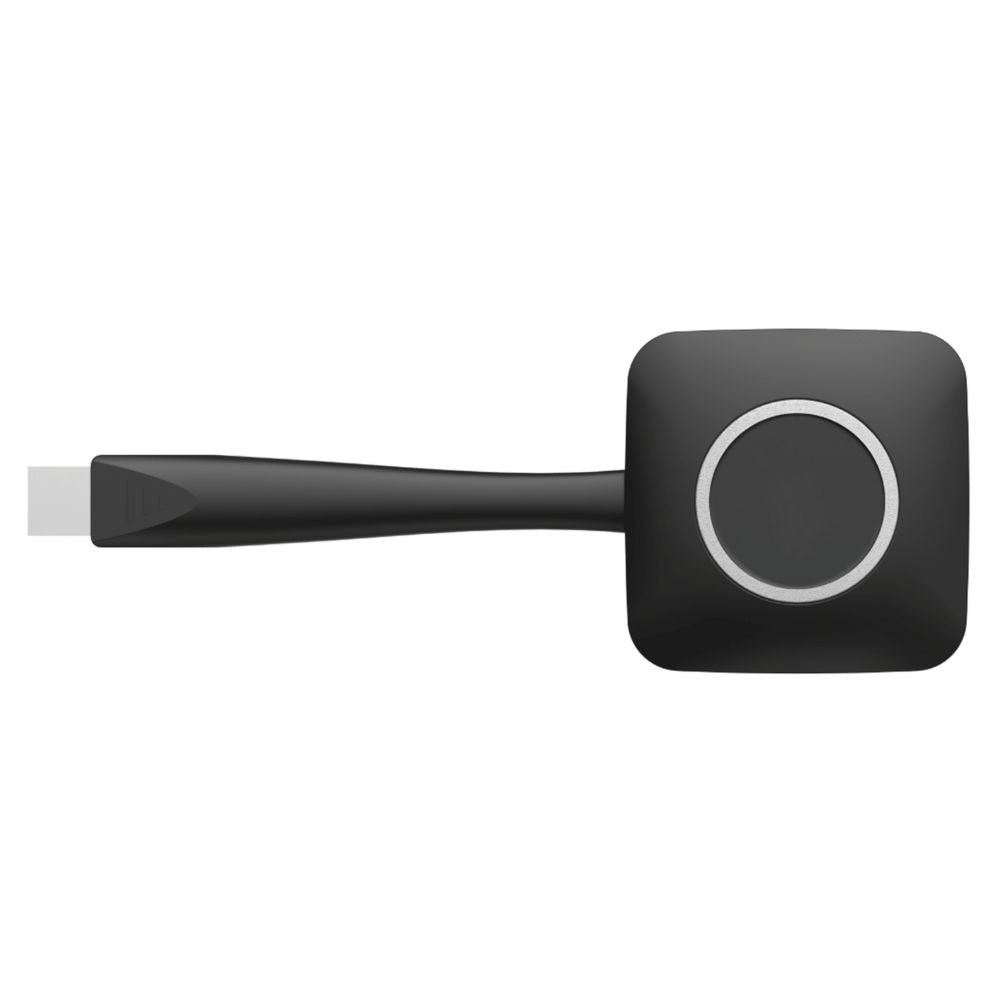

DHI-PKP-WP0B is used with the Smart Interactive Whiteboard for wireless projection.
Downloads
Tech Specs
Hardware |
Input Resolution |
1920 × 1200 |
Output Resolution |
1920 × 1080 |
Port |
1 × USB 2.0 |
Input Voltage |
5 VDC |
Power Consumption |
2.5 W |
System config |
Transmission Delay |
< 120 m/s |
Operating System |
Windows 7, Windows 8, and Windows 10; Mac OS X 10.6, Mac OS X 10.7 and later |
Encryption |
CCMP |
Authentication Protocol |
WPA2-PSK |
Wireless Transmission Protocol |
IEEE 802.11 a/g/n |
Wireless Data Rate |
54 Mbps |
Frame Rate |
Windows: 1920 × 1080@25 fps/1366 × 768@25 fps
IOS: 1920 × 1080@30 fps/1366 × 768@30 fps |
Structure |
Net Weight |
63.3 g (0.14 lb) |
Dimensions |
61 mm × 156 mm × 17 mm (2.40'' × 6.14" × 0.67") |
Environment |
Operating Temperature |
5 °C to 40 °C (41 °F to +104 °F) |
Operating Humidity |
0%–80% ((no condensation) |
Transmission Distance |
The distance between wireless projectors and the host is up to 15 m |
Frequency Band |
2.4 GHz and 5 GHz (recommended) |
