Description

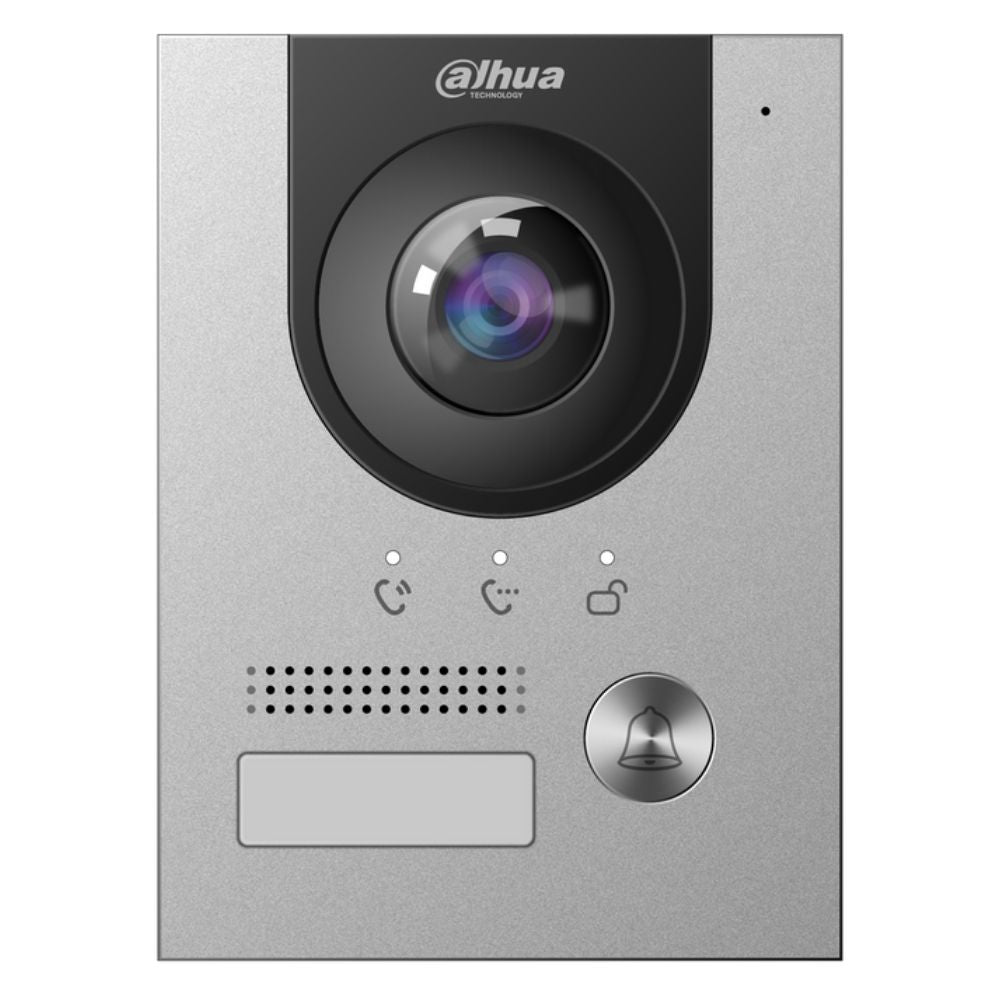

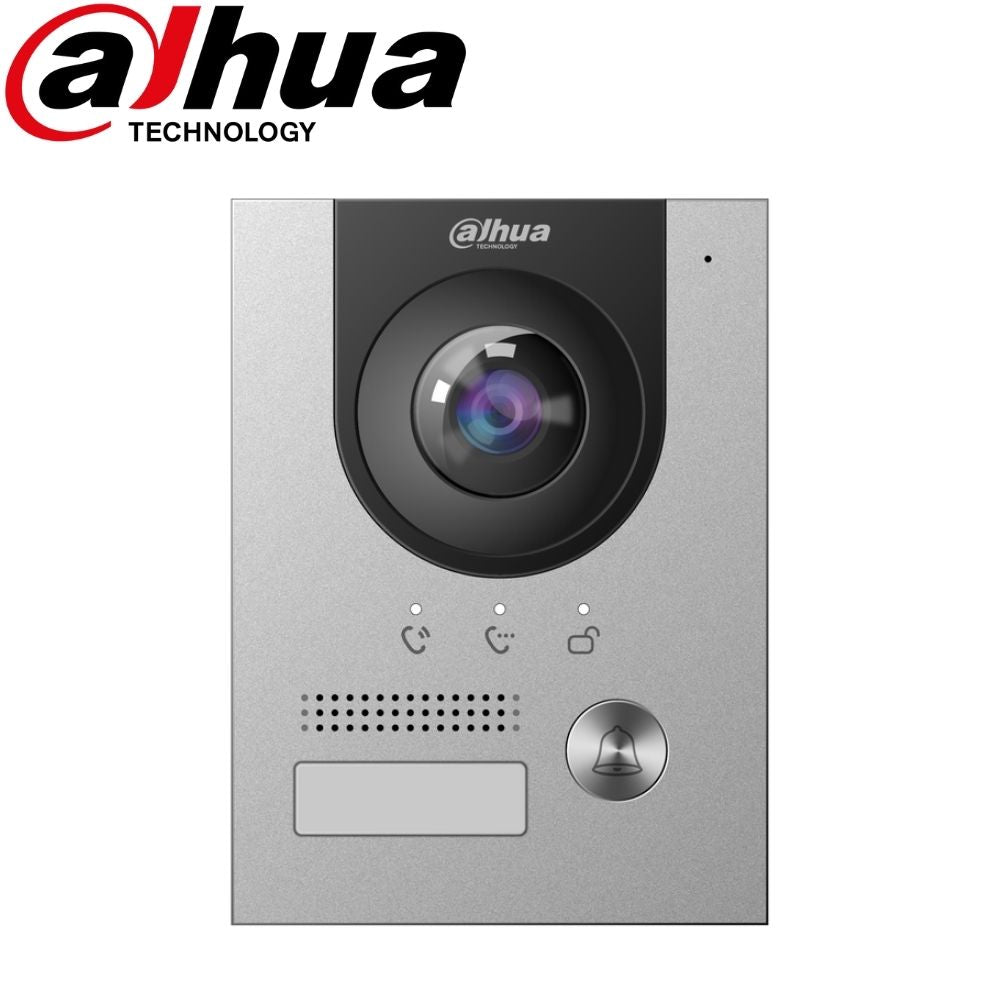

Dahua VTO2202F-P IP Villa Door Station is part of Dahua's VTH Series. VTH series products are digital video intercom home stations that integrate monitoring, two-way communication, and door management. The VTH devices use an IP network, SNMP (Simple Network Management Protocol) technology, and network encryption technology to achieve a stable system, robust functionality, convenient operation, and safer data transmission. These devices allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor.
IP Villa Outdoor Station - VT02202F-P-S1
- 2MP 1080p Full HD CMOS Camera
- 160° Angle of View.
- ICR Night Vision & Voice Indication
- Video & Audio Messaging
- Surface-Mounted
- Aluminum Alloy Panel
- Mechanical push button
- IP65 "Weatherproof" and IK10 "Vandalproof" Protection.
- Compatible with VTH5222CH-S1 and VTNS1006A-2
Downloads
Tech Specs
IP Villa Outdoor Station - VT02202F-P-S1
System Parameter |
Host Processor |
Embedded processor |
Camera |
1/2.8" 2MP CMOS high definition low illumination colorful
|
Angle of view |
D:180° H:160° V:82° |
Focal length |
1.95 mm |
WDR |
Support |
Noise reduction |
Noise suppression and echo cancellation |
Video encoding |
H.264 |
Frame rate |
PAL:25 fps NTSC:30 fps |
Audio encoding |
G.711 U |
Video bit rate |
256K to 2M |
Light compensation |
IR Supplement |
Port |
RS-485 Port |
1 |
Alarm Output |
1 |
Lock Control |
1 set |
Door Status Detection |
1 set |
Eoc |
1 set |
Exit Button |
1 |
Tamper Switch |
1 set |
Network Interface |
1 |
Power Output |
12V/100mA |
Alarm Parameter |
Tamper Alarm |
Support |
Door Sensor Timeout Alarm |
Support |
Alarm Input |
Support |
Alarm Output |
Support |
User Parameter |
Audio Input |
Built-in Omnidirectional Microphone |
Audio Output |
Built-in Loudspeaker |
Status Indicator |
calling&communication&unlocked |
Communication Methods |
Digital communication |
Unlock Mode |
Remote unlocking |
Auto Snapshot |
Support |
Leave Videos or Text Messages |
Support |
Storage |
Extended 64 G TF Card |
WEB Configuration |
Support |
Real-Time Monitor |
Support |
Normal Parameter |
Ingress Protection |
IP65 (Apply silica gel to gaps between the device and
the wall. Liquid sodium silicate is recommended. For
details, see the quick start guide.)
|
Network Update |
Online update |
Housing material |
Aluminium |
Power supply mode |
2-Wire Interface or PoE |
Rated Power |
12V DC |
Rated Current |
1A |
Installation method |
Supports surface-mounted and flush-mounted |
Dimensions |
130 mm×96 mm×28.5 mm (5.1"×3.78"×1.1") |
Working Temperature |
-30°C to +60°C (-22°F to +140°F) |
Working Humidity |
10%–90% |
Atmospheric Pressure |
86kPa–106kPa |
Power Consumption |
?12W |
Total Weight |
0.35kg/0.77lb |
Environmental Requirement |
Outdoor |
