Description
The bluetooth reader means it can interact with your smart mobile phone. The reader can receive the information by bluetooth when your phone is nearby it. There is no need to pair the reader with mobile phone. All you must do is that you click the unlock button on mobile phone's screen or shake your phone. The app name is Easy4key, choose access control and scan the QR code from SmartPSS, then the app will add your access card information. After this step, your phone is your access card.
What is OSDP?
Open Supervised Device Protocol (OSDP) is an access control communications standard developed by the Security Industry Association (SIA) to improve interoperability among access control and security products. OSDP v2.1.5 is used in current firmware version, it's a standard recognized by the American National Standards Institute (ANSI), and OSDP is in constant refinement to retain its industry-leading position.
Why use OSDP?
Already in wide use by many manufacturers, the Security Industry Association encourages broad adoption of this standard and recommends specifying OSDP for any access control installations that require real security and/or will be used in government and other higher security settings.
Features
- Wiegand34(26 optional) bits RS-485 protocol
- Support OSDP;
- 13.56MHz(Mifare)
- 125KHz(EM-ID)
- Water-proof design
- Red, blue and green indicator LEDs
- Surface mounted installation
Datasheets
Tech Specs

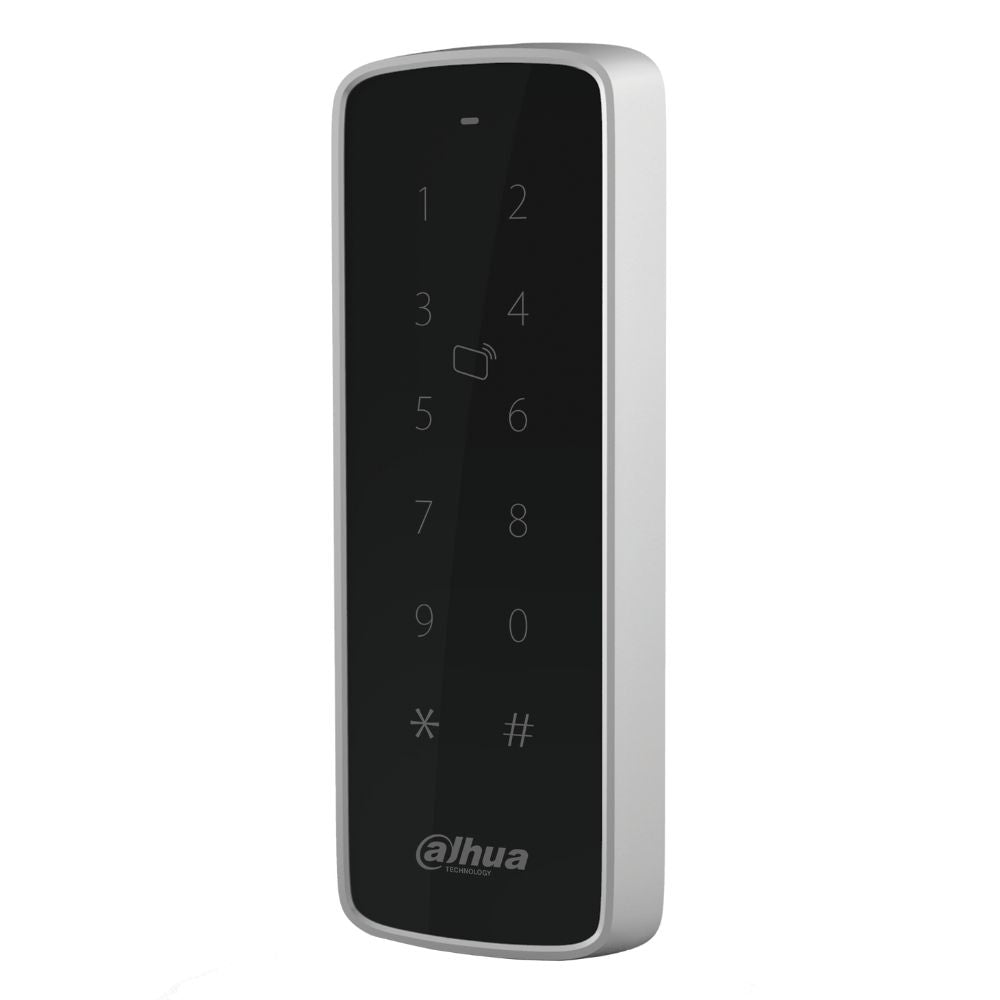

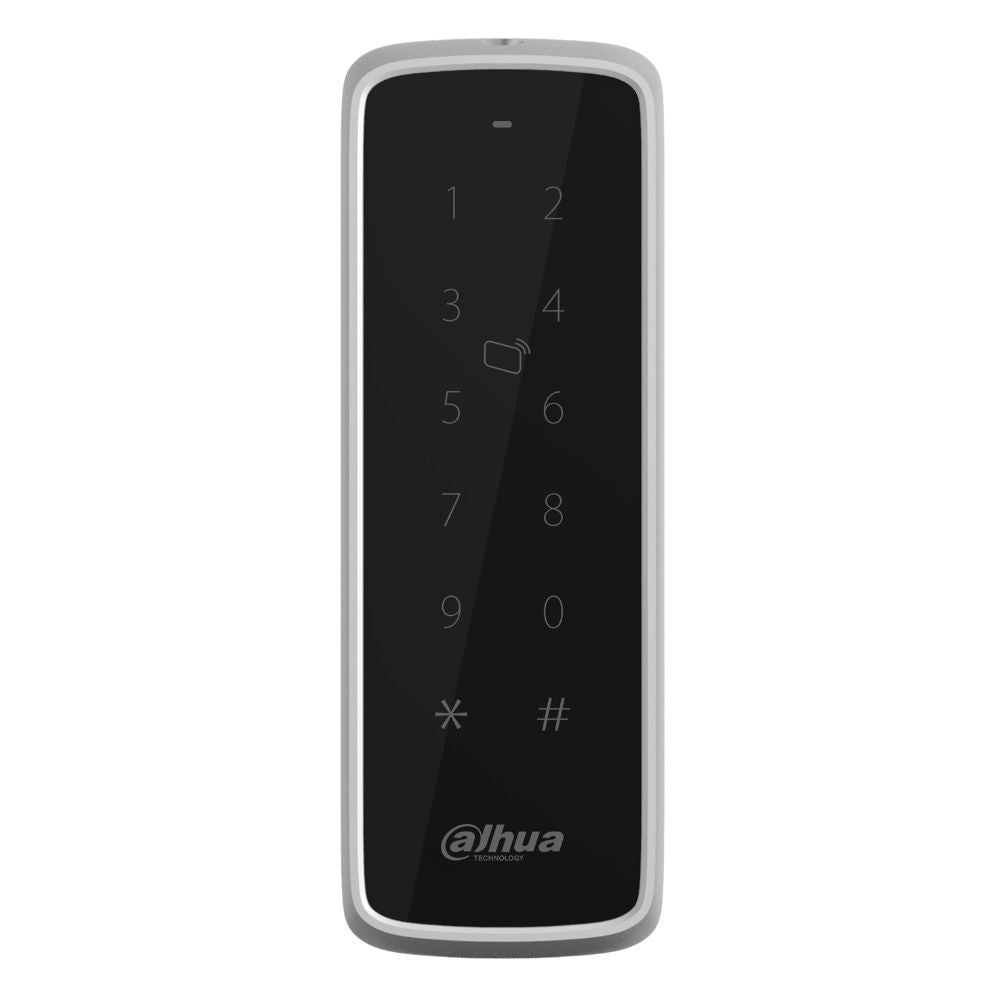

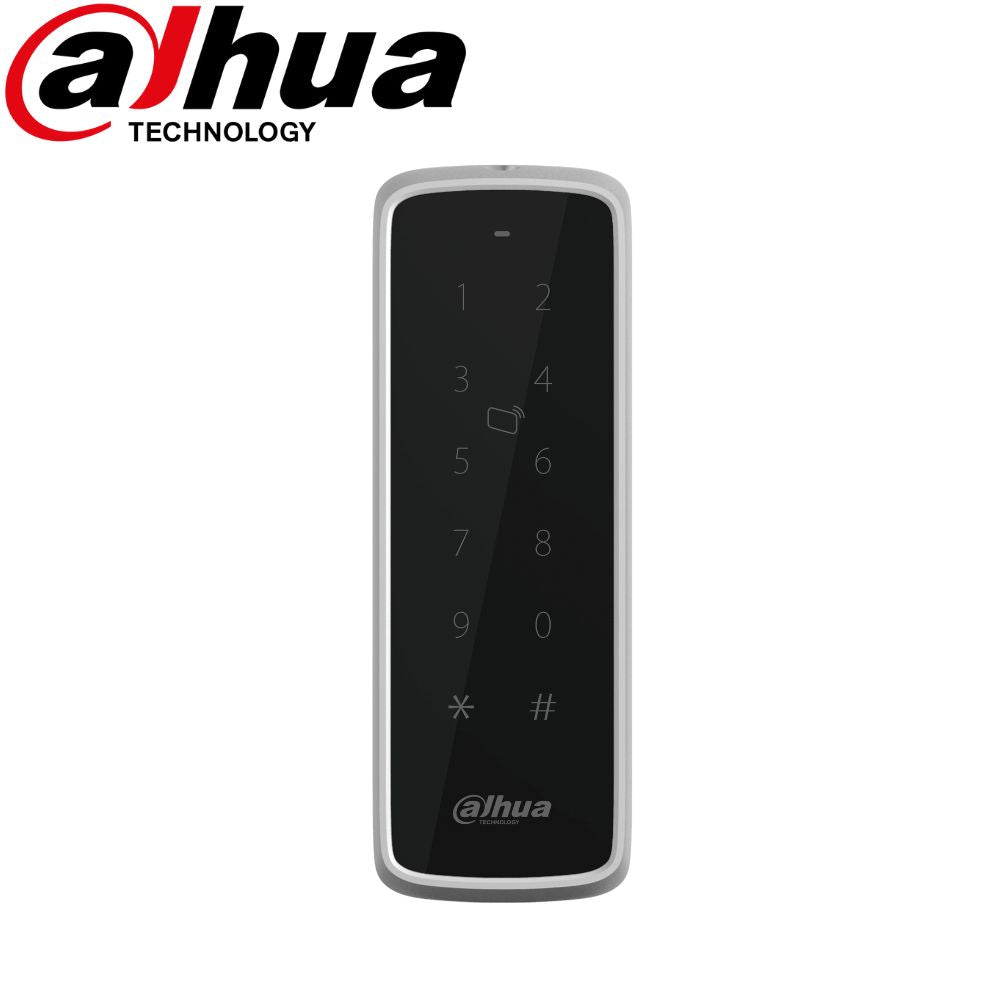

Dahua Slim Water-proof Bluetooth Reader - DHI-ASR2201D-B
Technical Specification |
Mode |
ASR2201D-B |
ASR2201D-BD |
System |
Main Processor |
32 Bit |
Read |
Read Format |
13.56MHz |
125KHz |
Read Range |
1cm–3cm (max.) |
Card Response |
<0.5s |
Bluetooth Range |
0m–5m |
Bluetooth Response |
<1s |
Function |
Water-proof |
IP55 |
Interface |
To Controller |
RS485,Wiegand 34(26 optional) |
General |
Beep Tone |
Buzzer |
Power Supply |
9V–15V DC/200mA |
Operating Temperature |
-30°C to +60°C |
Working Humidity |
≤95% |
Dimension(W×D×H) |
47.5mm×16mm×135mm |
Weight |
0.2kg |
Working Environment |
Outdoor |
Certificates |
CE |
Yes |
FCC |
Yes |
3-Years Warranty
Dahua’s 3-year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
