Description

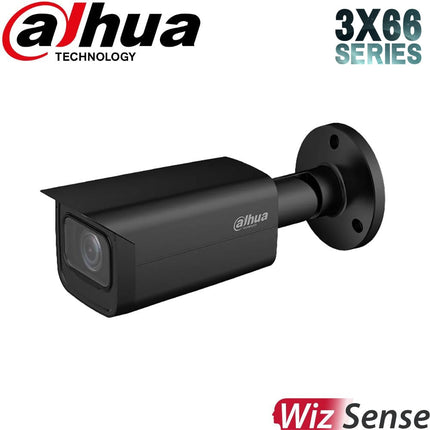

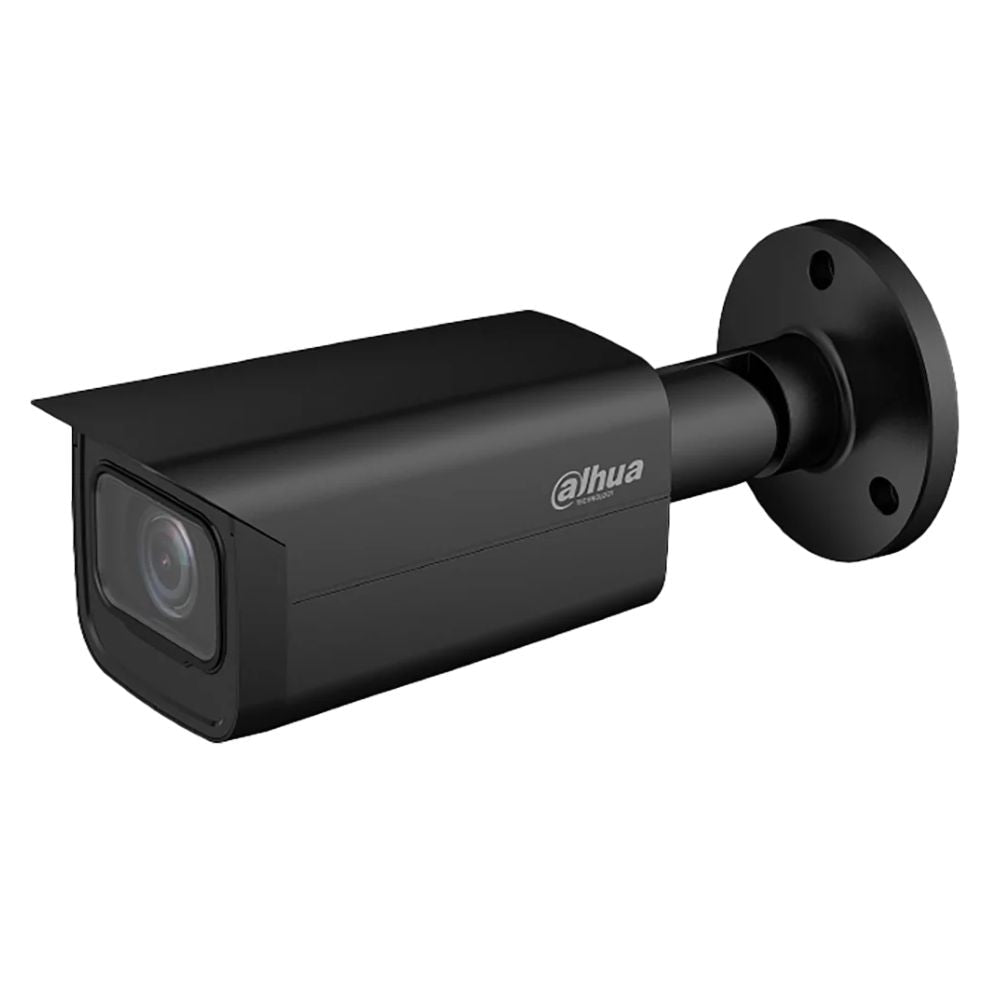

This video highlights the new features introduced by the 3X66 series. This product's specifications may vary in terms of resolution, model, etc. Please refer to the datasheets for accurate specs or contact us for questions.
Launched by Dahua Technology, WizSense is a series of wide-range AI products and solutions that adopt independent AI chips and deep learning algorithms. It can recognize humans and vehicles in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on humans and vehicles, benefiting everyone with intelligent functions, simple configuration and inclusive products.
SMD 4.0：With upgraded AI capabilities, the SMD function filters out irrelevant objects in the scene. Equipped with a new deep learning algorithm, SMD 4.0 is optimized to filter out small and large animals in the scene to avoid triggering false alarms.
Also, SMD 4.0 can detect the colour information of clothing and vehicle for data support of quick search after an event.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- 8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images
- Outputs max. 8 MP (3840 × 2160) @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED, max. IR distance: 60 m.
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Supports the AFSA (Anti-flicker Self-adaption) function, which automatically eliminates flicker
- Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out (Only - ZAS supports); audio: 1 in, 1 out (Only - ZAS supports); max. 256 G Micro SD card. built-in Mic.
- 12 VDC/PoE power supply facilitates installation.
- IP67, IK10 (optional) protection.
- SMD 4.0, AI SSA.
Downloads
Tech Specs
Camera |
Image Sensor |
1/2.8" CMOS |
Max. Resolution |
3840 (H) × 2160 (V) |
ROM |
128 MB |
RAM |
1 GB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.007 lux@F1.5 (Color, 30 IRE)
0.0007 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on) |
S/N Ratio |
>56 dB |
Illumination Distance |
60 m (196.85 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
4 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360° |
Lens |
Lens Type |
Motorized vari-focal |
Lens Mount |
φ14 |
Focal Length |
2.7 mm–13.5 mm |
Max. Aperture |
F1.5 |
Field of View |
Horizontal: 109°–30°
Vertical: 56° –17°
Diagonal: 131° –35° |
Iris Control |
Fixed |
Close Focus Distance |
0.8 m (2.62 ft) |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
W |
88.3 m
(289.70 ft) |
35.3 m
(115.81 ft) |
17.7 m
(58.07 ft) |
8.8 m
(28.87 ft) |
T |
289.7 m
(950.46 ft) |
115.7 m
(379.59 ft) |
57.9m
(189.96 ft) |
29.0 m
(95.14 ft) |
Intelligence |
IVS (Perimeter Protection) |
Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
AI SSA |
Yes |
Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec |
Smart H.265+
Smart H.264+ |
AI Coding |
AI H.265
AI H.264 |
Video Frame Rate |
Main stream: 3840 × 2160 @ (1–25/30) fps
Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)
Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
|
Stream Capability |
3 streams |
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 ×
1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Image Stabilization |
Electronic Image Stabilization (EIS) |
Region of Interest (RoI) |
Yes (4 areas) |
Defog |
Yes |
AFSA |
Yes |
Image Rotation |
0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm |
Alarm Event |
-ZAS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception
-ZS:
No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception
|
Network |
Network Port |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
User/Host |
20 (Total bandwidth: 64 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE11
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Client |
IOS; Android |
Certification |
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
Port |
Audio Input |
1 channel (RCA port) (Only - ZAS supports) |
Audio Output |
1 channel (RCA port) (Only - ZAS supports) |
Alarm Input |
1 channel in: 5 mA 3–5 VDC (Only - ZAS supports) |
Alarm Output |
1 channel out: 300 mA 12 VDC (Only - ZAS supports) |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 4 W (12 VDC); 4.9 W (PoE)
Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE) |
Environment |
Operating Temperature |
–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH |
Storage Temperature |
–40°C to +60°C (–40°F to 140°F) |
Protection |
IP67 |
Structure |
Casing |
Metal |
Product Dimensions |
244.1 mm × 79.0 mm × 75.9 mm
(9.61" × 3.11" × 3.00") (L × W × H) |
Net Weight |
820 g (1.81 lb) |
Gross Weight |
1090 g (2.40 lb) |
