Description

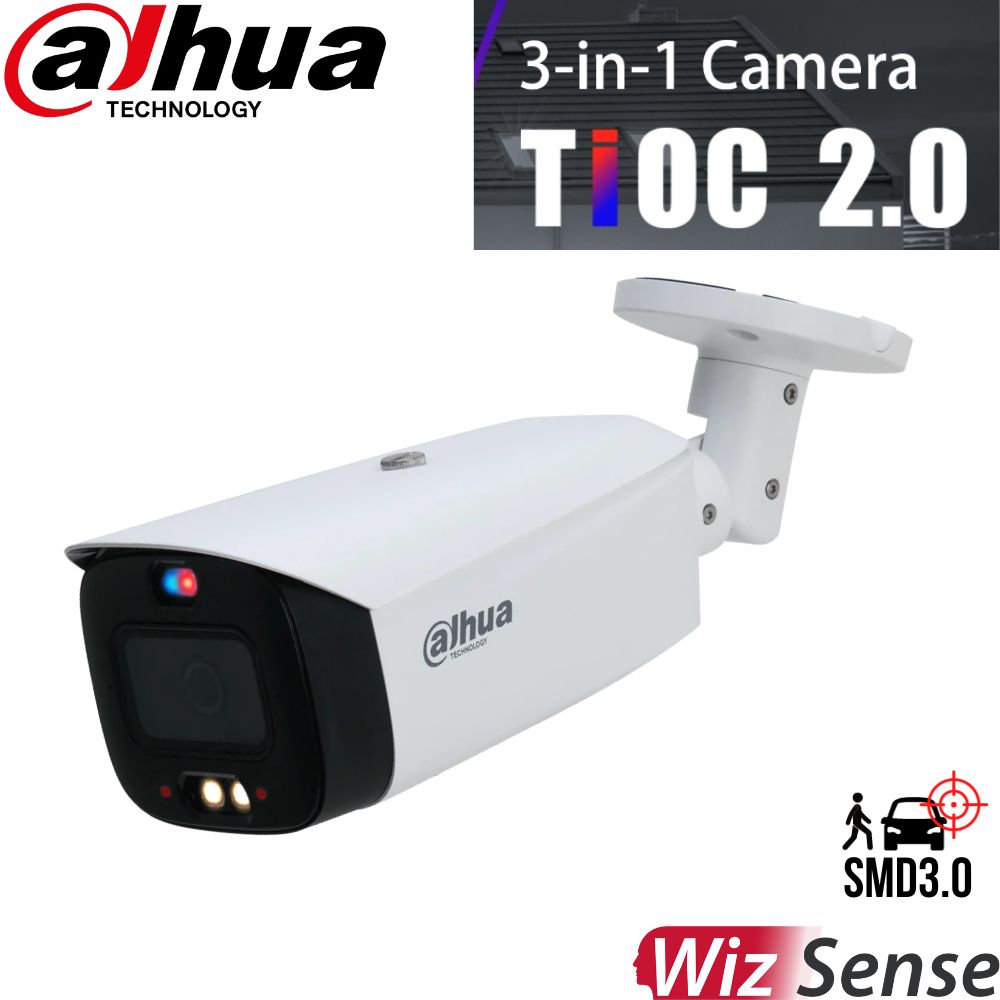

The Dahua DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Security Camera is version 2.0 of Dahuas line of three-in-One Cameras (TiOC). Series 2.0 now have smart Dual Illuminators allowing the camera to monitor at night with infrared and when intrusions are detected activate its auxiliary illuminator LED light for full colour recording.
Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, greatly saving time and financial costs. TiOC can accurately identify potential risks and effectively warn off intruders protecting life and property. Also has one-touch disarming. If installed on a network, these features require compatible network video recorders.
Full Colour uses a warm LED light that enables the camera to capture 24/7 vivid colour video even in the dark. Significantly increases the probability of collecting valid human, vehicle, and event evidence through brighter monitoring. Also works with AI functions to further enhance the probability and accuracy of target recognition and feature extraction with 98% AI accuracy at night.
Active Deterrence camera actively warns off intruders with built-in flashing lights, siren and audible commands. The lights can be configured to steady or flash. The camera is equipped with pre-recorded audible commands with the option to add your own content.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
Downloads
Tech Specs
Dahua DH-IPC-HFW3549T1P-AS-PV-0280B-S3 Security Camera
Camera |
Image Sensor |
1/2.7" CMOS |
Max. Resolution |
2592 (H) × 1944 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on) |
S/N Ratio |
﹥ 56 dB |
Illumination Distance |
30 m (IR)
30 m (warm light) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 (IR LED)
2 (warm light) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
M12 |
Focal Length |
2.8 mm; 3.6 mm |
Field of View |
2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
3.6 mm: Horizontal: 78°× Vertical: 58°× Diagonal: 102° |
Iris Type |
Fixed |
Close Focus Distance |
2.8 mm: 1.5 m
3.6 mm: 2.2 m |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
66.0 m |
26.4 m |
13.2 m |
6.6 m |
3.6 mm |
78.0 m |
31.2 m |
15.6 m |
7.8 m |
Professional, intelligent |
IVS (Perimeter Protection) |
Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
SMD 3.0 |
Less false alarms, longer detection distance |
Intelligent Search |
Work together with Smart NVR to perform the refined intelligent search, event extraction and merging to event videos. |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability |
3 streams |
Resolution |
5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto; Manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Defog |
Yes |
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
8 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
User/Host |
20 (Total bandwidth: 72 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE8/9/11
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Phone |
iOS; Android |
Certification |
Certification |
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
|
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5mA 3V–5 VDC |
Alarm Output |
1 channel out: 300mA 12 VDC |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 2.4 W (12 VDC); 3.1 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 9.7 W (PoE) |
Environment |
Operating Conditions |
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
Storage Conditions |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection Grade |
IP67 |
Structure |
Casing |
Metal + plastic |
Dimensions |
288.4 mm × 94.4 mm × 84.7 mm
(11.4" × 3.7" × 3.3") (L × W × H) |
Net Weight |
1.0 kg (2.20 lb) |
Gross Weight |
1.23 kg (2.71 lb) |
