Description
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Features
- 4MP, 1/1.8'' CMOS image sensor, low illuminance, high image definition
- Outputs max. 4MP (2688x1520) @30 fps, 2MP(1920x1080) @60 fps
- Built-in IR LED, max. IR distance: 40 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, face detection, face attributes and people counting
- Supports max. 256 G Micro SD card, built-in Mic
- 12V DC/PoE power supply, ePoE network transmission over long distance, easy for installation
- IP67 protection
Datasheet
Tech Specs

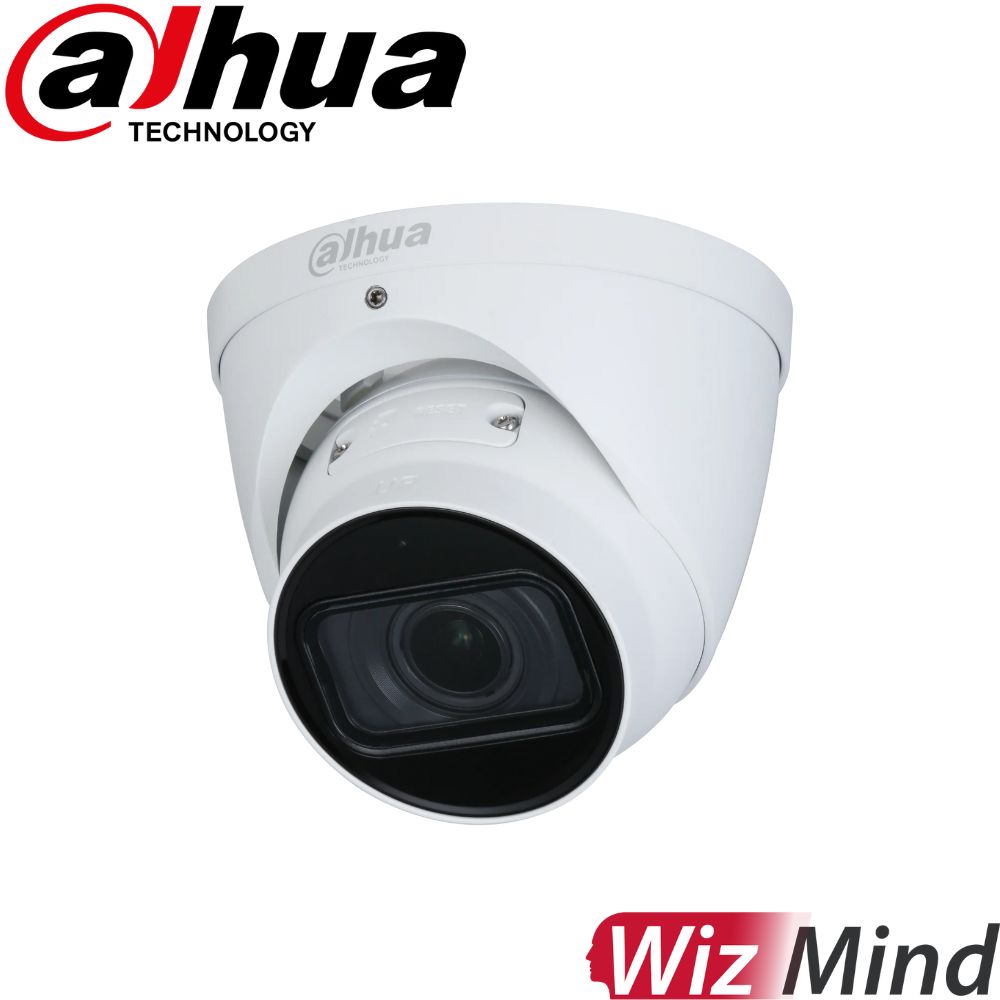

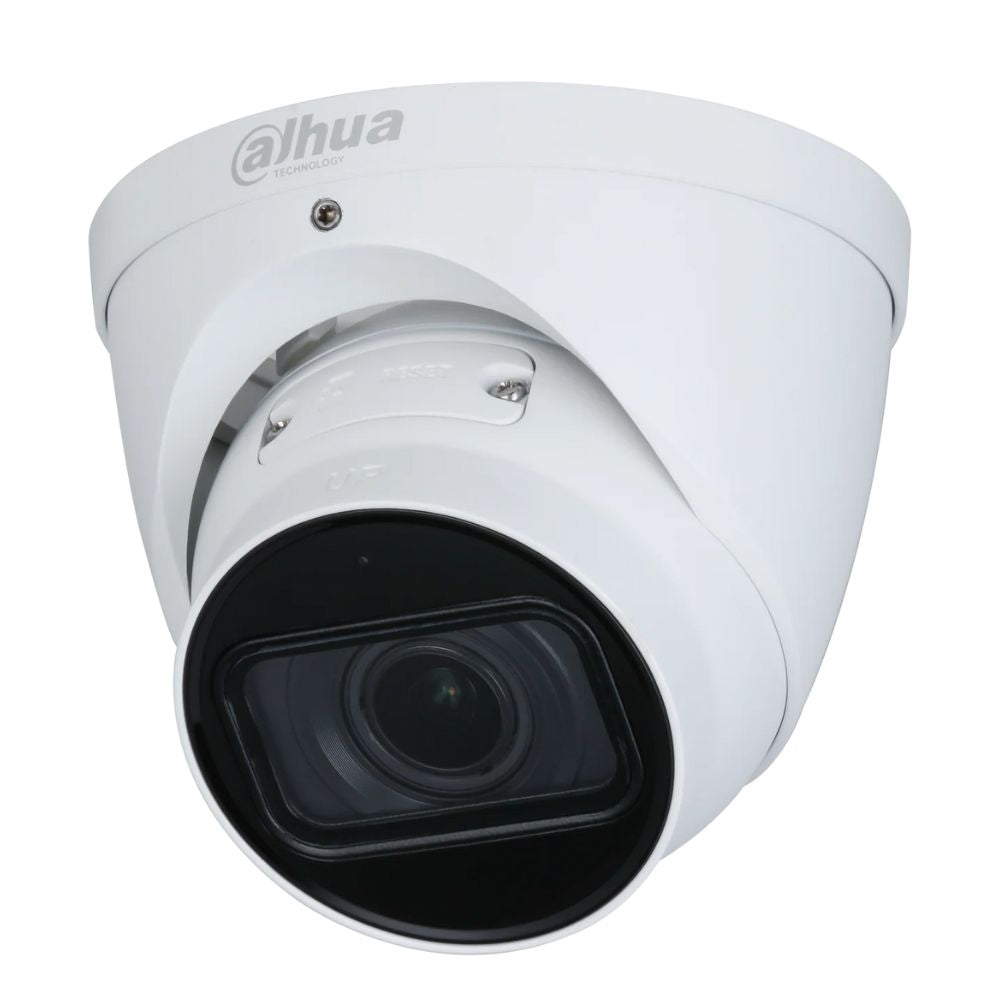

Dahua Security Camera: 4MP Turret Motorised - DH-IPC-HDW5442TP-ZE-2712
| Image Sensor |
1/1.8”4Megapixel progressive CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| ROM |
128 MB |
| RAM |
1GB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.003Lux@F1.8 |
| S/N Ratio |
>56 dB |
| Illumination Distance |
40 m (131.2 ft) (IR LED) |
| Illuminator On/Off Control |
Auto/Manual |
| Illuminator Number |
2 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens |
Motorized vari-focal |
| Lens Type |
φ14 |
| Mount Type |
2.7 mm-12 mm |
| Focal Length |
F1.8 |
| Max. Aperture |
Horizontal: 114°–47°
Vertical: 62°–26°
Diagonal: 136°–54° |
| Field of View |
Auto |
| Iris Type |
1.2 m (3.9 ft) |
| DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
| DORI Distance |
W |
58 m
(190.3 ft) |
23 m (75.5
ft) |
12 m (39.4
ft) |
6 m
(19.7
ft) |
| DORI Distance |
T |
131 m
(429.8 ft) |
52 m
(170.6 ft) |
26 m (85.3
ft) |
13 m
(42.7
ft) |
| IVS |
Abandoned object; missing object |
| Heat Map |
Yes |
| Professional, intelligent |
| IVS (Perimeter Protection) |
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection |
| Face Detection |
Face detection; track; optimization; snapshot;
report high quality picture; face enhancement; face
exposure; face attribute extract, 6 attributes and
8 expressions: Gender, age, glasses, expressions
(anger, calm, happiness, sadness, disgust, surprise,
confusion and fear), mask, beard; face matting
setting: face, single inch photo; three snapshot
methods: real-time snapshot, optimization snapshot,
quality priority; face angle filter; optimization time
setting |
| People Counting |
Support the counting of enter number, leave
number, and pass number, and displaying and
outputting yearly/monthly/weekly/daily reports.
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time
and link alarm.
Support queue management, and 4 rules
configuration. Count number of people or stay time
and link alarm |
| Intelligent Search |
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to
event videos |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only
supported by the sub stream) |
| Smart Codec |
Smart H265+/H264+ |
| Video Frame Rate |
Main stream: 2688 × 1520 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1 (1 fps–50/60 fps)
Third stream: 1080p (1 fps–25/30 fps) |
| Stream Capability |
3 streams |
| Resolution |
2688 × 1520; 2560 × 1440; 2304 × 1296; 1080p
(1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×
720); D1 (704 × 576/704 × 480); VGA (640 × 480);
CIF (352 × 288/352 × 240) |
| Bit Rate Control |
CBR/VBR |
| Video Bit Rate |
H.264: 32 kbps–8192 kbps
H.265: 19 kbps–8192 kbps |
| Day/Night |
Auto (ICR)/Color/B/W |
| BLC |
Yes |
| HLC |
Yes |
| WDR |
140 dB |
| Scene Self-adaptation |
Yes |
| White Balance |
Auto/natural/street lamp/outdoor/manual/regional
custom |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) |
Yes (4 areas) |
Electronic Image
Stabilization (EIS) |
Yes |
| Smart Illumination |
Yes |
| Smart Illumination |
Yes |
| Image Rotation |
0°/90°/180°/270° (Support with 2688 × 1520
resolution and lower) |
| Mirror |
Yes |
| Privacy Masking |
4 areas |
| Built-in MIC |
Yes |
| Audio Compression |
G.711a; G.711Mu; G.726; AAC; G.723 |
| Alarm Event |
No SD card; SD card full; SD card error; network
disconnection; IP conflict; illegal access; motion
detection; video tampering; defocus detection;
scene changing; tripwire; intrusion; abandoned
object; missing object; fast moving; parking
detection; loitering detection; people gathering;
audio detection; people counting; face detection;
voltage detection; people counting in area; stay
alarm; people No. exception detection, queue
management |
| Network |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP;
RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS;
QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; 802.1x; SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone;
Genetec; P2P |
| User/Host |
20 (Total bandwidth: 80 M) |
| Storage |
FTP; SFTP; Micro SD Card (support max. 256 G);
Dahua Cloud; NAS |
| Browser |
IE: IE8 and later
Chrome
Firefox
Safari: Safari 12 and later |
| Management Software |
Smart PSS, DSS, DMSS |
| Mobile Phone |
IOS; Android |
| Certification |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Power Supply |
12V DC (±30%)/PoE (802.3af) |
| Power Consumption |
＜7.5W |
| Operating Conditions |
–30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
| Strorage Conditions |
–40°C to +60°C (–40°F to +140°F) |
| Protection Grade |
IP67 |
| Casing |
Inner core: Metal
Cover: Metal
Decoration ring: Plastic Decoration ring |
| Dimensions |
Φ122.0 mm × 108.3 mm (Φ4.8" × 4.3") |
| Net Weight |
740 g (1.6 lb) |
| Gross Weight |
910 g (2.0 lb |
