Description

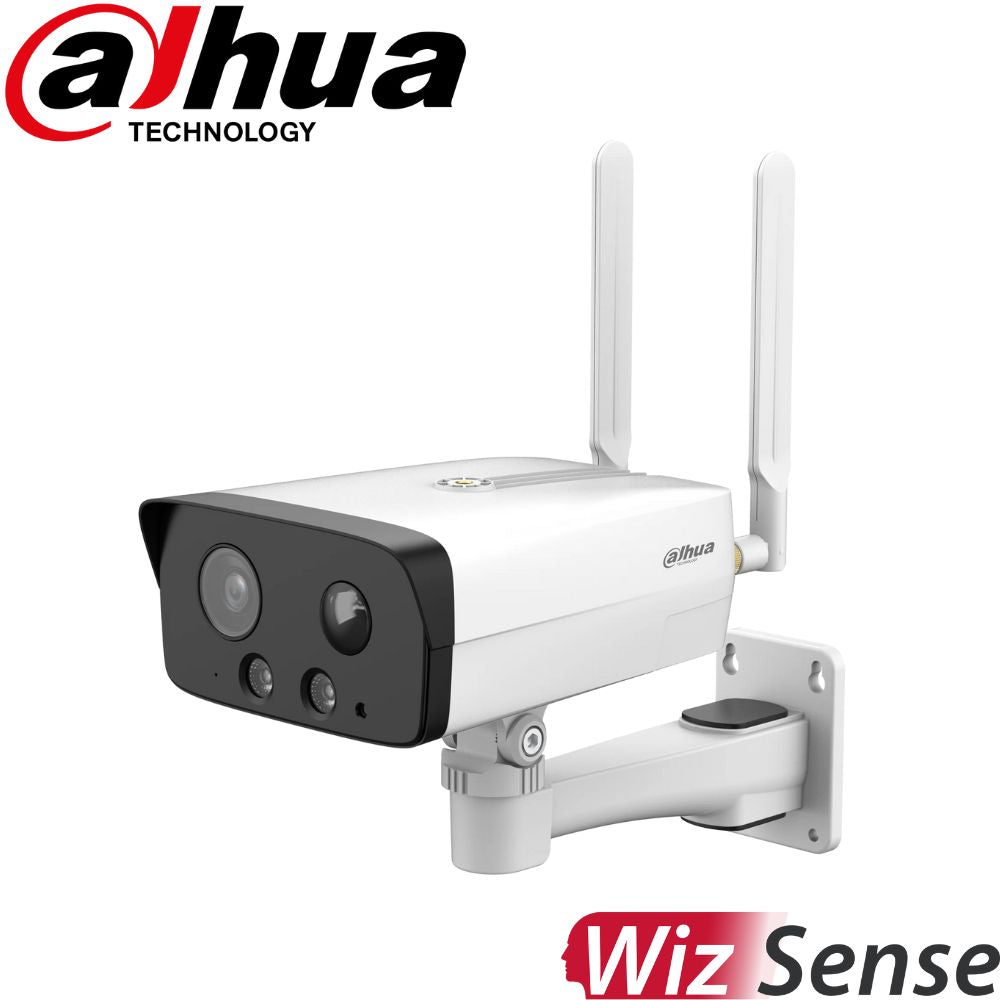

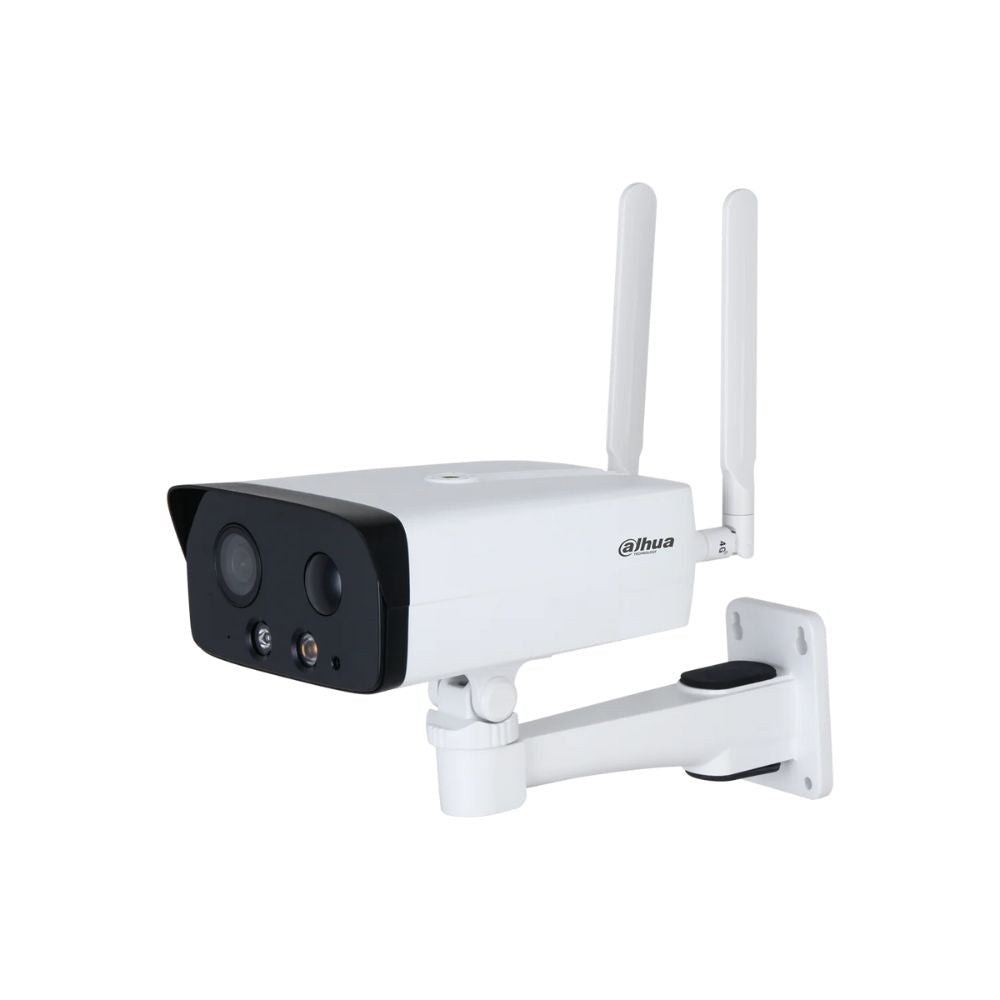

Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.
Features
- 4-MP 1/3'' CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 x 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light/IR LED
- Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
- Built-in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
- Built-in PIR sensor that detects the human body through passive infrared which is sensitive to body temperature
- Built-in 8 GB eMMC memory chip that protects key records from being lost
- Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built-in MIC and speaker; support two-way talk
- IP67 protection
Downloads
Tech Specs
Camera |
Image Sensor |
1/3" CMOS |
Max. Resolution |
2688 (H) × 1520 (V) |
ROM |
128MB |
RAM |
256MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.01 Lux@F1.6 (Color,30IRE)
0.001 Lux@F1.6 (B/W,30IRE)
0 lux (Illuminator on)
|
S/N Ratio |
>56 dB |
Illumination Distance |
IR: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft) |
Illuminator On/Off Control |
Auto;Manual |
Illuminator Number |
1 (IR LED); 1 (Warm light) |
Angle Adjustment |
Pan: 0°–360°
Tilt: –60°–0°
Rotation: 0°–360°
|
PIR Sensor Distance |
10 m (the height of device is 2.5 m, placed horizontally)
5 m (the height of the device is 2 m, placed at an angle of 30° from the horizontal) |
Lens |
Lens Type |
Fixed-focal |
Lens Mount |
M12 |
Focal Length |
2.8 mm; 3.6 mm; 6 mm |
Max. Aperture |
2.8 mm: F1.6
3.6 mm: F1.6
6 mm: F1.6 |
Field of View |
2.8 mm: H: 102°; V: 54°; D:121°
3.6 mm: H: 84°; V: 42°; D:101°
6 mm: H: 52°; V: 48°; D:61° |
Iris Control |
Fixed |
Close Focus Distance |
2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.7 m (5.58 ft)
6 mm: 3.2 m (10.50 ft) |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
63.6 m (208.66 ft) |
25.4 m
(83.33 ft)
|
12.7 m
(41.67 ft)
|
6.4 m
(21.00 ft)
|
3.6 mm |
85.4 m (280.18 ft) |
34.2 m (112.20 ft) |
17.1 m
(56.10 ft)
|
8.5 m
(27.89 ft)
|
6 mm |
124.0 m (406.82 ft) |
49.6m (162.73 ft) |
24.8m
(81.36 ft)
|
12.4m
(40.68 ft)
|
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Video Frame Rate |
Main stream: 2688 × 1520 @(1–25/30 fps )
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30
fps)
Sub stream 1: 1920 × 1080 @ (1–25/30 fps)
|
Stream Capability |
3 streams |
Resolution |
4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps |
Day/Night |
Auto(ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Built-in MIC |
Yes |
Built-in Speaker |
Yes |
Audio Compression |
G.711a;G.711Mu; G.726; PCM |
Alarm |
Alarm Event |
SD card error; SD card full; IP conflict; illegal access; motion detection; video tampering; Scene Changing; audio detection; security exception; PIR alarm; external alarm; low battery alarm; light alarm; sound alarm |
Network |
Network Port |
RJ-45 (10/100 Base-T) |
Frequency |
LTE FDD:B1/3/5/7/8/20/28
LTE TDD:B38/40/41
WCDMA:B1/5/8
GSM/GPRS/EDGE:B3/5/8 |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability |
ONVIF (Profile S/Profile G); CGI |
User/Host |
20 (Total bandwidth: 80 M) |
Storage |
Bulit in eMMC (8 GB); FTP;SFTP; Micro SD card (support max. 256 GB); NAS |
Browser |
IE
Chrome
Firefox |
Management Software |
DSS; DMSS |
Mobile Client |
iOS; Android |
Certification |
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15; Subpart B
|
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5 mA 3–5 VDC |
Alarm Output |
1 channel out: 300 mA 12 VDC |
RS-485 |
1 (Only report the information of solar battery, such as power and battery level) |
Power |
Power Supply |
12 VDC |
Power Consumption |
Sleep Mode: 0.03 W
General Mode: 4 W
Power Saving Mode: 2 W
Max. (4G pulling stream+IR+speaker+warning light): 7.5 W
|
Environment |
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity |
≤ 95% |
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection |
IP67 |
Structure |
Casing |
Metal + plastic |
Product Dimensions |
132 mm × 219 mm×179 mm (5.20" × 8.62" × 7.05")
(L × W × H)
|
Packaging Dimensions |
280 mm × 239 mm × 146 mm (11.02" × 9.41" × 5.75")
(L × W × H)
|
Net Weight |
680 g (1.50 lb) |
Gross Weight |
1180 g (2.60 lb) |
