Description

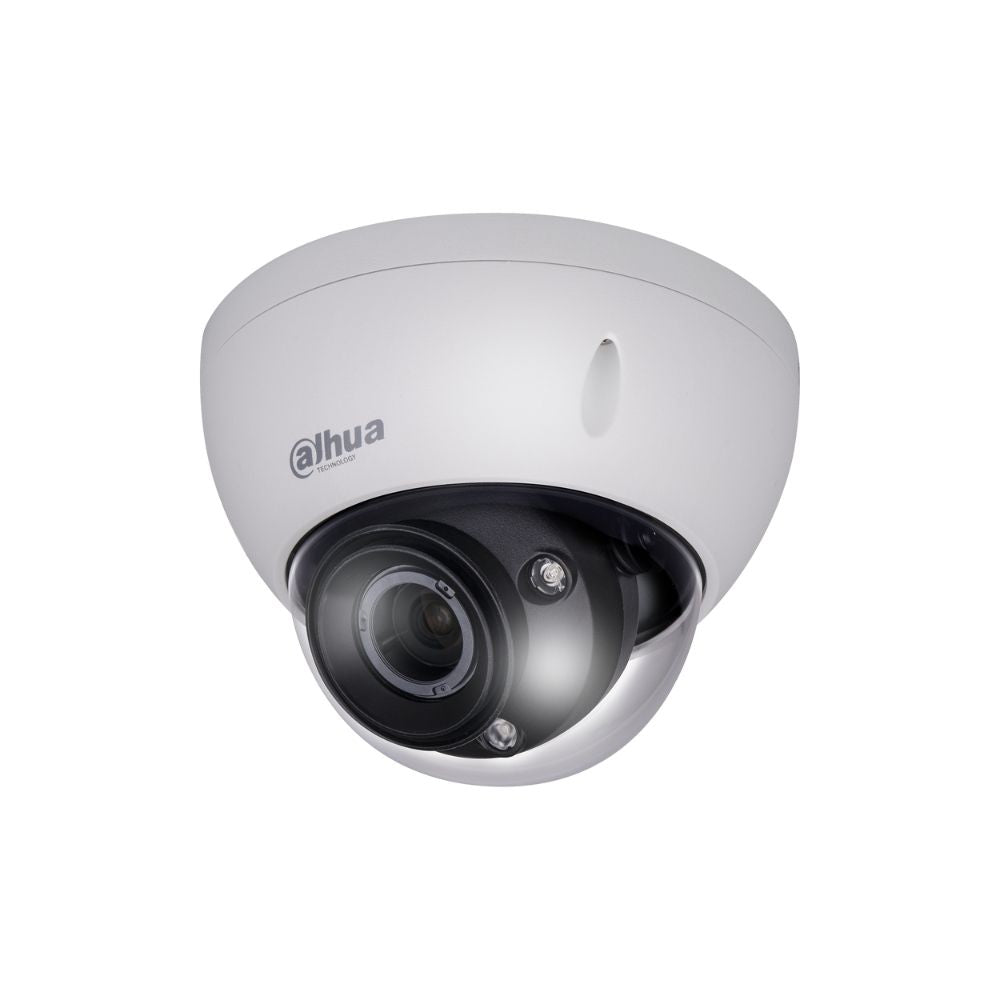

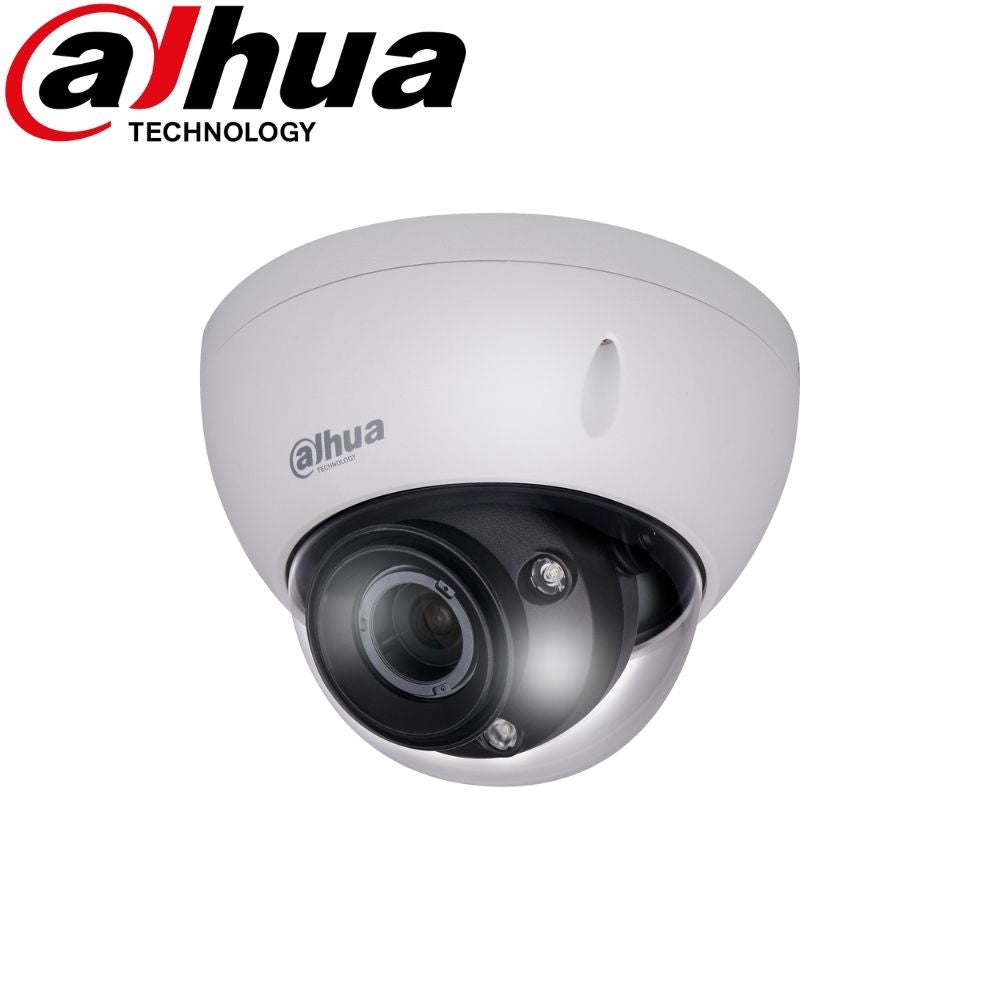

Dahua Security Camera: 2MP Dome 2.7-12mm - HAC-HDBW3231E-ZT
Experience 1080P full HD video, a complete set of features, and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120dB true WDR presents a high-quality image with rich details even in extreme low-light conditions. It offers various auto-iris lens models with a multi-language OSD and multiple interfaces, including HD&SD video, audio, and alarm, all in an elegant case design. Its superior image performance and project-oriented features make the camera an ideal choice for mid to large-size businesses and projects in all industries.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Captures 2-Megapixel (1080p FULL HD).
- Features a 1/2.8” Progressive Scan CMOS Camera.
- Equipped with a 2.7-12mm Motorised Varifocal Lens.
- 120 dB Wide Dynamic Range (WDR). 2D/3D Noise Reduction. Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC).
- Supports Starlight technology, generates clear images in near-complete darkness.
- Maximum Infrared Length 50m, Smart IR.
- Resistant "Weatherproof" IP67 Ingress Protection Rating.
- Durable "Vandalproof" IK10 Vandal Resistance Rating.
- Operating Conditions: -30°C ~ +60°C (-22°F ~ +140°F)
- WARRANTY: 3 Years Back-to-Base Manufacturer Warranty!
More Info
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending a control signal or triggering the alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission without any loss. It supports up to 800m for 1080P Full HD video via coaxial cable and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance systems, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of configuring a network.
Starlight
With the adoption of high-performance sensors, the camera is able to provide incomparable performance even under extreme lowlight environments. The starlight feature allows more details to be captured and accurate colour to be recognized at night or in scenes with limited
illumination.
Wide Dynamic Range
Embedded with industry-leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
Multi-Interfaces
The camera is designed with multi-interfaces for transmitting/receiving
various signals. It supports HDCVI and CVBS video outputs simultaneously
with two BNC connectors and a tester out interface for debugging. It also
supports an audio input interface as well as alarm input/output for connecting
external devices. Multi-interfaces covers different requirements of monitoring scenes and facilitates deployment and construction.
Smart Infrared
The camera is designed with an array of LED IR illumination for best lowlight performance at maximum distance. Smart IR is a technology to ensure brightness uniformity in B/W images under low illumination. Dahua’s unique Smart IR adjusts to the intensity of the camera's infrared LEDs to compensate for the distance of an object and prevents IR LEDs from overexposing images as the object comes closer to the camera.
Protection
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67, making it suitable for indoor or outdoor environments. The camera complies with an IK10 vandal resistance rating making it capable
of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in). Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
Elegant Design
As a projected-oriented product, the camera adopts an elegant appearance design to express a feeling of high reliability for industrial-grade applications.
Downloads
Tech Specs
| Dahua Security Camera: 2MP Dome 2.7-12mm - HAC-HDBW3231E-ZT |
| Camera |
| Image Sensor |
1/2.8" CMOS |
| Effective Pixels |
1945(H)×1097(V), 2.1MP |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
PAL: 1.3s~1/30000s |
| NTSC: 1s~1/30000s |
| Minimum Illumination |
0.005Lux/F1.4, 30IRE, 0Lux IR on |
| S/N Ratio |
More than 65dB |
| IR Distance |
Up to 50m (164feet) |
| IR On/Off Control |
Auto / Manual |
| IR LEDs |
3 |
| Lens |
| Lens Type |
Motorized lens / Auto iris |
| Mount Type |
Board-in |
| Focal Length |
2.7-12mm |
| Max Aperture |
F1.4 |
| Angle of View |
H: 95°~36° |
| Focus Control |
Auto / Manual |
| Close Focus Distance |
300mm |
| 11.81'' |
| Pan / Tilt / Rotation |
| Pan/Tilt/Rotation |
Pan: 0° ~ 355° |
| Tilt: 0° ~ 65° |
| Rotation: 0° ~ 355° |
| Video |
| Resolution |
1080P (1920×1080) |
| Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output |
1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output & 1-channel BNC SDI video output |
| CVBS tester out |
| Day/Night |
Auto (ICR) / Manual |
| OSD Menu |
Multi-language |
| BLC Mode |
BLC / HLC / WDR |
| WDR |
120dB |
| Gain Control |
AGC |
| Noise Reduction |
2D / 3D |
| White Balance |
Auto / Manual |
| Smart IR |
Auto / Manual |
| Certifications |
| Certifications |
CE (EN55032, EN55024, EN50130-4) |
| FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Interface |
| Audio Interface |
1-channel audio in |
| Alarm Interface |
1-channel alarm in & 1-channel alarm out |
| Electrical |
| Power Supply |
AC 24V±25% / DC 12V±25% |
| Power Consumption |
Max 12.5W (12V DC, IR on) |
| Environmental |
| Operating Conditions |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| * Startup should be done at above -30°C (-22°F) |
| Storage Conditions |
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Ingress Protection & Vandal Resistance |
IP67 & IK10 |
| Construction |
| Casing |
Aluminium |
| Dimensions |
Φ159.1mm×117.9mm (Φ6.26"×4.64") |
| Net Weight |
0.90kg (1.98lb) |
| Gross Weight |
1.20kg (2.65lb) |
