Description
This video highlights the features and functionalities of the TiOC 2.0 series. Device specifications may vary. Please refer to the datasheets for accurate specs or contact us for questions.

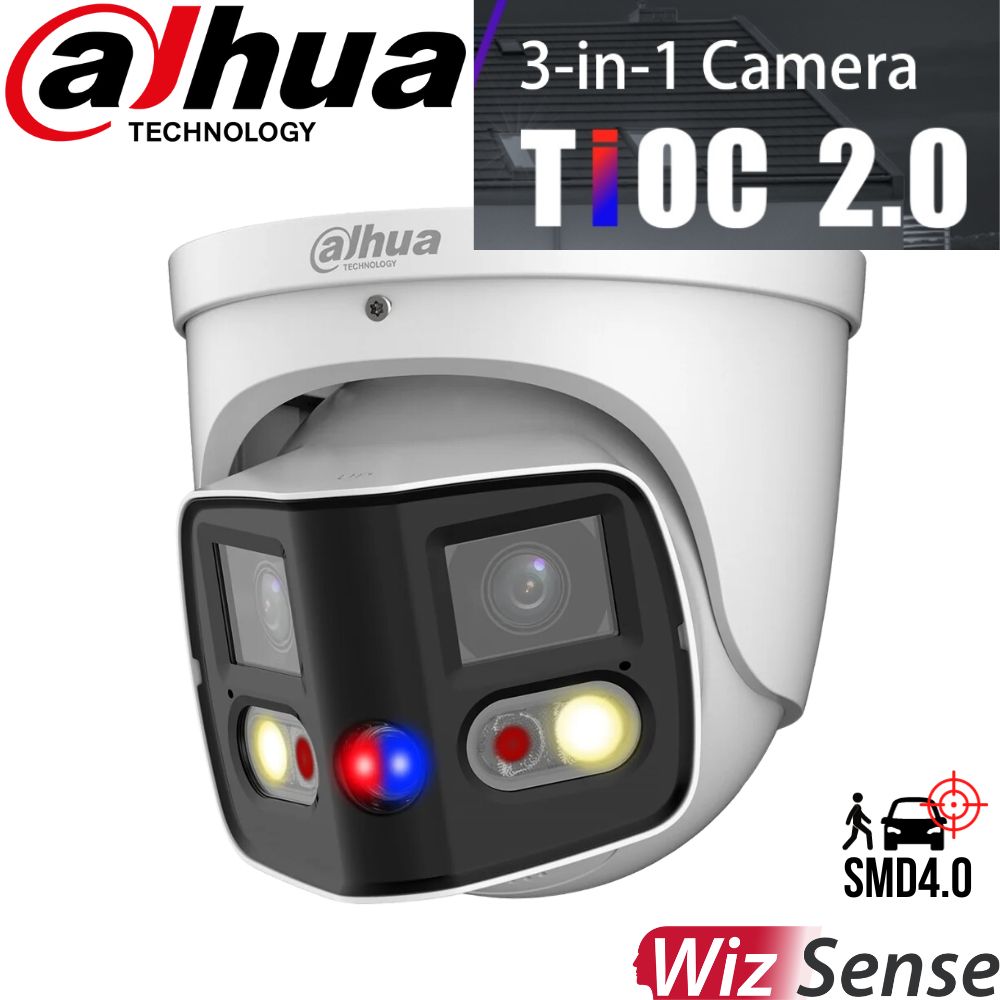

Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision as well as 2-way audio.
WizSense AI offers quick, quality, and reliable surveillance while minimising false alarms. AI Smart Motion Detect 4.0 will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognising changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR.
Active Deterrence turns your system into responsive security that uses strobe lights and audio warnings or alarms to deter any would-be intruder.
24/7 Full-Colour intuitively maximises visual clarity in relevant situations by utilising LED lights to brighten the area in the event of a detected intrusion.
Click here to read our hands-on review of the Dahua TiOC 2.0 cameras.
Dahua TiOC Cameras - Adding Active Deterrence and AI To Your Surveillance Solution

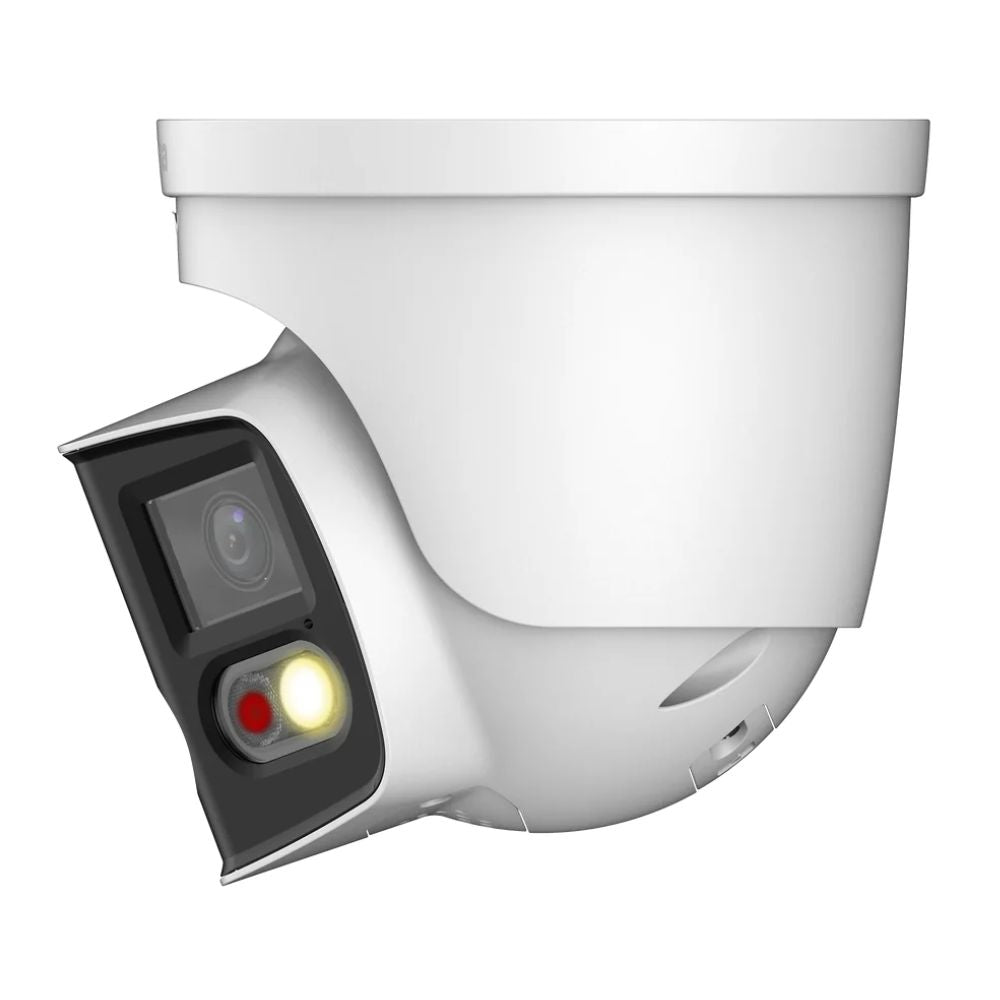

Camera Features
- Outputs 180 wide angle splicing image.
- Outputs max. 8 MP (4096 x 1860)@20 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m.
- ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker, support two-way talk.
- 12 VDC/PoE power supply, easy for installation.
- IP67 protection.
- Sound and light alarm (red and blue lights)
- EPTZ: Enlarge and track the targets of intelligent alarms.
- SMD 4.0.
- One-tap arming/disarming through alarm input
Datasheet
Tech Specs
Camera
Image Sensor |
Dual 1/2.7" CMOS |
Max. Resolution |
4096 (H) × 1860 (V) |
ROM |
128 MB |
RAM |
1 GB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE)
0.0005 lux@F1.4 (B/W, 30 IRE)
0 lux (Illuminator on)
|
S/N Ratio |
>56 dB |
Illumination Distance |
Up to 25 m (82.02 ft) (IR LED)
Up to 20 m (65.62 ft) (Warm light)
|
Illuminator On/Off Control |
Auto; Manual |
Illuminator Number |
2 (IR LED); 2 (Warm light) |
Angle Adjustment |
Pan: 0°–360°
Tilt: 0°–77°
Rotation: 0°–360°
|
Lens
Lens Type |
Fixed-focal |
Lens Mount |
M12 |
Focal Length |
2.8 mm |
Field of View |
Horizontal: 180°; Vertical: 86° |
Max. Aperture |
F1.4 |
Iris Control |
Fixed |
Close Focus Distance |
0.8 m (2.62 ft) |
|
DORI
Distance
|
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
50.6 m
(166.01 ft)
|
20.2 m
(66.27 ft)
|
10.1 m
(33.14 ft)
|
5.1 m
(16.73 ft)
|
Intelligence
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
SMD |
SMD 4.0 |
Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events. |
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
EPTZ |
Enlarge and track the targets of intelligent alarms |
Video
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported
by the sub stream)
|
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI H.265;
AI H.264
|
Video Frame Rate |
Main stream: 4096 × 1860@(1–20 fps ) Sub stream: 1200 × 530@(1–20 fps) Third stream: 1920 × 860@(1–20 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
|
Stream Capability |
3 streams |
Resolution |
4096 × 1860; 3632 × 1632; 3040 × 1368; 1200 × 530;
1920 × 860; 960 × 432
|
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 6 kbps –16384 kbps
H.265: 6 kbps –16384 kbps
|
Day/Night |
Auto(ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation (SSA) |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Privacy Masking |
4 areas |
Defog |
Yes |
Audio
Built-in MIC |
Yes, built-in dual Mic |
Built-in speaker |
Yes, built-in speaker |
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
Alarm
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene chaging; audio detection; voltage detection; external alrm; SMD; security exception |
Network
Network Port |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
Network Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
User/Host |
20 (Total bandwidth: 64 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
Browser |
IE: IE 8 and later Chrome
Firefox
|
Management Software |
Smart PSS Lite; DSS; DMSS |
Mobile Client |
iOS; Android |
Certification
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
|
Port
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: wet contact, 5 mA 3 V–5 VDC |
Alarm Output |
1 channel out: wet contact, 300 mA 12 VDC |
Power
Power Supply |
12 VDC (±30%); PoE (802.3af) |
Power Consumption |
Basic: 3.95 W (12 VDC); 4.95 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)
|
Environment
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity |
≤95% |
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection |
IP67 |
Structure
Casing |
Metal |
Product Dimensions |
Φ122 mm × 135.2 mm (Φ4.80" × 5.32" ) |
Net Weight |
990 g (2.18 lb) |
Gross Weight |
1150 g (2.54 lb) |
