Description

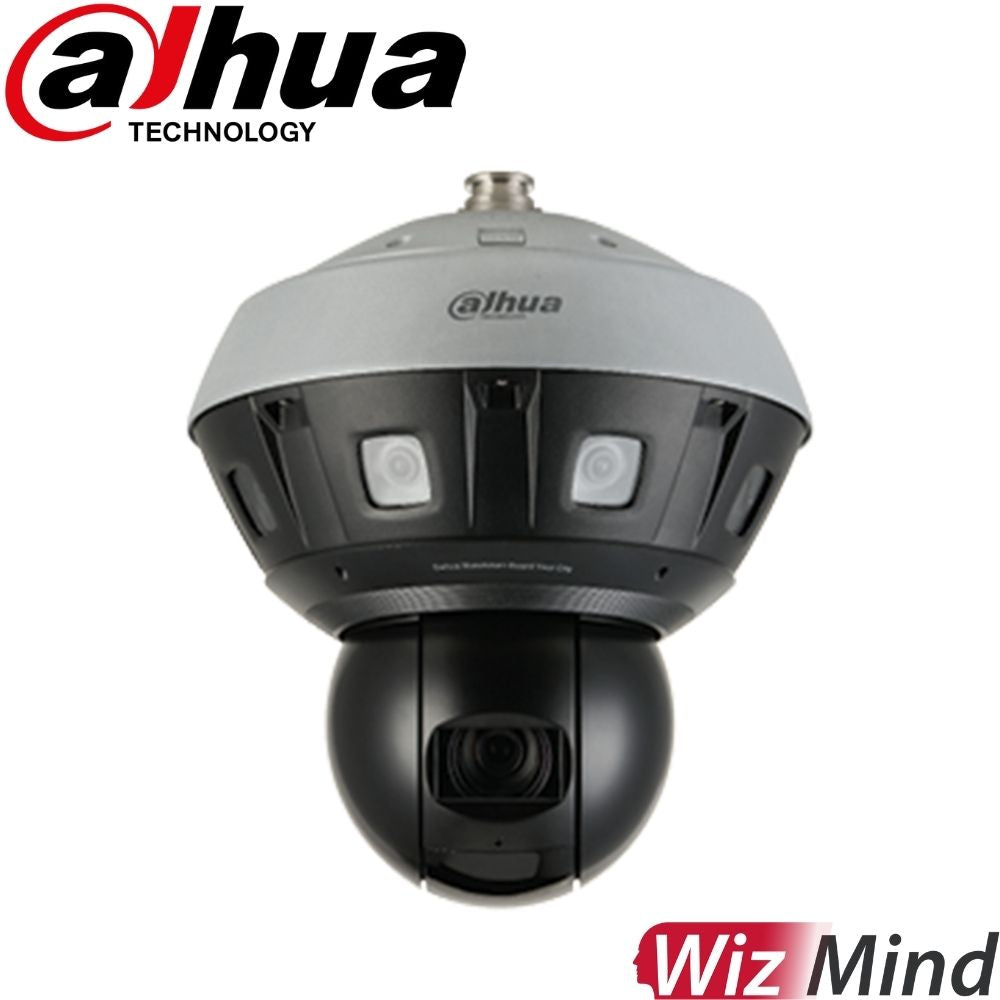

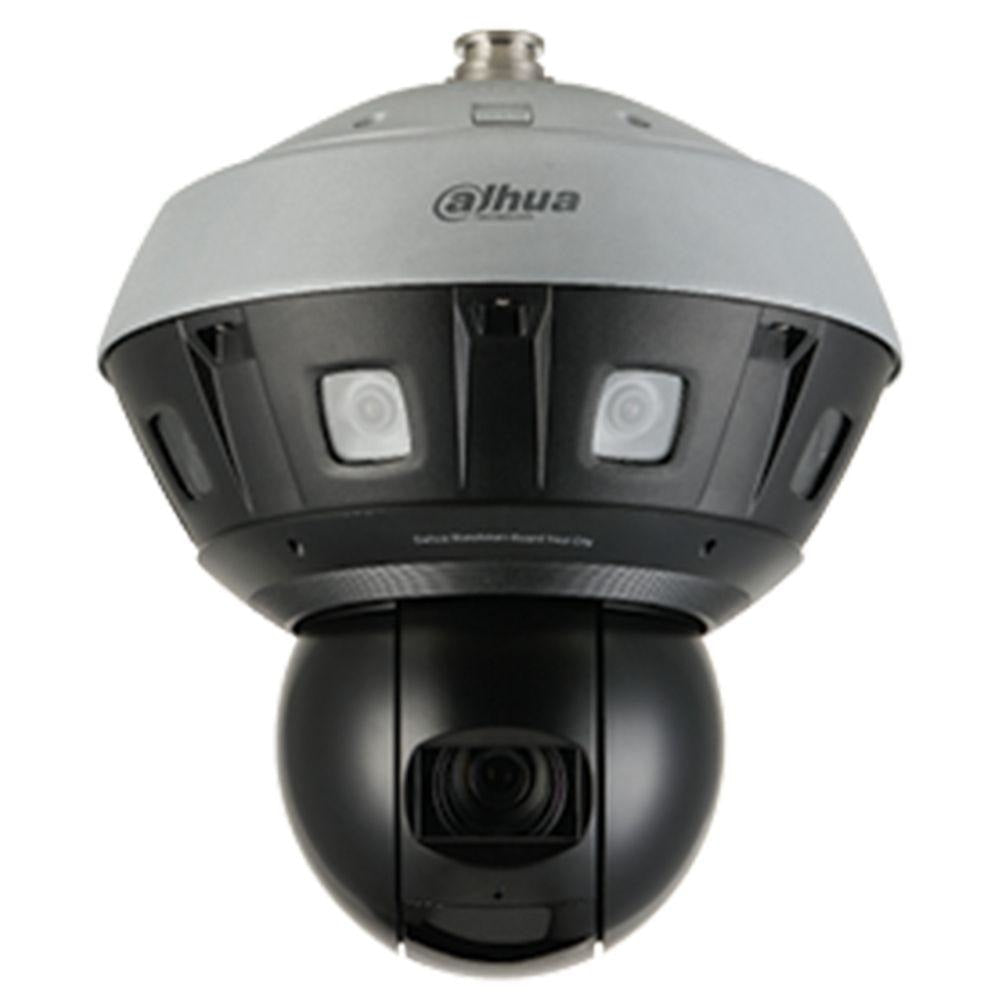

Dahua PSDW8842ML-A180-D237 Security Camera
Dahua's Pan-Tilt-Zoom cameras are designed to allow better monitoring through remotely controlling the direction of the device. PTZ cameras are often equipped with Powerful Zoom capabilities to improve in-demand visual clarity for points or targets of interest.
Panoramic cameras provide coverage of a wide, horizontal area to detect the activity of people, and vehicles. Because of the wide-area coverage, a single panoramic IP camera can be an attractive alternative to purchasing and placing multiple cameras. This device is capable of a 180° panoramic view,
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
WizMind Series - Designed for project-oriented products. Equipped with a deep learning algorithm allowing advanced AI face recognition with attribute filtering by gender, age, glasses, mask, beards and emotional expressions such as anger. (compatible with AI Series NVR’s) It provides advanced AI for people counting, privacy protection, heat mapping, ultra long-distance monitoring, thermal imaging and smart tracking for compatible cameras supporting the feature.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Records up to 2 Megapixel resolution.
- Equipped with 4 x 2.8mm Fixed lens and a 5.62~208mm Motorized PTZ lens.
- Supports up to 1920 × 1080 pixels resolution.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
-
Pan-Tilt-Zoom allows remotely controlling the direction and the zoom to provide in-demand coverage towards points of interest.
- Capable of up to 37x Optical Zoom.
-
Starlight technology generates clear colour images in near-complete darkness.
- 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
-
Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
- Built-in Infrared LED, with a maximum range of 220 meters.
- Supports Power-Over-Ethernet (PoE) installations.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Resistant" Ingress Protection Rating (IP66).
- Durable "Vandal-Proof" Impact Protection Rating (IK10).
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua PSDW8842ML-A180-D237 Security Camera
Camera |
Image Sensor |
Panoramic network camera: 1/1.8”CMOS PTZ camera: 1/1.8”CMOS |
Max. resolution |
Panoramic network camera: 4096×1800
PTZ camera: 1920× 1080
|
Scanning System |
Progressive |
Electronic Shutter Speed |
Panoramic network camera: 1/3 s-1/100000 s, manual or auto adjust
PTZ Camera: 1/1 s-1/300000 s, manual or auto adjust
|
Min. Illumination |
Panoramic network camera:
0.001Lux(colour);0.0001Lux(black);
PTZ camera:
0.001Lux(colour);0.0001Lux(black);0Lux(IR on)
|
S/N Ratio |
Panoramic network camera:51db PTZ camera:51.5db |
IR Distance |
Panoramic network camera: — PTZ camera: ? 220 m (721.78t) (IR on) |
IR On/Off Control |
Auto/Manual |
IR LEDs Number |
Panoramic network camera?— PTZ camera: 7 |
Lens |
Lens Type |
Panoramic network camera:Fixed-focal
PTZ camera:Motorized vari-focal
|
Mount Type |
Panoramic network camera:M16
PTZ camera: Core interface
|
Focal Length |
Panoramic network camera 2.8 mm
PTZ camera: 5.62mm~208mm, 37x optical zoom
|
Max. Aperture |
Panoramic network camera: F1.6
PTZ camera: F1.4
|
Field of View |
Panoramic network camera:Horizontal: 180° Vertical: 80°~85°
PTZ camera:Horizontal:
Horizontal: 2.61°~59.61°
Vertical: 1.48°~34.92°
Diagonal: 3°~66.96°
|
Iris Type |
Panoramic network camera: Fixed aperture PTZ camera: Auto |
Close Focus Distance |
Panoramic network camera: 0.2m(0.66ft)
PTZ camera:0.1m~1m(0.33ft~3.28ft)
|
Smart Event |
IVS |
Intrusion, tripwire |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG |
Smart Codec |
Smart H.264+
Smart H.265+
|
Video Frame Rate |
Panoramic network camera:Main stream(4096×1800@1~30fps), Sub Stream(1024×452@1~30fps), Third Stream(1920×832@`~30fps)
PTZ camera:
Main stream(1920×1080@1~30fps), Sub Stream(704×480@1~30fps), Third Stream(1280×720@1~30fps)
|
Stream Capability |
3 Streams |
Resolution |
Panoramic network camera:
4096 × 1800; 4800 × 1920; 3840 × 1680; 3200 × 1280; 2880 × 1264; 2048 × 900; 1920 × 832; 1600 × 640; 1280 × 560; 1024 × 452
PTZ camera:
1920 × 1080; 1280 × 960; 1280 × 720; 704 × 576; 704 × 480; 352 × 288; 352 × 240
|
Bit Rate Control |
Panoramic network camera: CBR/VBR
PTZ camera:CBR/VBR
|
Video Bit Rate |
Panoramic network camera:
H.264:112kbps ~25599Kb/S
H.265:44kbps ~15494Kb/S
PTZ camera:
H.264:24kbps ~10752Kb/S
H.265:9kbps ~6400Kb/S
|
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
Panoramic network camera:DWDR
PTZ camera: WDR (120 dB )
|
White Balance |
Panoramic network camera:Auto/Natural/street lamp/outdoor/manual/regional Custom
PTZ camera: Auto/indoor/outdoor/tracking/manual/sodium lamp/natural/street lamp
|
Gain Control |
Auto/Manual |
Noise Reduction |
3D NR |
Motion Detection |
Disable/Enable |
Region of Interest (RoI) |
Yes (4 areas) |
Electronic Image stabilization(EIS) |
Panoramic network camera: — PTZ camera: Yes |
Smart IR |
Panoramic network camera: — PTZ camera: Yes (Adjusted by user.) |
Defog |
Panoramic network camera: — PTZ camera: Yes |
Image Rotation |
0°/180°(PTZ camera) |
Privacy masking |
4 areas(Panoramic network camera);24 areas(PTZ camera) |
Audio |
Audio Compression |
G.711Mu;G.711A;G.726;AAC |
Network |
Network |
RJ-45 (10/100/1000 Base-T) |
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP; UDP;ARP;RTP ;
RTSP;RTCP; RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS; QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;SAMBA;PPPoE;802.1x;SNMP
|
Interoperability |
ONVIF (Profile S/Profile G); CGI; Milestone;Genetec |
User/Host |
20 (Total bandwidth: 1000 M) |
Edge Storage |
FTP;SFTP; Micro SD card (support max. 256 G); Dahua Cloud; NAS |
Browser |
Chrome 42
Firefox 52
IE7;IE8;IE9;IE11
|
Management Software |
EVS5XX, EVS7XX, NVR5X-I, NVR4X-4KS2 , M70, IVSS7X , DSS Pro&DSS express |
Certification |
Certification |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
PTZ Dome |
Pan Range |
Pan: 0° to 360° endless Tilt: –12° to 90°, auto flip 180 |
Manual Control Speed |
Pan: 240°/s Tilt: 100°/s |
Remote Lens Reset |
Yes |
Preset |
300 |
Tour |
8 Tour (up to 32 preset per tour) |
Pattern |
5 patterns |
Scan |
5 |
Power-off Memory |
Yes |
Idle Motion |
Preset/Pattern/Tour/Scan |
Time Task |
Yes |
Three-dimensional Positioning |
Yes |
PTZ Limit |
Yes |
Position Display |
Yes |
Information Display |
Yes |
Time Display |
Yes |
Port |
Optical Fiber |
FC, single mode, single fiber |
Audio Input |
2 channels (terminal) |
Audio Output |
2 channels (terminal) |
Alarm Input |
7 channels in: 5mA 3V–5V DC |
Alarm Output |
3 channels out: 1, 000mA 30V DC/500mA 50V DC |
Power |
Power Supply |
DC36V |
Power Consumption |
MAX:67.9W |
Environment |
Operating Temperature |
-40°C to +70°C(-104°F to +158°F) |
Operating Humidity |
?95% |
Storage Temperature |
-40°C to +70°C (-104°F to +158°F)/Less than 95% RH |
Ingress Protection |
IP66;IK10(optional) |
Structure |
Enclosure |
Metal + Plastic |
Dimensions |
?383 mm × 389.8 mm (?1256.56 ft × 1279.8 ft) |
Net Weight |
14.3 kg (31.53 lb) |
Gross Weight |
19.5 kg (42.99 lb) |
