Description

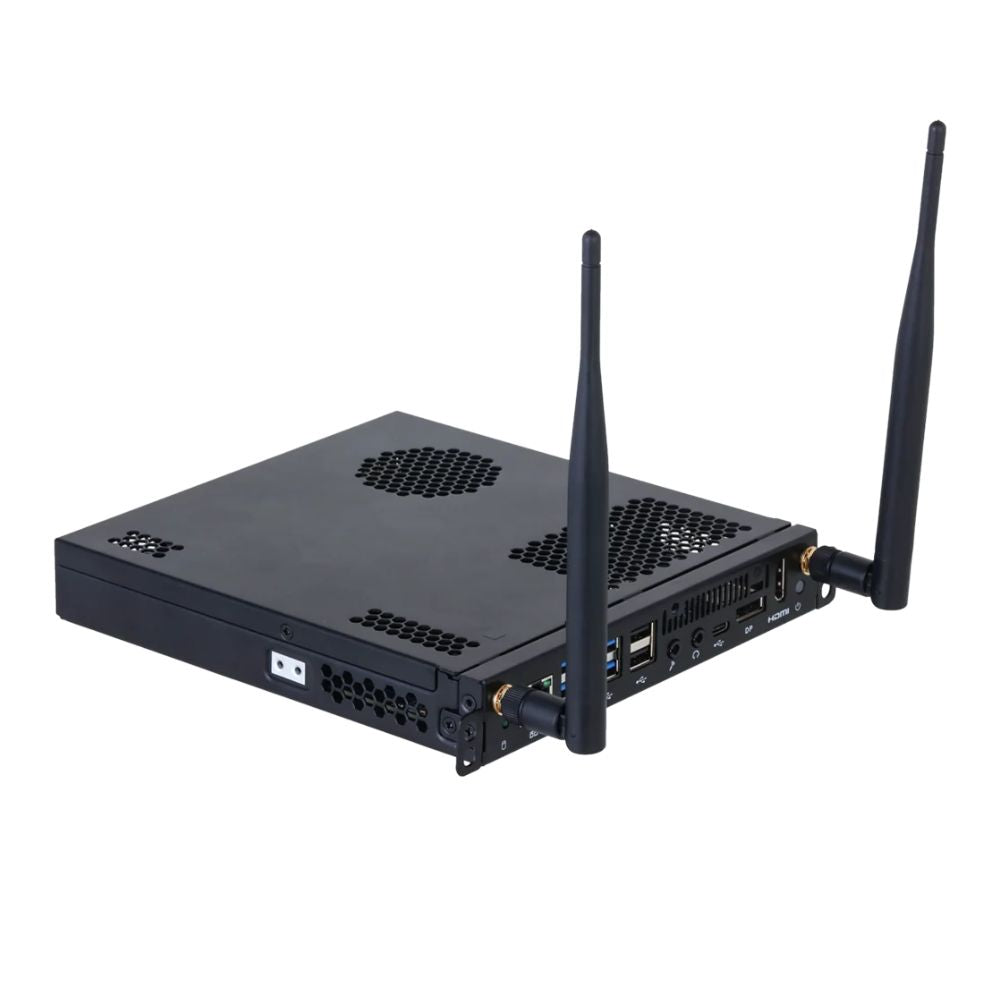

With its embedded 10th and 11th Generation Intel? Desktop Processors, Dahua High-performance Module Computer is easy to use, energy saving and contains graphics that provide a stunning visual experience. It supports Intel Open Pluggable Specification China (OPS-C) and connects with the smart interactive whiteboard, making it easy to open files in seconds, and preview them without waiting. It has multiple input and output ports, RAM, HDD, and the Windows system, forming a mini computer with X86 architecture. The computer is also widely compatible with large-scale software, making it easy to install apps at will.
Features
- Supports Intel Open Pluggable Specification China (OPS-C).
- Processor: Intel® Comet Lake Core I5-10400, TDP=65W.
- Integrated Graphics Card: Intel UHD Graphics 630.
- Memory: 1 × 8 GB DDR4.
- Storage: 1 × 128 GB M.2 2280 NVMe SSD.
- I/O Ports: 1 × JAE 80PIN, 1 x 2.5/5.5 DC IN JACK, 1 × Gigabit Ethernet, 1 × HDMI 1.4, 1 × DP 1.4, 4 × USB3.0, 2 × USB2.0, 1 × Type C, 1 × MIC IN, 1 × LINE OUT.
- Built-in Wi-Fi: 802.11a/b/g/n/ac.
- Bluetooth 5.0.
Downloads
Tech Specs
Hardware Compatibility |
Processor |
Intel Comet Lake/Rocket Lake
LGA1200
Max. TDP 65 W |
Chip |
Intel H510 |
Memory |
2 × SO-DIMM DDR4
Max. RAM: 2 × 16 GB |
Storage |
1 × M.2 2280 NVMe SSD
1 × SATA 2.5"" SSD/HDD (height ≤ 7.5 mm) |
Discrete Graphics Card |
No |
Optical Disk Drive |
No |
Wireless |
1 × M.2 2230 Wi-Fi/BT Module
Supports dual-antenna |
Display Screen |
No |
Front Panel |
1 × RJ-45, 10/100/1000Mbps
1 × HDMI 1.4, up to 4K, 30 Hz
1 × DP 1.4, up to 4K, 60 Hz
4 × USB 3.0, 2 × USB 2.0
1 × MIC IN, 1 ×LINE OUT
2 × Wi-Fi/BT antenna
1 × Type C
1 × Power button
1 × HDD indicator light |
Back Panel |
1 x JAE 80pin: 1 × DC IN, 1 × HDMI 2.0, 1 × USB 3.0, 2 × USB 2.0, 1 × UART, 1 × LINE OUT
1 x 2.5 / 5.5 DC IN JACK |
BIOS |
Insyde firmware |
Software Compatibility |
Operating System |
Supports Windows 10 |
Hardware Configuration |
Processor |
Intel® Core™ I5-10400 |
Memory |
1 × 8 GB |
Storage |
1 x 128 GB M.2 2280 NVMe SSD |
Discrete Graphics Card |
No |
Optical Disk Drive |
No |
Wireless |
WiFi: 802.11a/b/g/n/ac
BT: Bluetooth 5.0 |
Display Screen |
No |
Software Configuration |
Operating System |
Comes preloaded with Windows 10 |
Application |
No |
General |
Power Supply |
12/19 VDC, 7.5/4.7 A |
Power Consumption |
90 W |
Net Weight |
1.3 kg (2.87 lb) |
Gross Weight |
1.7 kg (3.75 lb) |
Product Dimensions |
180 mm × 30 mm × 195 mm (7.08'' × 1.18'' × 7.68'') (W × H × D) |
Packaging Dimensions |
308 mm × 293 mm × 123 mm (12.13" × 11.54" × 4.84") (L × W × H) |
Operating Temperature |
0 °C to +45 °C (32 °F to +113 °F) |
Storage Temperature |
–20 °C to +70 °C (–4 °F to +158 °F) |
Operating Humidity |
10%–90% (RH), non-condensing |
Storage Humidity |
10%–90% (RH), non-condensing |
Operating Altitude |
≤5000 m (16,404.20 ft) |
