Description
DSS4004-S2 is an economical general surveillance system preloaded with linux-optimized DSS Express, which improves reliability of the whole system. It supports up to 512 network cameras and integrates video, access control, video intercom and AI functions, which provides a cost-effective all-in-one solution.
Features
- Embedded Linux Operating System with Pre-installed DSS Express Software
- Supports 512 IP Cameras
- Live Video Playback
- Supports Access Control and Video Intercom Integration
- Configure Video Wall Layout and Scheme
- Configure NVR Recording
- Offers Fisheye Camera Dewarping on Live View and Playback Images
- Intelligent Video System with Face Recognition
Datasheet
Tech Specs

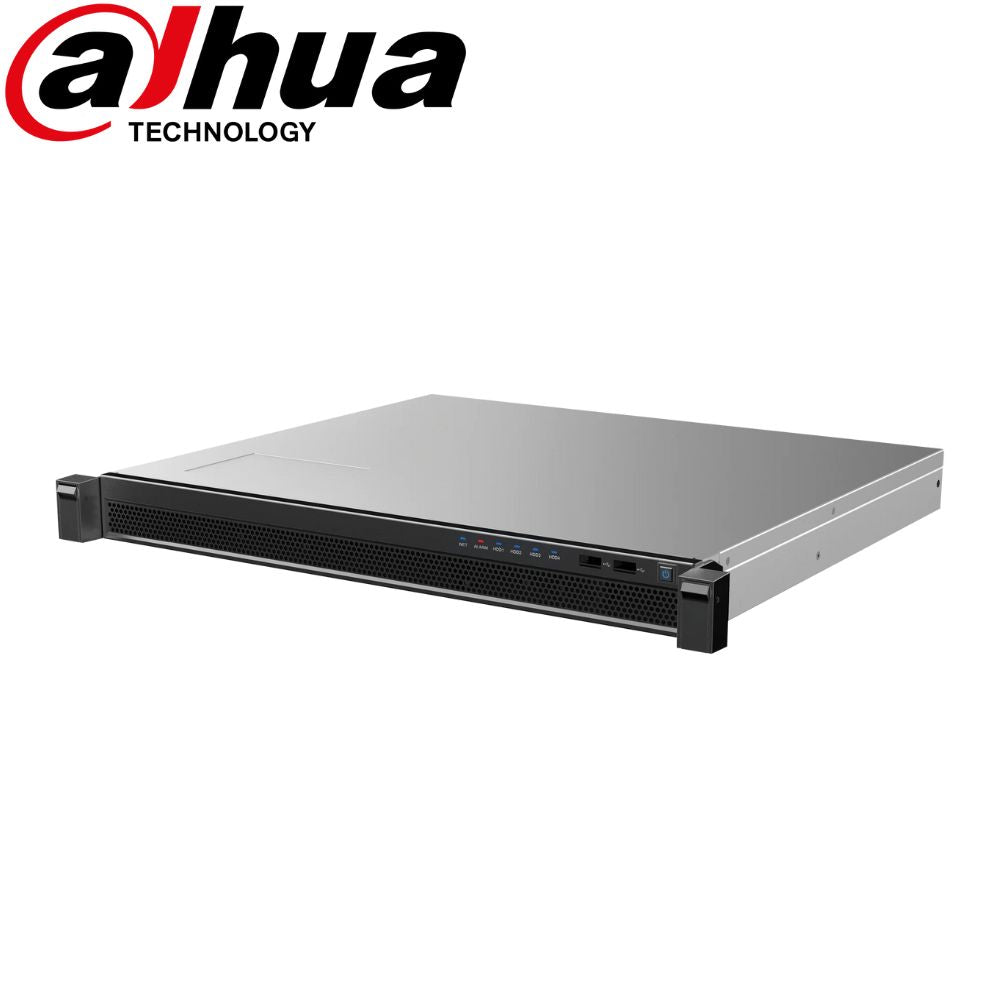

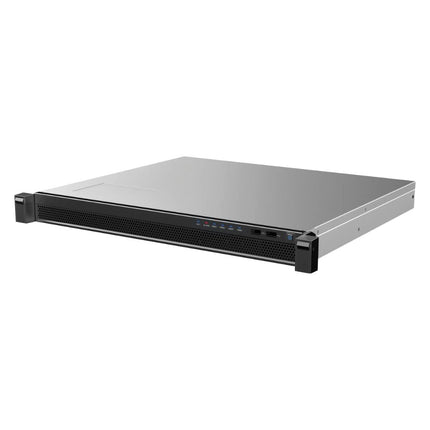

Dahua DSS Express Video Management System Server - DHI-DSS4004-S2
| Main Processor |
64 bit 4 core CPU (CORE-I3-6100) |
| Operating System |
Linux |
| Power |
Support hot swap |
| Memory |
8GB(1×8GB) |
| Chassis |
1.0mm SGCC steel plate |
| Network Port |
4 Ethernet Ports（10/100/1000Mbps ) |
| RS232 |
Reserved |
| RS485 |
Reserved |
| USB Port |
Front panel: 2 × USB 3.0, Rear panel: 2 × USB 3.0
onboard panel:1 × USB 2.0 |
| HDMI |
2 HDMI, one as network config, another as spare |
| VGA |
1 VGA, as network config |
| HDD Installation |
Built-in 1× 1T HDD disk (2.5") for system
Support 3HDD disks (2.5") for Video &Picture storage |
Video Channels Per
Server |
5121 |
Number of Face
Recognition Camera |
32 |
| ANPR |
32 |
| Video Intercom |
10242 |
| Access Control |
100 IP, 512 Door3 |
| Concurrent User |
100 Online Users |
Bandwidth of Video
Input Per Server |
350 Mbps |
Bandwidth of Video
Output Per Server |
350 Mbps |
Bandwidth of Video
Storage Per Server |
150 Mbps |
| Power |
100V ~ 240V, 47 ~ 63Hz |
| Consumption |
70W ~ 120W (with HDD) |
Working Environment
Temperature |
0℃~ 45℃ |
Working Environment
Humidity |
5%~90% (non-condensation) |
Storage Environment
Temperature |
-20℃~ ﹢70℃ |
Storage Environment
Humidity |
5% ~ 90% (non-condensation) |
| Working Altitude |
-60m ~ 3000m |
Weight
(Without Package) |
6.0Kg |
| Dimension |
1U, 440mm×398.6mm×43.65 mm |
| Installation Method |
Standard 19" rack installation |
3-Years Warranty
Dahua’s 3-year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
