Description

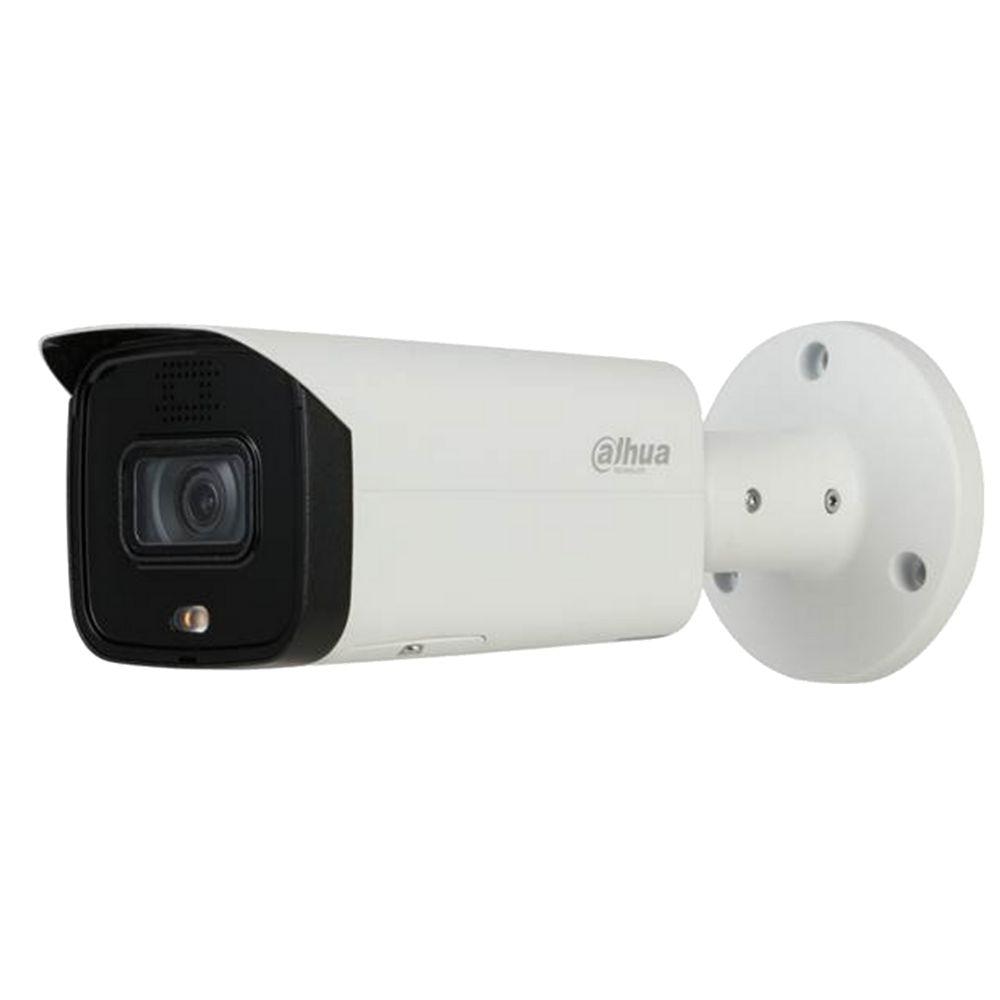

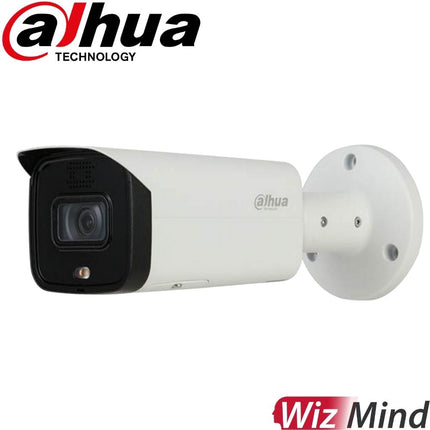

Dahua IPC-HFW5541T-AS-PV Security Camera
Engineered to provide precise, reliable, and comprehensive security intelligence, Dahua's WizMind Technology offers Body Temperature Monitoring, Face Recognition, and Number-Plate Recognition to ensure public safety and improve overall operational efficiency. It also provides People Counting, Privacy Protection, Heat-Mapping, Ultra Long-Distance monitoring, Thermal Imaging, and Smart Tracking on capable devices.
Dahua's Starlight Technology generates crystal clear images in near-complete darkness. A high-performing sensor and special Dahua algorithms combine to capture images in low-light and no-light environments. The innovation behind Dahua’s Starlight technology provides the best image capture to help maximize your security solution.
Features
- Records up to 5 Megapixel (Full HD) resolution.
- Equipped with a 2.8mm Fixed lens.
- Supports up to 2592 × 1944 pixels Full High Definition resolution.
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
- With suitable devices, WizMind Technology, utilize features like Face Recognition, Number-Plate Recognition, Human and Vehicle Metadata, People Counting, Heat Map, Stereo Analysis, Smart Tracking, Temperature Monitoring, and more!
- Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
- Supports PoE "Power-Over-Ethernet" installations.
- 120 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
- Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua IPC-HFW5541T-AS-PV Security Camera
Camera |
Image Sensor |
1/2.7” 5Megapixel progressive scan CMOS |
Max. Resolution |
2592 (H) × 1944 (V) |
RAM/ROM |
512 MB/128 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
S/N Ratio |
> 56 dB |
Minimum Illumination |
0.005 Lux@F1.6 |
Illumination Distance |
Distance up to 60 m (197 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 IRs, 1 LED |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
Board-in |
Focal Length |
2.8 mm, 3.6 mm, 6.0 mm, 8.0 mm |
Max. Aperture |
F1.6 |
Angle of View |
H: 102°, V: 71°/H: 84°, V: 58°/H: 51°, V: 37°/H: 38°, V: 28° |
Aperture Type |
Fixed |
Close Focus Distance |
0.9 m (2.95 ft)/1.6 m (5.25 ft)/3.1 m (10.17 ft)/4.5 m (14.73 ft) |
Pan/Tilt/Rotation |
Pan/Tilt/Rotation Range |
Pan: 0?–360?; Tilt: 0?–90?; Rotation: 0?–360? |
Artificial Intelligence |
Perimeter Protection |
Tripwire; intrusion; fast moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
|
People Counting |
Support the counting of enter number, leave
number, and pass number, and displaying and
outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time
and link alarm.
Support queue management, and 4 rules
configuration. Count number of people or stay time
and link alarm
|
General Intelligence |
Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
General Intelligence |
Object Abandoned/Missing |
Heat Map |
Yes |
Video |
Compression |
H.265, H.264, H.264B, H.264H,
MJPEG (only supported by sub stream)
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
Streaming Capability |
3 Streams |
Resolution |
2592 × 1944/2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
Frame Rate |
Main Stream: 2592 × 1944 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
|
|
Sub Stream: D1 (1 fps–20/30 fps)
D1 (1 fps–50 fps)
|
Third Stream: 1080P (1 fps–17 fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
|
Day/Night |
Auto(ICR)/Color/B/W |
BLC Mode |
BLC/HLC/WDR (120 dB) |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detection |
Off/On (4 Zone, Rectangle) |
Region of Interest |
Off/On (4 Zone) |
Smart Illumination |
Yes |
Defog |
Yes |
Flip |
0°/90°/180°/270° |
Mirror |
Off/On |
Privacy Masking |
Off/On (4 Area, Rectangle) |
Audio |
Audio Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
Alarm |
Alarm Event |
RJ-45 (10/100 Base-T) |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
User/Host |
20 Users |
Storage |
NAS;FTP;SFTP;Dahua Cloud
Micro SD card 256 GB
|
Browser |
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
Management Software |
Smart PSS, DSS, DMSS |
Mobile Phone |
iOS, Android |
Certifications |
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
Interface |
Audio Interface |
1/1 channel In/Out, Built-in Speaker |
Alarm |
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
|
Electrical |
Power Supply |
DC 12V (±30%), PoE (802.3af) |
Power Consumption |
<8.5W |
Environmental |
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/Less than 95% RH |
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
Protection Grade |
IP67 |
Construction |
Casing |
Metal |
Dimensions |
244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”) |
Net Weight |
0.815 kg (1.80 lb) |
Gross Weight |
1.08 kg (2.38 lb) |
Videos
DAY SAMPLE
NIGHT
Video Camera Samples – Note – not the same camera but similar camera
