Description

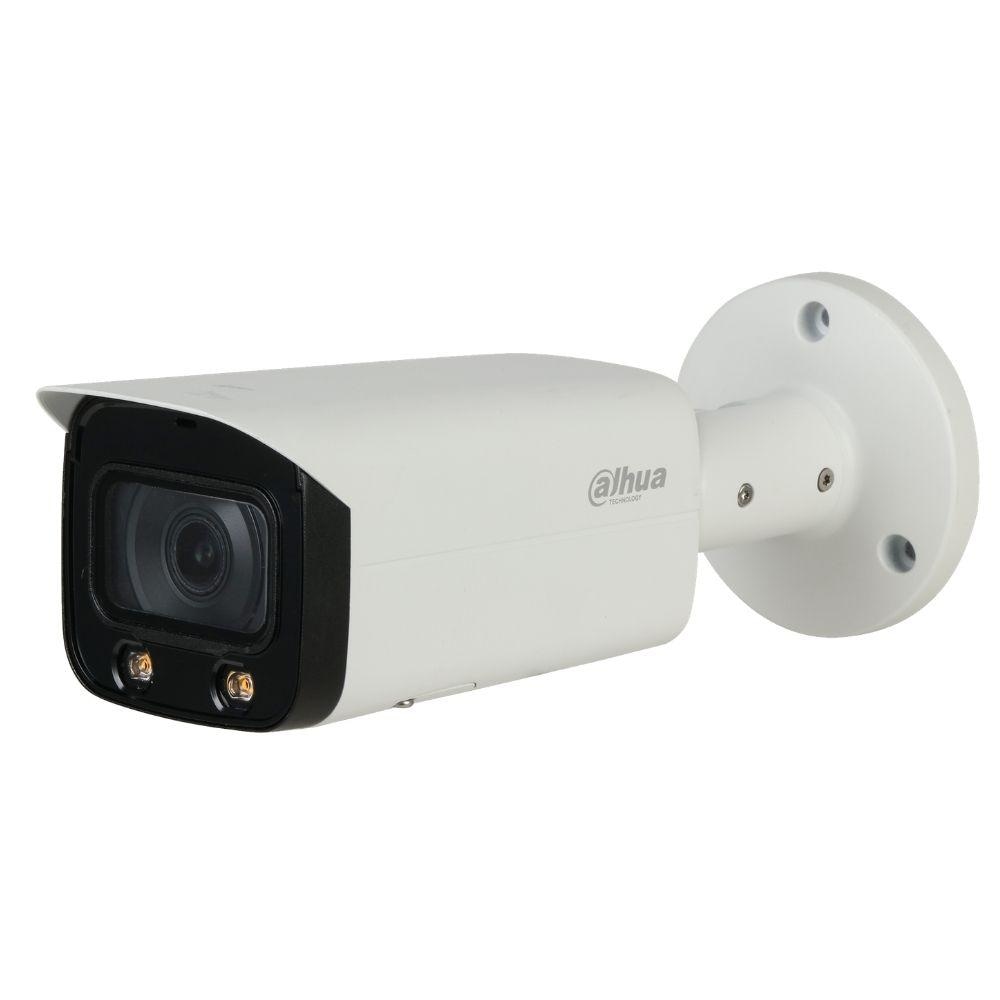

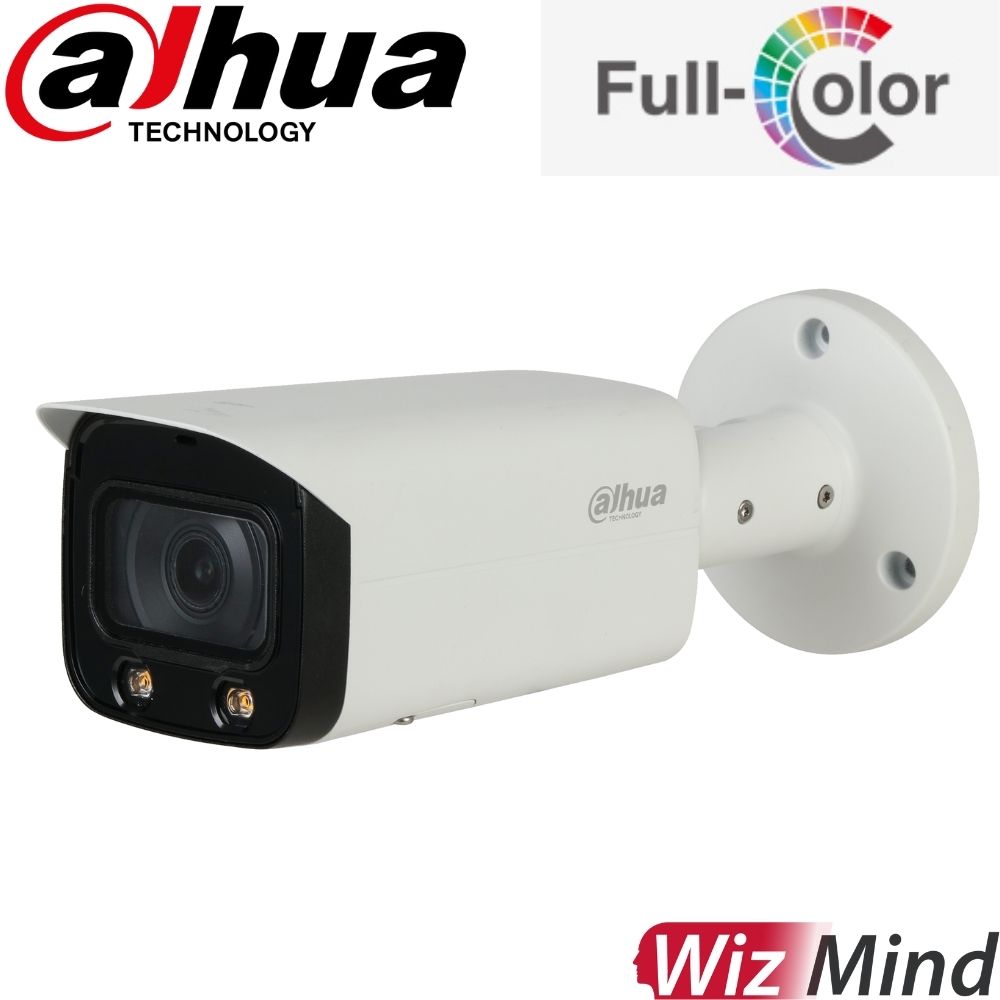

Dahua IPC-HFW5442T-AS-LED Security Camera
Engineered to provide precise, reliable, and comprehensive security intelligence, Dahua's WizMind Technology offers Body Temperature Monitoring, Face Recognition, and Number-Plate Recognition to ensure public safety and improve overall operational efficiency. It also provides People Counting, Privacy Protection, Heat-Mapping, Ultra Long-Distance monitoring, Thermal Imaging, and Smart Tracking on capable devices.
Dahua's Starlight Technology generates crystal clear images in near-complete darkness. A high-performing sensor and special Dahua algorithms combine to capture images in low-light and no-light environments. The innovation behind Dahua’s Starlight technology provides the best image capture to help maximize your security solution.
Features
Records up to 4 Megapixel (Full HD) resolution.
Equipped with a 2.8mm Fixed lens.
Supports up to 2688 × 1520 pixels Full High Definition resolution.
Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
With suitable devices, WizMind Technology, utilize features like Face Recognition, Number-Plate Recognition, Human and Vehicle Metadata, People Counting, Heat Map, Stereo Analysis, Smart Tracking, Temperature Monitoring, and more!
Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
Supports PoE "Power-Over-Ethernet" installations.
140 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
Supports MicroSD Card Storage up to 256 Gigabytes.
Resilient "Weather-Proof" Ingress Protection Rating (IP67).
Durable "Vandal-Proof" Impact Protection Rating (IK10).
3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua IPC-HFW5442T-AS-LED Security Camera
Camera |
Image Sensor |
1/1.8” 4Megapixel progressive scan CMOS |
Max. Resolution |
2688 (H) × 1520 (V) |
RAM/ROM |
512 MB/128 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
S/N Ratio |
> 56 dB |
Minimum Illumination |
0.002 Lux@F1.6 |
Illumination Distance |
Distance up to 20 m (66 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 (LED) |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
Board-in |
Focal Length |
2.8 mm, 3.6 mm, 6.0 mm |
Max. Aperture |
F1.6 |
Angle of View |
H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° |
Aperture Type |
Fixed |
Close Focus Distance |
1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft) |
Pan/Tilt/Rotation |
Pan/Tilt/Rotation Range |
Pan: 0?–360?; Tilt: 0?–90?; Rotation: 0?–360? |
Artificial Intelligence |
Face Detection |
Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
Perimeter Protection |
Tripwire; intrusion; fast-moving (the three functions
support the classification and accurate detection
of vehicle and human); loitering detection; people
gathering; parking detection
|
People Counting |
Support the counting of enter number, leave
number, and pass number, and displaying and
outputting yearly/monthly/daily reports.
Support the counting of number in area, and 4 rules
configuration. Count number of people or stay time
and link alarm.
Support queue management, and 4 rules
configuration. Count number of people or stay time
and link alarm
|
General Intelligence |
Event Trigger |
Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly |
General Intelligence |
Object Abandoned/Missing |
Heat Map |
Yes |
Video |
Compression |
H.265, H.264, H.264B, H.264H,
MJPEG (only supported by sub stream)
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
Resolution |
2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
Streaming Capability |
3 Streams |
Frame Rate |
Main Stream: 2688 × 1520 (1 fps–25/30 fps)
2560 × 1440 (1 fps–25/30 fps)
1920 × 1080 (1 fps–50/60 fps)
|
|
Sub Stream: D1 (1 fps–25/30 fps)
D1 (1 fps–50/60 fps)
|
Third Stream: 1080P (1 fps–16 fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
|
Day/Night |
Day/Night: Electronic
Auto/Color/B/W
|
BLC Mode |
BLC/HLC/WDR (140 dB) |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detection |
Off/On (4 Zone, Rectangle) |
Region of Interest |
Off/On (4 Zone) |
Smart Illumination |
Yes |
Defog |
Yes |
Flip |
0°/90°/180°/270° |
Mirror |
Off/On |
Privacy Masking |
Off/On (4 Area, Rectangle) |
Audio |
Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
Alarm |
Alarm Event |
No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
User/Host |
20 Users |
Storage |
NAS;FTP;SFTP;Dahua Cloud;Micro SD card 256 GB |
Browser |
IE (versions newer than IE8), Chrome,
Firefox, Safari (versions newer than Safari 12)
|
Management Software |
Smart PSS, DSS, DMSS |
Mobile Phone |
iOS, Android |
Certifications |
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
|
Interface |
Audio Interface |
1/1 channel In/Out |
Alarm |
1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC
|
Electrical |
Power Supply |
DC 12V (±30%), PoE (802.3af) |
Power Consumption |
<7.4W |
Environmental |
Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/Less than 95% RH |
Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
Protection Grade |
IP67, IK10 |
Construction |
Casing |
Metal |
Dimensions |
244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”) |
Net Weight |
0.815 kg (1.80 lb) |
Gross Weight |
1.08 kg (2.38 lb) |
