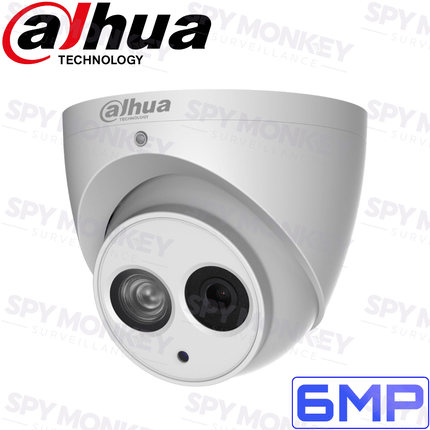

Dahua DH-IPC-HDW4631EMP-0280B Security Camera: 6MP Fixed Lens Eyeball, Built-In Mic

Description

Description

This model is superseded by the Dahua IPC-HDW3641TM-AS (Click to View).

The Dahua DH-IPC-HDW4631EM is a high resolution, fixed lens eye-ball camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

FEATURES

  • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
  • H.265/H.264 triple-stream encoding
  • 20fps @ 6MP (3072x2048), 25/30 fps @ 4MP (2688x1520
  • Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object
  • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
  • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • Built-in Mic
  • 1 IR LED Length 50m
  • Storage - NAS, Local PC for instant recording & Mirco SD card 128GBPoE Support
  • IP67 Weather Proof

Downloads
Tech Specs

Dahua IPC-HDW4631EM Security Camera

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H) x 2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.04Lux/F1.6( Color,1/3s,30IRE)

0.4Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm optional)
Max. Aperture F1.6(F1.6)
Angle of View H: 98° (69°), V: 67° (48°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.9m (1.7m)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0?~360?; Tilt:0?~78?; Rotation:0?~360?
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution (3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP
Inter-operability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS

Local PC for instant recording

Micro SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)

UL: UL60950-1

FCC: FCC Part 15 Subpart B
Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <6W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal

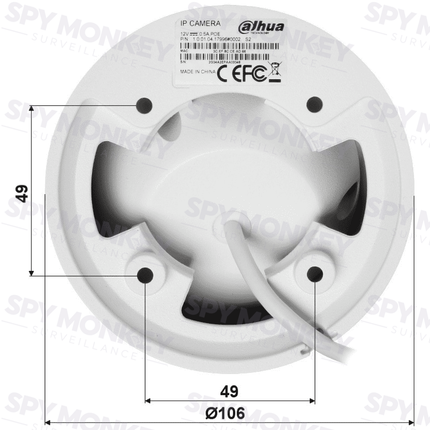

Dimensions ?106mm×93.7mm (4.17”×3.69”)
Net Weight 0.47Kg (1.04lb)
Gross Weight 0.65Kg (1.43lb)
Videos

Note: Subsequent videos are from cameras made by the same manufacturer may share similar features with this product. It is added here for resolution demonstration purposes only. Actual footage may vary as each camera utilizes different technologies in image-enhancing and detection mechanisms.

Dahua 6MP IP Camera

Dahua 6MP IP Camera

Dahua 6MP IP Camera

Read more

Dahua DH-IPC-HDW4631EMP-0280B Security Camera: 6MP Fixed Lens Eyeball, Built-In Mic

Product form

SKU: DH-IPC-HDW4631EMP-0280B

Out of stock

$155.00 Incl. GST

    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    This model is superseded by the Dahua IPC-HDW3641TM-AS (Click to View).

    The Dahua DH-IPC-HDW4631EM is a high resolution, fixed lens eye-ball camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

    FEATURES

    • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
    • H.265/H.264 triple-stream encoding
    • 20fps @ 6MP (3072x2048), 25/30 fps @ 4MP (2688x1520
    • Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object
    • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
    • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
    • 2.8mm fixed lens
    • Built-in Mic
    • 1 IR LED Length 50m
    • Storage - NAS, Local PC for instant recording & Mirco SD card 128GBPoE Support
    • IP67 Weather Proof

    Downloads
    Tech Specs

    Dahua IPC-HDW4631EM Security Camera

    Camera
    Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
    Effective Pixels 3072(H) x 2048(V)
    RAM/ROM 512MB/32MB
    Scanning System Progressive
    Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
    Minimum Illumination 0.04Lux/F1.6( Color,1/3s,30IRE)

    0.4Lux/F1.6( Color,1/30s,30IRE)

    0Lux/F1.6(IR on)
    S/N Ratio More than 50dB
    IR Distance Distance up to 50m (164ft)
    IR On/Off Control Auto/ Manual
    IR LEDs 1
    Lens
    Lens Type Fixed
    Mount Type Board-in
    Focal Length 2.8mm (3.6mm optional)
    Max. Aperture F1.6(F1.6)
    Angle of View H: 98° (69°), V: 67° (48°)
    Optical Zoom N/A
    Focus Control Fixed
    Close Focus Distance 0.9m (1.7m)
    Pan/Tilt/Rotation
    Pan/Tilt/Rotation Range Pan:0?~360?; Tilt:0?~78?; Rotation:0?~360?
    Intelligence
    IVS Tripwire, Intrusion, Object Abandoned/Missing
    Advanced Intelligent Functions Face Detection
    Video
    Compression H.265+/H.265/H.264+/H.264
    Streaming Capability 3 Streams
    Resolution (3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
    Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
    Sub Stream: D1(1~25/30fps)
    Third Stream: 1080P(1~25/30fps)
    Bit Rate Control CBR/VBR
    Bit Rate H.264: 24K ~ 10240Kbps

    H.265: 14K ~ 9984Kbps
    Day/Night Auto(ICR) / Color / B/W
    BLC Mode BLC / HLC / WDR(120dB)
    White Balance Auto/Natural/Street Lamp/Outdoor/Manual
    Gain Control Auto/Manual
    Noise Reduction 3D DNR
    Motion Detection Off / On (4 Zone, Rectangle)
    Region of Interest Off / On (4 Zone)
    Electronic Image Stabilization (EIS) N/A
    Smart IR Support
    Defog N/A
    Digital Zoom 16x
    Flip 0°/90°/180°/270°
    Mirror Off / On
    Privacy Masking Off / On (4 Area, Rectangle)
    Audio
    Compression G.711a/ G.711Mu/ AAC/ G.726
    Network
    Ethernet RJ-45 (10/100Base-T)
    Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

    FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

    UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;

    IGMP; SNMP
    Inter-operability ONVIF, PSIA, CGI
    Streaming Method Unicast / Multicast
    Max. User Access 10 Users /20 Users
    Edge Storage NAS

    Local PC for instant recording

    Micro SD card 128GB
    Web Viewer IE, Chrome, Firefox, Safari
    Management Software Smart PSS, DSS, Easy4ip
    Smart Phone IOS, Android
    Certifications
    Certifications CE (EN 60950:2000)

    UL: UL60950-1

    FCC: FCC Part 15 Subpart B
    Interface
    Video Interface N/A
    Audio Interface Built-in Mic
    RS485 N/A
    Alarm N/A
    Electrical
    Power Supply DC12V, PoE (802.3af)(Class 0)
    Power Consumption <6W
    Environmental
    Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
    Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
    Ingress Protection IP67
    Vandal Resistance N/A
    Construction
    Casing Metal
    Dimensions ?106mm×93.7mm (4.17”×3.69”)
    Net Weight 0.47Kg (1.04lb)
    Gross Weight 0.65Kg (1.43lb)
    Videos

    Note: Subsequent videos are from cameras made by the same manufacturer may share similar features with this product. It is added here for resolution demonstration purposes only. Actual footage may vary as each camera utilizes different technologies in image-enhancing and detection mechanisms.

    Dahua 6MP IP Camera

    Dahua 6MP IP Camera

    Dahua 6MP IP Camera

    Read more
