Dahua Security Camera: 4MP Dome, 2.7~12mm, WizMind AI - DH-IPC-HDBW5442EP-ZE-2712

Description

Description

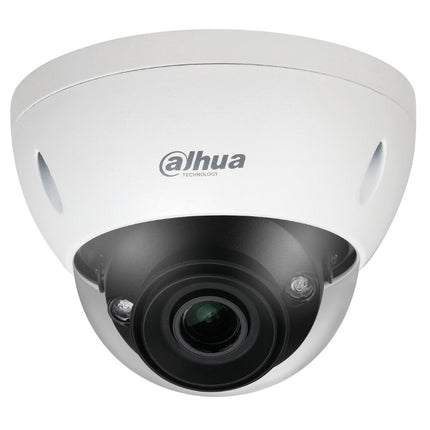

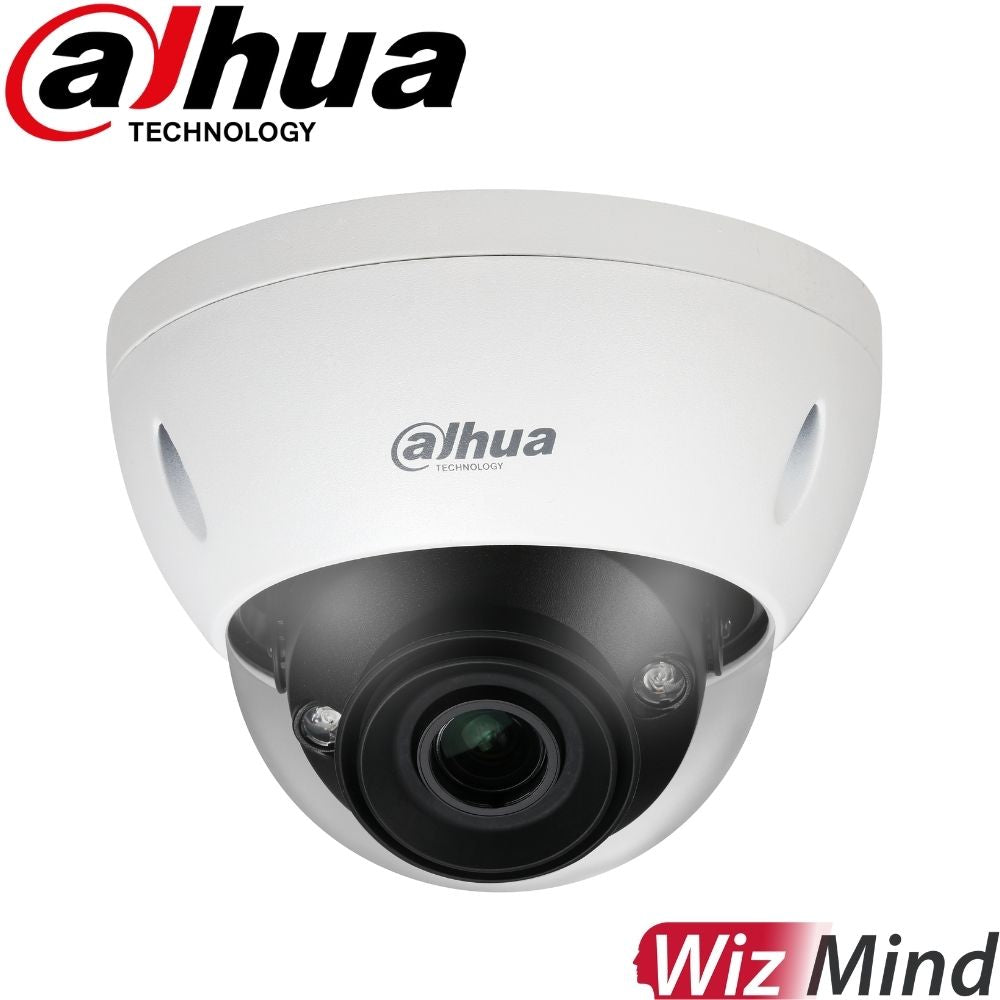

Dahua IPC-HDBW5442E-ZE Security Camera

WizMind Series - Designed for project-oriented products. Equipped with a deep learning algorithm allowing advanced AI face recognition with attribute filtering by gender, age, glasses, mask, beards and emotional expressions such as anger. (compatible with AI Series NVR’s) It provides advanced AI for people counting, privacy protection, heat mapping, ultra long-distance monitoring, thermal imaging and smart tracking for compatible cameras supporting the feature.

Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • Records up to 4 Megapixel resolution.
  • Equipped with a 2.7~12mm Motorized lens.
  • Supports up to 2688 × 1520 pixels resolution.
  • Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection, loitering detection, people gathering and parking detection.
  • Supports AI People Counting useful for business analytics. Count the number of people in an area, queue management and alarm linkage.
  • Supports AI Face Detection that supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
  • Supports AI Face Attributes that recognizes and enables filtering based on facial characteristics, such as gender, age, expression, glasses, masks, and beard.
  • Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
  • Starlight technology generates clear colour images in near-complete darkness.
  • 140 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • Built-in Infrared LED, with a maximum range of 40 meters.
  • Supports Power-Over-Ethernet (PoE) installations.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • Durable "Vandal-Proof" Impact Protection Rating (IK10).
  • 3 Years Back-to-Base Manufacturer Warranty!

Downloads
Tech Specs

Dahua IPC-HDBW5442E-ZE Security Camera

Camera

Image Sensor

1/1.8” 4Megapixel progressive scan CMOS

Effective Pixels

2688 (H) × 1520 (V)

RAM/ROM

1 GB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Minimum Illumination

0.003 Lux@F1.8

Illumination Distance

Distance up to 40 m (131 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

3 (IR LED)

Lens

Lens Type

Motorized vari-focal

Mount Type

Board-in

Focal Length

2.7 mm–12.0 mm

Max. Aperture

F1.8

Angle of View

H: 114°–47°, V: 62°–26°

Aperture Type

Auto

Close Focus Distance

1.2 m (3.94 ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0?–355?; Tilt: 0?–65?; Rotation: 0?–355?

Artificial Intelligence

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: face, single inch photo;three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

Perimeter Protection

Tripwire; intrusion; fast moving (the three functions

support the classification and accurate detection

of vehicle and human); loitering detection; people

gathering; parking detection

People Counting

Support the counting of enter number, leave

number, and pass number, and displaying and

outputting yearly/monthly/daily reports.

Support the counting of number in area, and 4 rules

configuration. Count number of people or stay time

and link alarm.

Support queue management, and 4 rules

configuration. Count number of people or stay time

and link alarm

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265, H.264, H.264B, H.264H,

MJPEG (only supported by sub stream )

Smart Codec

Smart H.265+/ Smart H.264+

Streaming Capability

3 Streams

Resolution

2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 2688 × 1520 (1 fps–25/30 fps)

2560 × 1440 (1 fps–25/30 fps)

1920 × 1080 (1 fps–50/60 fps)

Sub Stream: D1 (1 fps–25/30 fps)

D1 (1 fps–50/60 fps)

Third Stream: 1080P (1 fps–16 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps–8192 Kbps

H.265: 19 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC Mode

BLC/HLC/WDR (140 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Audio Compression

G.711a, G.711Mu, G.726, AAC, G.723

Alarm

Alarm Event

No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

User/Host

20 Users

Storage

NAS;FTP;SFTP;Dahua Cloud;Micro SD card 256 GB

Browser

IE (versions newer than IE8), Chrome,

Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN62368-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

FCC: 47 CFR FCC Part 15, Subpart B

UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

Alarm

1 channel In: 5mA 5V DC

1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), AC 24V (±30%), PoE (802.3af)

Power Consumption

<12.4W

Environmental

Operating Conditions

-30° C to +60° C (-22° F to +140° F)/Less than 95% RH

Storage Conditions

-40° C to +60° C (-40° F to +140° F)

Protection Grade

IP67, IK10

Construction

Casing

Metal

Dimensions

?159.0 mm × 117.9 mm (6.26” × 4.64”)

Net Weight

0.95 kg (2.09 lb)

Gross Weight

1.20 kg (2.65 lb)
Videos

DAY SAMPLE

NIGHT

Video Camera Samples – Note – not the same camera but similar camera
