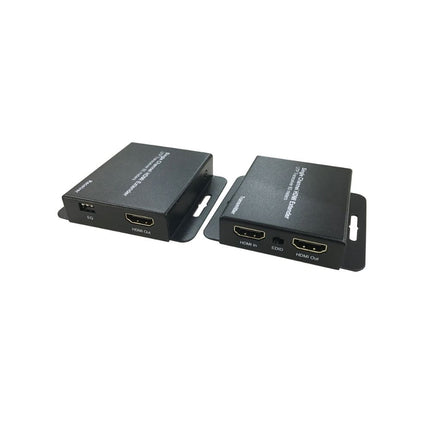

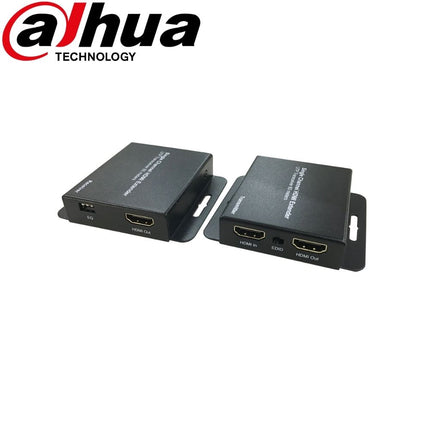

| Dahua HDMI Extender - DH-PFM700-E |
| Model |
PFM700-E |
| Properties |
| Transmission Signal |
1channel HDMI |
| Transmission Distance |
50m (max.164ft), with CAT6 of pure copper cable (DC impedance is less |
| than 9.5 ohm for every 100 meters (328ft)). |
| Video Transmission Properties |
| Video Signal Input Interface |
HDMI interface |
| Video Input Port |
HDMI interface |
| Twisted-pair Video Transmission Port |
RJ45 port |
| Input Voltage |
DC5V |
| Power |
TX<3W, RX<3W |
| HDCP Version |
Support HDCP1.2 |
| HDMI Version |
Support 1.3 and lower version |
| Resolution Output Signal |
| Resolution |
1080P/1080I/720P/576P/576I/480P/480I |
| Output Voltage |
0.5~1.5Vp-p |
| Impedance |
| ESD |
±6KV(contact discharge) |
| ±8KV(air discharge) |
| Per: IEC61000-4-2 1995(GB/T 17626.5) |
| Anti-thunder |
±2KV(common mode), ±1KV(differential mode) |
| Per: IEC61000-4-5 1995(GB/T 17626.5) |
| Stability |
| MTBF |
>5000h |
| Physical Properties |
| Dimension(L*W*H) |
Transmitter: 79.5mmx68mmx16.5mm(port length included) |
| (3.13”x2.68”x0.65”) |
| Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”) |
| Shell |
Iron |
| Color |
Black |
| N.W. |
Transmitter: 133g(0.29lb) |
| Receiver: 133g(0.29lb) |
| Environmental |
| Working Temperature |
-10℃~55℃(14℉~131℉) |
| Storage Temperature |
-20℃~80℃(-4℉~176℉) |
| Humidity |
0~95%(non-condensing) |
| Certification |
| Certification |
CE/FCC |
