Description

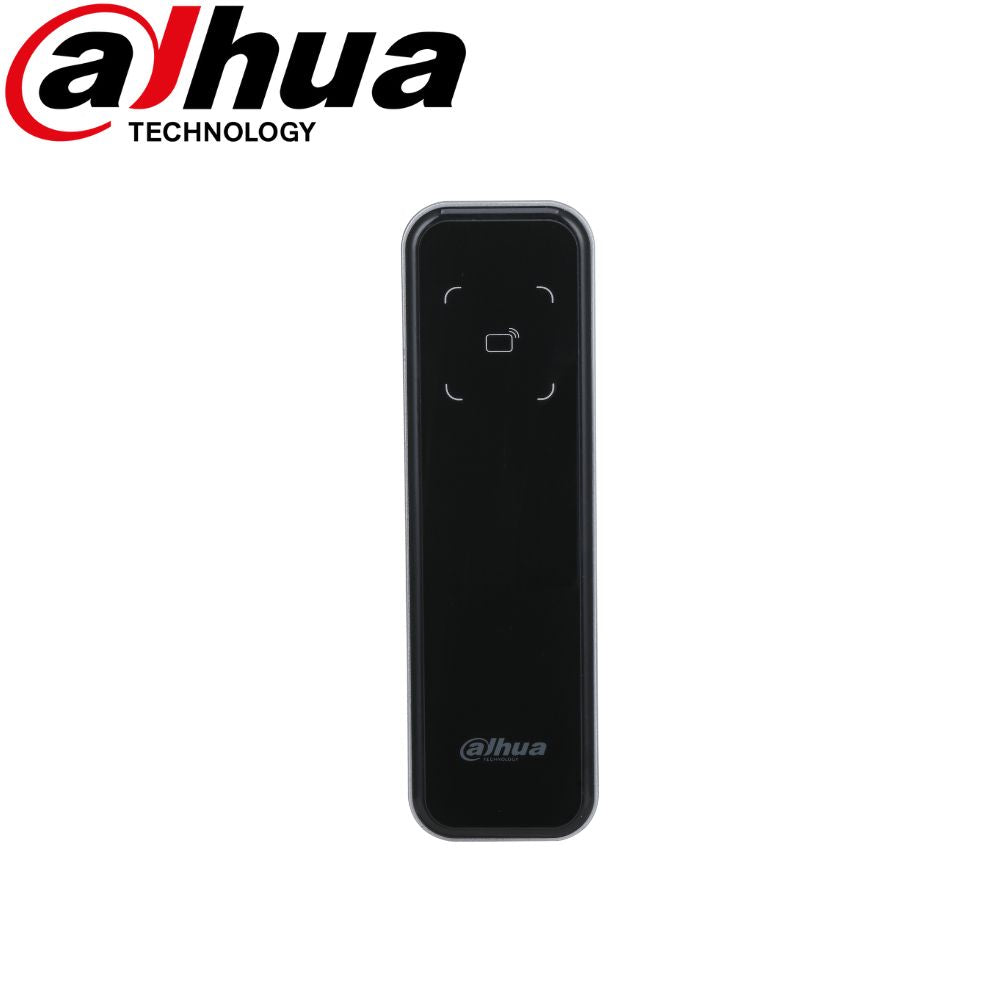

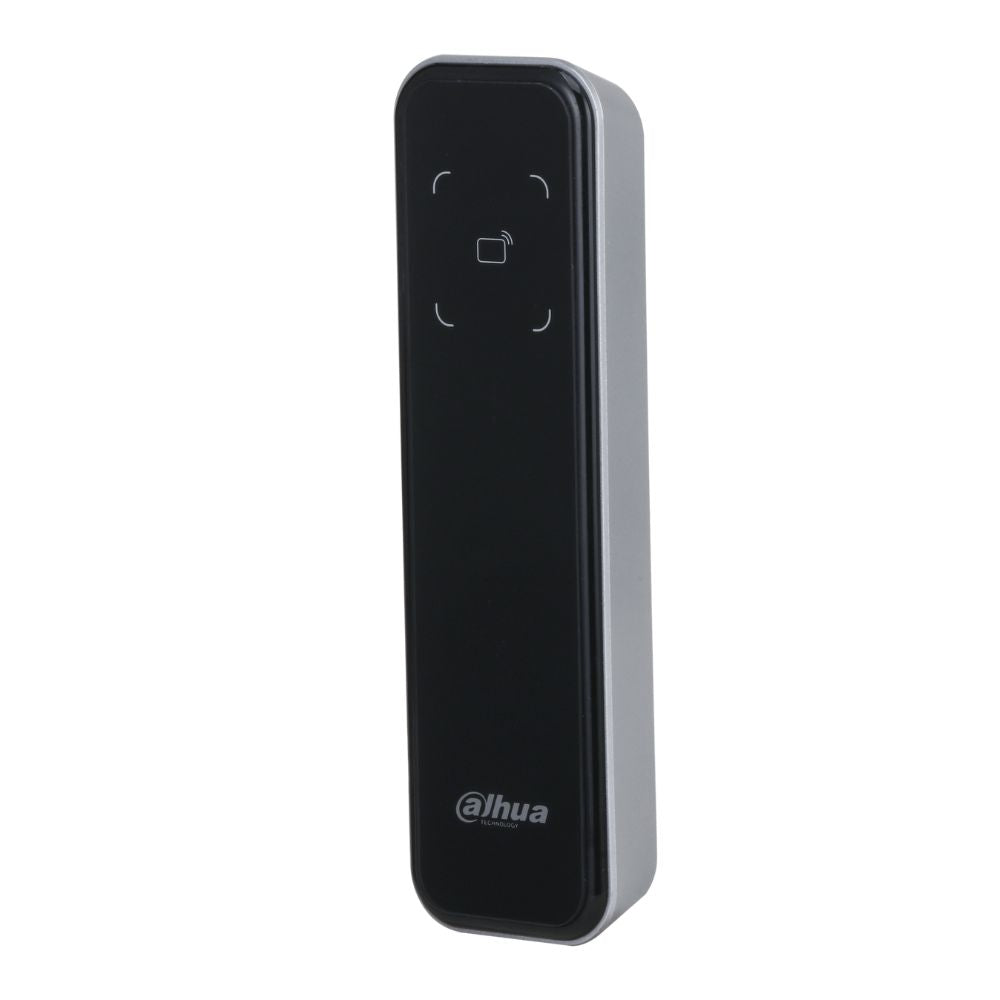

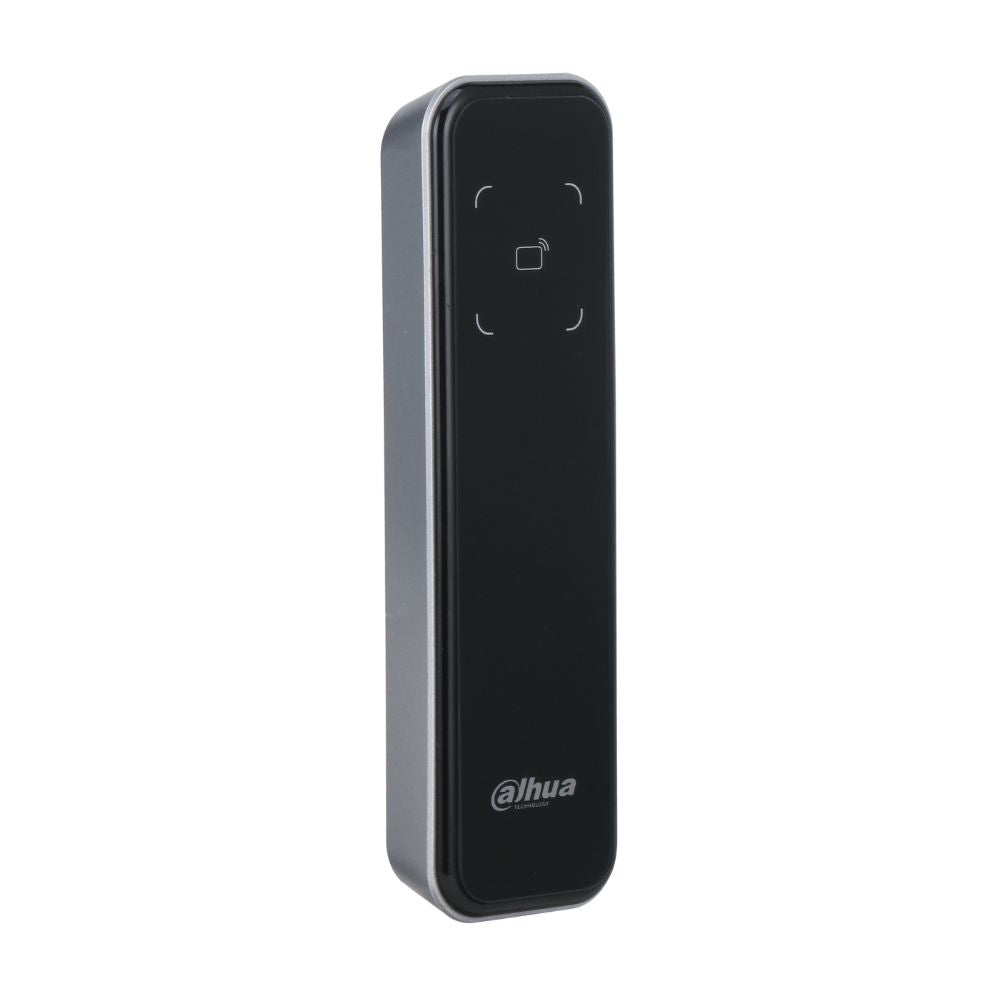

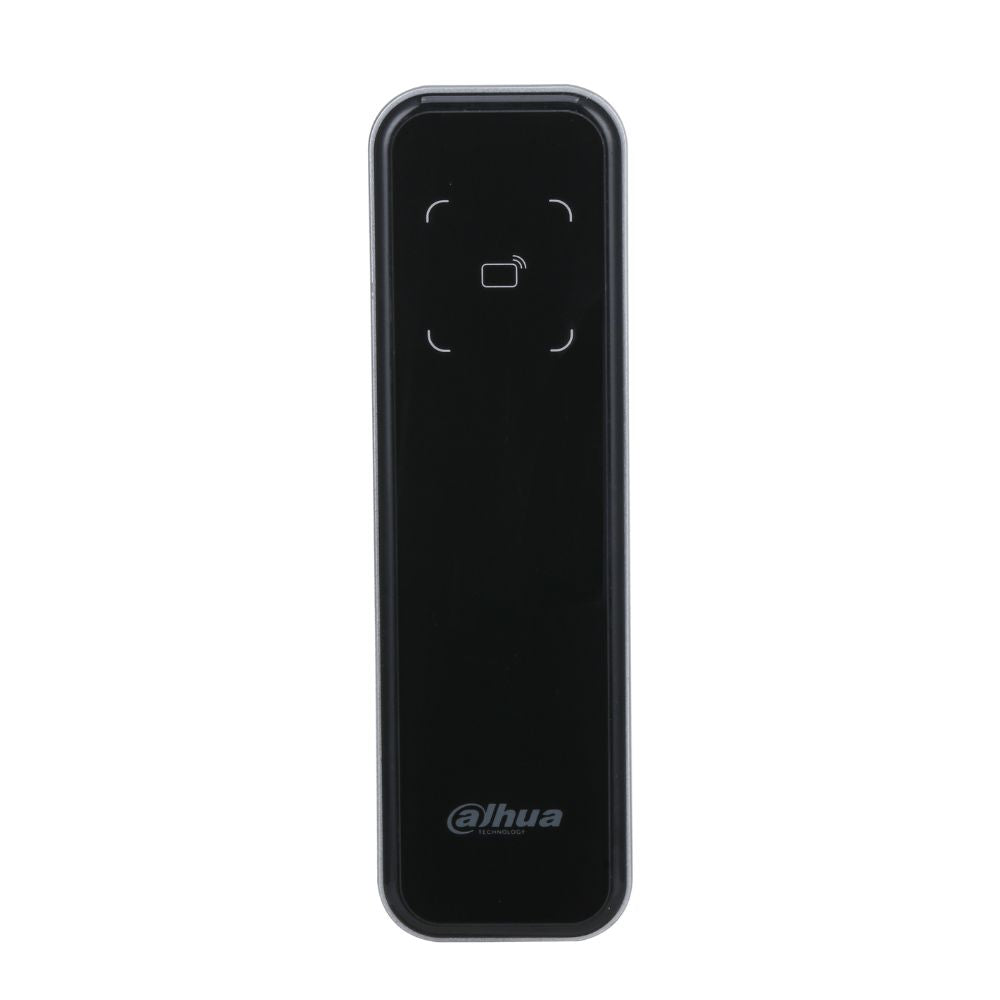

As a key part of the access control system, DHI-ASR2200A-D access control card reader supports card unlock and sends the information to the access controller for verification. With a thin and elegant design, it is applicable to industrial zones, office buildings, schools, factories, stadiums, CBD, residential area, government properties, etc
Features
- PC material, tempered glass panel and IP66, suitable for indoor and outdoor use
- Support contactless recognition of IC card (Mifare card)
- Support card unlock
- Support RS485 and Wiegand communication
- Support buzzer and indicator prompt
- Support anti-tampering alarm
- The built-in watchdog can detect and control the abnormal operation status of the equipment and perform recovery processing to ensure the long-term operation of the equipment
- All connection ports have overcurrent and overvoltage protection
Datasheets
Tech Specs

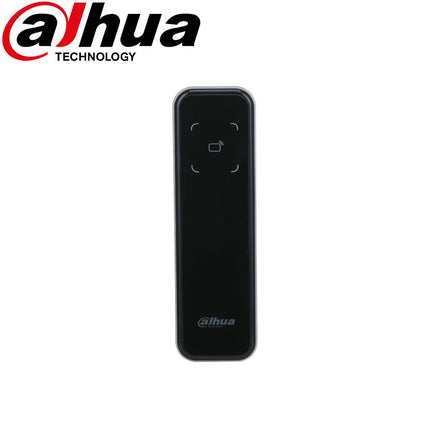

Dahua Access Reader - DHI-ASR2200A
Basic |
Product Type |
Slim Card Reader |
Buzzer |
Yes |
Casing |
Tempered glass/PC |
Function |
Unlock Mode |
Card swiping |
Card Type |
IC card/ID card |
Performance |
Response Time |
0.1 s |
Card Reading Distance |
0 cm–5 cm (0"–1.97") |
Port |
RS-485 |
1 channel |
Wiegand |
1 output channel |
Alarm |
Tamper Alarm |
Yes |
Tamper Alarm |
Yes |
General |
Power Supply |
12V 0.5A DC |
Protection |
IP66 (silicon sealant is needed, see the manual) |
Power Consumption |
Standby ≤ 0.9W, working ≤ 1.7W |
Product Dimensions |
135 mm × 40 mm × 15 mm (5.31" × 1.57" × 0.59") (L × W× H) |
Packaging Dimensions |
195 mm × 75 mm × 52 mm (7.68" × 2.95 × 2.05")
(L × W× H, 1 in inner carton)
415 mm × 400 mm × 230 mm (16.34" × 15.75" × 9.06") (L × W × H, carton)
|
Operating Temperature |
–30°C to +70°C (–22°F to +158°F) |
Operating Humidity |
5%RH–95% (non-condensing) |
Operating Environment |
Indoor; outdoor |
Gross Weight |
0.16 kg (0.35 lb) |
Installation |
Surface mount |
Certifications |
CE; FCC |
