Uniview 8CH Network Video Recorder: upto 12MP, 320MBPS INPUT, 2-SATA HDD, Easy Series - NVR302-08E2-P8

Description

Description

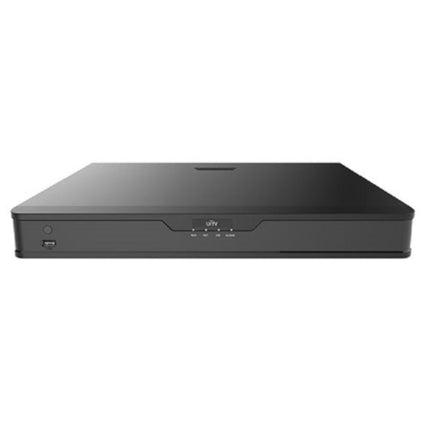

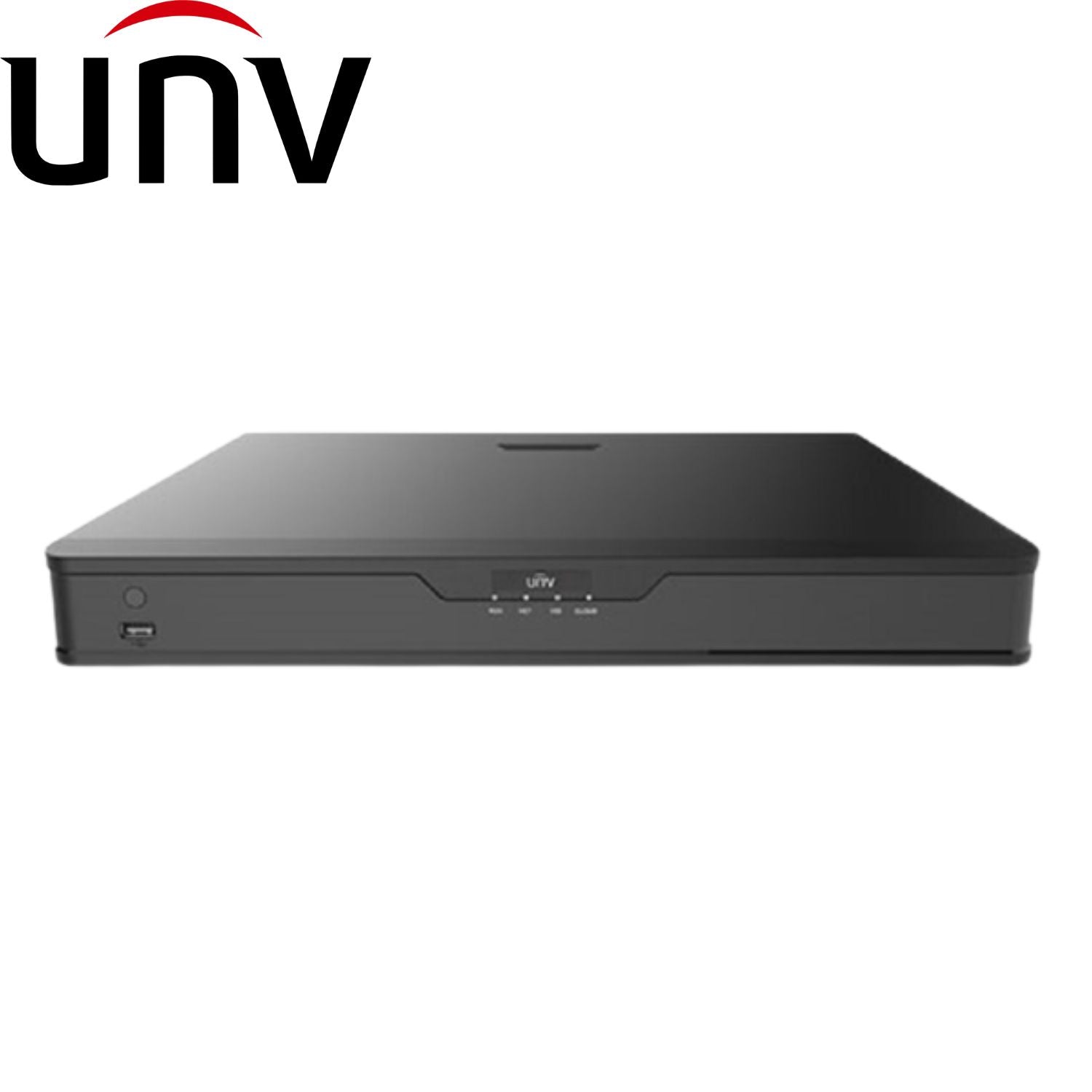

NVR302-08E2-P8 is a professional 8 Channel IP Network Video Recorder with the advanced features you are looking for. This NVR can handle up to 12MP Recording Resolution so you have plenty of high resolution options! Even better, Ultra265 technology combines U-Code and H.265 to reduce your storage space and enhance image quality, cutting your storage costs by 75% or more! Speaking of recording capabilities, the NVR has (2) SATA Bays and accepts up to 10TB each bay for a total of 20TB of storage. In addition, ANR technology assures that you have a redundancy for your video data. Since the NVR302-08E2-P8 has various Fisheye De-warping Modes available, you can achieve the full benefit of panoramic or ‘fisheye’ IP cameras. LPR Cameras are also supported. The NVR has 8 PoE Inputs for ease of installation. Therefore, you do not need a separate PoE switch.

Features

  • Support Ultra 265/H.265/H.264 video formats
  • 8-channel input
  • Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
  • Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution
  • HDMI and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • 2 SATA HDDs, Up to 6TB for each HDD
  • Support cloud upgrade

Datasheet
Tech Specs

Uniview 8 Channel Network Video Recorder: 2 SATA 8 POE E2 No HDD - NVR302-08E2-P8

Video/Audio Input
IP Video Input 9-ch 16-ch 32-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 180Mbps 320Mbps
Remote Users TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Prortocols TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS
Browser IE(IE10/11) for Windows
Firefox (version 52.0 and above) for Windows
Chrome(version 45 and above) for Windows
Edge(version 79 and above) for Windows
Video/Audio Output
HDMI/VGA Output VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
HDMI:
4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz,
1024x768/60Hz
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Audio Compression G.711A, G.711U
Synchronous Playback 16-ch
Live View Display 1/4/6/8/9 1/4/6/8/9/16 1/4/6/8/9/16/25/36
Corridor Mode Screen 3/4/5/7/9 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Snapshot
FTP/Schedule/Event
Snapshot		 16-ch snapshot, up to 1080P resolution
Decoding
Decoding Format Ultra 265, H.265, H.264
Live View/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 12MP@30, 2 x 4K@30, 5 x
4MP@30, 9 x 1080P@30		 1 x 12MP@30, 2 x 4K@30, 5 x
4MP@30, 10 x 1080P@30, 16 x
720P@30		 1 x 12MP@30, 2 x 4K@30, 5 x
4MP@30, 10 x 1080P@30, 22 x
720P@30, 32 x D1
Hard Disk
SATA 2 SATA interfaces
Capacity up to 6TB for each HDD
eSATA NA
Disk Group Support
Smart
VCA Detection by Camera Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking
VCA Search Behavior Search, Vehicle Search
People Counting People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention
(SIP), Vehicle Detection by
Camera		 Total 8-ch
General Alarm
General Alarm Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection
Alert Alarm IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard
Disk Full, Recording/Snapshot Abnormal
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
USB Interface Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0
RS232 NA
RS485 1
Alarm In 8-ch
Alarm Out 2-ch
General
Power Supply 12VDC/3.3A
Power Consumption: ≤ 12 W (without HDD)
Working Environment -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H) 380mm × 315mm × 53mm (15.0" × 12.4"× 2.1")
Weight (without HDD) ≤1.8Kg (3.97lb)
Certification
Certification CE, FCC, UL, RoHS, WEEE
CE EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC Part15 Subpart B, ANSI C63.4

Read more
