Description

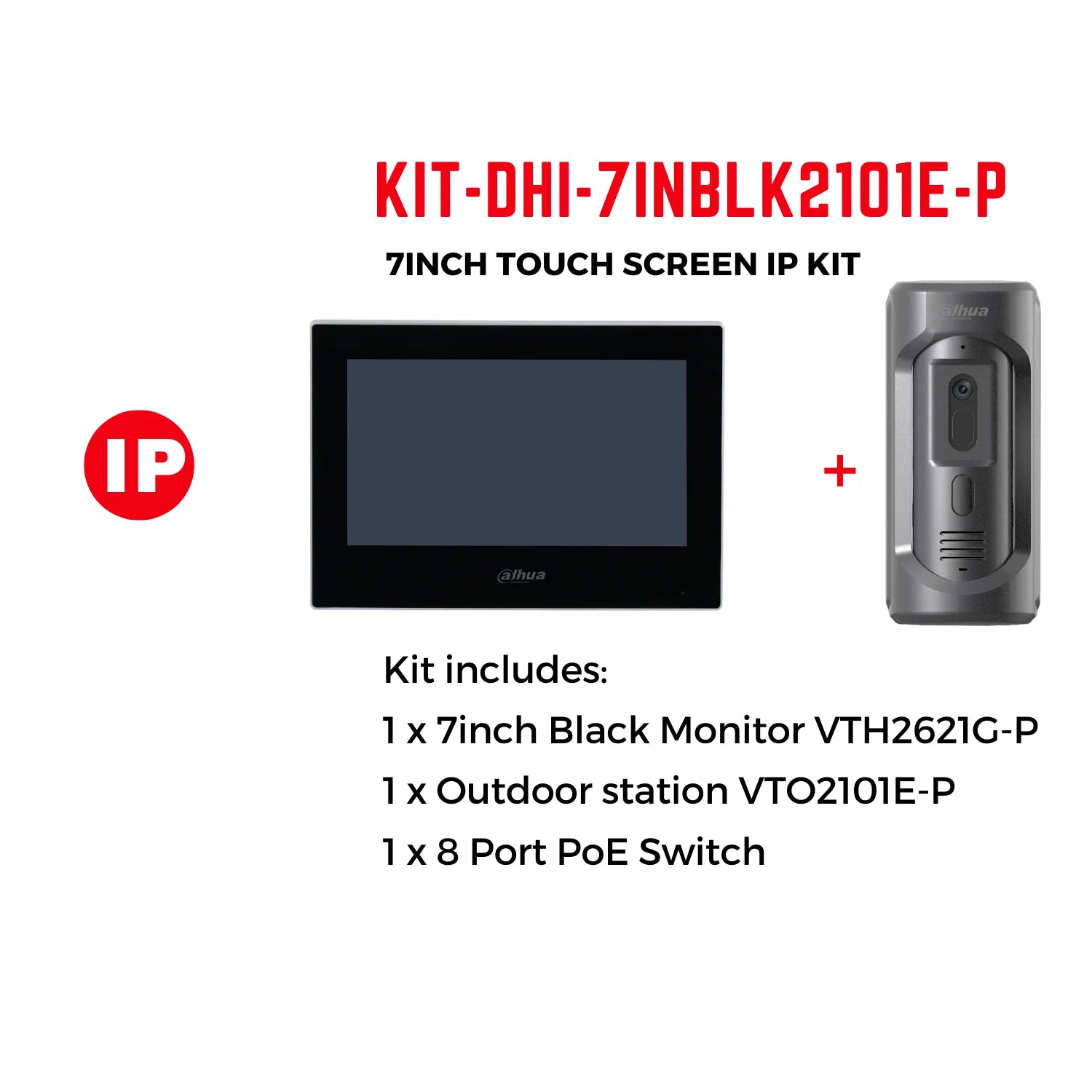

Dahua KIT-DHI-7INBLK2101E-P Intercom Kit is part of Dahua's VTH Series. VTH series products are digital video intercom home stations that integrate monitoring, two-way communication, and door management. The VTH devices use an IP network, SNMP (Simple Network Management Protocol) technology, and network encryption technology to achieve a stable system, robust functionality, convenient operation, and safer data transmission. These devices allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor.
7" Touch Screen Monitor -DHI-VTH2621G-P
- 7'' TFT capacitive touch screen, 1024 x 600
- 6-channel alarm input and 1-channel alarm output
- Standard PoE
- Outdoor station and IPC monitor
- H.265 and H.264 video coding
- High performance & cost-effective
IP Villa Outdoor Station - VT02101E-P-S1
- HD CMOS camera
- Zinc alloy panel, IP65,IK10
- ICR Night vision &Voice indication
- Video & Audio messaging
- TCP/IP,SIP
- Surface mounted
4-Port PoE Switch - PFS3005-4ET-60
- Intelligent PoE
- Hi-PoE 60W (orange port)
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- Wide working temperature
Includes:
Downloads
Tech Specs
7" Touch Screen Monitor -DHI-VTH2621G-P
System |
Main Processor |
Embedded processor |
Operating System |
Embedded Linux operating system |
Interoperability |
ONVIF; SDK |
Network Protocol |
RTSP; RTP; SIP; DNS; SSH |
ROM |
128 MB |
RAM |
128 MB |
CPU |
Dual core 1.2 GHz |
Basic |
Screen Type |
Capacitive touchscreen |
Display |
7" TFT |
Screen Resolution |
1024 × 600 |
Audio Compression |
G.711a; G.711u; PCM |
Audio Input |
1 |
Audio Output |
Built-in speaker |
Audio Mode |
2-way Audio |
Audio Enhancement |
Echo suppression |
Audio Bit Rate |
16 kHz; 16 bit |
Function |
Communication Mode |
Full digital |
Information Release |
Receive and view text information released by the management center |
Leave Videos |
Yes (SD card inserted in VTO is needed) |
DND Mode |
Do not disturb period can be set; Do not disturb mode |
Number of Extensions |
Villa: 9
Apartment: 4 |
Performance |
Casing |
PC + ABS |
Port |
Alarm Input |
6 |
Alarm Output |
1 |
Door Bell |
Yes (use any alarm input port) |
Network |
One 10/100 Mbps Ethernet |
General |
Appearance Color |
Black/White |
Power Supply |
12 VDC 1A;
Standard PoE (36–57 V, 0.35 A) |
Installation |
Surface Mount |
Certifications |
CE; FCC |
Dimensions |
189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
Operating Temperature |
–10 °C to +55 °C (+14 °F to 131 °F) |
Operating Humidity |
10%–95% RH (non-condensing) |
Operating Altitude |
Beneath 3,000 m (9,842.52 ft) |
Power Consumption |
Standby ≤ 2 W; working ≤ 6 W |
Net Weight |
0.34 kg (0.74 lb) |
Gross Weight |
0.58 kg (1.27 lb) |
IP Villa Outdoor Station - VT02101E-P-S1 |
Model |
VTO2101E-P-S1 |
System |
Main Processor |
Embedded Micro Processor |
Operation System |
Embedded LINUX OS |
Camera |
Image Sensor |
1/2.7” 2MP CMOS |
Focal Length |
2.8mm |
Angle of View |
H:77°, V:55°, D:100° |
Angle of View adjustment |
Horizontal: -45° – +45° |
Video |
Video Compression |
H.264 |
Video Streaming |
Dual Stream |
Day/Night |
Auto(ICR), 5m |
BLC Mode |
WDR |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
OSD |
Support |
Audio |
Audio Compression |
G.711 |
Audio Input |
Omnidirectional Mic |
Audio Output |
Built-in Speaker |
Bidirectional Talk |
Support Dual-way Bidirectional talk |
Audio processing |
Noise suppression, Echo cancellation |
Operation Mode |
Keypad |
1 Mechanical Button |
Interface |
Door Control |
1 |
Alarm In |
1 |
RS485 |
1 |
Network |
Ethernet |
10M/100Mbps Self-adaptive |
Network Protocol |
TCP/IP, SIP |
General |
Ingress Protection |
IK10, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
Tamper Switch |
1 |
Tamper Screw |
Support |
Installation |
Surface |
Material |
Front Panel: Zinc alloy
Rear Panel: Aluminum alloy
Holder: Aluminum alloy
|
Power |
DC 12V, PoE(802.3af) |
Power Consumption |
Standby ≤2.5W, Work ≤7W |
Working Temperature |
﹣30°C to +60°C |
Relative Humidity |
10%RH–90%RH |
Dimensions |
163.0mm×73.0mm×54.5.0mm |
Weight |
0.8kg |
4-Port PoE Switch - PFS3005-4ET-60 |
Ethernet Port |
Port 1-4: 4 × RJ-45 10/100M (PoE)
Port 5: 1 × RJ-45 10/100M (uplink)
|
PoE Power Consumption |
Port 1 ≤ 60 W (Hi-PoE)
port 2-4 ≤ 30 W
total ≤ 60 W
|
Power Consumption |
Idling: 0.8 W
Full load: 60 W
|
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
PoE |
PoE Protocol |
IEEE802.3af/ IEEE802.3at/ Hi-PoE |
Power Supply Pin |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
Long Distance |
250 m long distance PoE transmission |
PoE Power Management |
Yes |
PoE Watchdog |
Yes |
Performance |
Switching Capacity |
1.8 Gbps |
Packet Forwarding Rate |
744 Kbps |
Packet Buffer Memory |
1 Mbit |
Flow Control |
Enable by default |
Working Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
Application Humidity |
5%– 95% (RH) |
General |
Power Input |
48 V - 57 V DC |
Lighting Protection |
Common mode: 4 kV
Differential mode: 2 kV
|
ESD Protection |
Air discharge: 8 kV
Contact discharge: 6 kV
|
Wall-mount Installation |
Yes |
Anti-theft Lock Hole |
Yes |
Weight |
0.30 kg (0.64 lb) |
Dimension |
130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
