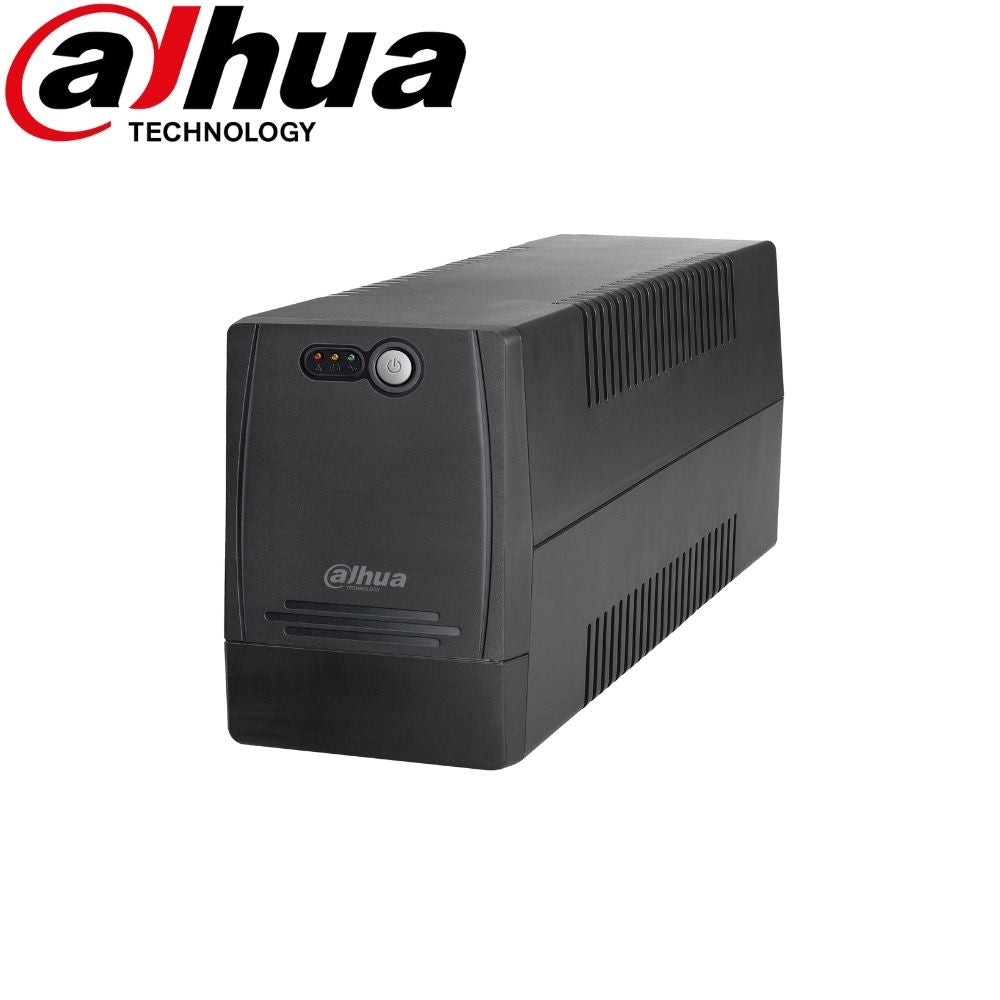

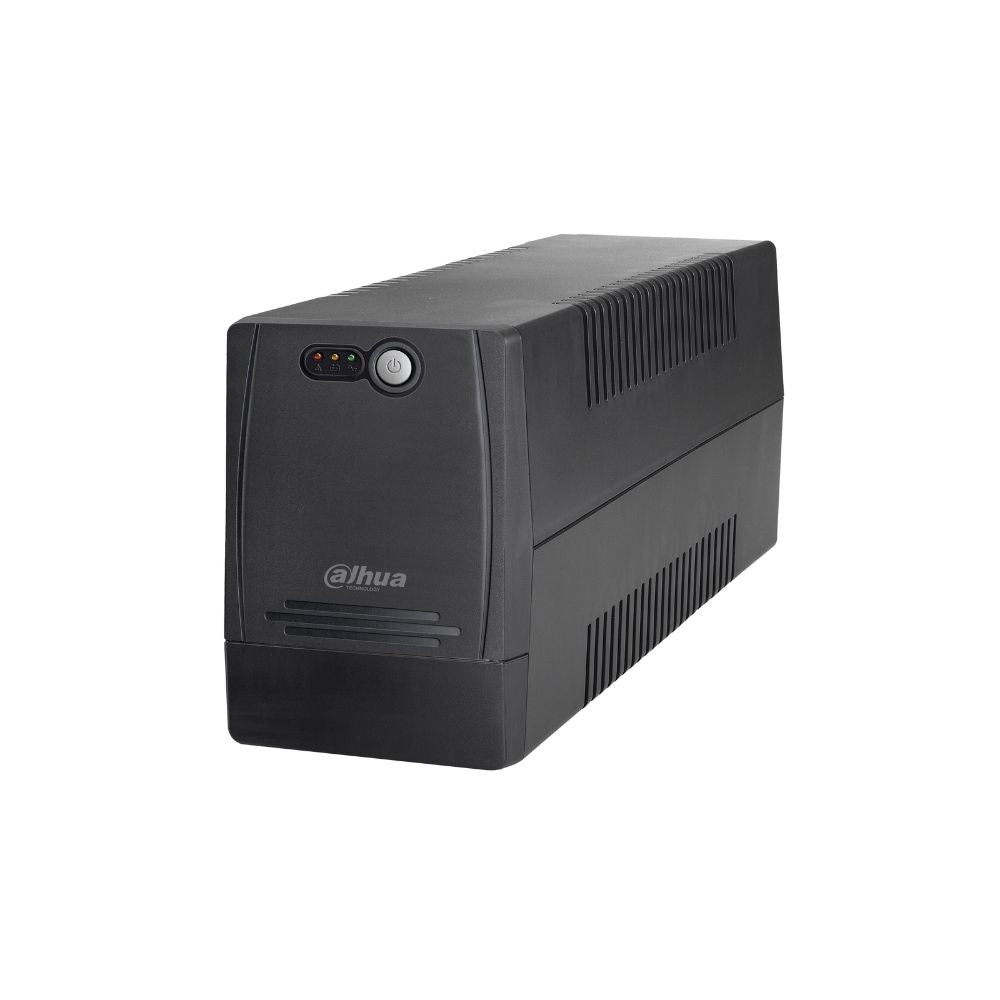

| Dahua 600VA/360W Line-Interactive UPS - DH-PFM350-360 |
| Model |
DH-PFM350-360 |
| Plug type |
Australian |
| Capacity |
600VA/360W |
| Input |
| Rated voltage |
220Vac~240Vac |
| Voltage range |
140Vac~290Vac |
| Rated frequency range |
50Hz or 60Hz |
| Power factor |
0.6 |
| Output |
| Voltage |
220/230/240 VAC |
| AC Voltage Regulation (Batt. Mode) |
±10% |
| Frequency Range (Batt. Mode) |
50Hz or 60Hz ±1Hz |
| Transfer Time |
2-6ms |
| Waveform (Batt. Mode) |
Simulated sinewave |
| Battery |
| Battery type & number |
12 V/7 Ah x 1 |
| Typical recharge time |
4 hours recover to 90% capacity |
| Charging voltage |
13.7V±1% |
| Indicators |
| Battery mode |
Green lighting |
| AC mode |
Green lighting |
| Alarm |
| Battery mode |
Sounding every 10 seconds |
| Low battery |
Sounding every second |
| Overload |
Sounding every 0.5 second |
| Fault |
Continuously sounding |
| Protection |
| Full protection |
Overload, discharge and overcharge protection |
| Environmental |
| Operating temperature |
0°C ~ +40°C (+32°F ~ +104°F) |
| Operating humidity |
0~90% RH(non-condensing) |
| Altitude range |
<1000m(3280.84ft) |
| Construction |
| Color |
Black |
| Noise level |
<40dB |
| Dimensions |
279mmx101mmx142mm(10.98"x3.98"x5.59") |
| Weight |
4.25kg(9.37lb) |
