Description
Dahua DHI-KTA02 4-Wire Indoor Monitor Kit is part of Dahua's VTH Series. VTH series products are digital video intercom home stations that integrate monitoring, two-way communication, and door management. The VTH devices use an IP network, SNMP (Simple Network Management Protocol) technology, and network encryption technology to achieve a stable system, robust functionality, convenient operation, and safer data transmission. These devices allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor.
Analog Door Station - DHI-VTO1000J
- Video intercom function: Unlock, voice call, video call and volume adjustment
- Multiple bell sounds
- Supports digital wide dynamic range (DWDR)
- Mechanical button
Analog Indoor Monitor - DHI-VTH1020J
- 7'' TFT screen
- Video intercom function: Unlock, voice call, video call and volume adjustment
- Mechanical button
- Multiple bell sounds

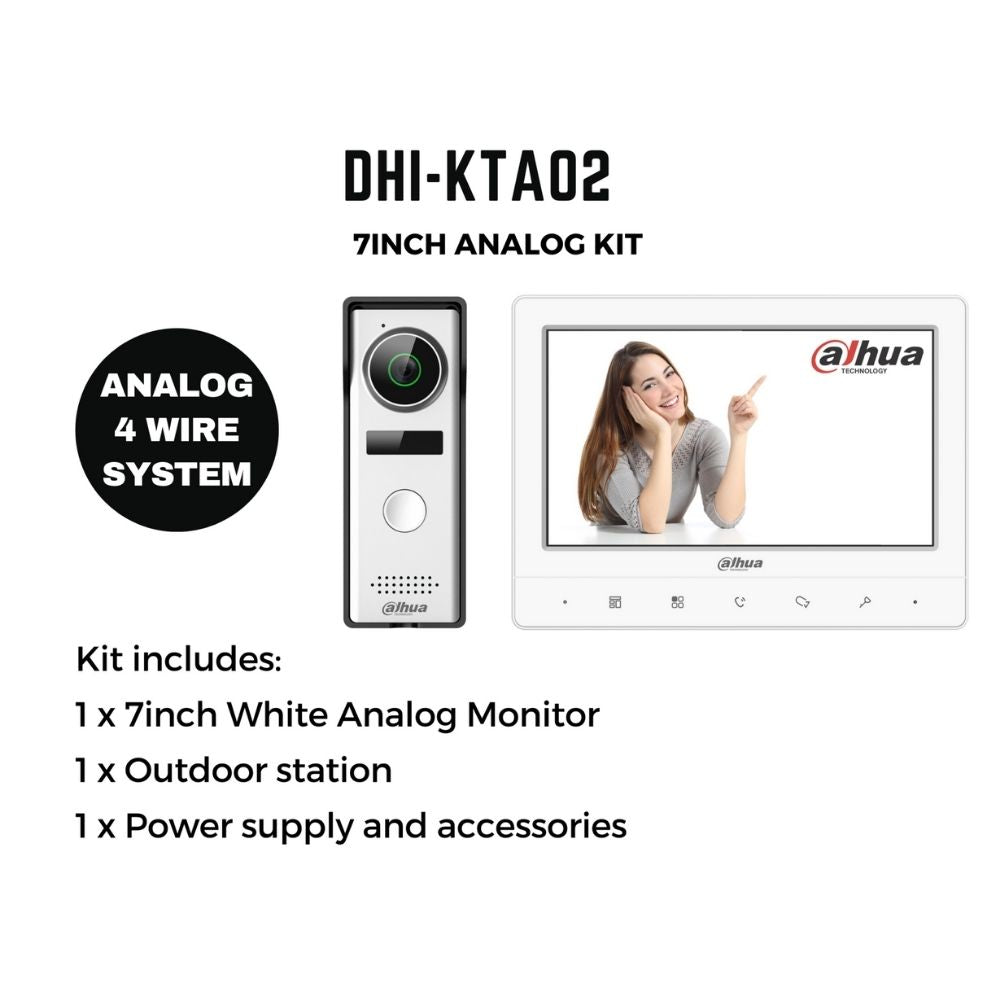

Includes:
- 1 x Analog Door Station DHI-VTO1000J
- 1 x Analog Indoor Monitor DHI-VTH1020J
- 1 x Surface Mount Bracket
Downloads
Tech Specs
Analog Indoor Monitor - DHI-VTH1020J |
Button Type |
Touch button |
Basic |
Display |
7.0" TFT |
Screen Resolution |
1024 × 600 |
Status Indicator |
1 indicator light
Green: Power on |
Function |
Communication Mode |
Analog |
Performance |
Casing |
PC + ABS |
General |
Color |
White |
Power Supply |
DC 12V/2A |
Power Adapter |
Included |
Installation |
Surface mount |
Certifications |
CE/FCC |
Accessory |
Bracket (included) |
Dimensions |
133.90 mm × 182.70 mm × 17.70 mm
(5.27" × 7.19" × 0.70")
|
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
Operating Humidity |
10%RH–95%RH |
Power Consumption |
≤ 2W (standby)
≤ 5W (working) |
Net Weight |
0.25 kg (0.55 lb) |
Gross Weight |
0.48 kg (1.05 lb) |
Analog Door Station - DHI-VTO1000J |
Button Type |
Mechanical |
Basic |
Camera |
1.3MP CMOS |
Field of View |
Horizontal: 70°
Vertical: 40° |
WDR |
DWDR |
Illuminator Type |
Auto IR |
Day/Night |
ICR auto switch |
Audio Input |
1 channel to the microphone; pickup distance 0.5 m |
Audio Output |
1 channel to the speaker |
Status Indicator |
1 indicator light
Green: Power on |
Function |
Communication Mode |
Analog |
Unlock Mode |
Local unlock |
Performance |
Casing |
PC + ABS |
Port |
Exit Button |
1 |
Door Status Detection |
1 |
General |
Color |
Silver |
Power Supply |
Powered by indoor monitor |
Installation |
Surface mount |
Certifications |
CE/FCC |
Accessory |
Rain cover (included) |
Dimensions |
131.45 mm × 46.00 mm × 33.80 mm
(5.18" × 1.81" × 1.33")
|
Protection Grade |
IP66 (Apply silicon sealant to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
Operating Temperature |
-30°C to +60°C (-22°F to +140°F) |
Operating Humidity |
10%RH–95%RH |
Power Consumption |
≤ 1W (standby)
≤ 3W (working) |
Net Weight |
0.18 kg (0.40 lb) |
Gross Weight |
0.38 kg (0.84 lb) |
