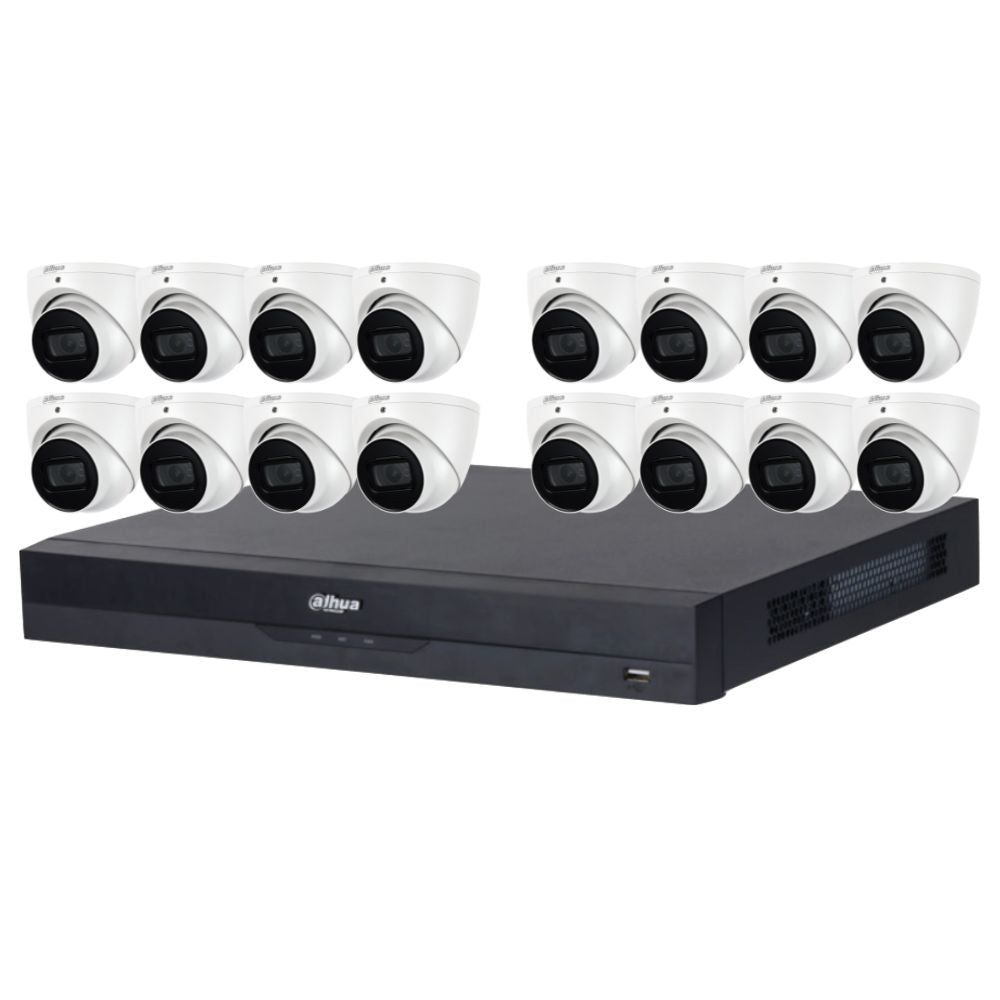

Dahua 2023 Full AI Security System: 16x 6MP Turret 3X66 Cams, 16CH 16MP WizSense NVR

Description

Description

This video highlights the new features introduced by the 3X66 series. This product's specifications may vary in terms of resolution, model, etc. Please refer to the datasheets for accurate specs or contact us for questions.

WizSense AI offers quick, quality, and reliable surveillance while minimizing false alarms. AI Smart Motion Detect will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognizing changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR such as this kit.

Kit Includes

*Only included if you select a variant with a specified capacity. It will come pre-installed in the NVR.
Cables and mounts are not included but are available for purchase.

Camera Features

  • 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
  • Outputs max. 6 MP (3072 × 2048) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate.
  • Built-in IR LED, max. IR distance: 30 m.
  • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
  • Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, are applicable to various monitoring scenes.
  • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
  • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
  • Max. 256 G Micro SD card. built-in Mic.
  • 12 VDC/PoE power supply, easy for installation.
  • IP67 protection.
  • SMD 4.0, AI SSA.

Recorder Features

  • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
  • The new AI Series supports increased bandwidth and improved decoding capability
  • Access, storage or forwarding at 256 Mbps (180 Mbps when AI function is enabled).
  • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
  • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
  • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
  • ANPR; people counting; stereo analysis; heat map.
  • Security baseline 2.3
  • Up to 16-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.
  • Smart Motion Detection Plus, filters the motion detection alarm triggered by non-concerned target and recognize human and vehicle effectively, sending alarms when a human or vehicle intrudes.
  • Increased bandwidth and improved decoding capability.
  • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
  • Supports high-precision face recognition by facial attributes in image search and face attribute search.
  • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
  • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
  • Enhanced Mode: Extends POE transmission up to 200m.
  • Supports One-Click Disarming for Active deterrence and push notifications.

AI Coding - Smart H.265+

Focusing on humans and vehicles while encoding, AI coding ensures target image quality while saving 50% bandwidth and storage costs compared with standard H.265. AI Coding function is enabled by default in the newest firmware version.

These calculations are generated assuming all cameras included in the kit are recording 24/7 and are utilizing Smart H.265 encoding on a medium activity environment. Low scene activity doubles the estimated capacity while high scene activity reduces it by half (similar to the storage consumption of standard H.265 devices).

Estimated Hard Drive Capacity
Smart H.265+ Encoding (Medium Scene Activity)
1 Terabyte Hard Drive 3 Days, 9 Hours
2 Terabyte Hard Drive 6 Days, 18 Hours
3 Terabyte Hard Drive 1 Week, 3 Days, 4 Hours
4 Terabyte Hard Drive 1 Week, 6 Days, 13 Hours
6 Terabyte Hard Drive 2 Weeks, 6 Days, 8 Hours
8 Terabyte Hard Drive 3 Weeks, 6 Days, 3 Hours
10 Terabyte Hard Drive 4 Weeks, 5 Days, 21 Hours
12 Terabyte Hard Drive 5 Weeks, 5 Days, 16 Hours
14 Terabyte Hard Drive 6 Weeks, 5 Days, 11 Hours

Datasheets

Camera

Recorder

Tech Specs

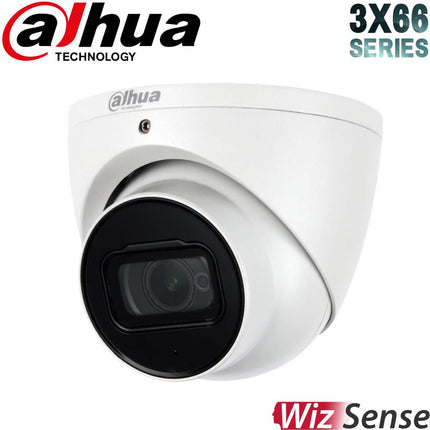

Dahua 6MP WizSense Turret Camera - DH-IPC-HDW3666EMP-S-AUS
Fixed 2.8mm Lens | Starlight | SMD 4.0 | SSA
Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 3072 (H) × 20488 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (B/W, 30 IRE)0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (164.04 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm;
Max. Aperture F1.4
Field of View 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 63.6 m(208.66 ft) 25.4 m(83.33 ft) 12.7 m(41.67 ft) 6.4 m(21.00 ft)
3.6 mm 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m(56.10 ft) 8.5 m(27.89 ft)
Intelligence
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA Yes
Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+ Smart H.264+
AI Coding AI H.265 AI H.264
Video Frame Rate Main stream: 3072× 2048 @ (1–25/30) fpsSub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 3 streams
Resolution 6M(3072x2048);5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host 20 (Total bandwidth: 64 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE:IE11 Chrome Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 4.3 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
Protection IP67
Structure
Casing Metal
Product Dimensions 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
Net Weight 500 g (1.10 lb)
Gross Weight 770 g (1.70 lb)

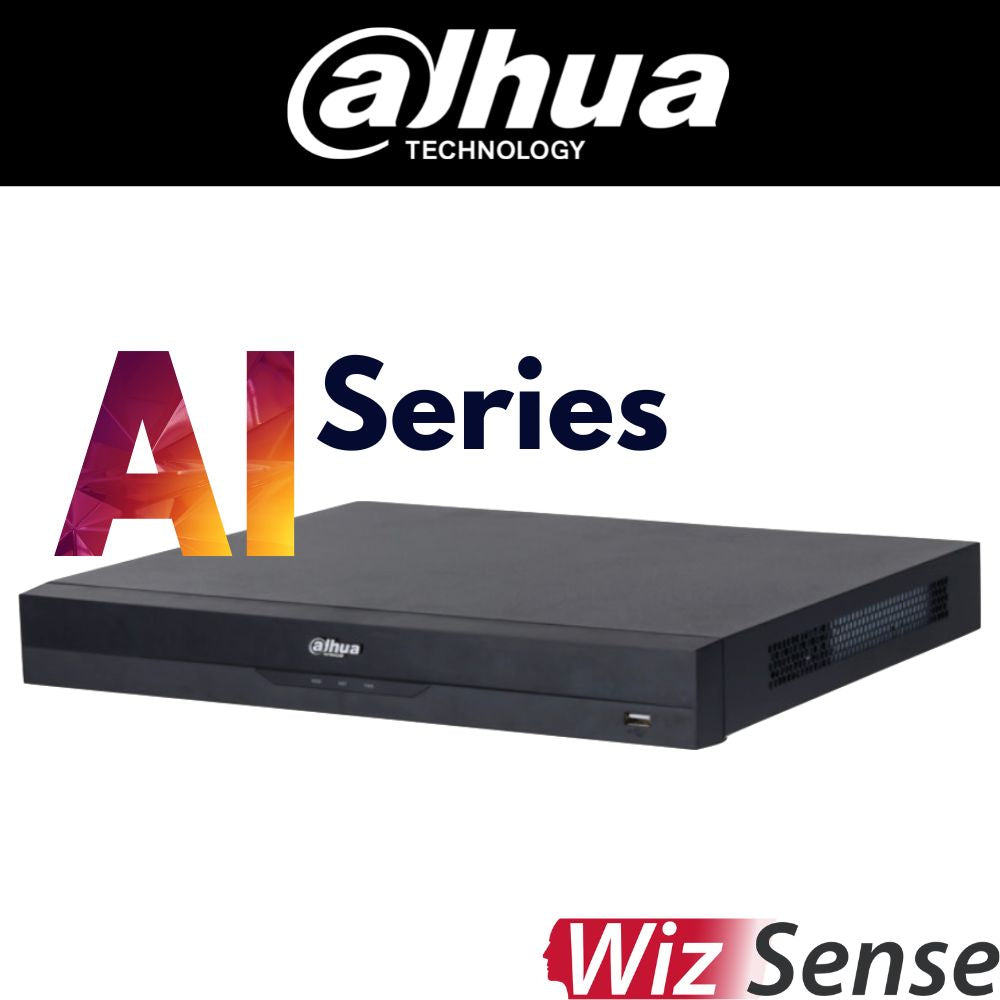

Dahua 16-Channel WizSense NVR: 16MP - DHI-NVR4216-16P-AI/ANZ
Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding
System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web; Local GUI
AI
AI by Recorder Face detection, face recognition, perimeter protection,
and SMD Plus;
AI by Camera Face detection; face recognition; perimeter protection;
SMD Plus; ANPR; people counting; stereo analysis; heat
map
Perimeter Protection
Perimeter Performance AI
by Recorder (Number of
Channels)		 2 channels, 10 IVS rules for each channel
Perimeter Performance of
AI by Camera (Number of
Channels)		 8 channels
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask;
beard
Face Detection
Performance of AI by
Recorder (Number of
Channels)		 1 channel (up to 12 face images/s each channel)
Face Detection
Performance of AI by
Camera (Number of
Channels)		 8 channels
Face Recognition
Face Database Capacity Up to 10 face databases with 200,00 images, with a
total capacity of 2.5 G. Name, gender, birthday, address,
credential type, credential No., countries & regions and
state can be added to each face image.
Face Recognition
Performance of AI by
Recorder (Number of
Channels)		 8-channel FD (by camera) + FR (by recorder),image
stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video
stream: 12 face images/s
Face Recognition
Performance of AI by
Camera (Number of
Channels)		 8 channels
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
vehicle , reducing false alarms caused by leaves, rain and
lighting condition change
SMD Plus by Camera 8 channels
Vehicle License Plate Comparison
ANPR by Camera (Number
of Channels)		 4 channels
License Plate Database
Capacity		 1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist
Audio and Video
Access Channel 16 channels
Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording
and 256 Mbps outgoing
AI-enabled: 180 Mbps incoming, 180 Mbps recording and
180 Mbps outgoing
Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p;
960p; 720p; D1; CIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5
MP@30 fps; 8-channel 4 MP@30 fps
AI-enabled: 1-channel 16 MP@30 fps; 2-channel
12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel
5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel
1080p@30 fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for
VGA and HDMI is configurable.
Multi-screen Display 1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9
Third-party Camera
Access		 Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
Canon
Compression Standard
Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression G.711a; G.711u; PCM; G726
Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
FTP; Alarm Server; IP Search (Support Dahua IP camera;
DVR; NVS; etc.); P2P; auto register
Mobile Phone Access iOS; Android
Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Recording Playback
Multi-channel Playback Up to 16 channels
Record Mode General, motion detection; intelligent; alarm
Backup Method USB device and network
Playback Mode Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)
Storage
Disk Group Yes
Alarm
General Alarm Motion detection; privacy masking; video loss; scene
changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage error; disk full; IP
conflict; MAC conflict; login locked; and cybersecurity
exception
Intelligent Alarm Face detection; face recognition; perimeter protection;
SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio;
buzzer; log; preset; email
Port
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Alarm Input 4 channels
Alarm Output 2 channels
HDD Interface 2 SATA ports, up to 16 TB.The maximum HDD capacity
varies with environment temperature.
USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
HDMI 1
VGA 1
Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
PoE Port 16 ports, 10/100 Mbps, IEEE 802.3 af/at
General
Power Supply 100–240 VAC, 47-63 Hz
Power Consumption Total output of NVR is <10 W(without HDD) Total output
power of PoE is 72W,the maximum output power of
asingle port is 25.5W
Net Weight 2.60 kg (5.73 lb)
Gross Weight 3.80 kg (8.38 lb)
Product Dimensions 375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" ×
2.09") (W × L × H)
Packaging Dimensions 451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" ×
5.79") (W × L × H)
Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH)
Installation Rack or desktop
Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014
Videos

3-Years Warranty

The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
    •

    Read more

    Dahua 2023 Full AI Security System: 16x 6MP Turret 3X66 Cams, 16CH 16MP WizSense NVR

    Product form

    SKU: DH-2023-6MPT-X-16-AI-16CH-00TB

    $3,905.00 $3,152.00 Incl. GST

      • Guaranteed secure & safe checkout.

        paypal
      • FREE Express Courier Shipping for all orders over $100
      • 30-Day Returns Policy
      • Back to Base Australian Warranty & Tech Support
      • Australian Stock, No Grey Import Products

      Product Datasheet

      Product Datasheet

      Description

      Description

      This video highlights the new features introduced by the 3X66 series. This product's specifications may vary in terms of resolution, model, etc. Please refer to the datasheets for accurate specs or contact us for questions.

      WizSense AI offers quick, quality, and reliable surveillance while minimizing false alarms. AI Smart Motion Detect will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognizing changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR such as this kit.

      Kit Includes

      *Only included if you select a variant with a specified capacity. It will come pre-installed in the NVR.
      Cables and mounts are not included but are available for purchase.

      Camera Features

      • 6-MP 1/2.7" CMOS image sensor, excellent low luminance performance and high definition of images.
      • Outputs max. 6 MP (3072 × 2048) @25/30 fps
      • H.265 codec, high compression rate, ultra-low bit rate.
      • Built-in IR LED, max. IR distance: 30 m.
      • ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
      • Rotation mode, WDR, 3D NR, HLC, BLC, and digital watermarking, are applicable to various monitoring scenes.
      • Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human).
      • Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
      • Max. 256 G Micro SD card. built-in Mic.
      • 12 VDC/PoE power supply, easy for installation.
      • IP67 protection.
      • SMD 4.0, AI SSA.

      Recorder Features

      • Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
      • The new AI Series supports increased bandwidth and improved decoding capability
      • Access, storage or forwarding at 256 Mbps (180 Mbps when AI function is enabled).
      • Max. decoding capability: 16 x 1080p@30 fps. Supports adaptive decoding.
      • AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
      • AI by Camera: Face detection and recognition, perimeter protection; SMD Plus;
      • ANPR; people counting; stereo analysis; heat map.
      • Security baseline 2.3
      • Up to 16-Channel SMD: Smart Motion Detection effectively eliminates false alerts, as it can filter humans and vehicles in motion detection.
      • Smart Motion Detection Plus, filters the motion detection alarm triggered by non-concerned target and recognize human and vehicle effectively, sending alarms when a human or vehicle intrudes.
      • Increased bandwidth and improved decoding capability.
      • Supports cameras with Quick Pick Technology: Quick Pick can quickly detect targets by attributes such as the colour of clothing and vehicles, and accurately locate targets in search, facilitating enhanced search efficiency and retrieval.
      • Supports high-precision face recognition by facial attributes in image search and face attribute search.
      • Smart Illumination based on conditions, compatible with dual illuminator cameras such as TiOC2.0
      • Supports EPTZ (with compatible cameras): Zoom in and track multiple humans and vehicles (up to 3) when an alarm is triggered, similar to PTZ linkage. Tracks target until it disappears.
      • Enhanced Mode: Extends POE transmission up to 200m.
      • Supports One-Click Disarming for Active deterrence and push notifications.

      AI Coding - Smart H.265+

      Focusing on humans and vehicles while encoding, AI coding ensures target image quality while saving 50% bandwidth and storage costs compared with standard H.265. AI Coding function is enabled by default in the newest firmware version.

      These calculations are generated assuming all cameras included in the kit are recording 24/7 and are utilizing Smart H.265 encoding on a medium activity environment. Low scene activity doubles the estimated capacity while high scene activity reduces it by half (similar to the storage consumption of standard H.265 devices).

      Estimated Hard Drive Capacity
      Smart H.265+ Encoding (Medium Scene Activity)
      1 Terabyte Hard Drive 3 Days, 9 Hours
      2 Terabyte Hard Drive 6 Days, 18 Hours
      3 Terabyte Hard Drive 1 Week, 3 Days, 4 Hours
      4 Terabyte Hard Drive 1 Week, 6 Days, 13 Hours
      6 Terabyte Hard Drive 2 Weeks, 6 Days, 8 Hours
      8 Terabyte Hard Drive 3 Weeks, 6 Days, 3 Hours
      10 Terabyte Hard Drive 4 Weeks, 5 Days, 21 Hours
      12 Terabyte Hard Drive 5 Weeks, 5 Days, 16 Hours
      14 Terabyte Hard Drive 6 Weeks, 5 Days, 11 Hours

      Datasheets

      Camera

      Recorder

      Tech Specs
      Dahua 6MP WizSense Turret Camera - DH-IPC-HDW3666EMP-S-AUS
      Fixed 2.8mm Lens | Starlight | SMD 4.0 | SSA
      Camera
      Image Sensor 1/2.7" CMOS
      Max. Resolution 3072 (H) × 20488 (V)
      ROM 128 MB
      RAM 1 GB
      Scanning System Progressive
      Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
      Min. Illumination 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (B/W, 30 IRE)0 lux (Illuminator on)
      S/N Ratio >56 dB
      Illumination Distance 30 m (164.04 ft)
      Illuminator On/Off Control Auto/Manual
      Illuminator Number 2 (IR LED)
      Pan/Tilt/Rotation Range Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
      Lens
      Lens Type Fixed-focal
      Lens Mount M12
      Focal Length 2.8 mm; 3.6 mm;
      Max. Aperture F1.4
      Field of View 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°
      Iris Control Fixed
      Close Focus Distance 2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)
      DORI Distance Lens Detect Observe Recognize Identify
      2.8 mm 63.6 m(208.66 ft) 25.4 m(83.33 ft) 12.7 m(41.67 ft) 6.4 m(21.00 ft)
      3.6 mm 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m(56.10 ft) 8.5 m(27.89 ft)
      Intelligence
      IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
      AI SSA Yes
      Quick Pick With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
      Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
      Video
      Video Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
      Smart Codec Smart H.265+ Smart H.264+
      AI Coding AI H.265 AI H.264
      Video Frame Rate Main stream: 3072× 2048 @ (1–25/30) fpsSub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
      Stream Capability 3 streams
      Resolution 6M(3072x2048);5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480)
      Bit Rate Control CBR/VBR
      Video Bit Rate H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps
      Day/Night Auto (ICR)/Color/B/W
      BLC Yes
      HLC Yes
      WDR 120 dB
      Scene Self-adaptation (SSA) Yes
      White Balance Auto; natural; street lamp; outdoor; manual; regional custom
      Gain Control Auto
      Noise Reduction 3D NR
      Motion Detection OFF/ON (4 areas, rectangular)
      Region of Interest (RoI) Yes (4 areas)
      Defog Yes
      AFSA Yes
      Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)
      Mirror Yes
      Privacy Masking 4 areas
      Audio
      Built-in MIC Yes
      Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
      Alarm
      Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
      Network
      Network Port RJ-45 (10/100 Base-T)
      SDK and API Yes
      Network Protocol IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
      Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
      Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
      User/Host 20 (Total bandwidth: 64 M)
      Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
      Browser IE:IE11 Chrome Firefox
      Management Software Smart PSS; DSS; DMSS
      Mobile Client iOS; Android
      Certification
      Certifications CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
      Power
      Power Supply 12 VDC/PoE (802.3af)
      Power Consumption Basic: 4.3 W (12 VDC); 4.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE)
      Environment
      Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH)
      Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F)
      Protection IP67
      Structure
      Casing Metal
      Product Dimensions 93.6 mm × Φ106.0 mm (3.69" × Φ4.17")
      Net Weight 500 g (1.10 lb)
      Gross Weight 770 g (1.70 lb)

      Dahua 16-Channel WizSense NVR: 16MP - DHI-NVR4216-16P-AI/ANZ
      Face Detection | Perimeter Protection | SMD 4.0 | Smart H.265+ Encoding
      System
      Main Processor Industrial-grade processor
      Operating System Embedded Linux
      Operating Interface Web; Local GUI
      AI
      AI by Recorder Face detection, face recognition, perimeter protection,
      and SMD Plus;
      AI by Camera Face detection; face recognition; perimeter protection;
      SMD Plus; ANPR; people counting; stereo analysis; heat
      map
      Perimeter Protection
      Perimeter Performance AI
      by Recorder (Number of
      Channels)      		 2 channels, 10 IVS rules for each channel
      Perimeter Performance of
      AI by Camera (Number of
      Channels)      		 8 channels
      Face Detection
      Face Attributes Gender; age group; glasses; expressions; face mask;
      beard
      Face Detection
      Performance of AI by
      Recorder (Number of
      Channels)      		 1 channel (up to 12 face images/s each channel)
      Face Detection
      Performance of AI by
      Camera (Number of
      Channels)      		 8 channels
      Face Recognition
      Face Database Capacity Up to 10 face databases with 200,00 images, with a
      total capacity of 2.5 G. Name, gender, birthday, address,
      credential type, credential No., countries & regions and
      state can be added to each face image.
      Face Recognition
      Performance of AI by
      Recorder (Number of
      Channels)      		 8-channel FD (by camera) + FR (by recorder),image
      stream: 12 face images/s
      1-channel FD (by recorder) + FR (by recorder), video
      stream: 12 face images/s
      Face Recognition
      Performance of AI by
      Camera (Number of
      Channels)      		 8 channels
      SMD Plus
      SMD Plus by Recorder 4 channels: Secondary filtering for human and motor
      vehicle , reducing false alarms caused by leaves, rain and
      lighting condition change
      SMD Plus by Camera 8 channels
      Vehicle License Plate Comparison
      ANPR by Camera (Number
      of Channels)      		 4 channels
      License Plate Database
      Capacity      		 1. Create up to 20,000 plate numbers.
      2. Blocklist and allowlist
      Audio and Video
      Access Channel 16 channels
      Network Bandwidth AI disabled: 256 Mbps incoming, 256 Mbps recording
      and 256 Mbps outgoing
      AI-enabled: 180 Mbps incoming, 180 Mbps recording and
      180 Mbps outgoing
      Resolution 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p;
      960p; 720p; D1; CIF
      Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12
      MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5
      MP@30 fps; 8-channel 4 MP@30 fps
      AI-enabled: 1-channel 16 MP@30 fps; 2-channel
      12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel
      5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel
      1080p@30 fps
      Video Output 1 HDMI, 1 VGA
      HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
      720
      VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
      *Simultaneous/heterogeneous video sources output for
      VGA and HDMI is configurable.
      Multi-screen Display 1st Screen: 1/4/8/9
      2nd Screen: 1/4/8/9
      Third-party Camera
      Access      		 Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF,
      Canon
      Compression Standard
      Video Compression Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
      Audio Compression G.711a; G.711u; PCM; G726
      Network
      Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP;
      UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;
      FTP; Alarm Server; IP Search (Support Dahua IP camera;
      DVR; NVS; etc.); P2P; auto register
      Mobile Phone Access iOS; Android
      Interoperability ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK
      Browser Chrome; IE9 and later; Firefox
      Recording Playback
      Multi-channel Playback Up to 16 channels
      Record Mode General, motion detection; intelligent; alarm
      Backup Method USB device and network
      Playback Mode Instant playback, general playback, event playback, tag
      playback, smart playback (face and motion detection)
      Storage
      Disk Group Yes
      Alarm
      General Alarm Motion detection; privacy masking; video loss; scene
      changing; PIR alarm; IPC external alarm
      Anomaly Alarm Camera disconnection; storage error; disk full; IP
      conflict; MAC conflict; login locked; and cybersecurity
      exception
      Intelligent Alarm Face detection; face recognition; perimeter protection;
      SMD Plus; people counting; stereo analysis; heat map
      Alarm Linkage Record; snapshot; IPC external alarm output; audio;
      buzzer; log; preset; email
      Port
      Audio Input 1-channel RCA
      Audio Output 1-channel RCA
      Alarm Input 4 channels
      Alarm Output 2 channels
      HDD Interface 2 SATA ports, up to 16 TB.The maximum HDD capacity
      varies with environment temperature.
      USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
      HDMI 1
      VGA 1
      Network Port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
      PoE Port 16 ports, 10/100 Mbps, IEEE 802.3 af/at
      General
      Power Supply 100–240 VAC, 47-63 Hz
      Power Consumption Total output of NVR is <10 W(without HDD) Total output
      power of PoE is 72W,the maximum output power of
      asingle port is 25.5W
      Net Weight 2.60 kg (5.73 lb)
      Gross Weight 3.80 kg (8.38 lb)
      Product Dimensions 375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" ×
      2.09") (W × L × H)
      Packaging Dimensions 451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" ×
      5.79") (W × L × H)
      Operating Temperature –10 °C to +55 °C (14 °F to +131 °F)
      Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
      Operating Humidity 10%–93% (RH)
      Installation Rack or desktop
      Certifications FCC: 47 CFR FCC Part15, SubpartB, Class A
      CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-
      2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
      EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
      CE-LVD: EN 62368-1:2014
      Videos

      3-Years Warranty

      The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

      Please get in touch with our support team at support@SpyMonkey.com.au or 1300-049-519.

    • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
    • We will not cover inbound shipping of the return to us.
    • We will cover outbound shipping for any replacements to the customer.
    • We will need the serial number of the product and your order number.
    • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
      •

      Read more

      Recently viewed products

      © 2024 Spy Monkey Surveillance, Powered by Shopify

        • American Express
        • Apple Pay
        • Google Pay
        • Mastercard
        • PayPal
        • Shop Pay
        • Union Pay
        • Visa

        Login

        Forgot your password?

        Don't have an account yet?
        Create account
