Technical Specification |

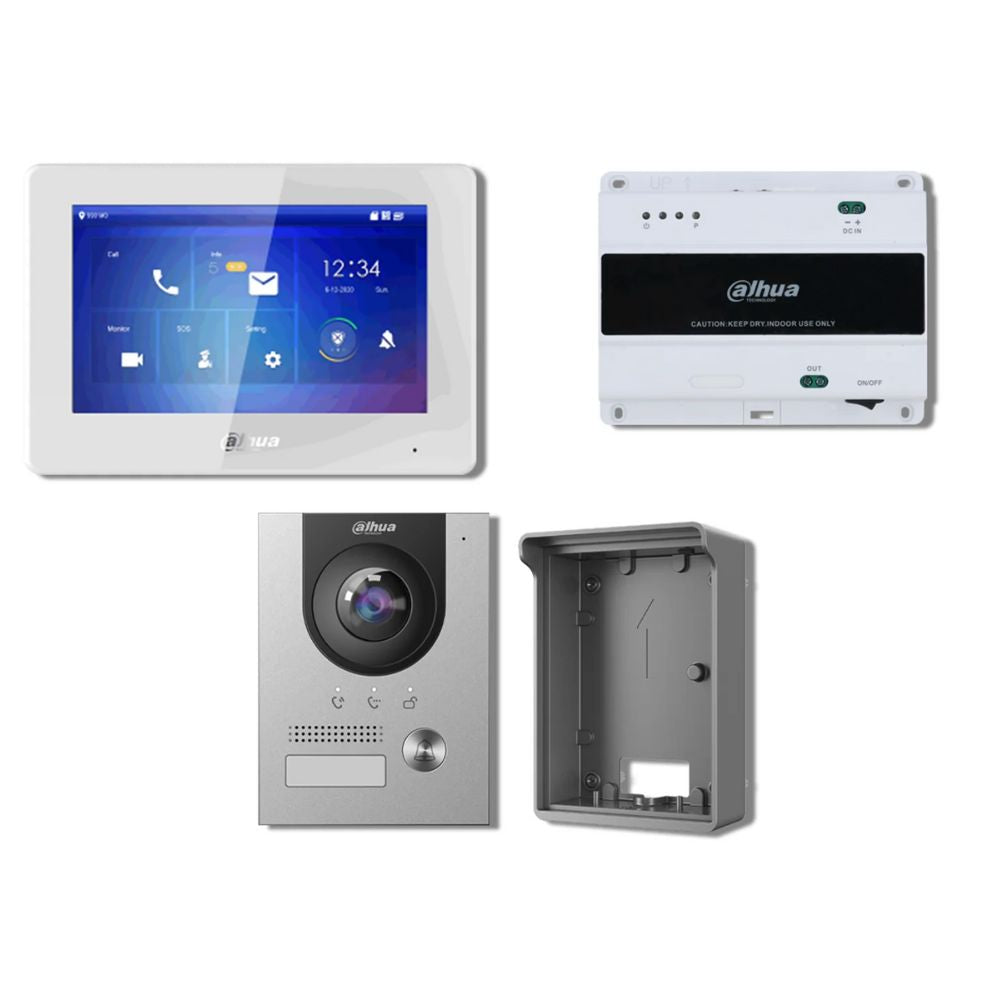

2-wire IP Villa Door Station - DHI-VTO2202F-P-S2 |
System |
Main Processor |
Embedded processor |
Operating System |
Embedded Linux Operation System |
Button Type |
Mechanical |
Interoperability |
ONVIF; CGI |
Network Protocol |
RTSP;RTMP;HTTP/HTTPS;DNS; UPnP;RTP;SIP;SSH; ONVIF ;P2P |
Basic |
Camera |
1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera |
Field of View |
Horizontal: 160°; vertical: 87.1; diagonal:176.7° |
Focal Length |
1.9 mm |
WDR |
120 dB |
Noise Reduction |
3D NR |
Video Compression |
H.265 |
Video Resolution |
50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
Port |
RS485 |
1 |
Alarm Output |
1 |
Power Output |
1-ch 12 VDC 100mA |
Exit Button |
1 |
Door Status Detection |
1 |
Lock Control |
1 |
Network Port |
One RJ45 10M/100M network port |
General |
Appearance color |
Silver |
Power Supply |
Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoE |
Power Adapter |
Optional |
Installation |
Flush/surface mount |
Certifications |
CE; FCC; UL |
Accessory |
Flush/surface mount |
Product Dimensions |
130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
Protection |
IK07; IP65 |
Operating Temperature |
–30°C to +60°C (–22°F to 140°F) |
Operating Humidity |
10%–90% (RH, non-condensing) |
Operating Altitude |
0 m–3000 m |
Power Consumption |
≤ 12W |
Net Weight |
0.35 kg (0.77 lb) |
Gross Weight |
0.4 kg (0.88 lb) |
| |
IP Indoor Monitor - DHI-VTH5422HW |
System |
Main Processor |
Embedded processor |
Operating System |
Embedded Linux Operation System |
Button Type |
Touch keypad |
Interoperability |
ONVIF |
Network Protocol |
RTSP; RTP; SIP; DNS; SSH |
Basic |
Screen Type |
Capacitive |
Display Screen |
7-inch TFT |
Resolution |
1024 × 600 |
Audio Compression |
G.711a; G.711u; PCM |
Audio Input |
1 |
Audio Output |
Built-in speaker |
Audio Mode |
2-way voice communication |
Audio Enhancement |
Echo suppression |
Audio Bit Rate |
16 KHz, 16 Bit |
Communication Mode |
2-wire |
Information Release |
Supports viewing text announcement from the center ( insert an SD card to receive and view pictures) |
Leave Videos |
Yes (SD card inserted in VTH is needed) |
Storage |
Extensible 64 GB Micro SD card |
Port |
RS-485 |
1 |
Alarm Input |
6 |
Alarm Output |
1 |
Power Output |
1, 12V/100mA |
Door Bell |
Yes, reusing any alarm input port |
Network Port |
One 2-wire port;
One 10 Mbps/100 Mbps Ethernet port;
Use one or the other |
General |
Casing |
PC + ABS |
Appearance color |
White |
Power Supply |
Dahua 2-wire switch (max. power supply distance 50 m)
Standard PoE |
Power Adapter |
Optional |
Installation |
Surface mount |
Certifications |
CE; FCC; UL |
Accessory |
Bracket (standard)
Alarm ribbon cable (standard) |
Product Dimensions |
189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
Operating Temperature |
–10°C to +55°C (14°F to 131°F) |
Operating Humidity |
10%–95% (RH, non-condensing) |
Operating Altitude |
0 m–3000 m |
Power Consumption |
Standby ≤ 2W, working ≤ 6W |
Net Weight |
0.388 kg (0.86 lb) |
Gross Weight |
0.74 kg (1.63 lb) |
| |
2-Wire Switch - DHI-VTNS1001B-2 |
Basic |
Status Indicator Light |
2 |
Communication Mode |
2-wire |
Cascade Ability |
NA |
Port |
2-wire port |
1 |
RJ45 |
1 |
General |
Casing |
PC + ABS |
Appearance color |
White |
Power Supply |
DC 48V 1A–3A |
Power Adapter |
Optional |
Installation |
Guide rail mount |
Certifications |
CE; FCC; UL |
Accessory |
Power converter cable |
Product Dimensions |
131 mm × 103 mm × 40 mm (5.16" × 4.06" × 1.57") |
Operating Temperature |
–10°C to +55°C (14°F to 131°F) |
Operating Humidity |
10%–95% (RH, non-condensing) |
Operating Altitude |
0–3000 m (0–9842.52 ft) |
Power Consumption |
≤ 15W (KIT) |
Net Weight |
0.24 kg (0.53 lb) |
Gross Weight |
0.39 kg (0.86 lb) |
