Description
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
SMD
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
SupportsSmart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
Integrated Solar Monitoring System
- Integrated die casting casing.
- Aluminium alloy frame.
- Mono-crystalline solar panel.
- Lithium battery pack.

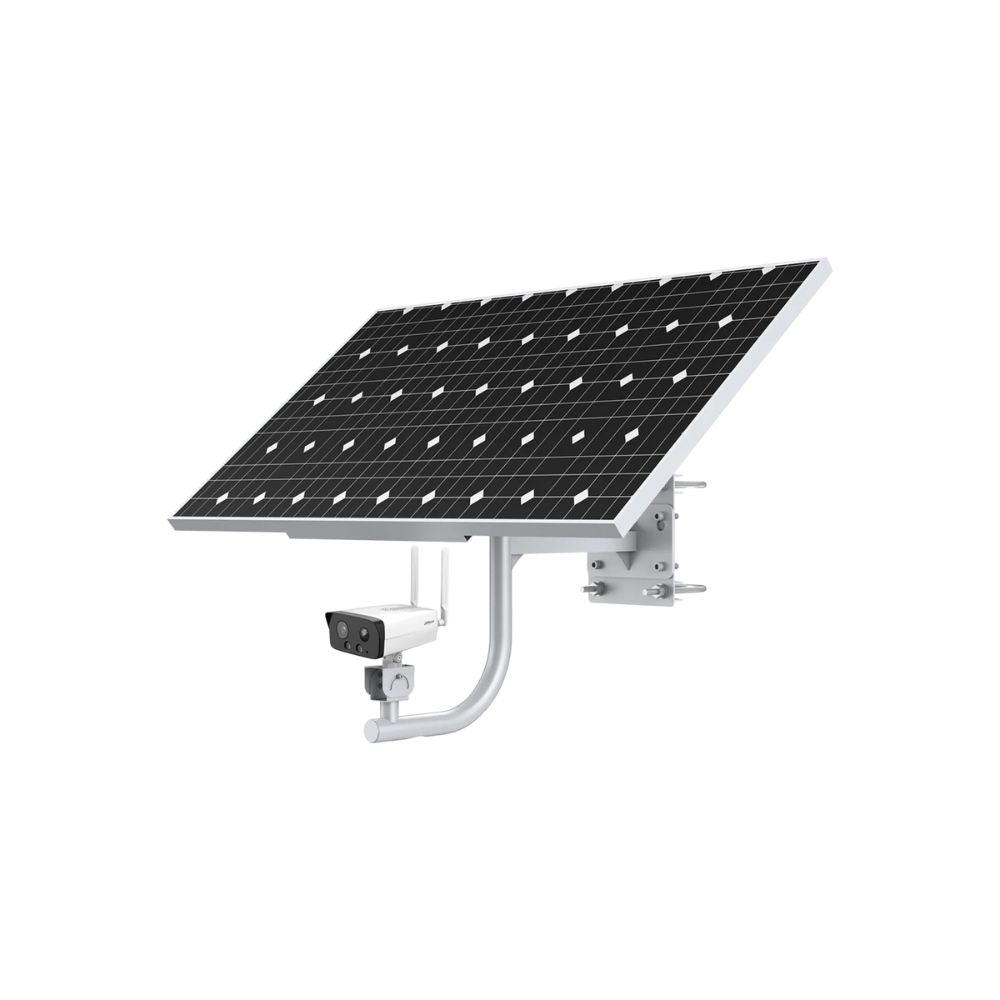

- Dahua 100W Solar Camera System, includes: PFM372-L45-4S14P x 1 DH-PFM378-B100-WB x 1 DH-IPC-HFW3441DG-AS-4G-EAU-B x 1
CAMERA: 2MP IR Fixed focal Bullet WizSense 4G Network Camera
- 4MP 1/3'' CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2688 x 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light/IR LED
- Sound and light alarm linkage. When the alarm is triggered, the sound and light will be linked
- Built in high-performance 4G Module that suits all mobile networks. Installation is no longer limited to wired networks
- Built-in PIR sensor that detects human body through passive infrared which is sensitive to body temperature
- Built-in 8 GB eMMC memory chip that protects key records from being lost
- Abnormality detection: Motion detection, video tampering, audio detection, SD card full, SD card error, network disconnection, IP conflict and illegal access
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS485:1 (Only report the information of solar battery, such as power and battery level), Supports max. 256 G Micro SD card; built in MIC and speaker; support two-way talk
- IP67 protection
- SMD 3.0.
Downloads
Tech Specs
PFM378-B100-WB
Solar Panel |
Type |
Monocrystalline silicon |
Max. Power |
100 W |
Output Voltage |
18.8 VDC |
Solar Cell Efficiency |
21% |
Max. Mechanical Load |
5400 Pa |
Controller |
Type |
MPPT |
Operating Voltage |
12 VDC |
Rated Charging Current |
10 A |
Rated discharge current |
10 A |
MPPT Tracking Efficiency |
≥ 99% |
Communication Mode |
RS485 |
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
Rated Charging Power |
130 W |
Over-discharge Protection Voltage |
11.1 VDC |
Others |
Over-temperature ,over-discharge,overa-voltage and low-temperature protection of battery; overload and short circuit protection of load. |
Port |
Power Output |
Φ5.5 mm × Φ2.1 mm × 12 mm
(Φ0.22" × Φ0.08" × 0.47")
|
RS–485 |
Red: RS485-A
Black: RS485-B |
Output Port |
CSA authorized M15 2-core waterproof connector (connected to lithium battery) |
General |
Main Body Material |
Q235 |
IP Rating |
IP65 |
Installation |
Pole mount, Φ80mm~Φ150mm |
Adjustable Angle |
Solar panel: H: 360°, V: 20°/40°/60°
Camera: H: 360°, V: 0°–75°
|
Product Dimensions |
815mm x 846.8mm x 893.3mm
(32.1” x 33.3” x 35.2”)
|
Packaging Dimensions |
880 mm × 765 mm × 275 mm (34.65" × 30.12" × 10.83") |
Packaging Method |
1 pc in each carton |
Net Weight |
20.1 kg (44.31 lb) |
Gross Weight |
23.8 kg (52.47 lb) |
Environment |
Operating Altitude |
< 3000 m (9842.5 ft) |
Applicable Area |
Areas with daily exposure to solar radiation for more than 3.5 hours |
Operating Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
Operating Humidity |
< 95% (RH) |
Storage Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Storage Humidity |
< 95% (RH) |
Certifications |
Certifications |
CE: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014
UKCA: EN 55032:2015+A11:2020,EN 55035:2017+A11:2020,EN 55024:2010+A1:2015,EN 50130-4:2011+A1:2014
|
PFM372-L45-4S14P
Protection |
Grade |
IP66 |
Connection |
Connection |
M15 female connector |
Application |
Applicable Device |
DH-PFM364L-D1, DH-PFM363L-D1, and DH-PFM363LSD1 |
General |
Product Dimensions |
Outer: 359.8 mm × 268.7mm × 116.0 mm(14.17" × 10.58" × 4.57") Inner: 282.0 mm × 209.0 mm × 98.5 mm (11.10" × 8.23" × 3.88") |
Material |
Die casting aluminum |
Color |
Grey |
Net Weight |
8.5 kg (18.74 lb) |
Gross Weight |
9.8 kg (21.61 lb) |
Packaging Dimensions |
459 mm × 349 mm × 209 mm
(18.07" × 13.74" × 8.23") |
Packaging Method |
1 pc in each carton |
Environment |
Operating Temperature |
–20°C to 60°C (–4°F to 140°F) |
Operating Humidity |
<95% (RH) |
Storage Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Humidity |
<95% (RH) |
Function |
Charging Current |
9A |
Discharge Current |
9A |
Rated Voltage |
DC12.8V |
Internal Resistance |
≤80mΩ |
Nominal Capacity |
45Ah |
Charging Voltage |
Max.DC14.6V |
Max.Current |
Charging: 10A, Discharging: 10A |
Certification |
Certification |
CE: EN 61000-6-3, EN IEC 61000-6-1
FCC: FCC Part 15, Subpart B
|
IPC-HFW3441DG-AS-4G-EAU-B
Camera |
Image Sensor |
1/3" CMOS |
Effective Pixels |
2688 (H) × 1520 (V) |
ROM |
128 MB |
RAM |
256MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.01 Lux@F1.6 (Color,30IRE)
0.001 Lux@F1.6 (B/W,30IRE)
0 lux (Illuminator on) |
S/N Ratio |
> 56 dB |
Illumination Distance |
IR: 50 m (164.04 ft)
Warm light: 30 m (98.43 ft) |
Illuminator On/Off Control |
Auto; Manual |
Illuminator Number |
1 (IR LED); 1 (Warm light) |
PIR Sensor Distance |
10 m (the height of device is 2.5 m, placed horizontally)
5 m (the height of the device is 2 m, placed at an angle of
30° from the horizontal) |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
M12 |
Focal Length |
2.8mm; 3.6mm; 6mm |
Max. Aperture |
2.8mm:F1.6
3.6mm:F1.6
6mm:F1.6
|
Field of View |
2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
3.6 mm: Horizontal 88° × Vertical 44° × Diagonal 105°
6 mm: Horizontal 54° × Vertical 29° × Diagonal 63°
|
Iris Type |
Fixed |
Close Focus Distance |
2.8 mm: 0.7 m (2.5 ft)
3.6 mm: 1.3 m (4.25 ft)
6 mm: 2.8 m (9.15 ft)
|
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
63.6 m
(208.66 ft) |
63.6 m
(208.66 ft) |
12.7 m
(41.67 ft) |
6.4 m
(21.00 ft) |
3.6 mm |
85.4 m
(280.18 ft) |
34.2 m
(112.20 ft) |
17.1 m
(56.10 ft) |
8.5 m
(27.89 ft) |
6 mm |
124.0 m
(406.82 ft) |
49.6m
(162.73 ft) |
24.8m
(81.36 ft) |
12.4m
(40.68 ft) |
Professional, Intelligent |
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
SMD 3.0 |
Less false alarm, longer detection distance |
IVS (Perimeter Protection) |
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI Coding AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 2688 × 1520 @(1–25/30 fps )
sub stream: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30
fps)
Sub stream 1: 1920 × 1080 @ (1–25/30 fps) |
Stream Capability |
3 streams |
Resolution |
4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296);
1080p (1920 × 1080); 1.3M (1280 ×960 ); 720p (1280
× 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240) |
Bit Rate Control |
CBR; VBR |
Video Bit Rate |
H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Audio Compression |
G.711a;G.711Mu; G.726; PCM |
Built-in MIC |
Yes |
Alarm |
Alarm Event |
SD card error; SD card full; IP conflict; illegal access;
motion detection; video tampering; audio detection;
security exception; PIR alarm; external alarm; low battery
alarm; light alarm; sound alarm |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration
encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509
certification; syslog; HTTPS; 802.1x; trusted boot; trusted
execution; trusted upgrade |
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP;
SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP;
Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability |
ONVIF (Profile S/Profile G); CGI; P2P |
User/Host |
20 (Total bandwidth: 80 M) |
Storage |
Bulit in eMMC (8 GB); FTP;SFTP; Micro SD card (support
max. 256 GB); NAS |
Browser |
IE
Chrome
Firefox
|
Management Software |
DSS; DMSS |
Mobile Client |
iOS;Android |
Certification |
Certifications |
CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU;
CE-RED: Radio Equipment Directive 2014/53/EU;
FCC: 47 CFR FCC Part 15; Subpart B |
Port |
RS-485 |
1 (Only report the information of solar battery, such as
power and battery level) |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5 mA 3–5 VDC |
Alarm Output |
2 channels out: 300 mA 12 VDC |
Power |
Power Supply |
12 VDC |
Power Consumption |
Sleep Mode: 0.03 W
General Mode: 4 W
Power Saving Mode: 2 W
Max. (4G pulling stream+IR+speaker+warning light): 7.5W |
Environment |
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity |
≤ 95% |
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection |
IP67 |
Structure |
Casing |
Metal + plastic |
Dimensions |
132 mm × 219 mm×179 mm (5.20" × 8.62" × 7.05")
(L × W × H) |
Net Weight |
680 g (1.50 lb) |
Gross Weight |
1180 g (2.60 lb) |
