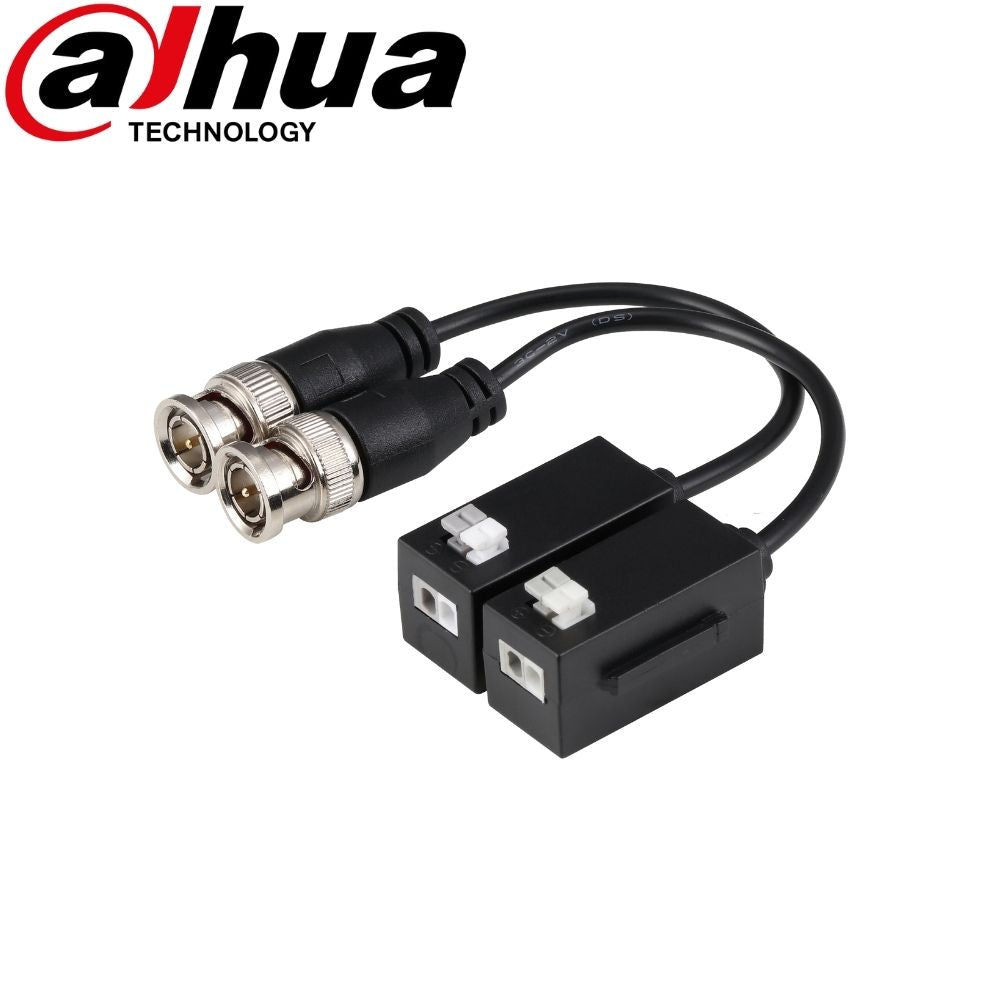

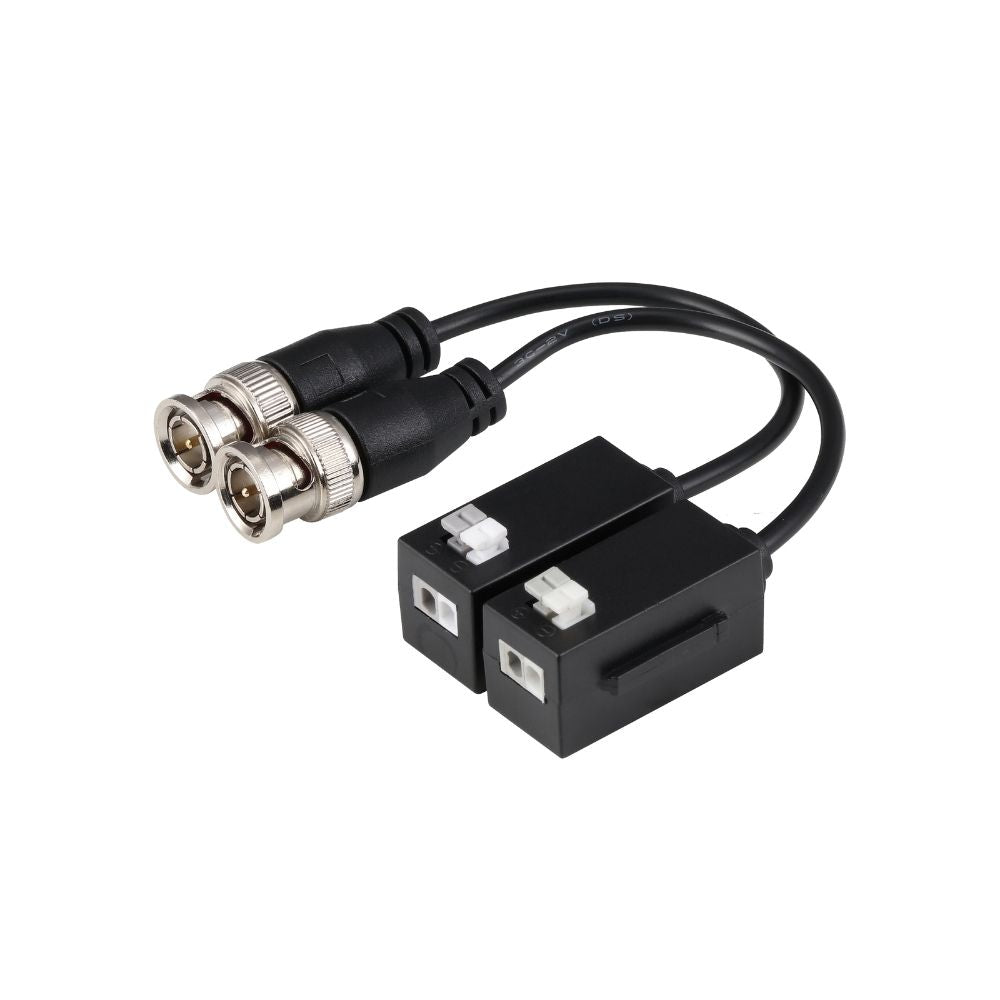

| Dahua 1-CH Passive Video Balun - DH-PFM800-4K |
| Technical Specification |
| Model |
DH-PFM800-4K |
| Properties |
| Transmission Signal |
1-CH |
| Network cable Type |
UTP CAT5E/6 (material: CU) |
| Video Transmission Properties |
| Coaxial Video Connector |
BNC-M |
| Connection Way |
RJ45 |
| Compatible Format |
HDCVI/TVI/AHD/CVBS |
| Resolution |
720P/1080P/4MP/5MP/4K |
| Protection |
| ESD |
1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 |
| Per: IEC61000-4-2 |
| UTP Cable Connector |
2KV(different-mode), 4KV(common-mode) |
| Per: IEC61000-4-5 |
| Impedance |
| BNC Male Impedance |
75 ohms |
| UTP Cable Impedance |
100 ohms |
| Physical Properties |
| Weight |
40g (0.09lb) (1 pair) |
| Dimension(LxWxH) |
173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”) |
| Shell |
ABS |
| Colour |
Black |
| Environmental |
| Operating Temperature |
-30℃~+70℃(-22℉~+158℉) |
| Operating Humidity |
<95% RH |
| Storage Temperature |
-40℃~+80℃(-40℉~+176℉) |
