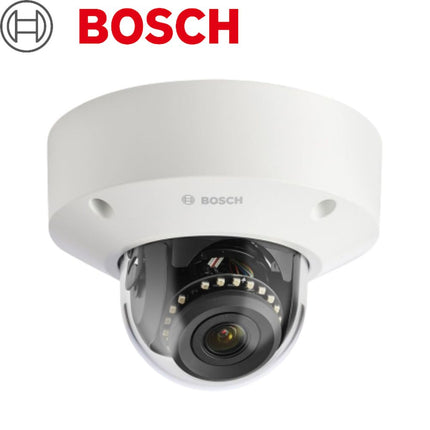

Bosch Inteox 8MP Outdoor Dome 7100i Camera, IVA, WDR, IP66, IR, 3.6-10mm - BOS-NDE-7604-AL

Description

Description

Features

  • H.265 reduces bit rate by up to 80 percent
  • 8MP (4K UHD) for exceptional detail
  • Built-in Intelligent Video Analytics to trigger alerts and quickly retrieve data with the highest levels of accuracy
  • Open platform that allows third-party apps from the Application store from Azena
Datasheet
Tech Specs

Bosch Inteox 8MP Outdoor Dome 7100i Camera, IVA, WDR, IP66, IR, 3.6-10mm - BOS-NDE-7604-AL

Power
Input voltage PoE 802.3at Type 2, Class 4
24 VAC ±10%
PoE and auxiliary power can be connected
simultaneously for redundant operation
Power Consumption
(typical / maximum)		 PoE+: Max. 25.5 W
24 VAC: 7.1 W - 25 W/ 13 W - 25 W
Sensor
Sensor type 1/1.8‑inch CMOS
Total sensor pixels 3840 (H) x 2160 (V), 8MP (approx.)
Video performance - Sensitivity
Sensitivity - (3200K, reflectivity 89%, F1.5, 30IRE)
Color 0.189 lux
Mono 0.0316 lux
With IR 0.0 lx
Dynamic range
Wide Dynamic Range 87 dB WDR
Measured according to
IEC 62676 Part 5		 67 dB WDR
Night vision
Distance 40 m (131 ft)
LED High efficiency LED array, 850 nm
Optical
Lens 3.6 to 10 mm, P-iris lens (IR corrected)
F-stop 1.5
Adjustment Motorized zoom/focus
Iris control P-iris control
Field of view Wide: 97º x 53º (H x V)
Tele: 46º x 30º (H x V)
Platform
Common product
platform		 CPP13
Video streaming
Video compression H.265; H.264; M- JPEG
Sensor modes 30 fps, 3840 x 2160 (8 MP)
Streaming Multiple configurable streams in H.264, H.265
and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
Bosch Intelligent Streaming
Camera latency 120 ms (8 MP, 30 fps)
GOP structure IP
Frame rate 1-30 fps
Signal-to-Noise Ratio
(SNR)		 >55 dB
Video resolution (H x V)
4K UHD 3840 x 2160
5 MP 2560 x 1440
1080p HD 1920 x 1080
1.3 MP 1536 x 864
720p HD 1280 x 720
480p SD 768 x 342
SD 4:3 (cropped) 512 x 480
Camera installation
Mirror image On / Off
Rotate 0° / 90° upright / 180° / 270° upright
Camera LED Automatic
Camera view wizard Zoom, autofocus
Video functions - color
Exposure control Automatic, Manual
Manual exposure
control adjustments		 Shutter, Gain, Iris
Day / Night Automatic, Color, Monochrome
Zoom position / Focus
position		 One push auto focus
White balance Automatic, Manual
Manual white balance
adjustments		 Red gain, Blue gain
Video content analysis
Analysis type Intelligent Video Analytics
Configurations Silent VCA / Profile1/2 / Scheduled / Event
triggered
Alarm rules
(combinable)		 Any object, Object in field, Line crossing, Enter /
leave field, Loitering, Follow route, Idle /
removed object, Counting, Occupancy, Crowd
density estimation, Condition change, Similarity
search, Flow / counter flow
Object filters Duration, Size, Aspect ratio, Speed, Direction,
Color, Object classes (4)
Tracking modes Standard (2D) tracking, 3D tracking, 3D people
tracking, Ship tracking, Museum mode
Calibration /
Geolocation		 Automatic, based on gyro sensor, focal length
and camera height
Tamper detection Maskable
Additional functions
Privacy Masking One area, fully programmable
Display stamping Name; Logo; Time; Alarm message
Local storage
Memory card slots microSDHC / microSDXC SD card slot
Industrial SD cards Extreme lifetime
Input/output
Audio signal line in 10 kOhm typical; 1 Vrms max
Audio signal line out 1 Vrms; 1.5 kOhm typical
Alarm input 1 input, activation voltage: +3.3 VDC to +40 VDC
Alarm output 2 outputs, maximum: 30 VAC or +40 VDC, 0.5 A
continuous, 10 VA
Ethernet RJ45
Surge protection Ethernet: 1 kV to ground (8/20 µs pulse)
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, NTP (SNTP), 802.1x, DNS, DNSv6, DDNS
(DynDNS.org, selfHOST.de, no-ip.com), SMTP,
iSCSI, UPnP (SSDP), DiffServ (QoS), LLDP,
SOAP, Dropbox™, CHAP, digest authentication
Encryption TLS1.0/1.2, AES128, AES256
Ethernet 10/100/1000 Base-T, auto-sensing, half/full
duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile GONVIF Profile M ;
ONVIF Profile T
Data security
Crypto Coprocessor
(TPM)		 RSA 2048 bit, AES/CBC 256 bit
PKI X.509 certificates
Encryption Full end-to-end encryption with supported VMS
Network: TLS1.0/1.2, AES128, AES256
Local storage: XTS-AES
Video authentication checksum, MD5, SHA-1, SHA-256
Mechanical
Dimensions (D x H) 175 x 130 mm (6.9 x 5.1 in)
Weight 1.5 kg (3.31 lbs)
Mounting Surface mount
Color White (RAL9003)
PTR range Pan: 0º to +370º
Tilt: 0º to +75º
Roll: 0º to +355º
Dome bubble Polycarbonate, clear with UV blocking antiscratch coating
Anti-reflection coating
UV resistant
Scratch resistant
Housing Aluminum with dehumidifying membranes and
waterproof connection area
Environmental
Operating temperature -40 ºC to +50 ºC (-40 ºF to +122 ºF) for
continuous operation;
Storage temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Operating humidity 5% to 93% relative humidity non condensing
5% to 100% relative humidity condensing
Storage humidity Up to 98% relative humidity
Impact resistance
casing and dome		 IK10
Water/dust protection IP 66 and NEMA type 4X



Read more

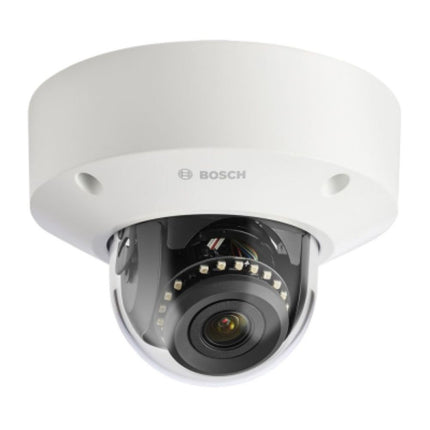

Bosch Inteox 8MP Outdoor Dome 7100i Camera, IVA, WDR, IP66, IR, 3.6-10mm - BOS-NDE-7604-AL

Product form

SKU: BOS-NDE-7604-AL

$2,659.00 Incl. GST
