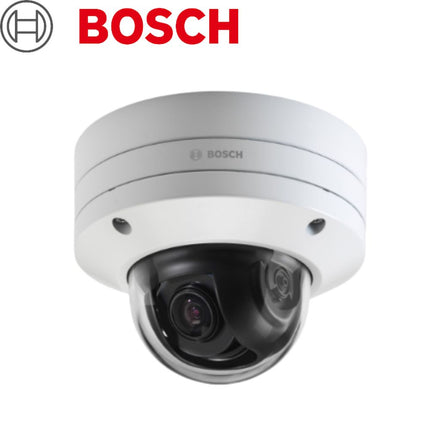

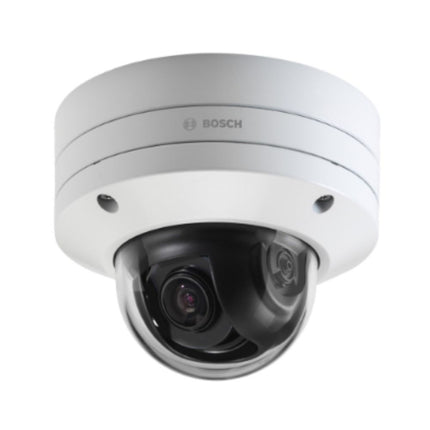

Bosch 8MP Outdoor Dome 8000i Starlight Camera, IDNR, H.265, IVA, IP66, 12-40mm - BOS-NDE-8504-RT

Description

Description

Features

  • Wireless or remote configuration and commissioning with the Project Assistant app. Pan, tilt, roll and zoom (PTRZ) to set the camera to the required field of view, without having to touch the camera or lens
  • Intelligent streaming, IDNR and H.265 reduce bit rate by up to 80 percent
  • 8MP (4K UHD) for exceptional detail at fast speeds
  • Built-in intelligent video analytics to trigger alerts and quickly retrieve data with the highest levels of accuracy
  • High dynamic range to see every detail in both bright and dark areas of the scene
Datasheet
Tech Specs

Bosch 8MP Outdoor Dome 8000i Starlight Camera, IDNR, H.265, IVA, IP66, 12-40mm - BOS-NDE-8504-RT

Power
Input voltage PoE IEEE 802.3af / 802.3at Type 1, Class 3
24 VAC ±10%
12-26 VDC ±10%
PoE and auxiliary power can be connected
simultaneously for redundant operation
Power Consumption
(typical / maximum)		 PoE: 7 W / 13 W
24 VAC: 7.1 W - 12 VA / 13 W - 25 VA
12-26 VDC: 7.5 W / 16 W
Sensor
Sensor type 1/1.8‑inch CMOS
Total sensor pixels 3840 (H) x 2160 (V), 8MP (approx.)
Starlight sensitivity (3.9 to 10 mm lens)
Measured according to IEC 62676 Part 5 (1/25, F1.5)
Color 0.041 lx
Mono 0.0072 lx
Video performance ‑ Dynamic range
Wide Dynamic Range 120 dB WDR
Measured according
to IEC 62676 Part 5		 107 dB WDR (3.9 to 10 mm lens)
Optical (3.9 to 10 mm lens)
Lens 3.9 to 10 mm P-iris lens (IR corrected)
F-stop 1.5 - 2.7
Adjustment Motorized zoom/focus
Iris control P-iris control
Viewing angle Wide: 117º x 62º (H x V)
Optical (3.9 to 10 mm lens)
Tele: 44º x 24º (H x V)
Video streaming
Video compression H.265; H.264; M- JPEG
Sensor modes 20 fps, HDR, 3840 x 2160 (8 MP)
25 fps, 3840 x 2160 (8 MP)
30 fps, 3840 x 2160 (8 MP)
Streaming Multiple configurable streams in H.264, H.
265 and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
Bosch Intelligent Streaming
Camera latency 120 ms (8 MP, 30 fps)
GOP structure IP
Frame rate 1-30 fps
Signal-to-Noise Ratio
(SNR)		 >55 dB
Video resolution (H x V)
4K UHD 3840 x 2160
7.3 MP 3584 x 2016
2.8 MP (4:3) 1920 x 1440
1080p HD 1920 x 1080
Upright mode 1080p 1080 x 1920
1.3 MP (5:4) 1280 x 1024
720p HD 1280 x 720
Upright mode 720p 720 x 1280
480p SD 854 x 480
SD 4:3 (cropped) 704 x 480
Camera installation
Mirror image On / Off
Rotate 0° / 90° upright / 180° / 270° upright
Camera LED Enable/disable
Positioning Coordinates / Mounting height
Camera view wizard Motorized pan, tilt, roll, zoom, autofocus
Wireless
commissioning		 IEEE 802.11b/g/n
Video functions - color
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium lamp, Dominant color),
Manual mode and Hold mode
Video functions - ALC
ALC level Adjustable
Saturation Adjustable from peak to average
Shutter Automatic Electronic Shutter (AES);
Fixed shutter (1/25[30] to 1/15000)
selectable;
Default shutter
Day/Night Auto (adjustable switch points), Color,
Monochrome
Video functions - enhance
Sharpness Sharpness enhancement level selectable
Backlight
compensation		 On/off
Contrast
enhancement		 On/off
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Video content analysis
Analysis type Intelligent Video Analytics
Configurations Silent VCA / Profile1/2 / Scheduled / Event
triggered
Alarm rules
(combinable)		 Any object, Object in field, Line crossing,
Enter / leave field, Loitering, Follow route,
Idle / removed object, Counting, Occupancy,
Crowd density estimation, Condition change,
Similarity search, Flow / counter flow
Object filters Duration, Size, Aspect ratio, Speed, Direction,
Color, Object classes (4)
Tracking modes Standard (2D) tracking, 3D tracking, 3D
people tracking, Ship tracking, Museum mode
Calibration /
Geolocation		 Automatic, based on gyro sensor, focal length
and camera height
Tamper detection Maskable
Additional functions
Scene modes 10 default modes with scheduler:
Indoor, Outdoor, Traffic, Night Optimized,
Intelligent AE, Vibrant, Low bitrate, Sports &
Gaming, Retail, License Plate Recognition
(LPR)
Privacy Masking Eight independent areas, fully programmable
Face detection Image posting
Display stamping Name; Logo; Time; Alarm message
Pixel counter Selectable area
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slots Dual SDXC / SDHC / SD card slots.
Dual SD-card slot
configurations		 • Mirror (redundant storage)
• Failover (extended service interval)
• Extend (maximum retention time)
• Automatic Network Replenishment
Industrial SD cards Extreme lifetime and health monitoring
support that provides early service indication.
Recommended: Sony Industrial SD cards
Input/output
Power output +12 VDC, max 50mA
Audio signal line in 10 kOhm typical; 1 Vrms max
Audio signal line out 1 Vrms; 1.5 kOhm typical
Alarm input 2 inputs, activation voltage: +3.3 VDC to
+40 VDC
Alarm output 1 output, maximum: 30 VAC or +40 VDC,
0.5 A continuous, 10 VA
Ethernet RJ45
Surge protection Ethernet: 1 kV, 2 kA to ground (8/20 µs pulse)
Fiber optics (sold
separately)		 The Fiber Optic Ethernet Media Converter kit
(VG4-SFPSCKT) installed inside a Surveillance
Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-UPA2) provides the fiber optic interface to the
mounted camera.
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, ARP, DHCP, APIPA (Auto-IP, link local
address), NTP (SNTP), SNMP (V1, V3, MIB-II),
802.1x, DNS, DNSv6, DDNS (DynDNS.org,
selfHOST.de, no-ip.com), SMTP, iSCSI,
UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
Dropbox™, CHAP, digest authentication
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G; ONVIF
Profile T
GB/T 28181
Data security
Crypto Coprocessor
(TPM)		 RSA 2048 bit, AES/CBC 256 bit
FIPS FIPS 140-2 Level 3 compliant
PKI X.509 certificates
Encryption Full end-to-end encryption with supported
VMS
Network: TLS1.0/1.2, AES128, AES256
Local storage: XTS-AES
Video authentication checksum, MD5, SHA-1, SHA-256
Mechanical
Dimensions (D x H) 175 x 145 mm (6.9 x 5.7 in)
Weight 2.3 kg (5.07 lbs)
Mounting Surface mount
Color White (RAL9003)
Motorized PTR range Pan: 0º to +361º
Tilt: -3.5º to +89º
Roll: -95º to +95º
Dome bubble Polycarbonate, clear with UV blocking antiscratch coating
Housing Aluminum with dehumidifying membranes and
waterproof connection area
Environmental
Operating
temperature		 -50 ºC to +60 ºC (-58 ºF to +140 ºF) for
continuous operation;
-34 ºC to +74 ºC (-30 ºF to +165 ºF)
according to NEMA TS 2-2003 (R2008),
para 2.1.5.1 using fig. 2.1 test profile
Storage temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Operating humidity 5% to 93% RH non condensing
5% to 100% RH condensing
Environmental
Storage humidity Up to 98% RH
Impact resistance
casing and dome		 IK10+ (50 joules)
Water/dust
protection		 IP 66 and NEMA Type 4X



Read more
