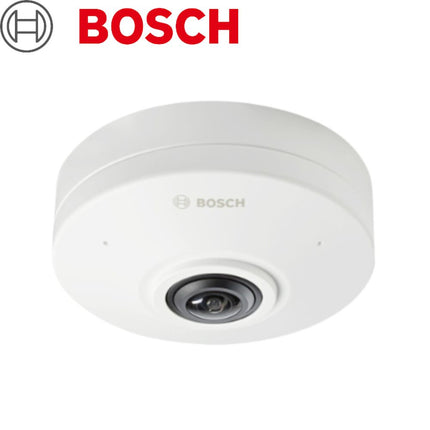

Bosch 6MP Indoor 360 Degree Dome 5100i Camera, IVA, WDR, Panoramic, 1.155mm - BOS-NDS5703F360

Description

Description

Features

  • 360-degree panoramic overview in 6MP resolution without blind spots
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
  • Edge or client-side de-warping for easy integration and flexible viewing and recording
  • Built-in Intelligent Video Analytics and Audio AI to trigger relevant alerts and quickly retrieve data
  • Compact design for unobtrusive indoor use with quick and easy installation and set-up
  • Micro HDMI output for local 1080p viewing
Datasheet
Tech Specs

Bosch 6MP Indoor 360 Degree Dome 5100i Camera, IVA, WDR, Panoramic, 1.155mm - BOS-NDS5703F360

Power
Input voltage PoE IEEE 802.3af Type 1, Class 2
Power consumption 6W
Sensor
Total sensor pixels 6 MP
Type 1/1.8‑inch CMOS
Used pixels 2112 x 2112 (4.5 MP)
Video performance - Sensitivity
Measured according to IEC 62676 Part 5 (1/25, F2.0)
Color 0.099 lx
Mono 0.008 lx
Video performance - Dynamic range
Wide Dynamic Range 120 dB WDR
Measured according to
IEC 62676 Part 5		 105 dB WDR
Video streaming
Video compression H.265; H.264; M-JPEG
Streaming Multiple configurable streams in H.265, H.264
and M-JPEG, configurable frame rate and
bandwidth.
Multiple channels with edge dewarping (available
with a future firmware version)
Regions of Interest (ROI)
Overall IP Delay Min. 120 ms, Max. 340 ms
GOP structure IP, IBP, IBBP
Frame rate 1-30fps
Encoder regions Eight independent areas for setting encoder
quality to optimize bitrate.
Video resolution (H x V)
Video 1 channel Full image circle 2112 x 2112
(4.5 MP)
Video 2 channel
(available with a future
firmware version)		 Various dewarped modes
(Full panoramic, double
panoramic, quad,
corridor, E-PTZ)
Video 3 channel
(available with a future
firmware version)		 E-PTZ
Multiple lower resolutions available and individually selectable per channel
and stream
Video functions
Day/Night Color, Monochrome, Auto (adjustable switchover
points)
Adjustable picture
settings		 Contrast, Saturation level and control,
Brightness, Sharpness
White Balance 2500 to 10000K, 3 automatic modes (Basic,
Standard, Sodium vapor), Manual mode and
Hold mode
Shutter Automatic Electronic Shutter (AES)
Default shutter (1/30 [1/25] to 1/500)
selectable
Backlight compensation Off / On
Noise reduction Dynamic Noise Reduction
Privacy Masking Eight independent areas, fully programmable
Scene modes Multiple default modes with scheduler
Pre-positions Six independent sectors (available with a future
firmware version)
Display stamping Individual names and stamps for all video
channels
Other functions Pixel counter, Video watermarking, Location
Video content analysis
Analysis type Intelligent Video Analytics, Camera Trainer
Alarm rules
(combinable)		 Any object, Object in field, Line crossing, Enter /
leave field, Loitering, Follow route, Idle /
removed object, Counting, Occupancy, Crowd
density estimation, Condition change, Similarity
search, Flow / counter flow
Object filters Duration, Size, Aspect ratio, Speed, Direction,
Color, Object classes (4)
Tracking modes Standard (2D) tracking, 3D tracking, 3D people
tracking, Ship tracking, Museum mode
Object classes Person, car, bike, truck
Calibration /
Geolocation		 Automatic, based on gyro sensor and camera
height
Audio AI Gunshot detection, glass-break detection, loud
noises detection (available with a future firmware
version)
Optical
Lens 1.155 mm fixed-focus lens F2.0
Lens mount Board mounted
Iris control Fixed iris
Day/Night Switchable IR-cut filter
Field of view 182° (H) x 182° (V)
Minimum object
distance		 0.1 m
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slot Micro SDXC / SDHC / SD card
Industrial SD cards Extreme lifetime and health monitoring support
(if supported by the SD card) that provides early
service indication.
Input/output
Video output for HDMIcompatible devices Micro HDMI connector and 1080p resolution
with dewarped viewing possibilities (dewarped
viewing available with a future firmware version)
Microphone Integrated array with 3 digital MEMS audio
sensors
Ethernet RJ-45
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 96 kbps at 32/48 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Platform
Common product
platform		 CPP14
Data security
Secure Element
(“TPM”)		 RSA 4096 bit, AES/CBC 256 bit
PKI X.509 certificates
Encryption Full end-to-end encryption with supported VMS
Network: TLS1.0/1.1/1.2, AES128, AES256
Local storage: XTS-AES
Video authentication checksum, MD5, SHA-1, SHA-256
Firmware protection Signed firmware, secure boot
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, APIPA (Auto-IP, link local address), NTP
(SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
digest authentication
Ethernet 10/100/1000 Base-T, auto-sensing, half/full
duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S ONVIF Profile G ONVIF Profile M
ONVIF Profile T
Mechanical
Dimensions (∅ x H) 110 x 47.7 mm (4.33 x 1.88 in)
Lens adjustment
(rotation)		 355º
Weight 0.31 kg (0.68 lbs)
Color White (RAL9003)
Gyrosensor Yes
Mounting Surface mount
Environmental
Operating temperature -10 ºC to +45 ºC (14 ºF to 113 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to 158 ºF)
Operating humidity 5% to 93% RH non-condensing
5% to 100% RH condensing
Storage humidity Up to 98% RH
Impact protection IK08 (except lens)
Sustainability PVC free
Country of origin Thailand

Read more

Bosch 6MP Indoor 360 Degree Dome 5100i Camera, IVA, WDR, Panoramic, 1.155mm - BOS-NDS5703F360

Product form

SKU: BOS-NDS5703F360

$1,231.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
