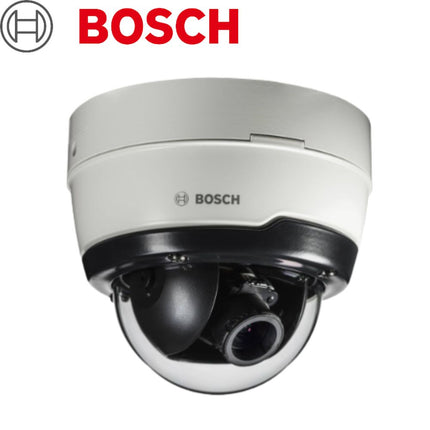

Bosch 5MP Outdoor Motorised VF Dome 5000i Camera, H.265, WDR, EVA, IP66, IK10, 3-10mm - BOS-NDE-5503-A

Description

Description

Features

  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable H.265 multi-streaming
  • 5MP resolution with image quality up to 30 fps for highly detailed images
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
Datasheet
Tech Specs

Bosch 5MP Outdoor Motorised VF Dome 5000i Camera, H.265, WDR, EVA, IP66, IK10, 3-10mm - BOS-NDE-5503-A

Power
Input voltage +12 VDC ±5%, 24 VAC ±10% or
Power-over-Ethernet (48 VDC nominal)
Power consumption
(DC)		 7.15 W max.
Power consumption
(AC)		 6.15 W max.
Power
Power consumption
(PoE)		 7 W max.
PoE IEEE standard IEEE 802.3af (802.3at Type 1)
Power level: Class 3
Power (IR version)
Input voltage +12 VDC ±5%, 24 VAC ±10% or
Power-over-Ethernet (48 VDC nominal)
Power consumption
(DC)		 10.8 W max.
Power consumption
(AC)		 8.75 W max.
Power consumption
(PoE)		 9.2 W max.
PoE IEEE standard IEEE 802.3af (802.3at Type 1)
Power level: Class 3
Sensor
Type 1/2.9‑inch CMOS
Effective pixels 3072 (H) x 1944 (V)
Video performance - Sensitivity
Sensitivity – (3100K, reflectivity 89%, 1/25, F1.3, 30IRE)
• Color 0.24 lx
• Mono 0.03 lx
• With IR 0.0 lx
Video performance – Dynamic range
High Dynamic Range 120 dB WDR
Measured according
to IEC 62676 Part 5		 107 dB WDR
Video streaming
Video compression H.265; H.264; M- JPEG
Streaming Multiple configurable streams in H.264 or H.
265 and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI)
Camera processing
latency		 <55 ms (max. average at 1080p30)
<65 ms (max. average at 5MP30)
GOP structure IP
Encoding interval 1 to 25 [30] fps
Encoding regions Up to 8 areas with encoder quality settings per
area
Video resolution
5MP (16:9) 3072 x 1728
Upright mode 5MP 1728 x 3072
4MP (16:9) 2688 x 1512
Upright mode 4MP 1512 x 2688
3MP (16:9) 2304 x 1296
Upright mode 3MP 1296 x 2304
1080p HD 1920 x 1080
Upright mode 1080p 1080 x 1920
1.3MP (5:4) 1280 x 1024
720p 1280 x 720
480p SD 640 x 480
240p SD 320 x 240
Video functions
Day/Night Color, Monochrome, Auto (adjustable switch
points)
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium vapor, Dominant color),
Manual mode and Hold mode
Shutter Automatic Electronic Shutter (AES);
Fixed (1/25[30] to 1/15000) selectable;
Default shutter
Backlight
compensation		 On/off/Intelligent Auto Exposure (BLC)
Contrast
enhancement		 On/off
Signal-to-noise ratio
(SNR)		 >55 dB
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Sharpness Sharpness enhancement level selectable
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Privacy Masking Eight independent areas, fully programmable
Video Analysis Essential Video Analytics
Scene modes Standard, Sodium Lighting, Traffic, Intelligent
AE, Vibrant, Low bitrate, Sports & Gaming,
Retail
Other functions Image mirror, Image flip, Pixel counter, Video
watermarking, Display stamping, Location
Camera rotation Automatic detection with manual override
(0° / 90°/ 180°/ 270°)
Video content analysis
Analysis type Essential Video Analytics
Features Rule based alarms and tracking
Line crossing
Enter /leave field
Follow route
Loitering
Idle / removed object
People counting
Crowd density estimation
3D tracking
Audio detection Detection of audio to generate an alarm
Night vision (IR version only)
Distance 30 m (98 ft)
LED 10 LED high efficiency array, 850 nm
IR intensity Adjustable
Optical
Lens type 3 to 10 mm Automatic Varifocal (AVF) lens, IR
corrected
DC Iris F1.3 – 360
Lens mount Board mounted
Adjustment Motorized zoom/focus
Iris control Automatic iris control
Day/Night Switched mechanical IR filter
Horizontal field of
view		 29° - 92°
Vertical field of view 18° - 50°
Input/output
Analog video out SMB connector, CVBS (NTSC), 1 Vpp,
75 Ohm, approx. 500 TVL
Audio line in 0.707 Vrms max, 10 kOhm typical, jack
connector
Audio line out 0.707 Vrms at 16 Ohm typical, jack connector
Audio input Built-in microphone (can be permanently
disabled)
Alarm input 1 input
Alarm input
activation		 Short or DC 5V activation
Alarm output 1 output
Input/output
Alarm output voltage 30 VDC, max. load 0.5 A
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Local storage
Internal RAM 60 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (A memory card of Class 6
or higher is recommended for HD recording)
Recording Continuous recording, ring recording. alarm/
events/schedule recording
Software
Unit discovery IP Helper
Unit configuration Via web browser or Configuration Manager
Firmware update Remotely programmable
Software viewing Web browser;
Video Security Client;
Video Security App;
Bosch Video Management System;
Bosch Video Client;
or third party software
Latest firmware and
software		 http://downloadstore.boschsecurity.com/
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, ARP, DHCP, APIPA (Auto-IP, link local
address), NTP (SNTP), SNMP (V1, V3, MIB-II),
802.1x, DNS, DNSv6, DDNS (DynDNS.org,
selfHOST.de, no-ip.com), SMTP, iSCSI,
UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
Dropbox™, CHAP, digest authentication
Encryption TLS1.0/1.2, AES128, AES256
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G;
GB/T 28181
Mechanical
3-axis adjustment
(pan/tilt/rotation)		 350º / 130º / 330º
Dimensions (Ø x H) 135 x 102 mm (5.32 x 4 in)
Weight (approx.) 450 g (0.99 lb)
Color RAL 9003, RAL 9017
Housing material Aluminum
Dome bubble Polycarbonate, clear with anti-scratch coating
Environmental
Operating
temperature
(continuous)		 20 ºC to +50 ºC (-4 ºF to +122 ºF)
Storage temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Operating humidity 5% to 93% RH non condensing
5% to 100% RH condensing
Ingress protection IP66
Impact protection IK10

Read more

Bosch 5MP Outdoor Motorised VF Dome 5000i Camera, H.265, WDR, EVA, IP66, IK10, 3-10mm - BOS-NDE-5503-A

Product form

SKU: BOS-NDE-5503-A

$1,387.00 Incl. GST
