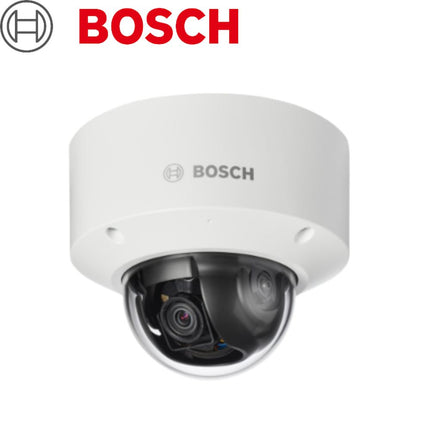

Bosch 4MP Indoor Motorised Dome 8000i Camera, PTRZ, H.265, WDR, IP66, 4.4-10mm - BOS-NDV-8503-RX

Description

Description

Features

  • Motorised Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view with the Bosch Project Assistant app
  • Starlight X technology with 1/1.8" 4.1MP sensor for next level low-light performance with maximum detail
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
  • Camera Trainer to train the camera to recognise user-specified target objects for both moving and non-moving objects
Datasheet
Tech Specs

Bosch 4MP Indoor Motorised Dome 8000i Camera, PTRZ, H.265, WDR, IP66, 4.4-10mm - BOS-NDV-8503-RX

Power
Input voltage PoE IEEE 802.3af / 802.3at Type 1, Class 3
Power Consumption
(typical / maximum)		 PoE: 7 W / 11.5 W
Sensor
Sensor type 1/1.8‑inch CMOS
Effective pixels 2688 x 1520 2.9 μm pixels, 4.1MP (approx.)
Sensitivity
Low-light technology starlight X
Measured according to IEC 62676 Part 5 (1/25, F1.3)
Color 0.0078 lx
Mono 0.0008 lx
Dynamic range
Dynamic range (WDR) HDR X 141 dB
Measured according to
IEC 62676 Part 5		 108 dB WDR
Optical
Lens 4.4 to 10 mm P-iris lens (IR corrected);
F-stop 1.3 - 1.97
Adjustment Motorized zoom/focus
Iris control P-iris control
Viewing angle Wide: 110° x 56° (H x V);
Tele: 48° x 27° (H x V)
Platform
Common product
platform		 CPP7.3
Video streaming
Video compression H.265; H.264; M- JPEG
Sensor modes 25 fps, HDR X, 2688 x 1520 (4.1 MP);
30 fps, HDR X, 2688 x 1520 (4.1 MP);
50 fps, 2688 x 1520 (4.1 MP);
60 fps, 2688 x 1520 (4.1 MP)
Streaming Multiple configurable streams in H.264, H.265
and M-JPEG, configurable frame rate and
bandwidth.
Regions of Interest (ROI);
Bosch Intelligent Streaming
Camera latency 67 ms (60 fps)
GOP structure IBBP
Frame rate 1-60 fps
Signal-to-Noise Ratio
(SNR)		 >55 dB
Video resolution (H x V)
Supported resolutions 4.1 MP 2688 x 1520, 3.7 MP 2560 x 1440,
2.8 MP (4:3) 1920 x 1440,
HD 1080p 1920 x 1080, 1.3MP 1536 x 864,
1.3 MP (5:4) 1280 x 1024, HD 720p
1280 x 720, SD 432p 768 x 432,
SD 480p (4:3) 720 x 480, VGA (4:3) 640 x 480
Camera installation
Mirror image On / Off
Rotate 0° / 90° upright / 180° / 270° upright
Camera LED Auto disable/Enable/Disable
Positioning Coordinates / Mounting height
Camera view wizard Motorized pan, tilt, roll, zoom, autofocus
Video functions - color

Adjustable picture
settingsContrast, Saturation, BrightnessWhite Balance2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium lamp, Dominant color),
Manual mode and Hold mode

Video functions - ALC
ALC Mode (standard, fluorescent), Level , Average vs.
peak, Speed, Maximum gain
Exposure Automatic Electronic Shutter (AES);
Fixed shutter (1/25[30] to 1/15000) selectable; Default shutter, Maximum shutter
P-iris Automatic/manual, priority
Day/Night Auto (adjustable switch points), Color,
Monochrome
Video functions - enhance
High dynamic range HDR X - Motion optimized, HDR X - Optimized DR,
HDR X - Extreme DR
Enhancements Backlight compensation, Contrast enhancement,
Intelligent Auto Exposure
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Sharpness Sharpness enhancement level selectable
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Video content analysis
Analysis type Intelligent Video Analytics, Camera Trainer
Maximum IVA detection
range		 Wide: 5.33 m - 37.34 m (17.49 ft - 122.51 ft)
Tele: 11.80 m - 115.87 m (38.71 ft - 380.15 ft)
(depending on setup and scene)
Configurations Silent VCA / Profile1/2 / Scheduled / Event
triggered
Alarm rules
(combinable)		 Any object, Object in field, Line crossing, Enter /
leave field, Loitering, Follow route, Idle /
removed object, Counting, Occupancy, Crowd
density estimation, Condition change, Similarity
search, Flow / counter flow
Object filters Duration, Size, Aspect ratio, Speed, Direction,
Color, Object classes (4)
Tracking modes Standard (2D) tracking, 3D tracking, 3D people
tracking, Ship tracking, Museum mode
Calibration /
Geolocation		 Automatic, based on gyro sensor, focal length
and camera height
Additional
functionalities		 Tamper detection, Face detection
Additional functions
Scene modes 10 default modes with scheduler:
Standard, Sodium lighting, Fast movement,
Sensitivity boost, Dynamic backlight, Vibrant,
Color only, Sports & Gaming, Retail, License
Plate Recognition (LPR)
Privacy Masking Eight independent areas, fully programmable
Display stamping Name; Logo; Time; Alarm message
Pixel counter Selectable area
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slots Dual SDXC/SDHC microSD card slots, up to 2TB.
Dual SD-card slot
configurations		 • Mirror (redundant storage)
• Failover (extended service interval)
• Extend (maximum retention time)
• Automatic Network Replenishment
Industrial SD cards Extreme lifetime and health monitoring support
that provides early service indication.
Input/output
Ethernet Shielded RJ45
Surge protection Ethernet: 1 kV, 2 kA to ground (8/20 µs pulse)
Fiber optics (sold
separately)		 The Fiber Optic Ethernet Media Converter kit
(VG4-SFPSCKT) installed inside a Surveillance
Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-UPA2) provides the fiber optic interface to the
mounted camera.
Audio streaming
Audio input Built-in microphone (can be permanently
disabled)
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, APIPA (Auto-IP, link local address), NTP
(SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
digest authentication
Ethernet 10/100 Base-T
Interoperability ONVIF Profile S; ONVIF Profile G; ONVIF
Profile M; ONVIF Profile T
Data security
Crypto Coprocessor
(TPM)		 RSA 2048 bit, AES/CBC 256 bit
PKI X.509 certificates
Encryption Full end-to-end encryption with supported VMS
Network: TLS1.0/1.2, AES128, AES256
Local storage: XTS-AES
Video authentication checksum, MD5, SHA-1, SHA-256
Mechanical
Dimensions (D x H) 177 x 148 mm (6.97 x 5.83 in)
Weight 2040.00 g (4.5 lbs)
Mounting Surface mount
Color White (RAL9003)
Motorized PTR range Pan: 0º to +361º;
Tilt: -3º to +85º;
Roll: -95º to +95º
Dome bubble Polycarbonate, clear with UV blocking antiscratch coating
Housing Aluminum with dehumidifying membrane and
polycarbonate shell
Environmental
Operating temperature -20 °C to +55 °C (-4 °F to +131 °F) for continuous
operation
Storage temperature -30 °C to +70 °C (-22 °F to +158 °F)
Operating humidity 5% to 93% RH non condensing
5% to 100% RH condensing
Storage humidity Up to 98% RH
Impact resistance
casing and dome		 IK10
Water/dust protection IP5X, IP54 with NDA-8001-IP

Read more

Bosch 4MP Indoor Motorised Dome 8000i Camera, PTRZ, H.265, WDR, IP66, 4.4-10mm - BOS-NDV-8503-RX

Product form

SKU: BOS-NDV-8503-RX

$2,250.00 Incl. GST
