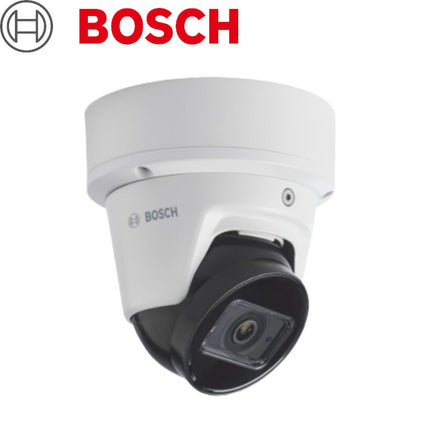

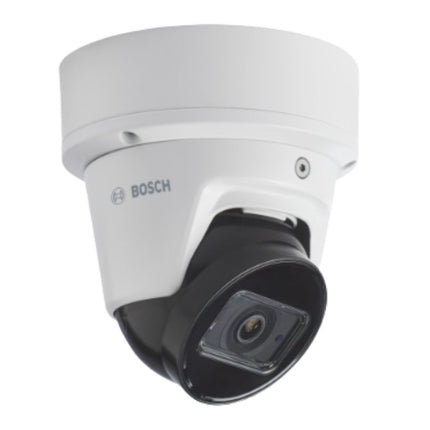

Bosch 2MP Outdoor Turret 3000i Camera, EVA HDR, 100 Deg, IP66, IK10, 15m IR, 2.8mm - BOS-NTE-3502F03L

Description

Description

Features

  • 1080p and 5MP resolutions
  • Built-in essential video analytics to trigger relevant alerts and quickly retrieve data
  • Fully configurable H.265 multi-streaming
  • High dynamic range (120 dB) for challenging bright and dark scenes
  • Built-in IR illuminator with 15m viewing distance
  • IP66, IK10 rating
Datasheet
Tech Specs

Bosch 2MP Outdoor Turret 3000i Camera, EVA HDR, 100 Deg, IP66, IK10, 15m IR, 2.8mm - BOS-NTE-3502F03L

Power
Input voltage POE IEEE 802.3af / 802.3 at Type 1, Class 3
12 VDC ±30%
Power consumption
(typical / maximum)		 PoE: 3.5 W / 10.5 W
12 VDC: 3.1 W / 9.5 W
Sensor - 2 MP
Sensor type 1/2.8 inch CMOS
Effective pixels 1920 (H) x 1080 (V)
Sensor - 5.3 MP
Sensor type 1/2.9 inch CMOS
Effective pixels 3072 (H) x 1728 (V)
Video performance - Sensitivity
2MP
Measured according to IEC 62676 Part 5 (1/30, F1.6 or F2.2)
• Color 0.1 lx
• Mono 0.02 lx
• With IR 0.0 lx
5.3MP
Measured according to IEC 62676 Part 5 (1/30, F1.6 or F2.2)
• Color 0.5 lx
• Mono 0.08 lx
• With IR 0.0 lx
Video performance - Dynamic range
High Dynamic Range 120 dB WDR
Measured according to IEC 62676 Part 5
2 MP 103 dB
5.3 MP 101 dB
Optical
Lens type 2.3 mm fixed, F2.2
2.8 mm fixed, F1.6
Day/Night Switchable IR-cut filter
Field of view
2 MP 2.3 mm: 132° x 77° (H x V)
2.8 mm: 107° x 57° (H x V)
5.3 MP 2.3 mm: 118° x 69° (H x V)
2.8 mm: 94° x 51° (H x V)
Night vision
Distance 15 m (49 ft)
LED 2 LEDs, 850 nm
IR intensity Adjustable
Video streaming
Video compression H.265; H.264; M- JPEG
Sensor modes
2 MP 30 fps, HDR, 1920 x 1080
25 fps, HDR, 1920 x 1080
5.3 MP 20 fps, HDR, 3072 x 1728 (5.3 MP)
25 fps, HDR, 2720 x 1530 (4.1 MP)
Streaming Multiple configurable streams in H.264 or H.265
and M-JPEG, configurable frame rate and
bandwidth. Regions of Interest (ROI)
GOP structure IP
Encoding interval
2 MP 1 to 30 fps
5.3 MP 1 to 20 fps (5.3 MP)
1 to 25 fps (4.1 MP)
Signal-to-noise ratio
(SNR)		 >55 dB
Video resolution - 2 MP
1080p HD 1920 x 1080
720p HD 1280 x 720
SD 768 x 432
D1 720 x 480
VGA 640 x 480
Video resolution - 5 MP
5.3 MP 3072 x 1728
4.1 MP 2720 x 1530
3 MP 2304 x 1296
1080p HD 1920 x 1080
720p HD 1280 x 720
SD 768 x 432
D1 720 x 480
VGA 640 x 480
Camera installation
Mirror image On / Off
Rotation 0° / 90° / 180° / 270°
Camera LED Enable / Disable
Video functions - color
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium lamp, Dominant color),
Manual mode and Hold mode
Video functions - ALC
Shutter Automatic Electronic Shutter (AES); Fixed
(1/25[30] to 1/15000) selectable;
Default shutter
Day/Night Auto (adjustable switch points), Color,
Monochrome
Video functions - enhance
Sharpness Sharpness enhancement level selectable
Backlight compensation On/off
Contrast enhancement On/off
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Video content analysis
Analysis type Essential Video Analytics
Features Rule based alarms and tracking, Line crossing,
Enter / leave field, Follow route, Loitering,
Idle / removed object, People counting, Crowd
density estimation, 3D tracking
Additional functions
Privacy Masking Eight independent areas, fully programmable
Display stamping Name, Logo, Time; Alarm message
Pixel counter Selectable area
Local storage
Internal RAM up to 5 s pre-alarm recording
Memory card slot microSDHC / microSDXC SD card slot
Industrial SD cards Extreme lifetime and health monitoring support
that provides early service indication
Input/output
Analog video out CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480
(IN) 720 x 576(P) for installation
Audio line in Max input 1 Vrms
Audio line out 16 Ohm typical; output 0.875 Vrms
Alarm input Short or DC 5 V activation
Alarm output Maximum load: 12 VDC / 50 mA
Ethernet RJ45 connector
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, APIPA (Auto-IP, link local address), NTP
(SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
digest authentication
Encryption TLS1.0/1.2, AES128, AES256
Ethernet 10/100 Base-T
Interoperability ONVIF Profile S; ONVIF Profile G; ONVIF Profile T:
GB/T 28181
Mechanical
Dimensions (Ø x H) 137 x 135 mm (5.39 x 5.31 in)
Weight (approx.) 1132.90 g (2.49 lbs)
Mounting Surface mount
Color White (RAL9003)
3-axis adjustment (pan/
tilt/rotation)		 Pan: 0° to 350°;
Tilt: 0° to 78°;
Roll: 0° to 360°;
Dome bubble\ Polycarbonate, clear with anti-scratch coating
Environmental
Operating temperature
(continuous)		 -30 °C to +50 °C (-22 °F to +122 °F)
Storage temperature -30 °C to +70 °C (-22 °F to +158 °F)
Humidity 5% to 100% relative humidity (condensing);
5% to 93% relative humidity (non condensing)
Storage humidity Up to 98% relative humidity
Impact resistance IK10
Water/dust protection IP66

Read more

Bosch 2MP Outdoor Turret 3000i Camera, EVA HDR, 100 Deg, IP66, IK10, 15m IR, 2.8mm - BOS-NTE-3502F03L

Product form

SKU: BOS-NTE-3502F03L

$597.00 Incl. GST
