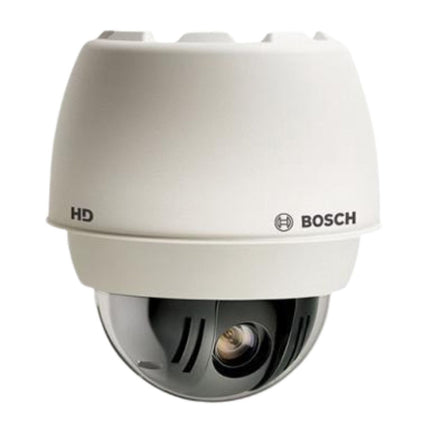

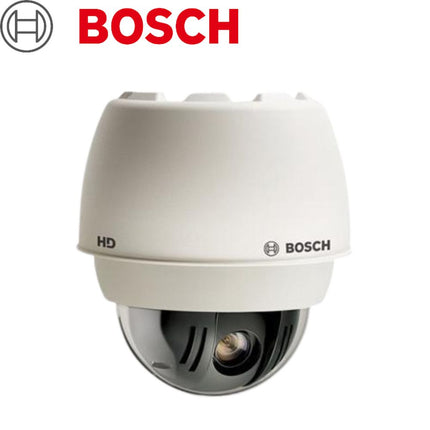

Bosch 2MP Outdoor PTZ Starlight 7000i Camera, 30x Zoom, HDR, IP66, Pendant - BOS-NDP-7512Z30

Description

Description

Features

  • Starlight technology with excellent low-light performance
  • Intelligent streaming with H.265 to reduce bit rate
  • Built-in intelligent video analytics to trigger relevant alerts
  • High definition 1080p video
  • 3-year warranty
Datasheet
Tech Specs

Bosch 2MP Outdoor PTZ Starlight 7000i Camera, 30x Zoom, HDR, IP66, Pendant - BOS-NDP-7512Z30

AUTODOME IP starlight 7000i
Imager 1/2.8 in. CMOS sensor
Effective Picture
Elements (Pixels)		 1944 x 1212 (2.35 MP)
Lens 30x motorized Zoom
4.3 mm to 129 mm
F1.6 to F4.7
Field of View (FOV) 2.3° to 64.7°
Focus Automatic with manual override
Iris Automatic with manual override
Digital Zoom 12x
Day/Night switch Automatic IR cut filter
Video performance - Sensitivity
(3100K, reflectivity 89%, 1/30, F1.6, 30 IRE)
Color 0.0077 lx
Monochrome 0.0008 lx
Video performance - Dynamic range
High dynamic range 120 dB WDR
Measured according to
IEC 62676 Part 5		 100 dB WDR
Additional Camera Settings
Gain control AGC, Fixed, Region per pre-position
Aperture Correction Horizontal and vertical
Electronic Shutter Speed
(AES)		 1/1 sec to 1/30,000 sec (22 steps)
Signal-to-Noise Ratio (SNR) >55 dB
Backlight compensation
(BLC		 On / Off / Intelligent Auto Exposure (IAE)
White balance 2000 K to 10,000 K
ATW, AWB Hold, Extended ATW, Manual,
Sodium Lamp Auto, Sodium Lamp, indoor,
outdoor
Day/Night Monochrome, Color, Auto
Defog mode feature Improves visibility when viewing foggy or
other low-contrast scenes.
Noise Reduction Intelligent Dynamic Noise Reduction
Video content analysis
Analysis type Intelligent Video Analytics
Configurations Off / Global VCA / Profiles 1 - 16
Calibration Automatic self-calibrating when height is set
Alarm rules
(combinable)		 Any object, Object in field, Crossing line, Entering field,
Leaving field, Loitering, Following route, Idle object,
Removed object, Counter, Occupancy, Crowd
detection, Condition change, Similarity search,
Tampering
Object filters Duration, Size, Aspect ratio v/h, Speed, Direction,
Object classes (Upright persons, Bikes, Cars, Trucks),
Colo
Miscellaneous
Sectors/Title 4, 8, 12, or 16 user-selectable, independent
Sectors, each with 20 characters per Title
Privacy Masks 32 individually configurable Privacy Masks;
maximum 8 per Pre-position; programmable with
3, 4 or 5 corners; selectable color of Black, White,
Gray, “Auto” (average background color)
Virtual Masking 24 individually configurable Virtual Masks to hide
parts of the scene (background motion such as
moving trees, pulsating lights, busy roads, etc.)
which should not be considered for flow analysis to
trigger Intelligent Tracking.
Pre-positions 256 Pre-positions, each with 20 characters per
Title
Guard Tours Custom Recorded Tours - two (2), total duration
30 minutes: Pre-position tour - one (1), consisting
of up to 256 scenes consecutively, and one (1)
customized with up to 64 user-defined scenes
Supported Languages English, Czech, Dutch, French, German, Italian,
Polish, Portuguese, Russian, Spanish, Japanese,
Chinese
Network
Video compression H.265, H.264, M-JPEG
Streaming Four (4) streams: Two (2) configurable streams
in H.264 or H.265; One (1) I-frames-only stream
based on first stream; One (1) M-JPEG Stream
Frame rate 1080p: 30fps; 720p: 60fps
Resolutions (H x V)
1080p HD 1920 x 1080
720p HD 1280 x 720
1.3 MP 5:4 (cropped) 1280x 1024
D1 4:3 (cropped) 704 x 480
640x 480 640 x 480
432p SD 768 x 432
288p SD 512 x 288
144p SD 256 x 144
Ethernet 10BASE-T/100BASE-T, auto-sensing, half/full
duplex
Encryption TLS 1.2, DES, 3DES, AES
Ethernet connector RJ45
GOP Structure IP, IBP, IBBP
Data Rate (H.265,
1080P)		 61 kbps to 2.8 Mbps (depending on the scene,
the frame rate, and the quality settings)
Overall IP Delay 60 fps: 166 ms (typical)
30 fps: 233 ms (typical)
Interoperability ONVIF Profile S, ONVIF Profile G, ONVIF Profile T
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, APIPA (Auto-IP, link local address), NTP
(SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
digest authentication
Note: Dropbox is a trademark of Dropbox, Inc.
The table that follows shows the average typical
optimized bitrate, in kbits/s, for different frame rates:
FPS H.264 H.265
30 2470 2060
25 2410 1810
15 1690 1260
8 1090 820
4 670 500
2 420 310
1 260 190

Actual bitrate may vary depending on the scene,
picture settings, and encoder profile settings.

Mechanical

In-Ceiling Pendant
Pan Range 360° cont. 360° cont.
Tilt Angle 1° above horizon 18° above horizon
Pre-position Speed Pan: 400°/s
Tilt: 300°/s		 Pan: 400°/s
Tilt: 300°/s
Pan/Tilt Modes
• Turbo mode
(Manual Control)		 Pan: 0.1°/s - 400°/s
Tilt: 0.1°/s - 300°/s		 Pan: 0.1°/s - 400°/s
Tilt: 0.1°/s - 300°/s
• Normal Mode 0.1°/s-120°/s 0.1°/s-120°/s
Pre-position Accuracy ± 0.1° typ. ± 0.1° typ.
Intelligent Tracking
Speed		 >0.2°/second (minimum)
Audio
- Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC, 16 kHz sampling rate
- Signal-to-Noise Ratio >50 dB
- Audio Streaming Bidirectional (full-duplex)
Local Storage
Memory Card Slot User-supplied full SD card (maximum 2 TB)
Note: For this camera, Bosch does not recommend
the use of microSD cards or of microSD to SD
adapters.
Recording Continuous recording of video and audio, alarm/
events/schedule recording
Fiber Optic Kit
VG4-SFPSCKT
Information Fiber Optic Ethernet Media Converter kit 2
.
Requires a small form-factor pluggable (SFP)
module (sold separately).
Data Interface Ethernet
Data Rate 100 Mbps
IEEE 802.3 Compliant
Full Duplex or Half Duplex Electrical Port
Full Duplex Optical Port
Compatible Receiver CNFE2MC
Installation Installed inside a VG4-A-PA0, VG4-A-PA1, VG4-APA2, VG4‑A‑PSU1, or a VG4‑A‑PSU2 power
supply box with supplied mounting hardware
2. Kit available separately and must be installed inside the AUTODOME power supply box.
SFP Modules
Information Interchangeable modules available for use with
MMF or SMF optical fiber.
Data Interface Ethernet
Data Rate 100 Mbps
IEEE 802.3 Compliant
Weight (all SFP
modules)		 0.23 kg (0.05 lb)
Dimensions (LxWxH) SFP-2, SFP-3: 55.5 x 13.5 x 8.5 mm (2.2 x 0.5 x
0.3 in.)
SFP-25, SFP-26: 63.8 x 13.5 x 8.5 mm (2.5 x
0.5 x 0.3 in.)
Type Connector Wavelength
(transmit /
receive)		 Max.
Distance
SFP-2 MMF Duplex LC 1310 nm /
1310 nm		 2 km
(1.2 miles)
SFP-3 SMF Duplex LC 1310 nm /
1310 nm		 20 km
(12.4 miles)
SFP-25 MMF Single SC 1310 nm /
1550 nm		 2 km
(1.2 miles)
SFP-26 MMF Single SC 1310 nm /
1550 nm		 2 km
(1.2 miles)
Fiber Compatibility
Optical Fiber
Compatibility, MMF		 50/125 µm MMF. For 50/125 µm fiber, subtract
4 dB from the specified optical budget value.
Must meet or exceed fiber standard ITU-T G.651.
Optical Fiber
Compatibility, SMF		 8-10/125 µm SMF. Must meet or exceed fiber
standard ITU-T G.652.
Optical Distance
Specifications		 Specified transmission distances are limited to
the optical loss of the fiber and any additional
loss introduced by connectors, splices, and patch
panels. The modules are designed to operate
over the entire optical loss budget range, so they
do not require a minimum loss in order to
operate.
User Connections
Power, Network RJ45 100Base-T
Power, Camera 24VAC, 50/60Hz
Alarm Inputs (7) 2 supervised, 5 non-supervised
Alarm Outputs (4) 1 dry contact relay, 3 open collector/transistor
outputs
Programmable for “normally open” or "normally
closed"
32 VDC @ 150 mA maximum
Audio 1 x mono line in, 1 x mono line out
Signal line in: 20 kOhm typical, 0.707 Vrms
Signal line out: 0.707 Vrms at 16 Ohm, typical
Communications / Software Control
Serial protocols Bosch OSRD, Pelco P/D, Forward Vision, and
Cohu
Note: A separate license (MVS-FCOM-PRCL)
is required.
Environmental
In-Ceiling Pendant
Ingress Protection
Rating/Standard		 IP54, Plenum rated IP66, NEMA 4X ¹
Operating
temperature (with
heater wired)		 -10 to +40 °C
(+14 to +104 °F)		 40 to +55 °C (-40 to
+131 °F)
-10 to +55 °C (+14 to
+131 °F) (without heater
wired)
Maximum temperature:
74 °C (165 °F) in
accordance with NEMA TS
2-2003 (R2008)
Storage
temperature		 -40 to +60 °C
(-40 to +140 °F)		 -40 to +60 °C
(-40 to +140 °F)
Operating Humidity 0% to 90% RH, (noncondensing) 0% to 100% RH,
condensing
Vibration IEC 60068-2-6 IEC 60068-2-6
NEMA TS2 Section 2.2.8
Shock IEC 60068-2-27 IEC 60068-2-27
NEMA TS2 Section 2.2.9
Salt Mist Spray
(Corrosion Test)		 IEC 60068-2-52
External
Mechanical Impact		 IEC 60068-2-75: IK10
(only models ending in "-
K")
1. NEMA 4X for:
-Access to Hazardous parts
-Ingress of solid foreign objects (falling dirt, circulating dust, settling dust)
-Ingress of water (dripping and light splashing, hose down and splashing)
Construction
Dimensions 224 mm (8.8 in.) x 299.4 mm (11.8 in.)
Weight In-ceiling: 2.6 kg (5.7 lb)
Pendant: 3.2 kg (7 lb)
Bubble Size 153.1 mm diameter (6.03 in.)
Construction Material ,
Housing		 In-ceiling: Magnesium
Pendant: Cast aluminum
Construction Material ,
Bubble		 In-ceiling: acrylic
Pendant: acrylic
Pendant (IK10): nylon
Standard Color White (RAL 9003)
Standard Finish Powder coated, sand finish
Mounts/Accessories
In-ceiling bubbles
Clear HD high-resolution acrylic VGA-BUBHD-CCLA
Tinted HD high-resolution acrylic
(Included with in-ceiling camera
models.)		 VGA-BUBHD-CTIA
Pendant bubbles
Clear high-resolution acrylic
(Included with pendant camera
models.)		 VGA-BUBBLE-PCLA
Tinted high-resolution acrylic VGA-BUBBLE-PTIA
Clear rugged IK10-rated nylon* VGA-BUBBLE-IK10
*Included with NDP-7512-Z30K
Mounts
Pendant Arm Mounts
Wall Arms VG4-A-PA0 (no transformer)
VG4-A-PA1 (120 VAC
transformer)
VG4-A-PA2 (230 VAC
transformer)
Pendant Arm with Wiring VG4-PEND-ARM
Mounting plate for VG4-PEND-ARM VG4-PEND-WPLATE
Optional Mounting Plates for Arm Mounts
Corner Mounting Plate VG4-A-9542
Pole Mounting Plate VG4-A-9541
Pendant Pipe Mounts
Pipe Mount Kit VG4-A-9543
Pendant Roof Mounts
Roof (Parapet) Mount
(VG4-A-9543 Pipe Mount Kit required. Available separately.)		 VGA-ROOF-MOUNT (with 1.5-
inch NPT tapered male
threads)
Optional Mounting Plates for Roof Mounts
Flat Roof Adapter for Parapet Mount LTC 9230/01
In-ceiling Support Kits VGA-IC-SP (Bracket for
suspended or drop ceilings)

Read more

Bosch 2MP Outdoor PTZ Starlight 7000i Camera, 30x Zoom, HDR, IP66, Pendant - BOS-NDP-7512Z30

Product form

SKU: BOS-NDP-7512Z30

$6,006.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    Features

    • Starlight technology with excellent low-light performance
    • Intelligent streaming with H.265 to reduce bit rate
    • Built-in intelligent video analytics to trigger relevant alerts
    • High definition 1080p video
    • 3-year warranty
    Datasheet
    Tech Specs

    Bosch 2MP Outdoor PTZ Starlight 7000i Camera, 30x Zoom, HDR, IP66, Pendant - BOS-NDP-7512Z30

    AUTODOME IP starlight 7000i
    Imager 1/2.8 in. CMOS sensor
    Effective Picture
    Elements (Pixels)    		 1944 x 1212 (2.35 MP)
    Lens 30x motorized Zoom
    4.3 mm to 129 mm
    F1.6 to F4.7
    Field of View (FOV) 2.3° to 64.7°
    Focus Automatic with manual override
    Iris Automatic with manual override
    Digital Zoom 12x
    Day/Night switch Automatic IR cut filter
    Video performance - Sensitivity
    (3100K, reflectivity 89%, 1/30, F1.6, 30 IRE)
    Color 0.0077 lx
    Monochrome 0.0008 lx
    Video performance - Dynamic range
    High dynamic range 120 dB WDR
    Measured according to
    IEC 62676 Part 5    		 100 dB WDR
    Additional Camera Settings
    Gain control AGC, Fixed, Region per pre-position
    Aperture Correction Horizontal and vertical
    Electronic Shutter Speed
    (AES)    		 1/1 sec to 1/30,000 sec (22 steps)
    Signal-to-Noise Ratio (SNR) >55 dB
    Backlight compensation
    (BLC    		 On / Off / Intelligent Auto Exposure (IAE)
    White balance 2000 K to 10,000 K
    ATW, AWB Hold, Extended ATW, Manual,
    Sodium Lamp Auto, Sodium Lamp, indoor,
    outdoor
    Day/Night Monochrome, Color, Auto
    Defog mode feature Improves visibility when viewing foggy or
    other low-contrast scenes.
    Noise Reduction Intelligent Dynamic Noise Reduction
    Video content analysis
    Analysis type Intelligent Video Analytics
    Configurations Off / Global VCA / Profiles 1 - 16
    Calibration Automatic self-calibrating when height is set
    Alarm rules
    (combinable)    		 Any object, Object in field, Crossing line, Entering field,
    Leaving field, Loitering, Following route, Idle object,
    Removed object, Counter, Occupancy, Crowd
    detection, Condition change, Similarity search,
    Tampering
    Object filters Duration, Size, Aspect ratio v/h, Speed, Direction,
    Object classes (Upright persons, Bikes, Cars, Trucks),
    Colo
    Miscellaneous
    Sectors/Title 4, 8, 12, or 16 user-selectable, independent
    Sectors, each with 20 characters per Title
    Privacy Masks 32 individually configurable Privacy Masks;
    maximum 8 per Pre-position; programmable with
    3, 4 or 5 corners; selectable color of Black, White,
    Gray, “Auto” (average background color)
    Virtual Masking 24 individually configurable Virtual Masks to hide
    parts of the scene (background motion such as
    moving trees, pulsating lights, busy roads, etc.)
    which should not be considered for flow analysis to
    trigger Intelligent Tracking.
    Pre-positions 256 Pre-positions, each with 20 characters per
    Title
    Guard Tours Custom Recorded Tours - two (2), total duration
    30 minutes: Pre-position tour - one (1), consisting
    of up to 256 scenes consecutively, and one (1)
    customized with up to 64 user-defined scenes
    Supported Languages English, Czech, Dutch, French, German, Italian,
    Polish, Portuguese, Russian, Spanish, Japanese,
    Chinese
    Network
    Video compression H.265, H.264, M-JPEG
    Streaming Four (4) streams: Two (2) configurable streams
    in H.264 or H.265; One (1) I-frames-only stream
    based on first stream; One (1) M-JPEG Stream
    Frame rate 1080p: 30fps; 720p: 60fps
    Resolutions (H x V)
    1080p HD 1920 x 1080
    720p HD 1280 x 720
    1.3 MP 5:4 (cropped) 1280x 1024
    D1 4:3 (cropped) 704 x 480
    640x 480 640 x 480
    432p SD 768 x 432
    288p SD 512 x 288
    144p SD 256 x 144
    Ethernet 10BASE-T/100BASE-T, auto-sensing, half/full
    duplex
    Encryption TLS 1.2, DES, 3DES, AES
    Ethernet connector RJ45
    GOP Structure IP, IBP, IBBP
    Data Rate (H.265,
    1080P)    		 61 kbps to 2.8 Mbps (depending on the scene,
    the frame rate, and the quality settings)
    Overall IP Delay 60 fps: 166 ms (typical)
    30 fps: 233 ms (typical)
    Interoperability ONVIF Profile S, ONVIF Profile G, ONVIF Profile T
    Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
    IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
    DHCP, APIPA (Auto-IP, link local address), NTP
    (SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
    DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
    DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
    digest authentication
    Note: Dropbox is a trademark of Dropbox, Inc.
    The table that follows shows the average typical
    optimized bitrate, in kbits/s, for different frame rates:
    FPS H.264 H.265
    30 2470 2060
    25 2410 1810
    15 1690 1260
    8 1090 820
    4 670 500
    2 420 310
    1 260 190

    Actual bitrate may vary depending on the scene,
    picture settings, and encoder profile settings.

    Mechanical

    In-Ceiling Pendant
    Pan Range 360° cont. 360° cont.
    Tilt Angle 1° above horizon 18° above horizon
    Pre-position Speed Pan: 400°/s
    Tilt: 300°/s    		 Pan: 400°/s
    Tilt: 300°/s
    Pan/Tilt Modes
    • Turbo mode
    (Manual Control)    		 Pan: 0.1°/s - 400°/s
    Tilt: 0.1°/s - 300°/s    		 Pan: 0.1°/s - 400°/s
    Tilt: 0.1°/s - 300°/s
    • Normal Mode 0.1°/s-120°/s 0.1°/s-120°/s
    Pre-position Accuracy ± 0.1° typ. ± 0.1° typ.
    Intelligent Tracking
    Speed    		 >0.2°/second (minimum)
    Audio
    - Standard G.711, 8 kHz sampling rate
    L16, 16 kHz sampling rate
    AAC, 16 kHz sampling rate
    - Signal-to-Noise Ratio >50 dB
    - Audio Streaming Bidirectional (full-duplex)
    Local Storage
    Memory Card Slot User-supplied full SD card (maximum 2 TB)
    Note: For this camera, Bosch does not recommend
    the use of microSD cards or of microSD to SD
    adapters.
    Recording Continuous recording of video and audio, alarm/
    events/schedule recording
    Fiber Optic Kit
    VG4-SFPSCKT
    Information Fiber Optic Ethernet Media Converter kit 2
    .
    Requires a small form-factor pluggable (SFP)
    module (sold separately).
    Data Interface Ethernet
    Data Rate 100 Mbps
    IEEE 802.3 Compliant
    Full Duplex or Half Duplex Electrical Port
    Full Duplex Optical Port
    Compatible Receiver CNFE2MC
    Installation Installed inside a VG4-A-PA0, VG4-A-PA1, VG4-APA2, VG4‑A‑PSU1, or a VG4‑A‑PSU2 power
    supply box with supplied mounting hardware
    2. Kit available separately and must be installed inside the AUTODOME power supply box.
    SFP Modules
    Information Interchangeable modules available for use with
    MMF or SMF optical fiber.
    Data Interface Ethernet
    Data Rate 100 Mbps
    IEEE 802.3 Compliant
    Weight (all SFP
    modules)    		 0.23 kg (0.05 lb)
    Dimensions (LxWxH) SFP-2, SFP-3: 55.5 x 13.5 x 8.5 mm (2.2 x 0.5 x
    0.3 in.)
    SFP-25, SFP-26: 63.8 x 13.5 x 8.5 mm (2.5 x
    0.5 x 0.3 in.)
    Type Connector Wavelength
    (transmit /
    receive)    		 Max.
    Distance
    SFP-2 MMF Duplex LC 1310 nm /
    1310 nm    		 2 km
    (1.2 miles)
    SFP-3 SMF Duplex LC 1310 nm /
    1310 nm    		 20 km
    (12.4 miles)
    SFP-25 MMF Single SC 1310 nm /
    1550 nm    		 2 km
    (1.2 miles)
    SFP-26 MMF Single SC 1310 nm /
    1550 nm    		 2 km
    (1.2 miles)
    Fiber Compatibility
    Optical Fiber
    Compatibility, MMF    		 50/125 µm MMF. For 50/125 µm fiber, subtract
    4 dB from the specified optical budget value.
    Must meet or exceed fiber standard ITU-T G.651.
    Optical Fiber
    Compatibility, SMF    		 8-10/125 µm SMF. Must meet or exceed fiber
    standard ITU-T G.652.
    Optical Distance
    Specifications    		 Specified transmission distances are limited to
    the optical loss of the fiber and any additional
    loss introduced by connectors, splices, and patch
    panels. The modules are designed to operate
    over the entire optical loss budget range, so they
    do not require a minimum loss in order to
    operate.
    User Connections
    Power, Network RJ45 100Base-T
    Power, Camera 24VAC, 50/60Hz
    Alarm Inputs (7) 2 supervised, 5 non-supervised
    Alarm Outputs (4) 1 dry contact relay, 3 open collector/transistor
    outputs
    Programmable for “normally open” or "normally
    closed"
    32 VDC @ 150 mA maximum
    Audio 1 x mono line in, 1 x mono line out
    Signal line in: 20 kOhm typical, 0.707 Vrms
    Signal line out: 0.707 Vrms at 16 Ohm, typical
    Communications / Software Control
    Serial protocols Bosch OSRD, Pelco P/D, Forward Vision, and
    Cohu
    Note: A separate license (MVS-FCOM-PRCL)
    is required.
    Environmental
    In-Ceiling Pendant
    Ingress Protection
    Rating/Standard    		 IP54, Plenum rated IP66, NEMA 4X ¹
    Operating
    temperature (with
    heater wired)    		 -10 to +40 °C
    (+14 to +104 °F)    		 40 to +55 °C (-40 to
    +131 °F)
    -10 to +55 °C (+14 to
    +131 °F) (without heater
    wired)
    Maximum temperature:
    74 °C (165 °F) in
    accordance with NEMA TS
    2-2003 (R2008)
    Storage
    temperature    		 -40 to +60 °C
    (-40 to +140 °F)    		 -40 to +60 °C
    (-40 to +140 °F)
    Operating Humidity 0% to 90% RH, (noncondensing) 0% to 100% RH,
    condensing
    Vibration IEC 60068-2-6 IEC 60068-2-6
    NEMA TS2 Section 2.2.8
    Shock IEC 60068-2-27 IEC 60068-2-27
    NEMA TS2 Section 2.2.9
    Salt Mist Spray
    (Corrosion Test)    		 IEC 60068-2-52
    External
    Mechanical Impact    		 IEC 60068-2-75: IK10
    (only models ending in "-
    K")
    1. NEMA 4X for:
    -Access to Hazardous parts
    -Ingress of solid foreign objects (falling dirt, circulating dust, settling dust)
    -Ingress of water (dripping and light splashing, hose down and splashing)
    Construction
    Dimensions 224 mm (8.8 in.) x 299.4 mm (11.8 in.)
    Weight In-ceiling: 2.6 kg (5.7 lb)
    Pendant: 3.2 kg (7 lb)
    Bubble Size 153.1 mm diameter (6.03 in.)
    Construction Material ,
    Housing    		 In-ceiling: Magnesium
    Pendant: Cast aluminum
    Construction Material ,
    Bubble    		 In-ceiling: acrylic
    Pendant: acrylic
    Pendant (IK10): nylon
    Standard Color White (RAL 9003)
    Standard Finish Powder coated, sand finish
    Mounts/Accessories
    In-ceiling bubbles
    Clear HD high-resolution acrylic VGA-BUBHD-CCLA
    Tinted HD high-resolution acrylic
    (Included with in-ceiling camera
    models.)    		 VGA-BUBHD-CTIA
    Pendant bubbles
    Clear high-resolution acrylic
    (Included with pendant camera
    models.)    		 VGA-BUBBLE-PCLA
    Tinted high-resolution acrylic VGA-BUBBLE-PTIA
    Clear rugged IK10-rated nylon* VGA-BUBBLE-IK10
    *Included with NDP-7512-Z30K
    Mounts
    Pendant Arm Mounts
    Wall Arms VG4-A-PA0 (no transformer)
    VG4-A-PA1 (120 VAC
    transformer)
    VG4-A-PA2 (230 VAC
    transformer)
    Pendant Arm with Wiring VG4-PEND-ARM
    Mounting plate for VG4-PEND-ARM VG4-PEND-WPLATE
    Optional Mounting Plates for Arm Mounts
    Corner Mounting Plate VG4-A-9542
    Pole Mounting Plate VG4-A-9541
    Pendant Pipe Mounts
    Pipe Mount Kit VG4-A-9543
    Pendant Roof Mounts
    Roof (Parapet) Mount
    (VG4-A-9543 Pipe Mount Kit required. Available separately.)    		 VGA-ROOF-MOUNT (with 1.5-
    inch NPT tapered male
    threads)
    Optional Mounting Plates for Roof Mounts
    Flat Roof Adapter for Parapet Mount LTC 9230/01
    In-ceiling Support Kits VGA-IC-SP (Bracket for
    suspended or drop ceilings)

    Read more

    Recently viewed products

    © 2024 Spy Monkey Surveillance, Powered by Shopify

      • American Express
      • Apple Pay
      • Google Pay
      • Mastercard
      • PayPal
      • Shop Pay
      • Union Pay
      • Visa

      Login

      Forgot your password?

      Don't have an account yet?
      Create account
