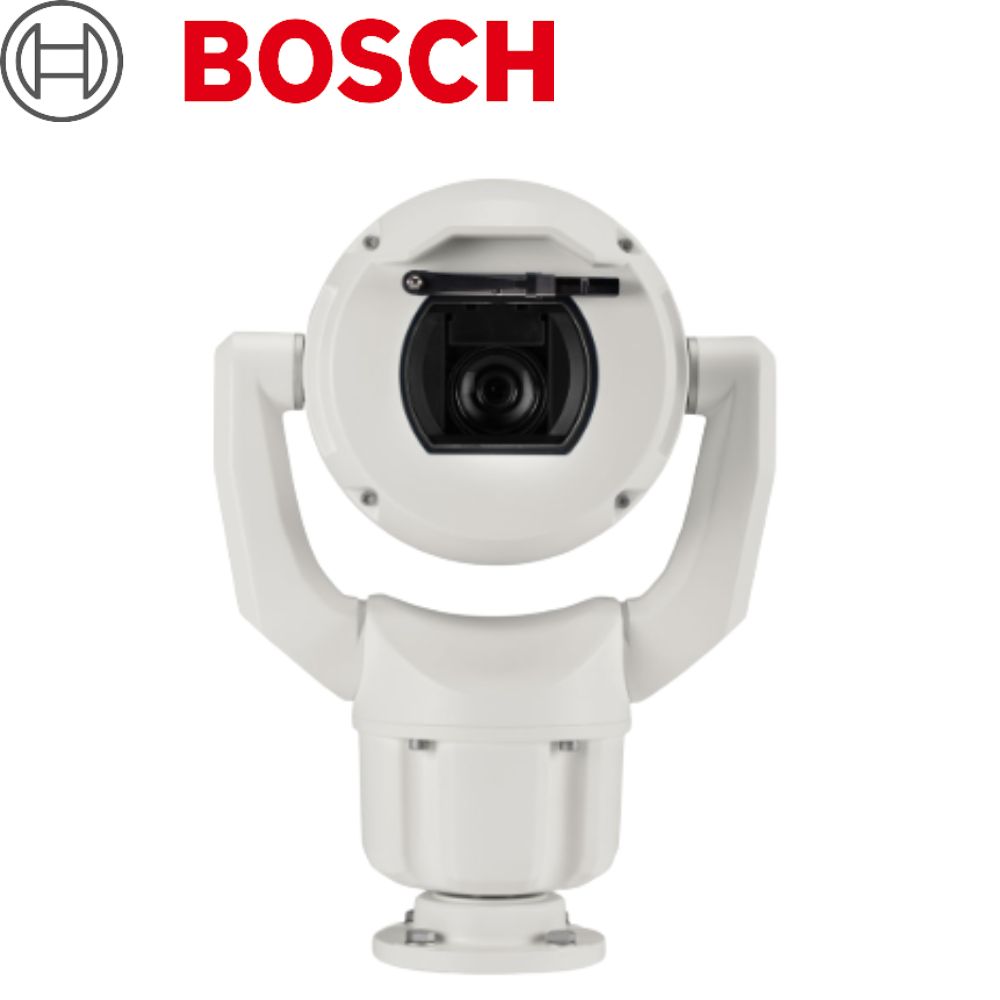

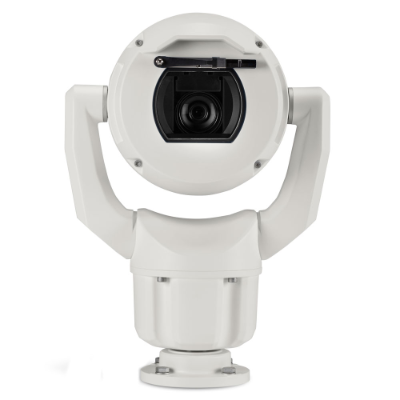

Bosch 2MP Outdoor PTZ MIC Starlight 7100i Camera, 30x, IP68, White - BOS-MIC7522Z30W

Description

Description

Features

  • Starlight camera technology with excellent low-light sensitivity (colour = 0.0053 lx)
  • High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
  • Exceptional strength and ruggedness for any outdoor application including traffic monitoring, perimeter protection, city surveillance and mining
  • Built-in camera trainer to train the camera to recognise user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
  • Edge intelligence with intelligent tracking and object detection even when the camera is moving
  • Optional illuminator with multi-spectrum LEDs that distribute IR light uniformly in the field (up to 550m) to avoid dark spots or an over illuminated scene
Datasheet
Tech Specs

Bosch 2MP Outdoor PTZ MIC Starlight 7100i Camera, 30x, IP68, White - BOS-MIC7522Z30W

Imager 1/2 in. CMOS sensor
Effective Picture
Elements (Pixels)		 1937 x 1097 (2.12 MP)
Lens 30x motorized Zoom
6.6 mm to 198 mm
F1.5 to F4.8
Field of View (FOV) 2.1° to 58.3°
Focus Automatic with manual override
Iris Automatic with manual override
Digital Zoom 12x
Day/Night switch Automatic IR cut filter
Video performance - Sensitivity
(3100K, reflectivity 89%, 1/30, F1.6, 30 IRE)
Color 0.0053 lx
Monochrome 0.0017 lx
Video performance ‑ Dynamic range
High dynamic range 120 dB
Measured according to
IEC 62676 Part 5)		 104 dB
Additional Camera Settings
Gain control AGC, Fixed
Aperture Correction Horizontal and vertical
Electronic Shutter Speed
(AES)		 1/1 sec to 1/10000 sec (22 steps)
Signal-to-Noise Ratio
(SNR)		 >55 dB
Day/Night switch Automatic IR cut filter
Backlight compensation
(BLC)		 On / Off / Intelligent Auto Exposure (IAE)
White balance 2000 K to 10,000 K
ATW, AWB Hold, Extended ATW, Manual,
Sodium Lamp Auto, Sodium Lamp
Day/Night Monochrome, Color, Auto
Defog mode feature Improves visibility when viewing foggy or
other low-contrast scenes.
Noise Reduction Intelligent Dynamic Noise Reduction
Video content analysis
Analysis type Intelligent Video Analytics
Configurations Off / Global VCA / Profiles 1 - 16
Calibration Automatic self-calibrating when height is set
Alarm rules
(combinable)		 Any object
Object in field
Crossing line
Entering field
Leaving field
Loitering
Following route
Idle object
Removed object
Counter
Occupancy
Crowd detection
Condition change
Similarity search
Tampering
Object filters Duration
Size
Aspect ratio v/h
Speed
Direction
Object classes (Upright persons, Bikes, Cars,
Trucks)
Color
DORI Definition Distance to Object
WIDE 1X TELE
30X		 Scene
width
Detection 25 pixels/m
(8 pixels/ft)		 69 m
(226 ft)		 2895 m
(6873 ft)		 77 m
(252 ft)
Observation 63 pixels/m
(19 pixels/ft)		 27 m
(89 ft)		 834 m
(2726 ft)		 31 m
(100 ft)
Recognition 125 pixels/m
(38 pixels/ft)		 14 m
(46 ft)		 419 m
(1375 ft)		 15 m
(50 ft)
Identification 250 pixels/m
(76 pixels/ft)		 7 m
(23 ft)		 210 m
(689 ft)		 8 m
(25 ft)
Miscellaneous
Sectors 4, 6, 8, 9, 12, or 16 user-selectable, independent
Sectors, each with 20 characters per Title
Privacy Masks 32 individually configurable Privacy Masks;
maximum 8 per Pre-position; programmable with
3, 4 or 5 corners; selectable color of Black, White,
or Gray, as well as an “Auto” option in which the
camera selects the most prevalent of the three
colors in the background scene as the pattern
color.
Virtual Masks 24 individually configurable Virtual Masks to hide
parts of the scene (background motion such as
moving trees, pulsating lights, busy roads, etc.)
which should not be considered for flow analysis to
trigger Intelligent Tracking.
Pre-positions 256 Pre-positions, each with 20 characters per
Title
Guard Tours Custom Recorded Tours - two (2), total duration
30 minutes:
Pre-position tour - one (1), consisting of up to 256
scenes consecutively, and one (1) customized with
up to 256 user-defined scenes
Supported
Languages		 English, Czech, Dutch, French, German, Italian,
Polish, Portuguese, Russian, Spanish, Japanese,
Chinese
Alarm contro Rules-based logic supports basic and complex predefined user-specified commands
In its most basic form, a “rule” could define which
input(s) should activate which output(s).
Washer Pump
Interface		 Control functions integrated. Alarm/Washer
Interface Unit (MIC-ALM-WAS-24, sold
separately ) provides electrical interface to a
washer pump device (user-supplied ).
Camera status
monitoring		 Integrated sensors monitor operational status such
as internal temperature, humidity level, incoming
voltage level, vibration, and shock events.
Diagnostics Various status conditions are tracked in the
internal diagnostic log. Critical fault conditions will
also be displayed on screen.
Network
Standard/Video
compression		 H.265, H.264 (ISO/IEC 14496), M-JPEG,
JPEG
Streaming Four (4) streams: Two (2) configurable
streams in H.264 or H.265
One (1) I-frames-only stream based on first
stream
One (1) M-JPEG Stream
Resolution (H x V)
1080p HD 1920 x 1080
720p HD 1280 x 720
1.3 MP 5:4 (cropped) 1280x 1024
D1 4:3 (cropped) 704 x 480
640x 480 640 x 480
432p SD 768 x 432
288p SD 512 x 288
144p SD 256 x 144
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, ARP, DHCP, APIPA (Auto-IP, link local
address), NTP (SNTP), SNMP (V1, V3, MIB-II),
802.1x, DNS, DNSv6, DDNS (DynDNS.org,
selfHOST.de, no-ip.com), SMTP, iSCSI,
UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
Dropbox™, CHAP, digest authentication
Note: Dropbox is a trademark of Dropbox, Inc.
Ethernet 10BASE-T/100BASE-TX, auto-sensing, half/
full duplex
Encryption TLS 1.2, SSL, DES, 3DES, AES
Ethernet connector RJ45
GOP Structure IP, IBP, IBBP
Overall IP Delay 60 fps: 166 ms (typical)
30 fps: 233 ms (typical)
Interoperability ONVIF Profile S
ONVIF Profile G
ONVIF Profile T
GB/T 28181
Auto-MDIX
Mechanical
Drive Unit Brushless, integral pan/tilt motor drive
Supported
mounting
orientation		 Brushless, integral pan/tilt motor drive
Pan Range 360° continuous rotation
Tilt Angle Without illuminators (Upright): 290°
Without illuminators (Inverted): 250°
With illuminators: 186.6°
Tilt Range • Without illuminator:
• Upright/Inverted: -55° to +90°
• Canted: -90° to +90°
• With illuminator:
• Canted: -90° to +64°
• Upright/Inverted: -95° to +35°
Variable Pan Speed 0.2°/second - 120°/second
Variable Tilt Speed 0.2°/second - 90°/second
Intelligent Tracking
Speed		 >0.2°/second (minimum)
Pre-position Speed 120°/second
Pre-position
Accuracy		 +/-0.17°
Proportional Pan /
Tilt to Zoom		 Yes
Audible Noise <65 dB
Electrical
Input voltage 21-30 VAC, 50/60 Hz
High Power over Ethernet 56VDC nominal
Power
Consumption
(typical)		 Without illuminator: 40 W
With illuminator: 70 W
Current
consumption		 ~3.15A (24 VAC)
~1.5A (High PoE)
Redundant
configuration		 Connect both a High PoE Midspan and a separate
24 VAC power source. If either power source fails,
the camera automatically switches to the other
power source.
Surge protection Built-in surge protection for power, data, and
network interfaces
(Refer to the A&E Specifications for details.)
Communications / Software Control
Serial protocols Bosch OSRD, Pelco P/D, Forward Vision,
and Cohu
(Note: For Pelco, Forward Vision, and Cohu
protocols, a separate license (MVS-FCOMPRCL) is required.)
Local Storage
Memory card slot User-supplied full SD card (maximum 2 TB)
on
enhanced models only
Recommended: Sony Industrial SD cards
User Connections
Accessory Interface/
Control Data		 RS-485, Simplex, half and full duplex, userselectable baud rate or auto-baud
Used to communicate with optional Alarm/
washer interface box (MIC-ALM-WAS-24) or
with Bosch OSRD, Pelco P/D, Forward Vision,
and Cohu serial protocols.
Chassis ground Ground wire with connector lug
Input voltage With illuminator: RJ45 connector to High PoE
Midspan - 60 W (NPD-6001B) or 95 W
(NPD-9501A or NPD-9501-E)
Without illuminator: 95 W High PoE Midspan
(NPD-9501A or NPD-9501-E)* or 21-30 VAC,
50/60 Hz;
Female-to-female RJ45 coupler included
Power, Camera 24 VAC (power supply)
Video and Control RJ45 100BASE-TX Ethernet
RS-485 half-duplex 57600 baud (dedicated
for MIC-ALM-WAS-24)
* Must purchase NPD-9501A or NPD-9501-E in order to use the High
PoE solution.
Audio
Compression G.711, AAC, and L16 (live and recording)
Signal-to-Noise Ratio
(SNR)		 Audio-in: 47 dBA (A-weighting)
Audio out: 50 dBA (A-weighting)
Mode Two-way, full duplex audio communication
User connections Line in: 15k ohm typical, 1.0Vrms, max
Line out: 0.8Vrsm at 12K ohm, typical
Environmental
The customer is responsible for making sure that the
installation complies with the specified stresses that
follow.
Note: Unit includes internal heater and fan.
The customer is responsible for making sure that the
installation complies with the specified stresses that
follow.
Note: Unit includes internal heater and fan.
Ingress
Protection
Rating/Standard		 IEC 60529 IP66 / IP68 / Type 6P (dust and
immersion) when installed on a MIC-DCA, or on a
MIC wall mount with a MIC-SCA.
IP67 (moisture and dust) with the IP67 Connector
Kit (MIC-9K-IP67-5PK) on the connectors in the
camera base. This kit is also required when using
non-Bosch mounts.
External
Mechanical
Impact
(IK Code / Impact
rating)		 IEC 62262 IK10 (excluding glass window)
Operating temperature -40 °C to +65 °C (-40 °F to +149 °F)
NEMA TS 2-2003
(R2008),
para 2.1.5.1 using
fig. 2.1 test profile		 -34 ºC to +74 ºC (-30 ºF to +165 ºF) for 15
hours
Cold Start-up
Temperature		 -40 °C (-40 °F)
(Requires 60-minute warm-up prior to PTZ
operations.)
Storage temperature -45 °C to +70 °C (-49 °F to +158 °F)
Humidity 0-100%
Wind Load 161 km/h (100 mph) (sustained; camera will
hold its position)
(Camera can endure gusts up to 241 km/h
(150 mph) but may not hold its position.)
Camera with illuminator
Coefficient of Drag: TBD drag
Effective Projected Area (EPA): TBD (EPA m)
m² (TBD (EPA ft) ft²)
Vibration IEC 60068-2-6, Test Fc: Vibration
(sinusoidal), 10m/s² (1.0G)
NEMA TS2 Section 2.2.8 Vibration: 5-30 Hz,
(0.5G)
Sinusoidal vibration test IAW MIL-STD-167-1A
Shock IEC 60068-2-27, Test Ea: Shock, half sine
impulse, 11 ms, 40G (20G on canted unit),
non-repetitive shocks (three shocks in each
axis and in each direction)
NEMA TS 2 Section 2.2.9 Shock (Impact)
Test Half sine wave 11 ms, 10G
MIL-STD-810
Military Standard
Test Methods		 MIL-STD-810-G, 501.5 High Temperature
MIL-STD-810-G, 502.5 Low Temperature
MIL-STD-810-G, 503.5 Temperature Shock
MIL-STD-810-G, 505.5 Solar Radiation
MIL-STD-810-G, 506.5 Rain
MIL-STD-810-G, 509.5 Salt Fog
MIL-STD-810-G, 510.5 Sand and Dust
Salt Mist Spray
(Corrosion Test)		 ISO 12944-6: C5-M (High); Aluminum
Housing Components
Construction
Dimensions (W x
H x D)		 287.93 mm x 400.34 mm x 210.65 mm
(11.34 in. x 15.76 in. x 8.29 in.)
Weight 8.7 Kg (19.2 lb)
Window Flat glass with defroster
Construction
Materia		 Anodized cast aluminum
Window Wiper Integrated, long-life silicone wiper
Sunshield
(to prevent sun
load in hot
climates)		 Optional; sold separately
Canting On-site canting functionality
Color Black (RAL 9005)
Color White (RAL 9003)
Color Grey (RAL 7001)
Standard Finish Corrosion-resistant, powder coat paint, sand
finish

Read more

Bosch 2MP Outdoor PTZ MIC Starlight 7100i Camera, 30x, IP68, White - BOS-MIC7522Z30W

Product form

SKU: BOS-MIC7522Z30W

$11,650.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    Features

    • Starlight camera technology with excellent low-light sensitivity (colour = 0.0053 lx)
    • High dynamic range (120 dB) (to see details in bright and dark areas simultaneously)
    • Exceptional strength and ruggedness for any outdoor application including traffic monitoring, perimeter protection, city surveillance and mining
    • Built-in camera trainer to train the camera to recognise user-specified target objects, such as moving and non-moving objects, to alert operators of unusual scene activity
    • Edge intelligence with intelligent tracking and object detection even when the camera is moving
    • Optional illuminator with multi-spectrum LEDs that distribute IR light uniformly in the field (up to 550m) to avoid dark spots or an over illuminated scene
    Datasheet
    Tech Specs

    Bosch 2MP Outdoor PTZ MIC Starlight 7100i Camera, 30x, IP68, White - BOS-MIC7522Z30W

    Imager 1/2 in. CMOS sensor
    Effective Picture
    Elements (Pixels)    		 1937 x 1097 (2.12 MP)
    Lens 30x motorized Zoom
    6.6 mm to 198 mm
    F1.5 to F4.8
    Field of View (FOV) 2.1° to 58.3°
    Focus Automatic with manual override
    Iris Automatic with manual override
    Digital Zoom 12x
    Day/Night switch Automatic IR cut filter
    Video performance - Sensitivity
    (3100K, reflectivity 89%, 1/30, F1.6, 30 IRE)
    Color 0.0053 lx
    Monochrome 0.0017 lx
    Video performance ‑ Dynamic range
    High dynamic range 120 dB
    Measured according to
    IEC 62676 Part 5)    		 104 dB
    Additional Camera Settings
    Gain control AGC, Fixed
    Aperture Correction Horizontal and vertical
    Electronic Shutter Speed
    (AES)    		 1/1 sec to 1/10000 sec (22 steps)
    Signal-to-Noise Ratio
    (SNR)    		 >55 dB
    Day/Night switch Automatic IR cut filter
    Backlight compensation
    (BLC)    		 On / Off / Intelligent Auto Exposure (IAE)
    White balance 2000 K to 10,000 K
    ATW, AWB Hold, Extended ATW, Manual,
    Sodium Lamp Auto, Sodium Lamp
    Day/Night Monochrome, Color, Auto
    Defog mode feature Improves visibility when viewing foggy or
    other low-contrast scenes.
    Noise Reduction Intelligent Dynamic Noise Reduction
    Video content analysis
    Analysis type Intelligent Video Analytics
    Configurations Off / Global VCA / Profiles 1 - 16
    Calibration Automatic self-calibrating when height is set
    Alarm rules
    (combinable)    		 Any object
    Object in field
    Crossing line
    Entering field
    Leaving field
    Loitering
    Following route
    Idle object
    Removed object
    Counter
    Occupancy
    Crowd detection
    Condition change
    Similarity search
    Tampering
    Object filters Duration
    Size
    Aspect ratio v/h
    Speed
    Direction
    Object classes (Upright persons, Bikes, Cars,
    Trucks)
    Color
    DORI Definition Distance to Object
    WIDE 1X TELE
    30X    		 Scene
    width
    Detection 25 pixels/m
    (8 pixels/ft)    		 69 m
    (226 ft)    		 2895 m
    (6873 ft)    		 77 m
    (252 ft)
    Observation 63 pixels/m
    (19 pixels/ft)    		 27 m
    (89 ft)    		 834 m
    (2726 ft)    		 31 m
    (100 ft)
    Recognition 125 pixels/m
    (38 pixels/ft)    		 14 m
    (46 ft)    		 419 m
    (1375 ft)    		 15 m
    (50 ft)
    Identification 250 pixels/m
    (76 pixels/ft)    		 7 m
    (23 ft)    		 210 m
    (689 ft)    		 8 m
    (25 ft)
    Miscellaneous
    Sectors 4, 6, 8, 9, 12, or 16 user-selectable, independent
    Sectors, each with 20 characters per Title
    Privacy Masks 32 individually configurable Privacy Masks;
    maximum 8 per Pre-position; programmable with
    3, 4 or 5 corners; selectable color of Black, White,
    or Gray, as well as an “Auto” option in which the
    camera selects the most prevalent of the three
    colors in the background scene as the pattern
    color.
    Virtual Masks 24 individually configurable Virtual Masks to hide
    parts of the scene (background motion such as
    moving trees, pulsating lights, busy roads, etc.)
    which should not be considered for flow analysis to
    trigger Intelligent Tracking.
    Pre-positions 256 Pre-positions, each with 20 characters per
    Title
    Guard Tours Custom Recorded Tours - two (2), total duration
    30 minutes:
    Pre-position tour - one (1), consisting of up to 256
    scenes consecutively, and one (1) customized with
    up to 256 user-defined scenes
    Supported
    Languages    		 English, Czech, Dutch, French, German, Italian,
    Polish, Portuguese, Russian, Spanish, Japanese,
    Chinese
    Alarm contro Rules-based logic supports basic and complex predefined user-specified commands
    In its most basic form, a “rule” could define which
    input(s) should activate which output(s).
    Washer Pump
    Interface    		 Control functions integrated. Alarm/Washer
    Interface Unit (MIC-ALM-WAS-24, sold
    separately ) provides electrical interface to a
    washer pump device (user-supplied ).
    Camera status
    monitoring    		 Integrated sensors monitor operational status such
    as internal temperature, humidity level, incoming
    voltage level, vibration, and shock events.
    Diagnostics Various status conditions are tracked in the
    internal diagnostic log. Critical fault conditions will
    also be displayed on screen.
    Network
    Standard/Video
    compression    		 H.265, H.264 (ISO/IEC 14496), M-JPEG,
    JPEG
    Streaming Four (4) streams: Two (2) configurable
    streams in H.264 or H.265
    One (1) I-frames-only stream based on first
    stream
    One (1) M-JPEG Stream
    Resolution (H x V)
    1080p HD 1920 x 1080
    720p HD 1280 x 720
    1.3 MP 5:4 (cropped) 1280x 1024
    D1 4:3 (cropped) 704 x 480
    640x 480 640 x 480
    432p SD 768 x 432
    288p SD 512 x 288
    144p SD 256 x 144
    Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
    RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
    FTP, ARP, DHCP, APIPA (Auto-IP, link local
    address), NTP (SNTP), SNMP (V1, V3, MIB-II),
    802.1x, DNS, DNSv6, DDNS (DynDNS.org,
    selfHOST.de, no-ip.com), SMTP, iSCSI,
    UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
    Dropbox™, CHAP, digest authentication
    Note: Dropbox is a trademark of Dropbox, Inc.
    Ethernet 10BASE-T/100BASE-TX, auto-sensing, half/
    full duplex
    Encryption TLS 1.2, SSL, DES, 3DES, AES
    Ethernet connector RJ45
    GOP Structure IP, IBP, IBBP
    Overall IP Delay 60 fps: 166 ms (typical)
    30 fps: 233 ms (typical)
    Interoperability ONVIF Profile S
    ONVIF Profile G
    ONVIF Profile T
    GB/T 28181
    Auto-MDIX
    Mechanical
    Drive Unit Brushless, integral pan/tilt motor drive
    Supported
    mounting
    orientation    		 Brushless, integral pan/tilt motor drive
    Pan Range 360° continuous rotation
    Tilt Angle Without illuminators (Upright): 290°
    Without illuminators (Inverted): 250°
    With illuminators: 186.6°
    Tilt Range • Without illuminator:
    • Upright/Inverted: -55° to +90°
    • Canted: -90° to +90°
    • With illuminator:
    • Canted: -90° to +64°
    • Upright/Inverted: -95° to +35°
    Variable Pan Speed 0.2°/second - 120°/second
    Variable Tilt Speed 0.2°/second - 90°/second
    Intelligent Tracking
    Speed    		 >0.2°/second (minimum)
    Pre-position Speed 120°/second
    Pre-position
    Accuracy    		 +/-0.17°
    Proportional Pan /
    Tilt to Zoom    		 Yes
    Audible Noise <65 dB
    Electrical
    Input voltage 21-30 VAC, 50/60 Hz
    High Power over Ethernet 56VDC nominal
    Power
    Consumption
    (typical)    		 Without illuminator: 40 W
    With illuminator: 70 W
    Current
    consumption    		 ~3.15A (24 VAC)
    ~1.5A (High PoE)
    Redundant
    configuration    		 Connect both a High PoE Midspan and a separate
    24 VAC power source. If either power source fails,
    the camera automatically switches to the other
    power source.
    Surge protection Built-in surge protection for power, data, and
    network interfaces
    (Refer to the A&E Specifications for details.)
    Communications / Software Control
    Serial protocols Bosch OSRD, Pelco P/D, Forward Vision,
    and Cohu
    (Note: For Pelco, Forward Vision, and Cohu
    protocols, a separate license (MVS-FCOMPRCL) is required.)
    Local Storage
    Memory card slot User-supplied full SD card (maximum 2 TB)
    on
    enhanced models only
    Recommended: Sony Industrial SD cards
    User Connections
    Accessory Interface/
    Control Data    		 RS-485, Simplex, half and full duplex, userselectable baud rate or auto-baud
    Used to communicate with optional Alarm/
    washer interface box (MIC-ALM-WAS-24) or
    with Bosch OSRD, Pelco P/D, Forward Vision,
    and Cohu serial protocols.
    Chassis ground Ground wire with connector lug
    Input voltage With illuminator: RJ45 connector to High PoE
    Midspan - 60 W (NPD-6001B) or 95 W
    (NPD-9501A or NPD-9501-E)
    Without illuminator: 95 W High PoE Midspan
    (NPD-9501A or NPD-9501-E)* or 21-30 VAC,
    50/60 Hz;
    Female-to-female RJ45 coupler included
    Power, Camera 24 VAC (power supply)
    Video and Control RJ45 100BASE-TX Ethernet
    RS-485 half-duplex 57600 baud (dedicated
    for MIC-ALM-WAS-24)
    * Must purchase NPD-9501A or NPD-9501-E in order to use the High
    PoE solution.
    Audio
    Compression G.711, AAC, and L16 (live and recording)
    Signal-to-Noise Ratio
    (SNR)    		 Audio-in: 47 dBA (A-weighting)
    Audio out: 50 dBA (A-weighting)
    Mode Two-way, full duplex audio communication
    User connections Line in: 15k ohm typical, 1.0Vrms, max
    Line out: 0.8Vrsm at 12K ohm, typical
    Environmental
    The customer is responsible for making sure that the
    installation complies with the specified stresses that
    follow.
    Note: Unit includes internal heater and fan.
    The customer is responsible for making sure that the
    installation complies with the specified stresses that
    follow.
    Note: Unit includes internal heater and fan.
    Ingress
    Protection
    Rating/Standard    		 IEC 60529 IP66 / IP68 / Type 6P (dust and
    immersion) when installed on a MIC-DCA, or on a
    MIC wall mount with a MIC-SCA.
    IP67 (moisture and dust) with the IP67 Connector
    Kit (MIC-9K-IP67-5PK) on the connectors in the
    camera base. This kit is also required when using
    non-Bosch mounts.
    External
    Mechanical
    Impact
    (IK Code / Impact
    rating)    		 IEC 62262 IK10 (excluding glass window)
    Operating temperature -40 °C to +65 °C (-40 °F to +149 °F)
    NEMA TS 2-2003
    (R2008),
    para 2.1.5.1 using
    fig. 2.1 test profile    		 -34 ºC to +74 ºC (-30 ºF to +165 ºF) for 15
    hours
    Cold Start-up
    Temperature    		 -40 °C (-40 °F)
    (Requires 60-minute warm-up prior to PTZ
    operations.)
    Storage temperature -45 °C to +70 °C (-49 °F to +158 °F)
    Humidity 0-100%
    Wind Load 161 km/h (100 mph) (sustained; camera will
    hold its position)
    (Camera can endure gusts up to 241 km/h
    (150 mph) but may not hold its position.)
    Camera with illuminator
    Coefficient of Drag: TBD drag
    Effective Projected Area (EPA): TBD (EPA m)
    m² (TBD (EPA ft) ft²)
    Vibration IEC 60068-2-6, Test Fc: Vibration
    (sinusoidal), 10m/s² (1.0G)
    NEMA TS2 Section 2.2.8 Vibration: 5-30 Hz,
    (0.5G)
    Sinusoidal vibration test IAW MIL-STD-167-1A
    Shock IEC 60068-2-27, Test Ea: Shock, half sine
    impulse, 11 ms, 40G (20G on canted unit),
    non-repetitive shocks (three shocks in each
    axis and in each direction)
    NEMA TS 2 Section 2.2.9 Shock (Impact)
    Test Half sine wave 11 ms, 10G
    MIL-STD-810
    Military Standard
    Test Methods    		 MIL-STD-810-G, 501.5 High Temperature
    MIL-STD-810-G, 502.5 Low Temperature
    MIL-STD-810-G, 503.5 Temperature Shock
    MIL-STD-810-G, 505.5 Solar Radiation
    MIL-STD-810-G, 506.5 Rain
    MIL-STD-810-G, 509.5 Salt Fog
    MIL-STD-810-G, 510.5 Sand and Dust
    Salt Mist Spray
    (Corrosion Test)    		 ISO 12944-6: C5-M (High); Aluminum
    Housing Components
    Construction
    Dimensions (W x
    H x D)    		 287.93 mm x 400.34 mm x 210.65 mm
    (11.34 in. x 15.76 in. x 8.29 in.)
    Weight 8.7 Kg (19.2 lb)
    Window Flat glass with defroster
    Construction
    Materia    		 Anodized cast aluminum
    Window Wiper Integrated, long-life silicone wiper
    Sunshield
    (to prevent sun
    load in hot
    climates)    		 Optional; sold separately
    Canting On-site canting functionality
    Color Black (RAL 9005)
    Color White (RAL 9003)
    Color Grey (RAL 7001)
    Standard Finish Corrosion-resistant, powder coat paint, sand
    finish

    Read more

    Recently viewed products

    © 2024 Spy Monkey Surveillance, Powered by Shopify

      • American Express
      • Apple Pay
      • Google Pay
      • Mastercard
      • PayPal
      • Shop Pay
      • Union Pay
      • Visa

      Login

      Forgot your password?

      Don't have an account yet?
      Create account
