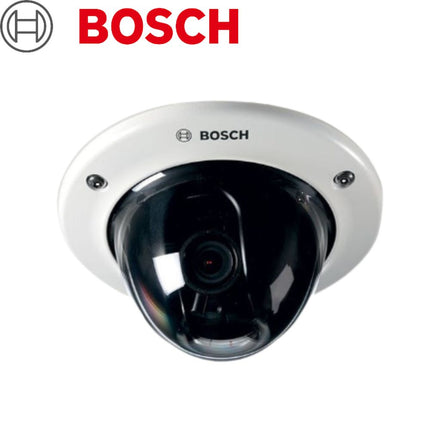

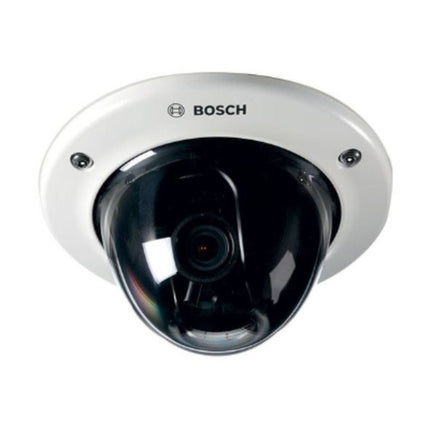

Bosch 2MP Motorised VF Dome 7000 VR Starlight Camera, WDR, IVA, Flush Mount, 10-23mm - BOS-NIN73023A10A

Description

Description

Features

  • Excellent low-light performance
  • Built-in Intelligent Video Analytics to trigger relevant alerts and quickly retrieve data
  • Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements by up to 50%
  • Extended Dynamic Range mode to see details in bright and dark areas simultaneously
  • Easy to install with auto zoom/focus SR lens, wizard and pre-configured modes
Datasheet
Tech Specs

Bosch 2MP Motorised VF Dome 7000 VR Starlight Camera, WDR, IVA, Flush Mount, 10-23mm - BOS-NIN73023A10A

Power
Input voltage Power-over-Ethernet (48 VDC nominal) and/
or
+12 VDC ±10% (auxiliary)
PoE IEEE standard 802.3af (802.3at Type 1)
Power level: Class 3
Power Consumption 7.2 W max.
Current draw (PoE) 200 mA max.
Current draw
(12 VDC)		 600 mA max.
Sensor (1080p version)
Sensor type 1/2.8‑inch CMOS
Effective pixels 1920 (H) x 1080 (V); 2MP (approx.)
Sensor (720p version)
Sensor type 1/2.8‑inch CMOS
Effective pixels 1280 (H) x 720 (V)
Starlight sensitivity
(3100K, reflectivity 89%, 1/25, F1.2, 30IRE)
Color 0.0075 lx
Mono 0.0011 lx
Dynamic range – HDR mode
High Dynamic Range
(10-bit,
3x exposure)		 120 dB WDR
Measured according
to IEC 62676 Part 5		 110 dB WDR
Video streaming
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth.
Regions of Interest (ROI)
Camera processing
latency		 <55 ms (max. average at 1080p60)
GOP structure IP, IBP, IBBP
Encoding interva 1 to 50 [60] ips
Video resolution (H x V)
1080p HD 1920 x 1080 (1080p version only)
Upright mode 1080p 1080 x 1920 (1080p version only)
1.3 MP (5:4) 1280 x 1024 (1080p version only)
720p HD 1280 x 720
Upright mode 720p 720 x 1280
D1 4:3 (cropped) 704 x 480
480p SD Encoding: 704 x 480;
Displayed: 854 x 480
432p SD 768 x 432
288p SD 512 x 288
240p SD Encoding: 352 x 240;
Displayed: 432 x 240
144p SD 256 x 144
Camera installation
Application variant Starlight mode (default) / HDR - extended
dynamic mode
Base frame rate 25/30/50/60 fps (PAL/NTSC for analog
output)
Mirror image On / Off
Flip image On / Off
Rotate 0° / 90° / 180° / 270°
Camera LED Enable/disable
Analog output Off, 4:3 letterbox, 4:3 crop, 16:9
Positioning Coordinates / Mounting height
Lens wizard Autofocus, remote zoom
Video functions - color
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 2500 to 10000K, 4 automatic modes (Basic,
Standard, Sodium lamp, Dominant color),
Manual mode and Hold mode
Video functions - ALC
ALC level Adjustable
Saturation Adjustable from peak to average
Shutter Automatic Electronic Shutter (AES);
Fixed shutter (1/25[30] to 1/15000)
selectable;
Default shutter
Day/Night Auto (adjustable switch points), Color,
Monochrome
Video functions - enhance
Sharpness Sharpness enhancement level selectable
Backlight
compensation		 On / off / Intelligent Auto Exposure (IAE)
Contrast
enhancement		 On/off
Signal-to-noise ratio
(SNR)		 >55 dB
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Video content analysis
Analysis type Intelligent Video Analytics
Configurations Silent VCA / Profile1/2 / Scheduled / Event
triggered
Alarm rules
(combinable)		 Any object
Object in field
Line crossing
Enter / leave field
Loitering
Follow route
Idle / removed object
Counting
Occupancy
Crowd density estimation
Condition change
Similarity search
Flow / counter flow
Video content analysis
Object filters Duration
Size
Aspect ratio
Speed
Direction
Color
Object classes (4)
Tracking modes Standard (2D) tracking
3D tracking
3D people tracking
Ship tracking
Museum mode
Calibration /
Geolocation		 Automatic based on gyro / accelerometer data
and camera height
Tamper detection Maskable
Additional functions
Scene modes Nine default modes, Scheduler
Privacy Masking Eight independent areas, fully programmable
Video authentication Off / Watermark / MD5 / SHA-1 / SHA-256
Display stamping Name; Logo; Time; Alarm message
Pixel counter Selectable area
Camera rotation Automatic detection with manual override
(90°)
Local storage
Internal RAM 60 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (A memory card of Class 6
or higher is recommended for HD recording)
Recording Continuous recording, ring recording. alarm/
events/schedule recording
Input/output
Analog Video out CVBS (PAL/NTSC), 1 Vpp, BNC, 75 Ohm
(surge protected)
Audio signal line in 10 kOhm typical;, 1 Vrms max
Audio signal line out +5 VDC to +40 VDC
(+3.3 VDC with DC-coupled 22 kOhm pull-up
resistor)
Alarm input (x2)
activation voltage		 30 VAC or +40 VDC
Maximum 0.5 A continuous, 10VA
Alarm output voltage RJ45
Ethernet G.711, 8 kHz sampling rate
Audio streaming
Standard G.711, 8 kHz sampling rate
Audio streaming
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Software
Unit discovery IP Helper
Unit configuration Via web browser or Configuration Manager
Firmware update Remotely programmable
Software viewing Web browser;
Video Security Client;
Video Security App;
Bosch Video Management System;
Bosch Video Client;
or third party software
Latest firmware and
software		 http://downloadstore.boschsecurity.com/
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, ARP, DHCP, APIPA (Auto-IP, link local
address), NTP (SNTP), SNMP (V1, V3, MIB-II),
802.1x, DNS, DNSv6, DDNS (DynDNS.org,
selfHOST.de, no-ip.com), SMTP, iSCSI,
UPnP (SSDP), DiffServ (QoS), LLDP, SOAP,
Dropbox™, CHAP, digest authentication
Encryption TLS 1.2, SSL, DES, 3DES
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S;
GB/T 28181
Optical
Lens 3 to 9 mm Automatic Varifocal (AVF) SR lens
(IR corrected)
- or –
10 to 23 mm Automatic Varifocal (AVF) SR
lens (IR corrected)
Lens mount Board mounted
Adjustment Motorized zoom/focus
Iris control Automatic iris contro
Viewing angle (3 to
9 mm, F1.2)		 Wide: 117º x 59º (H x V)
Tele: 37º x 21º (H x V )
Viewing angle (10 to
23 mm, F1.6)		 Wide: 32º x 18º (H x V)
Tele: 14.4º x 8.1º (H x V )
Mechanical
Dimensions (D x H) 158 x 124 mm (6.22 x 4.89 in)
Weight 0.85 kg (1.87 lb)
1.28 kg (2.82 lb) with SMB
Mounting Flush mount or surface mount
Color White (RAL9010) trim ring with black inner
liner
Adjustment range 360º pan, 90º tilt, ±90º twist
Dome bubble Polycarbonate, clear with UV blocking antiscratch coating
Trim ring Aluminum
Environmental
Operating
temperature		 -30 ºC to +50 ºC (-22 ºF to +122 ºF) for
continuous operation;
-34 ºC to +74 ºC (-30 ºF to +165 ºF)
according to NEMA TS 2-2003 (R2008),
para 2.1.5.1 using fig. 2.1 test profile
Cold start
temperature		 -20 ºC (-4 ºF)
Storage temperature -50 ºC to +70 ºC (-58 ºF to +158 ºF)
Operating humidity 5% to 93% relative humidity (noncondensing)
5% to 100% relative humidity (condensing)
Storage humidity Up to 98% relative humidity
Impact protection IK10
Water/dust
protection		 IP 66 and NEMA Type 4X (with appropriate
installation standards)

Read more

Bosch 2MP Motorised VF Dome 7000 VR Starlight Camera, WDR, IVA, Flush Mount, 10-23mm - BOS-NIN73023A10A

Product form

SKU: BOS-NIN73023A10A

$2,172.00 Incl. GST
