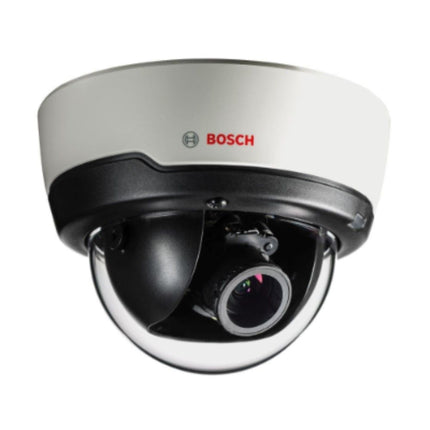

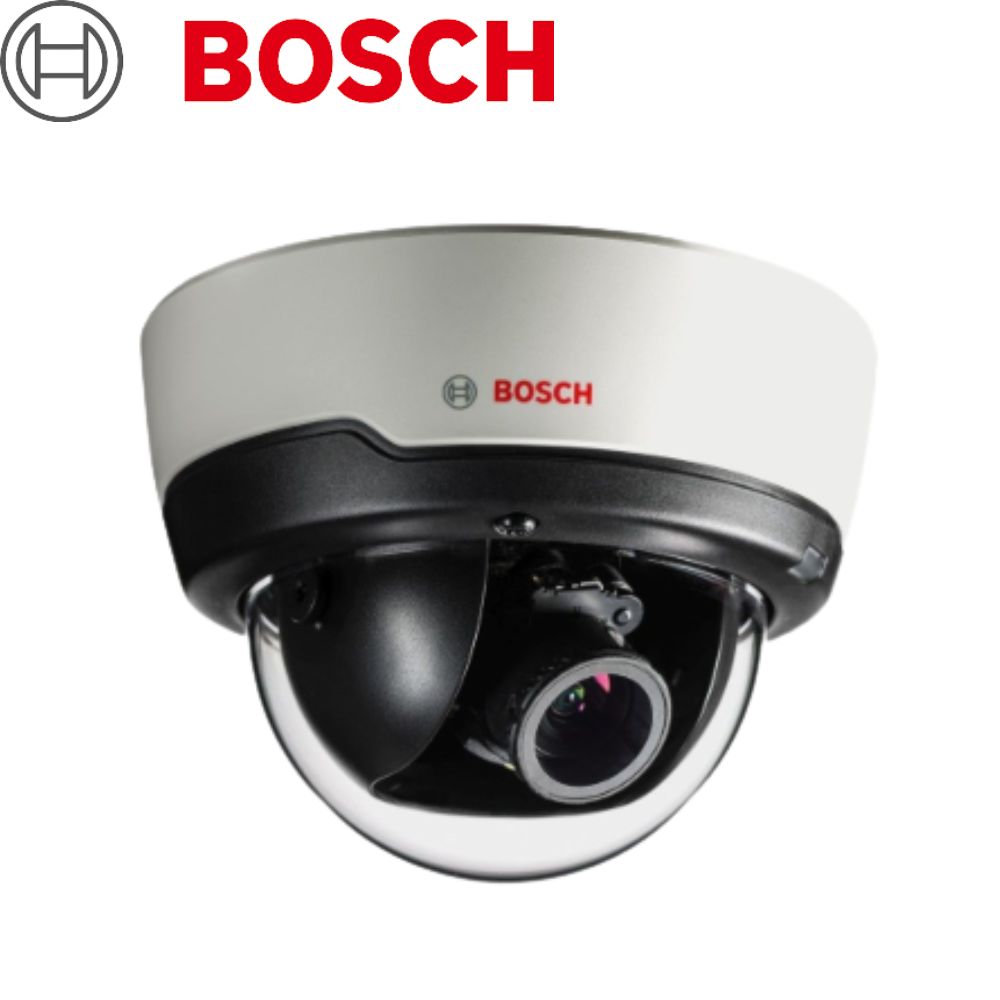

Bosch 2MP Indoor VF Dome 5000 HD Camera, H.264, WDR, 3-10mm - BOS-NIN-51022-V3

Description

Description

Features

  • 1080p resolution for sharp images
  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable quad streaming
  • Regions of interest and E-PTZ
Datasheet
Tech Specs

Bosch 2MP Indoor VF Dome 5000 HD Camera, H.264, WDR, 3-10mm - BOS-NIN-51022-V3

Power
Input voltage +12 VDC or
Power-over-Ethernet (48 VDC nominal)
Power consumption 3.8 W max.
6.3 W max. (IR version)
PoE IEEE 802.3af (802.3at Type 1)
Power level: Class 2
Sensor
Sensor type 1/2.7‑inch CMOS
Total sensor pixels 1952 x 1092 (2MP)
Video performance - Sensitivity
Sensitivity – (3200K, reflectivity 89%, F1.3, 30IRE)
Color 0.24 lx
Mono 0.05 lx
With IR 0.0 lx
Video performance ‑ Dynamic range
Dynamic range 76 dB WDR
Video streaming
Video compression H.264 (MP); M-JPEG
Streaming Multiple configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth.
Regions of Interest (ROI)
Overall IP Delay Min. 120 ms, Max. 340 ms
GOP structure IP, IBP, IBBP
Encoding interval 1 to 30 [25] fps
Encoder regions Up to 8 areas with encoder quality settings per
area
Video resolution (H x V)
• 1080p HD 1920 X 1080
• 720p HD 1280 x 720
• D1 4:3 (cropped) 704 x 480
• SD upright
(cropped)		 400 x 720
• 480p SD 400 x 720
• 432p SD 768 x 432
• 288p SD 512 x 288
• 240p SD Encoding: 352 x 240;
Displayed: 432 x 240
• 144p SD 256 x 144
Video functions
Day/Night Color, Monochrome, Auto
Adjustable picture
settings		 Contrast, Saturation, Brightness
White Balance 4 automatic modes, manual mode and
measure
Video functions
Shutter Automatic Electronic Shutter (AES);
Fixed (1/12 to 1/15000) selectable;
Default shutter
Backlight
compensation		 On/off
Noise reduction Intelligent Dynamic Noise Reduction with
separate temporal and spatial adjustments
Contrast
enhancement		 On/off
Sharpness Sharpness enhancement level selectable
Intelligent defog Intelligent Defog automatically adjusts
parameters for best picture in foggy or misty
scenes (switchable)
Privacy Masking Eight independent areas, fully programmable
Video Analysis MOTION+
Other functions Image mirror, Image flip, Pixel counter, Video
watermarking, Display stamping, Scene
modes, Location
Night vision (IR version only)
Distance 15 m (50 ft)
LED 10 LED high efficiency array, 850 nm
IR intensity Adjustable
Optical
Lens type 3 to 10 mm Varifocal, DC Iris F1.3 – 360, IR
corrected
3 to 10 mm Automatic Varifocal (AVF), DC Iris
F1.3 – 360, IR corrected
Lens mount Board mounted
Horizontal field of
view		 36° - 117°
Vertical field of view 20° - 61°
Adjustment Motorized zoom/focus (AVF version)
Iris contro Automatic iris control
Day/Night Switched mechanical IR filter
Input/output
Analog video out SMB connector, CVBS (PAL/NTSC), 1 Vpp,
75 Ohm
Audio line in 0.707 Vrms max, 10 kOhm typical, jack
connector
Audio line out 0.707 Vrms at 16 Ohm typical, jack connector
Audio input Built-in microphone (can be permanently
disabled)
Input/output
Alarm input 1 input
Alarm input
activation		 Short or DC 5V activation
Alarm output 1 output
Alarm output voltage 30 VDC, max. load 0.5 A
Ethernet RJ45
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 48 kbps at 16 kHz sampling rate
AAC-LC, 80 kbps at 16 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Local storage
Internal RAM 10 s pre-alarm recording
Memory card slot Supports up to 32 GB microSDHC / 2 TB
microSDXC card. (An SD card of Class 6 or
higher is recommended for HD recording)
Recording Continuous recording, ring recording. alarm/
events/schedule recording
Software
Unit discovery IP Helper
Unit configuration Via web browser or Configuration Manager
Firmware update Remotely programmable
Software viewing Web browser;
Video Security Client;
Video Security App;
Bosch Video Management System;
Bosch Video Client;
or third party software
Latest firmware and
software		 https://downloadstore.boschsecurity.com/index.php
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/
RTCP, IGMP V2/V3, ICMP, ICMPv6, RTSP,
FTP, Telnet, ARP, DHCP, APIPA (Auto-IP, link
local address), NTP (SNTP), SNMP (V1, MIBII), 802.1x, DNS, DNSv6, DDNS
(DynDNS.org, selfHOST.de, no-ip.com),
SMTP, iSCSI, UPnP (SSDP), DiffServ (QoS),
LLDP, SOAP, Dropbox, CHAP, digest
authentication
Encryption TLS 1.2, SSL, DES, 3DES
Ethernet 10/100 Base-T, auto-sensing, half/full duplex
Network
Connectivity Auto-MDIX
Interoperability ONVIF Profile S; ONVIF Profile G ; ONVIF
Profile Q
GB/T 28181
Mechanical
3-axis adjustment
(pan/tilt/rotation)		 350º / 130º / 330º
Dimensions (Ø x H) 135 x 102 mm (5.32 x 4 in)
Weight (approx.) 450 g (0.99 lb)
Color RAL 9004, RAL 9010
Environmental
Operating
temperature
(continuous)		 -20 ºC to +50 ºC (-4 ºF to +122 ºF)
Storage temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Humidity 20% to 90% relative humidity (non
condensing)

Read more

Bosch 2MP Indoor VF Dome 5000 HD Camera, H.264, WDR, 3-10mm - BOS-NIN-51022-V3

Product form

SKU: BOS-NIN-51022-V3

$464.00 Incl. GST
