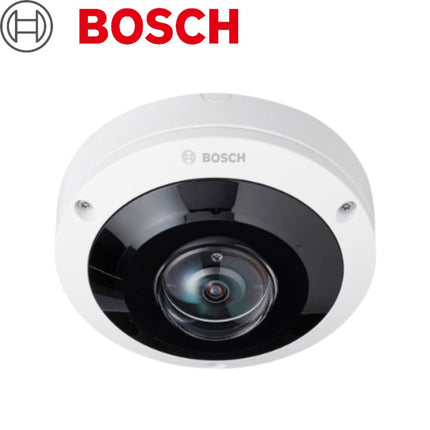

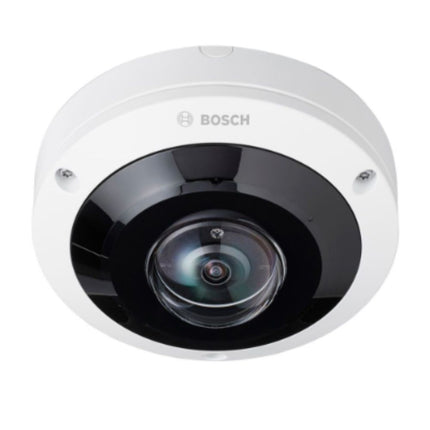

Bosch 12MP Outdoor 360 Degree Dome 5100i Camera, IVA, WDR, IP66, IR, Panoramic, 1.26mm - BOS-NDS5704360LE

Description

Description

Features

  • 360-degree panoramic overview in 12MP resolution without blind spots
  • Optimized for all lighting conditions with integrated IR and High Dynamic Range
  • Edge or client-side de-warping for easy integration and flexible viewing and recording
  • Built-in Intelligent Video Analytics and Audio AI to trigger relevant alerts and quickly retrieve data
  • Compact design protected against vandalism and all weather conditions
  • Micro HDMI output for local 1080p viewing
Datasheet
Tech Specs

Bosch 12MP Outdoor 360 Degree Dome 5100i Camera, IVA, WDR, IP66, IR, Panoramic, 1.26mm - BOS-NDS5704360LE

Power
Input voltage PoE IEEE 802.3af / 802.3at Type 1, Class 3
24 VAC ±10%
12 VDC ±10%
PoE and auxiliary power can be connected
simultaneously for redundant operation
Power consumption
(DC)		 13.4 W max.
Power consumption
(AC)		 13.3 W max.
Power consumption
(PoE)		 11.4 W max.
Sensor
Total sensor pixels 12 MP
Type 1/2.3‑inch CMOS
Used pixels 3008 x 3008 (9 MP)
Video performance - Sensitivity
Measured according to IEC 62676 Part 5 (1/25, F2.0)
Color 0.150 lx
Mono 0.048 lx
With IR 0 lx
Video performance - Dynamic range
Wide Dynamic Range 120 dB WDR
Measured according to
IEC 62676 Part 5		 106 dB WDR
Video streaming
Video compression H.265; H.264; M-JPEG
Streaming Multiple configurable streams in H.265, H.264
and M-JPEG, configurable frame rate and
bandwidth.
Multiple channels with edge dewarping (available
with a future firmware version)
Regions of Interest (ROI)
Overall IP Delay Min. 120 ms, Max. 340 ms
GOP structure IP, IBP, IBBP
Frame rate (12 MP) 1-30fps
1-25fps in HDR mode
Encoder regions Eight independent areas for setting encoder
quality to optimize bitrate.
Video resolution (H x V)
Video 1 channel Full image circle 3008 x 3008 (9 MP)
Video 2 channel
(available with a future
firmware version)		 Various dewarped modes
(Full panoramic, double
panoramic, quad,
corridor, E-PTZ)
Video 3 channel
(available with a future
firmware version)		 E-PTZ
Multiple lower resolutions available and individually selectable per channel
and stream
Video functions
Day/Night Color, Monochrome, Auto (adjustable switchover
points)
Adjustable picture
settings		 Contrast, Saturation level and control,
Brightness, Sharpness
White Balance 2500 to 10000K, 3 automatic modes (Basic,
Standard, Sodium vapor), Manual mode and
Hold mode
Shutter Automatic Electronic Shutter (AES)
Default shutter (1/30 [1/25] to 1/500)
selectable
Backlight compensation Off / On
Noise reduction Dynamic Noise Reduction
Privacy Masking Eight independent areas, fully programmable
Scene modes Multiple default modes with scheduler
Pre-positions Six independent sectors (available with a future
firmware version)
Display stamping Individual names and stamps for all video
channels
Other functions Pixel counter, Video watermarking, Location
Video content analysis
Analysis type Intelligent Video Analytics, Camera Trainer
Alarm rules
(combinable)		 Any object, Object in field, Line crossing, Enter /
leave field, Loitering, Follow route, Idle /
removed object, Counting, Occupancy, Crowd
density estimation, Condition change, Similarity
search, Flow / counter flow
Object filters Duration, Size, Aspect ratio, Speed, Direction,
Color, Object classes (4)
Tracking modes Standard (2D) tracking, 3D tracking, 3D people
tracking, Ship tracking, Museum mode
Object classes Person, car, bike, truck
Calibration /
Geolocation		 Automatic, based on gyro sensor and camera
height
Audio AI Gunshot detection, glass-break detection, loud
noises detection (available with a future firmware
version)
Night vision
Distance 20 m (66 ft)
LED 360⁰ LED high efficiency array, 850 nm
IR intensity 5 controllable zones
Optical
Lens 1.26 mm fixed-focus lens F2.0
Lens mount Board mounted
Iris control Fixed iris
Day/Night Switchable IR-cut filter
Field of view 182° (H) x 182° (V)
Minimum object
distance		 0.1 m
Local storage
Internal RAM 5 s pre-alarm recording
Memory card slot Micro SDXC / SDHC / SD card
Industrial SD cards Extreme lifetime and health monitoring support
(if supported by the SD card) that provides early
service indication.
Input/output
Audio line in 0.707 Vrms max, 10 kOhm typical
Audio line out 0.707 Vrms at 16 Ohm typical
Alarm input 1 input
Alarm input activation Short or DC 5V activation
Alarm output 1 output
Alarm output voltage 30 VDC, max. load 0.5 A
Video output for HDMIcompatible devices Micro HDMI connector and 1080p resolution
with dewarped viewing possibilities (dewarped
viewing available with a future firmware version)
Microphone Integrated array with 3 digital MEMS audio
sensors
Ethernet RJ-45
Fiber optics (sold
separately)		 The Fiber Optic Ethernet Media Converter kit
(VG4-SFPSCKT) installed inside a Surveillance
Cabinet (NDA-U-PA0, NDA-U-PA1 or NDA-UPA2) provides the fiber optic interface to the
mounted camera.
Audio streaming
Standard G.711, 8 kHz sampling rate
L16, 16 kHz sampling rate
AAC-LC, 96 kbps at 32/48 kHz sampling rate
Signal-to-Noise Ratio >50 dB
Audio Streaming Full-duplex / half duplex
Platform
Common product
platform		 CPP14
Data security
Secure Element
(“TPM”)		 RSA 4096 bit, AES/CBC 256 bit
PKI X.509 certificates
Encryption Full end-to-end encryption with supported VMS
Network: TLS1.0/1.1/1.2, AES128, AES256
Local storage: XTS-AES
Video authentication checksum, MD5, SHA-1, SHA-256
Firmware protection Signed firmware, secure boot
Network
Protocols IPv4, IPv6, UDP, TCP, HTTP, HTTPS, RTP/RTCP,
IGMP V2/V3, ICMP, ICMPv6, RTSP, FTP, ARP,
DHCP, APIPA (Auto-IP, link local address), NTP
(SNTP), SNMP (V1, V3, MIB-II), 802.1x, DNS,
DNSv6, DDNS (DynDNS.org, selfHOST.de, noip.com), SMTP, iSCSI, UPnP (SSDP),
DiffServ (QoS), LLDP, SOAP, Dropbox™, CHAP,
digest authentication
Ethernet 10/100/1000 Base-T, auto-sensing, half/full
duplex
Connectivity Auto-MDIX
Interoperability ONVIF Profile S ONVIF Profile G ONVIF Profile M
ONVIF Profile T
Mechanical
Dimensions (∅ x H) 148 x 70 mm (5.83 x 2.76 in)
Lens adjustment
(rotation)		 355º
Weight 0.82 kg (1.81 lbs)
Color White (RAL9003)
Gyrosensor Yes
Dome bubble Polycarbonate, clear with UV blocking antiscratch coating
Housing Aluminum with dehumidifying membrane and
waterproof connection area
Mounting Mounting plate included for surface mount, 4-
inch square junction box, single and double gang
box
Conduit Compatible with conduit back box for 3/4-inch
NPT (M25) conduit side entry (sold separately)
Environmental
Operating temperature IR on: -40 ºC to +50 ºC (-40 ºF to 122 ºF)
IR off: -40 ºC to +55 ºC (-40 ºF to 131 ºF)
Storage temperature -40 ºC to +70 ºC (-40 ºF to 158 ºF)
Operating humidity 5% to 93% RH non-condensing
5% to 100% RH condensing
Storage humidity Up to 98% RH
Impact protection IK10
Ingress protection IP66 and NEMA Type 4X
Sustainability PVC free
Country of origin Thailand

Read more

Bosch 12MP Outdoor 360 Degree Dome 5100i Camera, IVA, WDR, IP66, IR, Panoramic, 1.26mm - BOS-NDS5704360LE

Product form

SKU: BOS-NDS5704360LE

$2,066.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
