Description

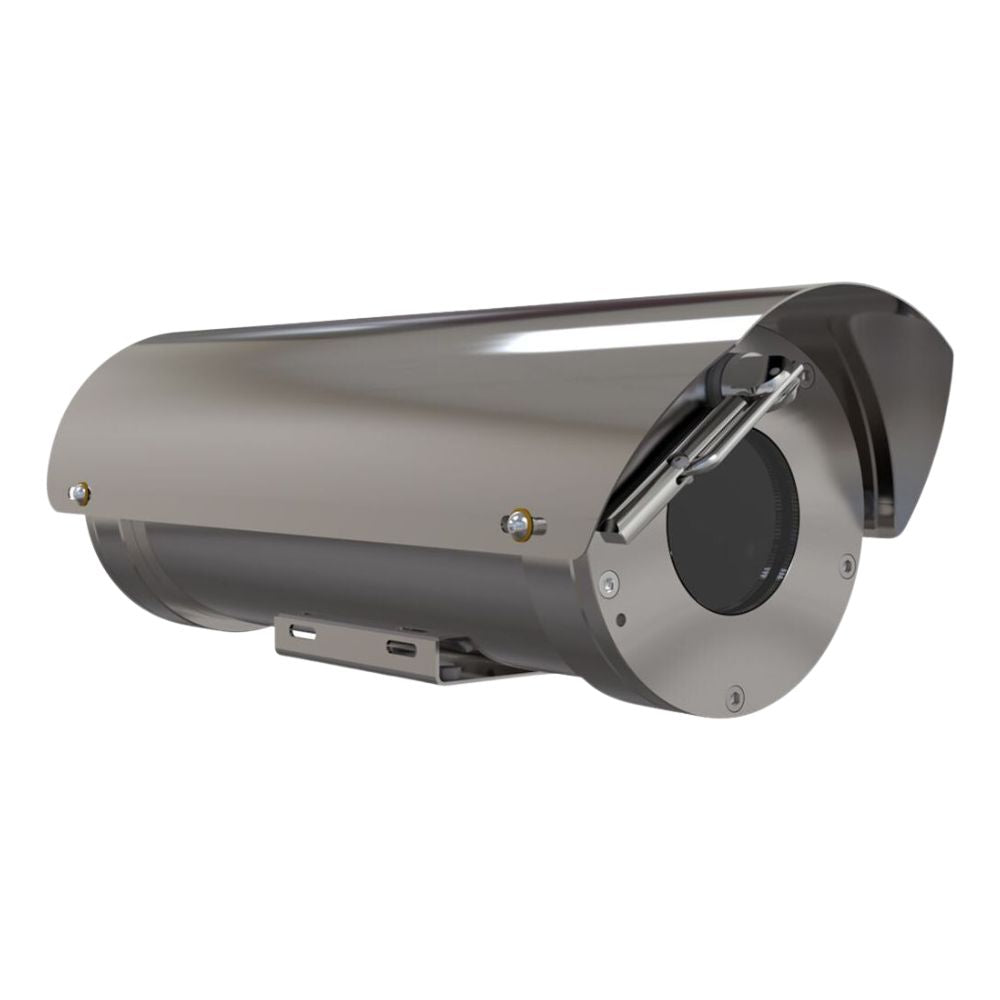

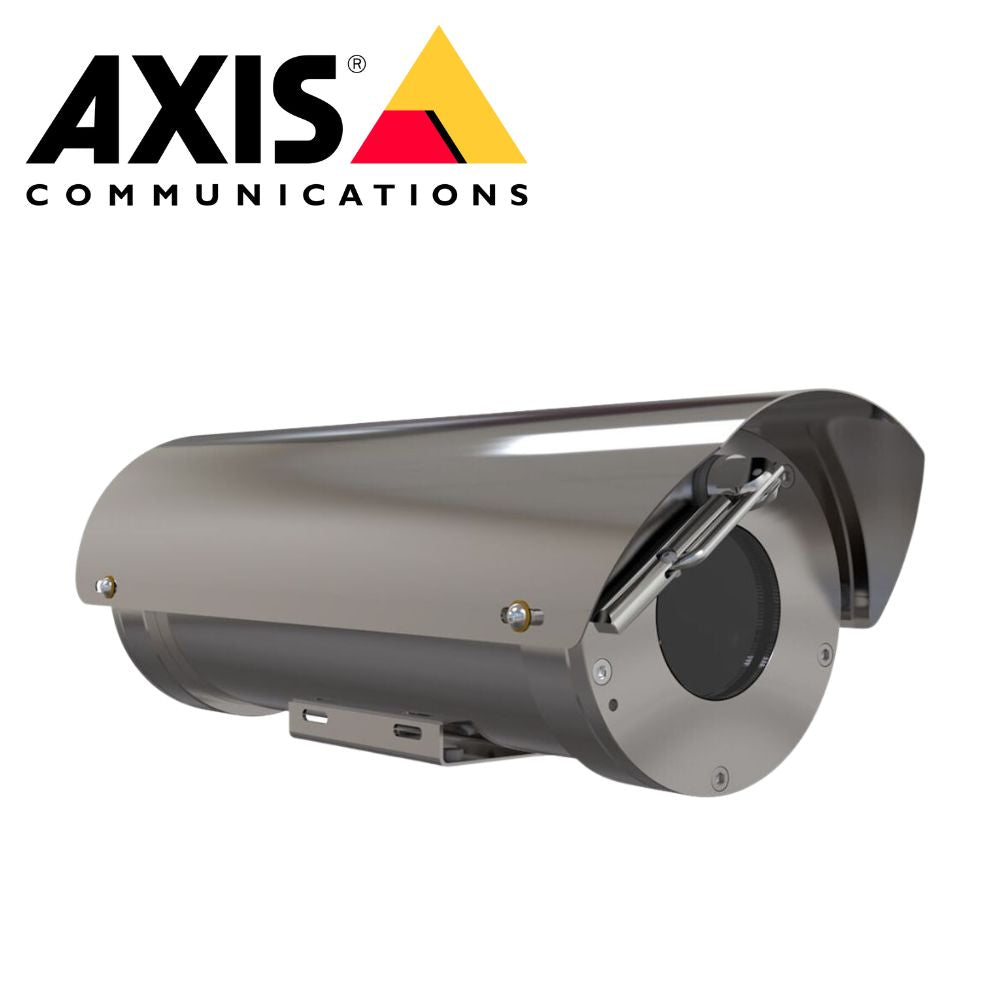

XF40-Q1765 Explosion-Protected Network Camera is suitable for onshore, offshore, marine and heavy industrial environments. It features a 316L stainless steel housing certified for hazardous areas according to for example ATEX, IECEx and UL. The housing prevents any inside sparks or explosions from escaping and igniting vapors, gases, dust or fibers in the surrounding air. XF40-Q1765 provides superb image quality and color fidelity and a high level of flexible integration with other equipment, such as access control and fire alarms. It offers flexible remote accessibility, using any existing IP-based networks.
Features
- Stainless steel (SAE 316L) and impact resistance
- Full HDTV 1080p resolution
- 18x zoom and autofocus
- Wide temperature range
Datasheet
Tech Specs
Camera
| Property Information |
Property value |
| Image sensor |
CMOS |
| Image sensor size |
1/2.9 |
| Lightfinder |
– |
| Wide dynamic range |
Dynamic Contrast |
| Min illumination/ light sensitivity (Color) |
0.5 lux |
| Min illumination/ light sensitivity (B/W) |
0.04 lux |
Video
| Property Information |
Property value |
| Max video resolution |
1920x1080 |
| Max frames per second |
25/30 |
| Electronic image stabilization |
– |
Lens
| Property Information |
Property value |
| Focal length |
4.7 - 84.6 mm |
| Optical zoom |
18 |
| Horizontal field of view |
59 - 4 ° |
| Vertical field of view |
35-2 ° |
Compression
| Property Information |
Property value |
| Zipstream |
– |
| H.264 |
Baseline, Main |
| H.265 |
– |
| Motion JPEG |
Yes |
Network
| Property Information |
Property value |
| PoE Class |
– |
Security
| Property Information |
Property value |
| Signed firmware |
– |
| Secure boot |
– |
| TPM |
– |
General
| Property Information |
Property value |
| Remote focus |
– |
| Remote zoom |
– |
| Local storage (memory card slot) |
Yes |
| Outdoor Ready |
Yes |
| IP rating |
IP66, IP67, IP68 |
Power
| Property Information |
Property value |
| Power (max) |
– |
| Power (average) |
– |
| DC input voltage |
– |
| AC input voltage |
20-28 V |
5 Years Warranty
Now you can take advantage of the Axis 5-year warranty service free of charge. Valid for purchases shipped from SpyMonkey to the original purchaser on or after 1 April 2020, the 5-year warranty means you'll enjoy years of trouble-free operation with your Axis device, and better control of your overall costs. At Axis, we stand behind our products and this increase from the previous 3-year warranty is a result of the trust and confidence we have in our production quality. Additionally, for defective products within warranty, we offer enhanced RMA (Return material authorization) support for a higher degree of guaranteed quality.
