Description

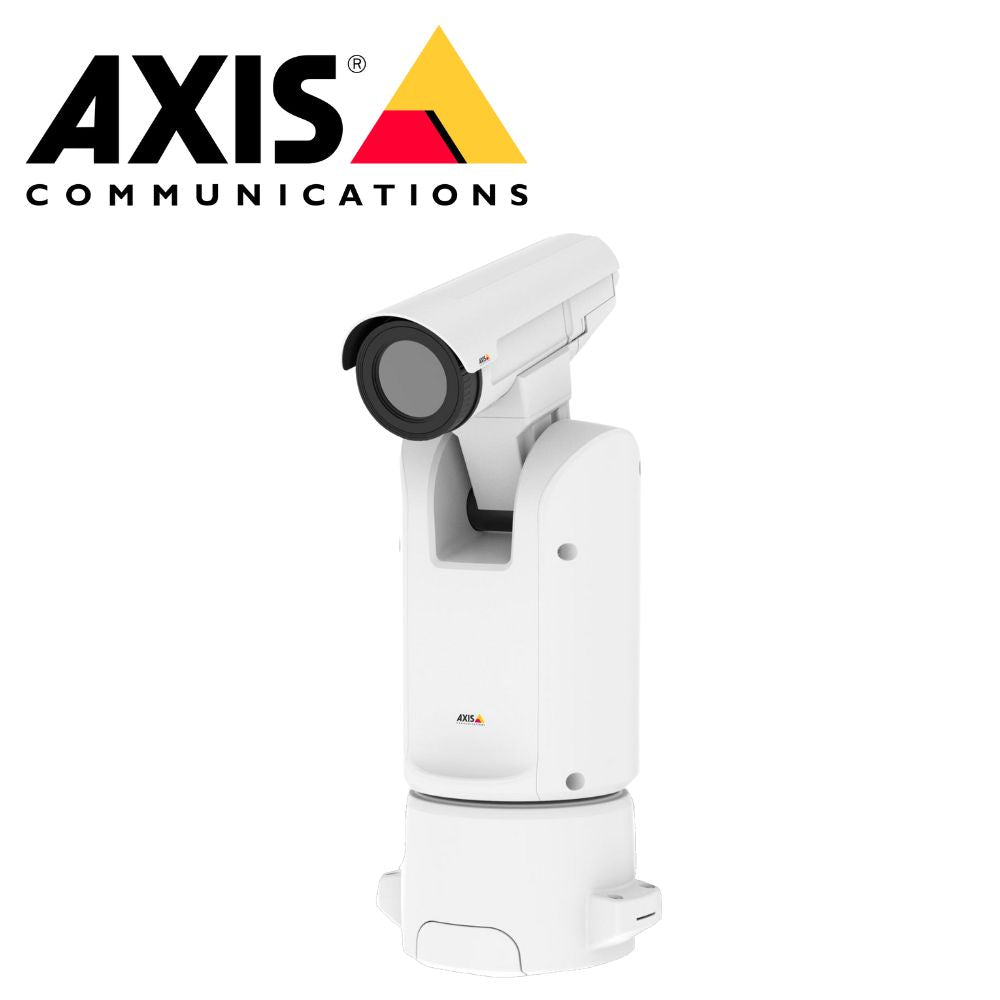

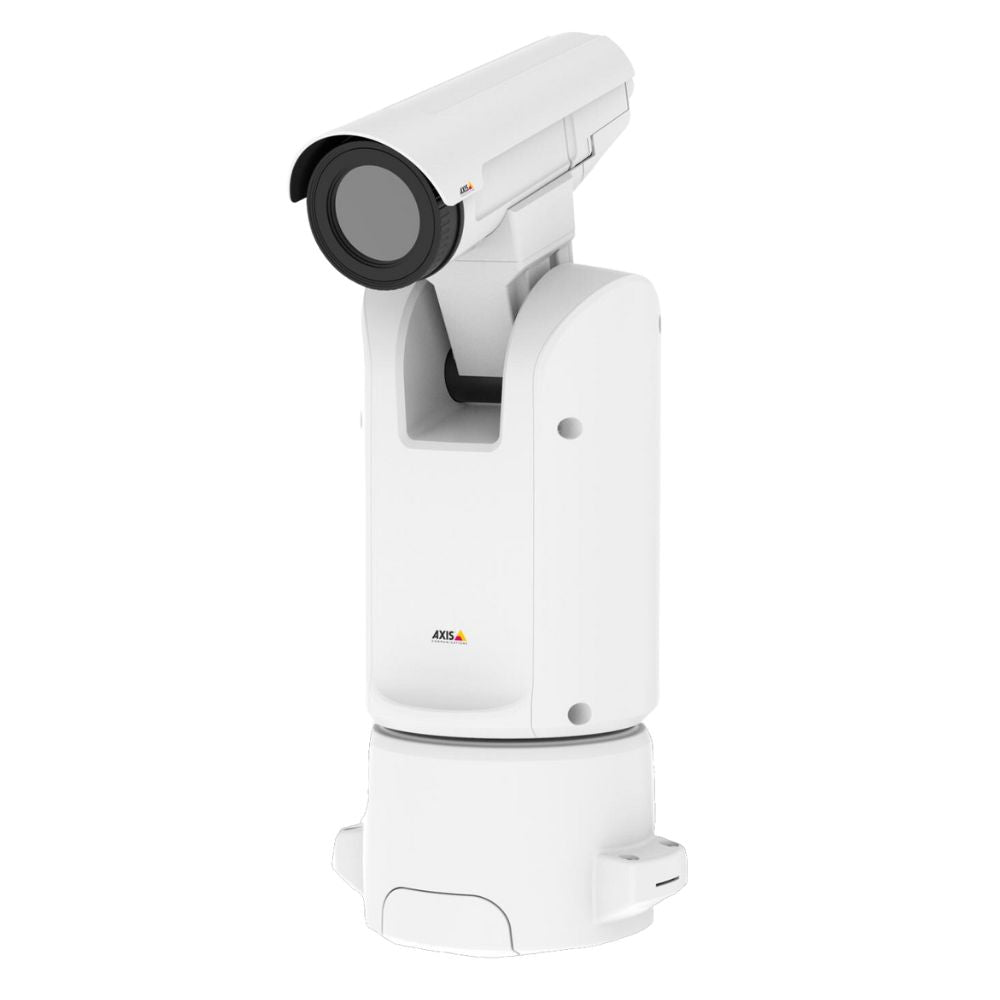

AXIS Q8642-E PT Thermal Network Camera offers outstanding thermal contrast and 10° field of view, which together with analytics, enables long-range detection and immediate visual confirmation for the operator. Highly responsive and reliable positioning camera, designed for continuous and jerk-free pan and tilt movements (360° endless and 135° from ground to sky). When column-mounted, it enables 360° unobstructed field of view, covering a wide area and reducing the cost for additional cameras. AXIS Q8642-E provides 640x480 thermal resolution, Zipstream and electronic image stabilization. Features both RJ45 and SFP interfaces, enabling a long-distance fiber connection with a failover network link.
Features
- Reliable thermal detection
- Outstanding thermal contrast - 640x480 resolution
- Responsive positioning with quick, smooth pan and tilt capabilities
- Save bandwidth with Zipstream
- Smooth and steady video with electronic image stabilization
Datasheet
Tech Specs
Camera
| Property description |
Property value |
| Image sensor |
Uncooled microbolometer |
| Image sensor size |
640x480 |
| Lightfinder |
– |
| Wide dynamic range |
– |
| Min illumination/ light sensitivity (Color) |
– |
| Min illumination/ light sensitivity (B/W) |
– |
General
| Property description |
Property value |
| Built-in IR |
– |
| OptimizedIR |
– |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-40 to 60 °C |
| Outdoor Ready |
Yes |
| Vandal rating |
– |
| IP rating |
IP66 |
| Designed for repaint |
Yes |
Analytics
| Property description |
Property value |
| Autotracking version |
– |
| Orientation aid |
– |
Video
| Property description |
Property value |
| Max video resolution |
800x600 |
| Max frames per second * |
30 / 8.3 |
| Day and Night functionality |
– |
| Electronic image stabilization |
Yes |
Lens
| Property description |
Property value |
| Focal length |
60 mm |
| Horizontal field of view |
10 ° |
| Vertical field of view |
7.7 ° |
Pan, Tilt, Zoom
| Property description |
Property value |
| Pan range |
360 endless |
| Tilt range |
-90 to 45 |
| Guard tour |
preset position tour |
| Optical zoom |
– |
| Digital zoom |
– |
Compression
| Property description |
Property value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
– |
| Motion JPEG |
Yes |
Audio
| Property description |
Property value |
| Audio Support |
– |
| Built-in microphone |
– |
System Integration
| Property description |
Property value |
| Audio detection |
– |
| Active tampering |
– |
| Alarm inputs/outputs |
4 |
Network
| Property description |
Property value |
| PoE Class |
– |
Security
| Property description |
Property value |
| Signed firmware |
Yes |
| Secure boot |
– |
| TPM |
– |
