Description

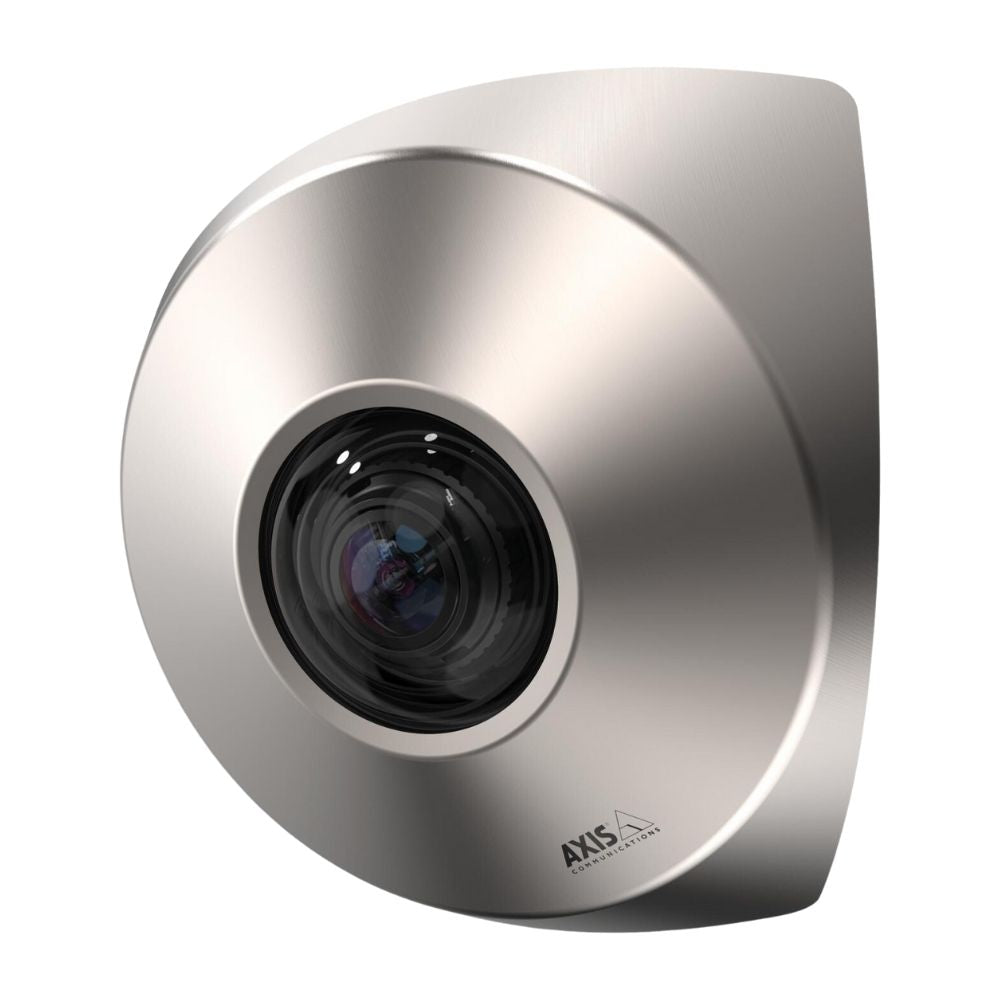

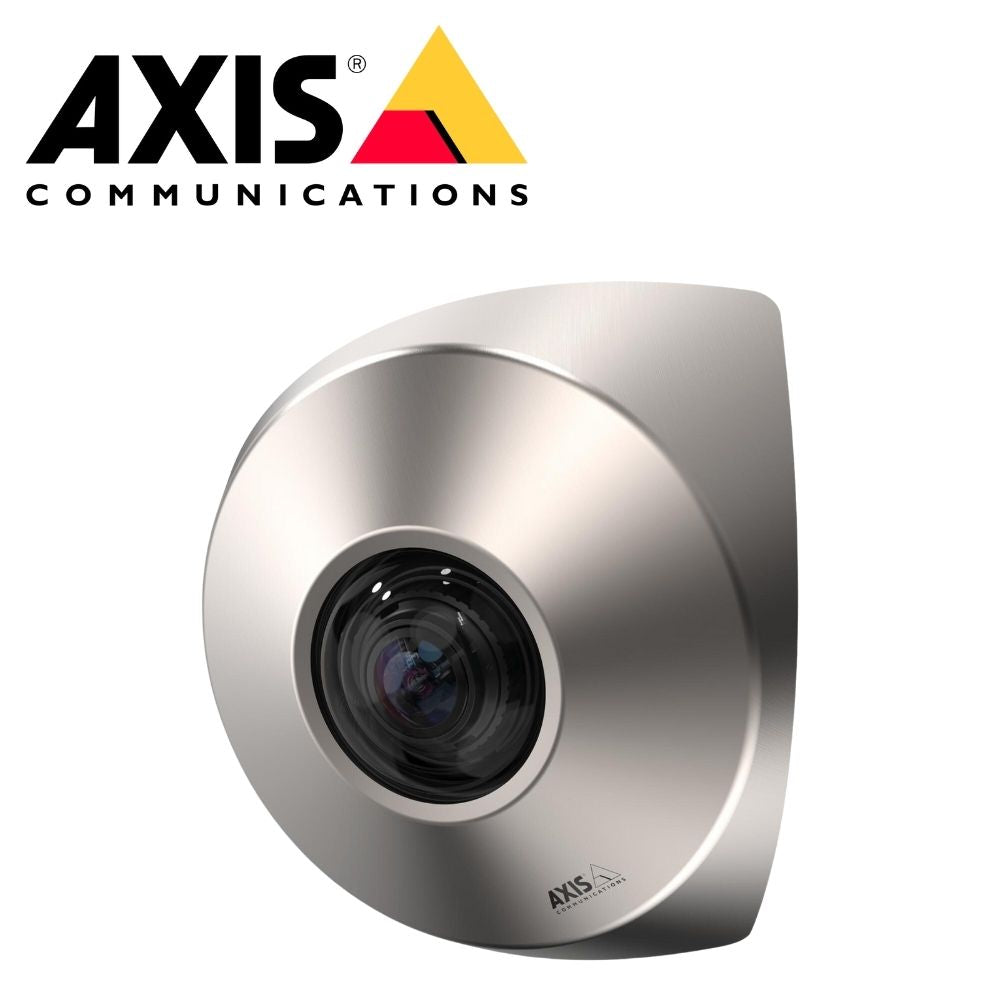

AXIS P9106-V Network Camera provides out-of-the-box optimized corner-to-corner coverage in 3 MP without any blind spots. It is enclosed in a vandal-resistant (IK10) and dust- and waterproof (IP66) casing. The abrasion- and chemical-resistant front window is easy to clean or replace, for efficient maintenance. AXIS P9106-V Network Camera is available in two variants: a brushed steel model with no visible screws which blends in with elegant spaces, such as elevators and commercial interiors, and a white model designed to be anti-ligature and anti-grip, ideal for classrooms, waiting rooms, and observation rooms in mental healthcare or custody cells.
Features
- Out-of-box optimized field of view in 3 MP resolution – no blind spots
- Elegant and compact design in brushed steel and white finishes
- Vandal-resistant (IK10) and IP66-rated dust protection
- PoE over 2-wire for elevator installations
- Support for Portcast devices with AXIS T61 Series
Datasheet
Tech Specs
Camera
| Property Information |
Property value |
| Image sensor |
CMOS |
| Image sensor size |
1/3 |
| Lightfinder |
– |
| Wide dynamic range |
WDR |
| Min illumination/ light sensitivity (Color) |
0.35 lux |
| Min illumination/ light sensitivity (B/W) |
– |
Video
| Property Information |
Property value |
| Max video resolution |
2016x1512 |
| Max frames per second |
25/30 |
| Day and Night functionality |
– |
| Electronic image stabilization |
– |
Lens
| Property Information |
Property value |
| Focal length |
1.8 mm |
| Horizontal field of view |
130 ° |
| Vertical field of view |
95 ° |
Pan, Tilt, Zoom
| Property Information |
Property value |
| Remote PTRZ |
– |
Compression
| Property Information |
Property value |
| Zipstream |
Yes |
| H.264 |
Baseline, High, Main |
| H.265 |
– |
| Motion JPEG |
Yes |
Audio
| Property Information |
Property value |
| Audio Support |
Yes |
| Built-in microphone |
– |
Network
| Property Information |
Property value |
| PoE Class |
1 |
| Wireless |
– |
Security
| Property Information |
Property value |
| Signed firmware |
Yes |
| Secure boot |
– |
| Axis Edge Vault |
– |
General
| Property Information |
Property value |
| Remote focus |
– |
| Remote zoom |
– |
| Built-in IR |
– |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
-15 to 50 °C |
| Outdoor Ready |
– |
| Vandal rating |
IK10 |
| IP rating |
IP66 |
| Designed for repaint |
Yes |
| Sustainability |
PVC free |
5 Years Warranty
Now you can take advantage of the Axis 5-year warranty service free of charge. Valid for purchases shipped from SpyMonkey to the original purchaser on or after 1 April 2020, the 5-year warranty means you'll enjoy years of trouble-free operation with your Axis device, and better control of your overall costs. At Axis, we stand behind our products and this increase from the previous 3-year warranty is a result of the trust and confidence we have in our production quality. Additionally, for defective products within warranty, we offer enhanced RMA (Return material authorization) support for a higher degree of guaranteed quality.
