Description

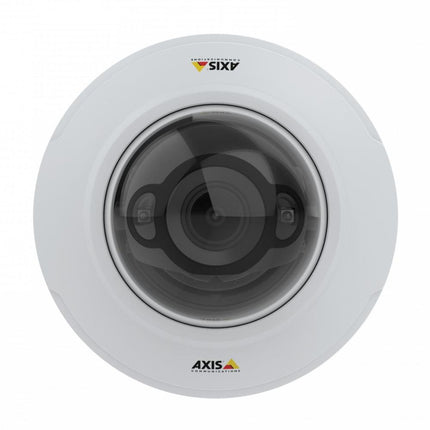

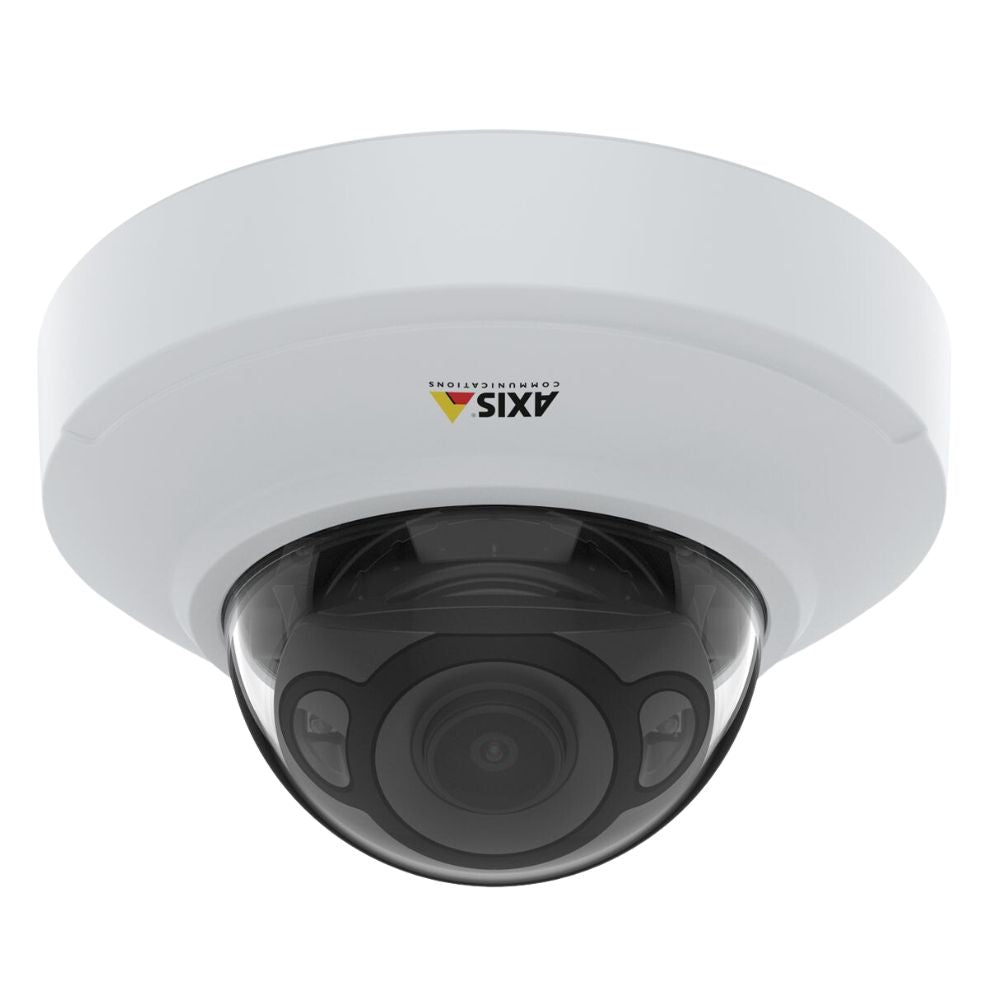

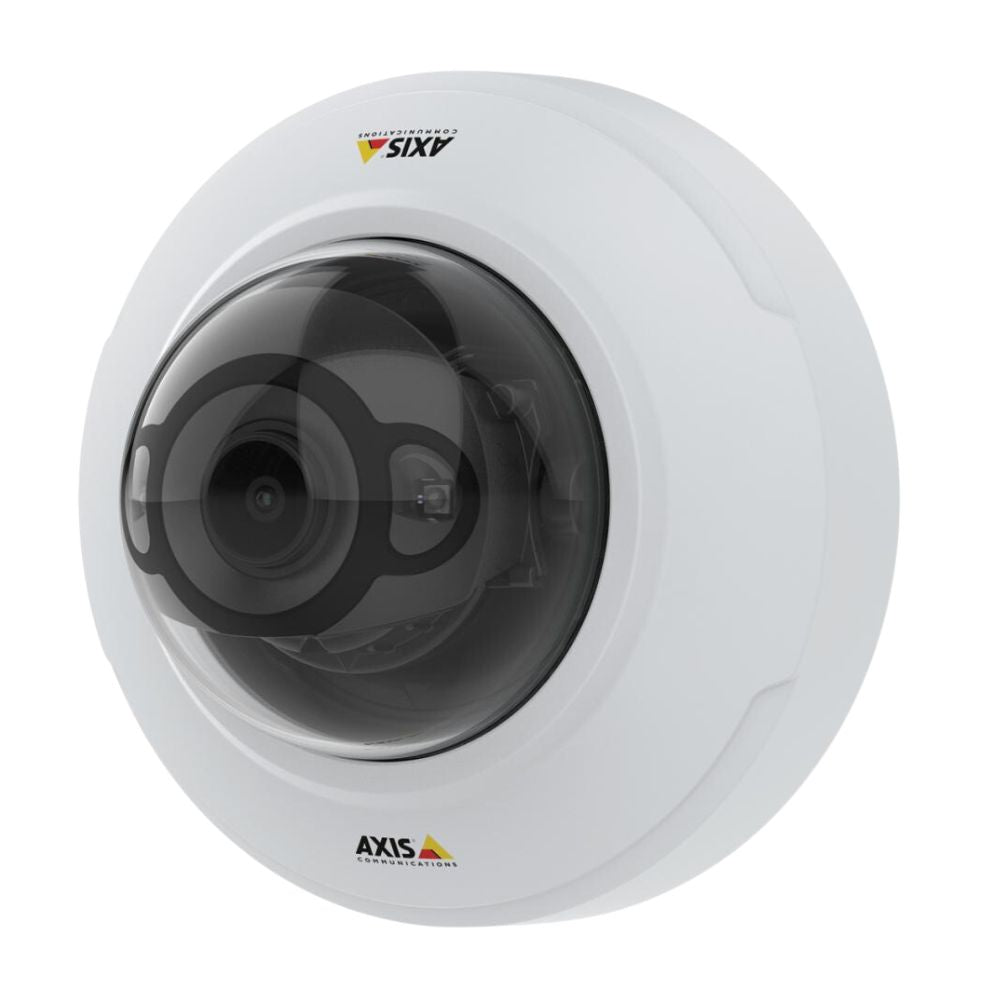

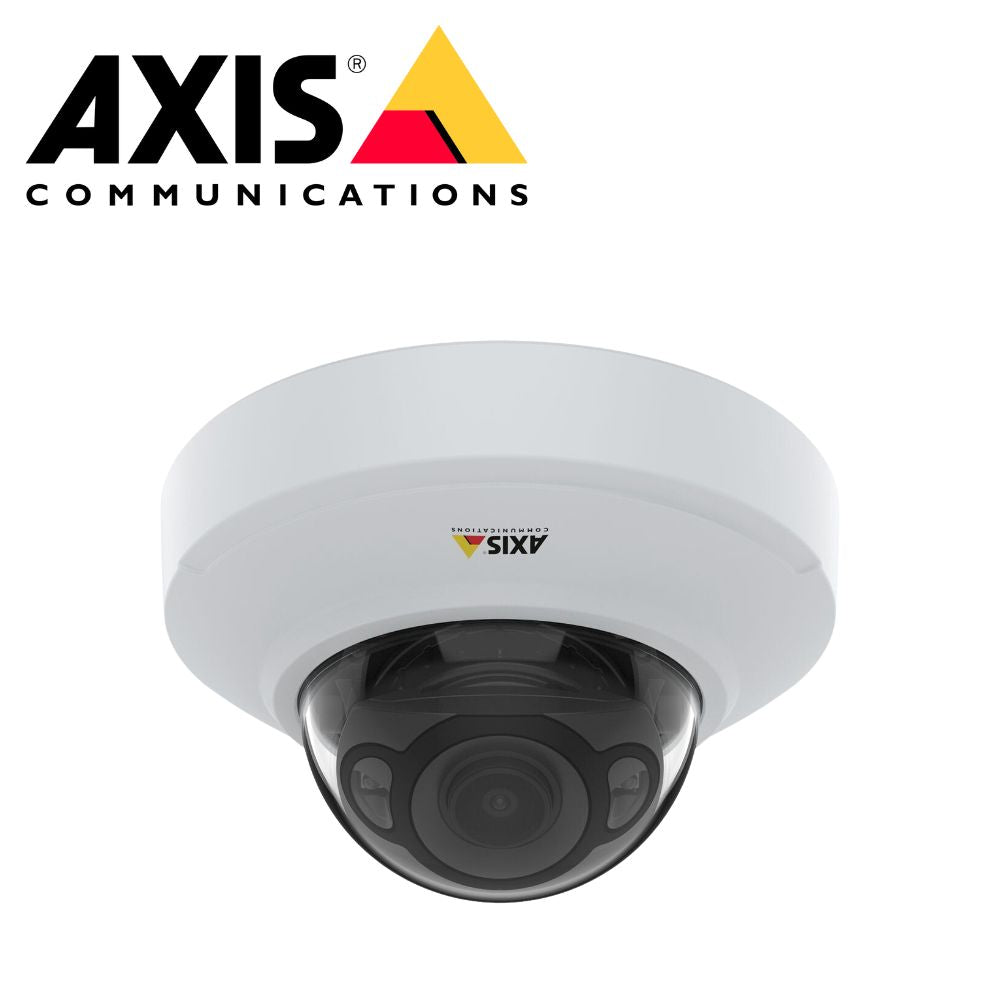

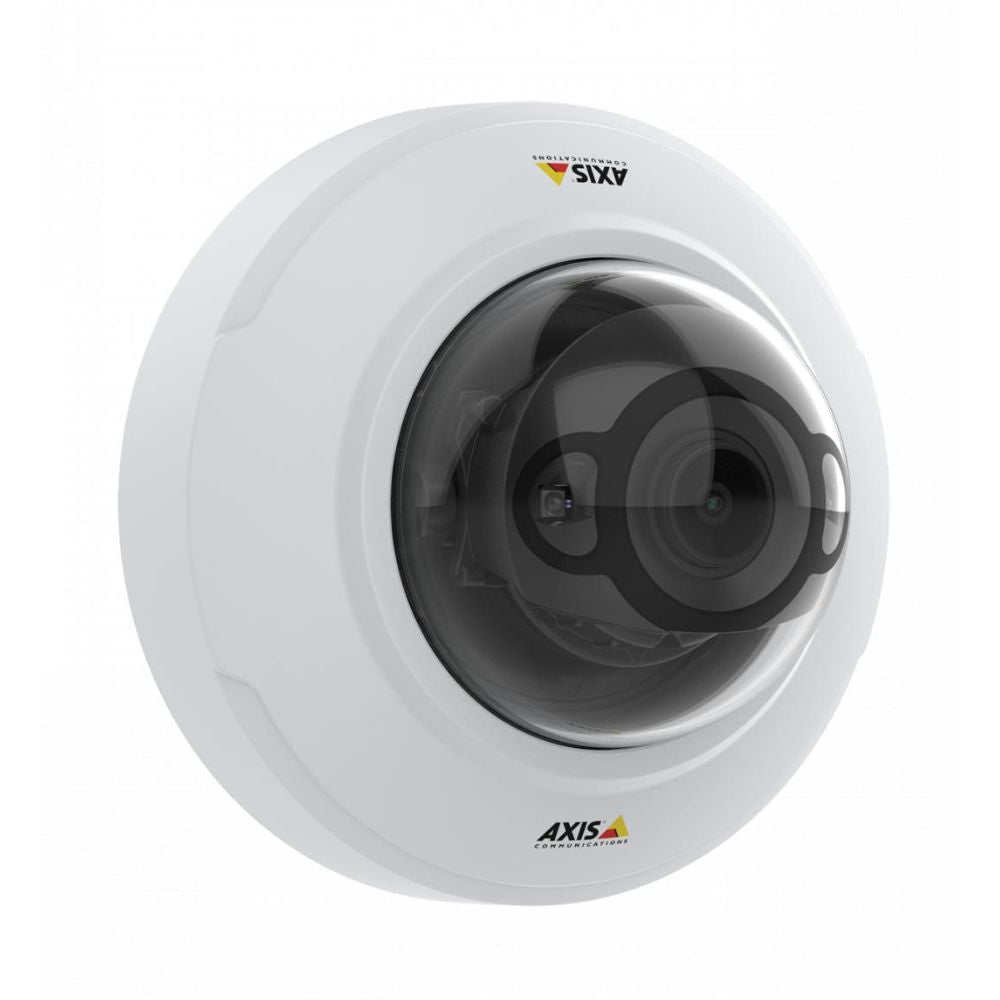

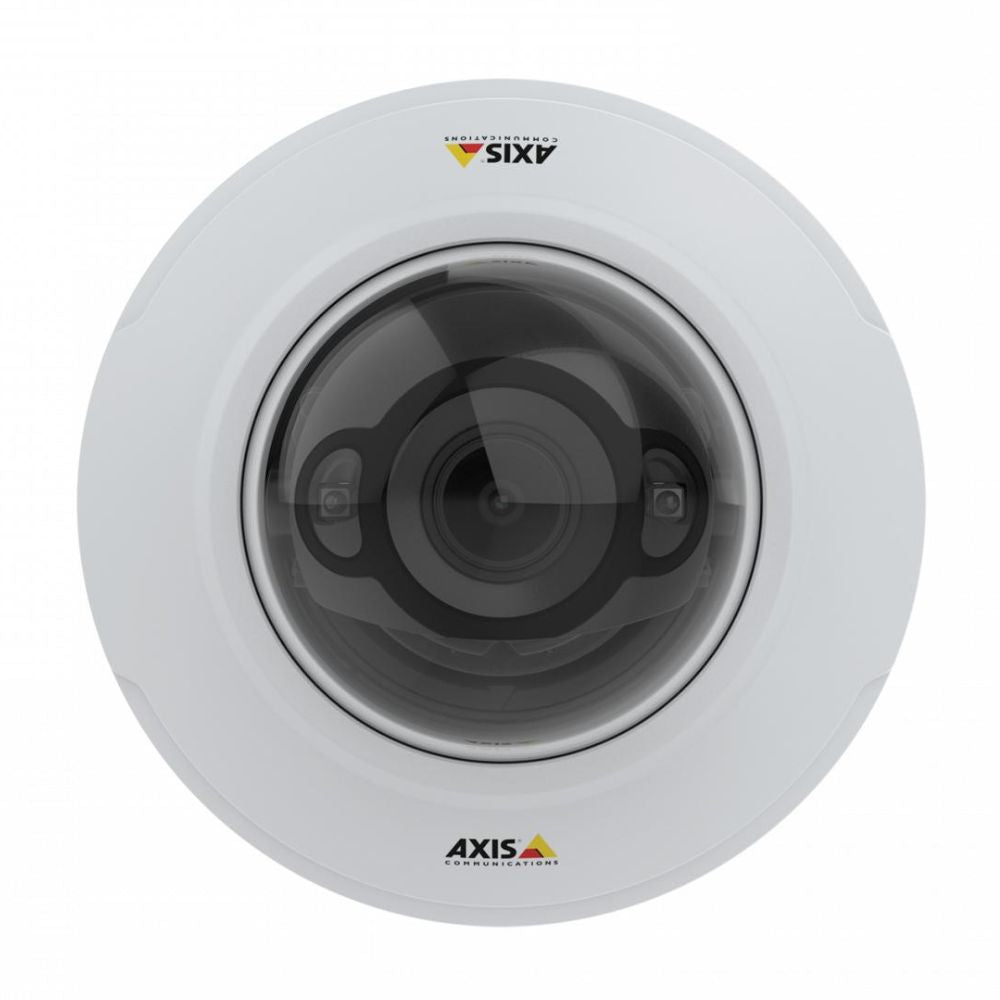

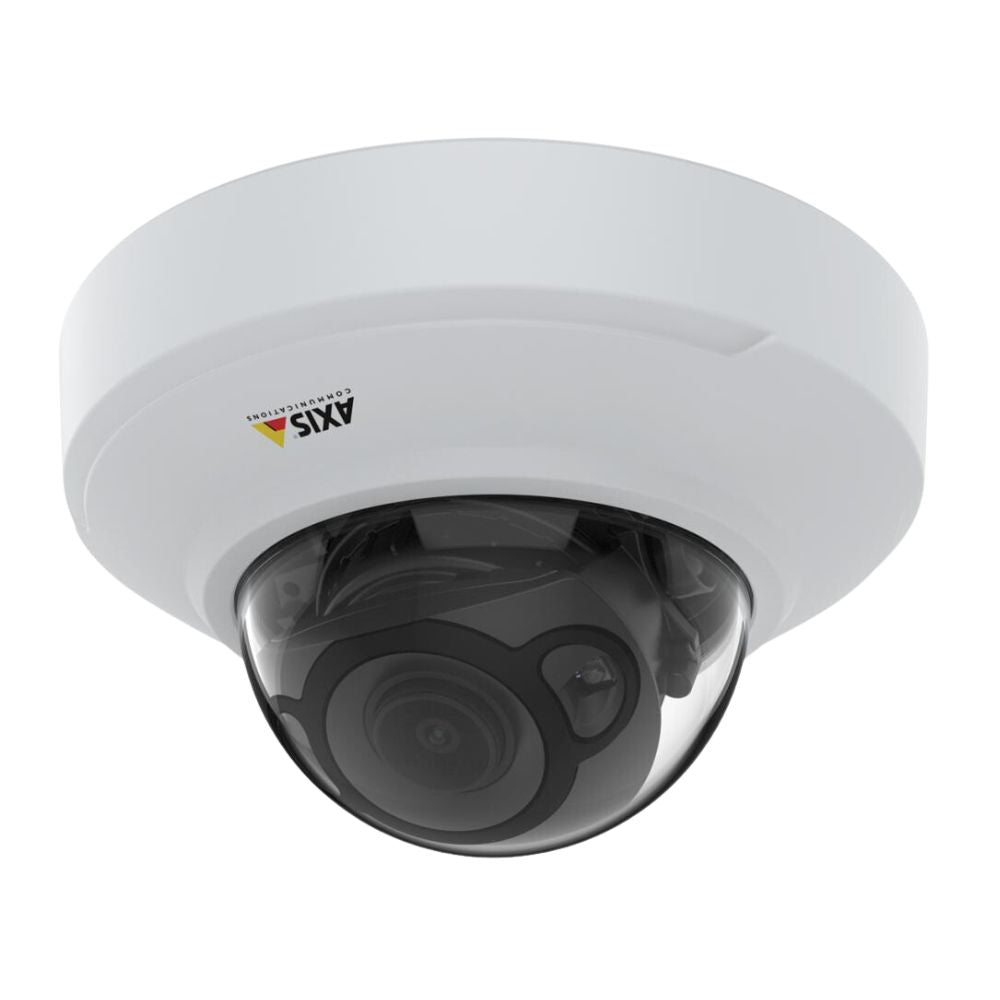

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.
Features
- Great image quality in 4 MP
- Varifocal lens with remote zoom and focus
- WDR, Lightfinder, and OptimizedIR
- Support for analytics with deep learning
- HDMI output for public viewing monitors
Datasheet
Tech Specs
Camera
| Property Information |
Property value |
| Image sensor |
CMOS |
| Image sensor size |
1/2.7 |
| Lightfinder |
Lightfinder |
| Wide dynamic range |
WDR |
| Min illumination/ light sensitivity (Color) |
0.18 lux |
| Min illumination/ light sensitivity (B/W) |
0 lux |
Video
| Property Information |
Property value |
| Max video resolution |
2304x1728 |
| Max frames per second |
25/30 |
| Day and Night functionality |
Yes |
| Electronic image stabilization |
– |
Lens
| Property Information |
Property value |
| Focal length |
3 - 6 mm |
| Horizontal field of view |
100-45 ° |
| Vertical field of view |
72-34 ° |
Pan, Tilt, Zoom
| Property Information |
Property value |
| Remote PTRZ |
– |
Compression
| Property Information |
Property value |
| Zipstream |
Yes |
| H.264 |
High, Main |
| H.265 |
Yes |
| Motion JPEG |
Yes |
Audio
| Property Information |
Property value |
| Audio Support |
Yes |
| Built-in microphone |
– |
Network
| Property Information |
Property value |
| PoE Class |
3 |
| Wireless |
– |
Security
| Property Information |
Property value |
| Signed firmware |
Yes |
| Secure boot |
Yes |
| Axis Edge Vault |
Yes |
General
| Property Information |
Property value |
| Remote focus |
Yes |
| Remote zoom |
Yes |
| Built-in IR |
Yes |
| Local storage (memory card slot) |
Yes |
| Operating temperature |
0 to 45 °C |
| Outdoor Ready |
– |
| Vandal rating |
IK08 |
| IP rating |
– |
| Designed for repaint |
Yes |
| Sustainability |
BFR/CFR free, PVC free |
