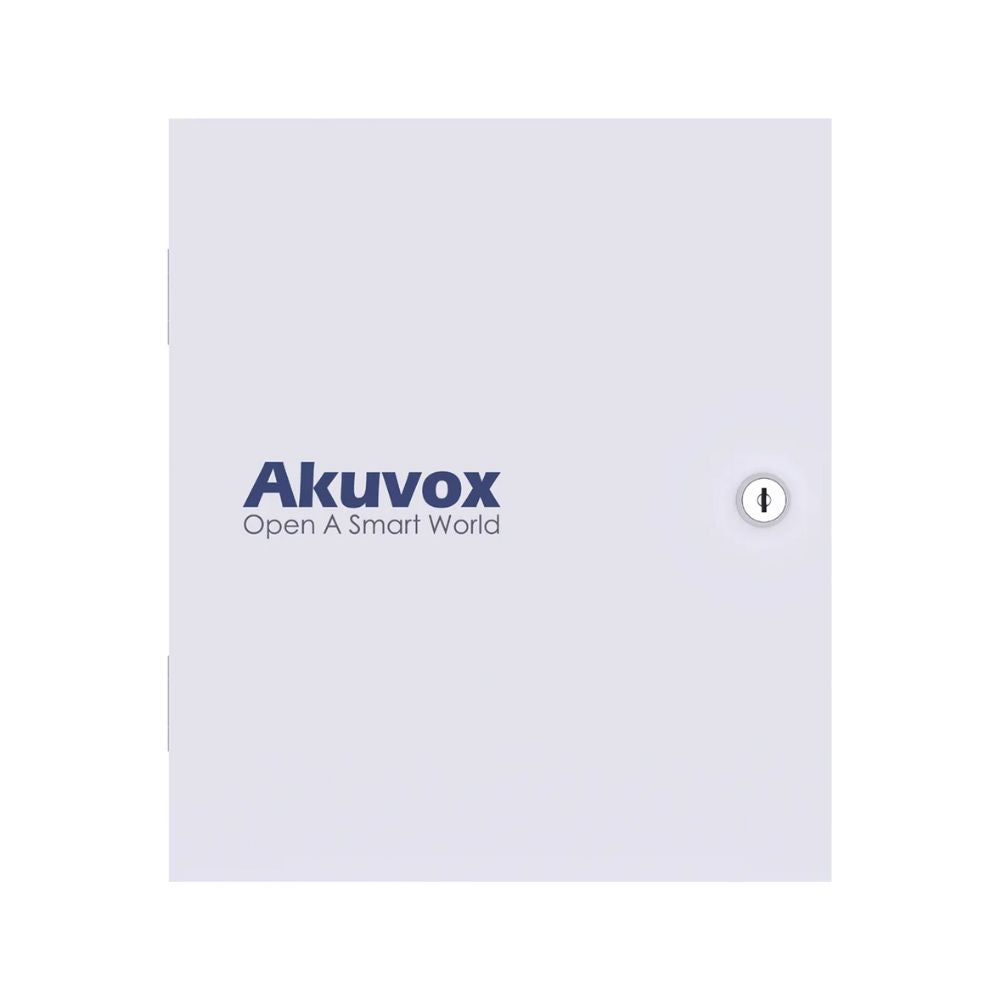

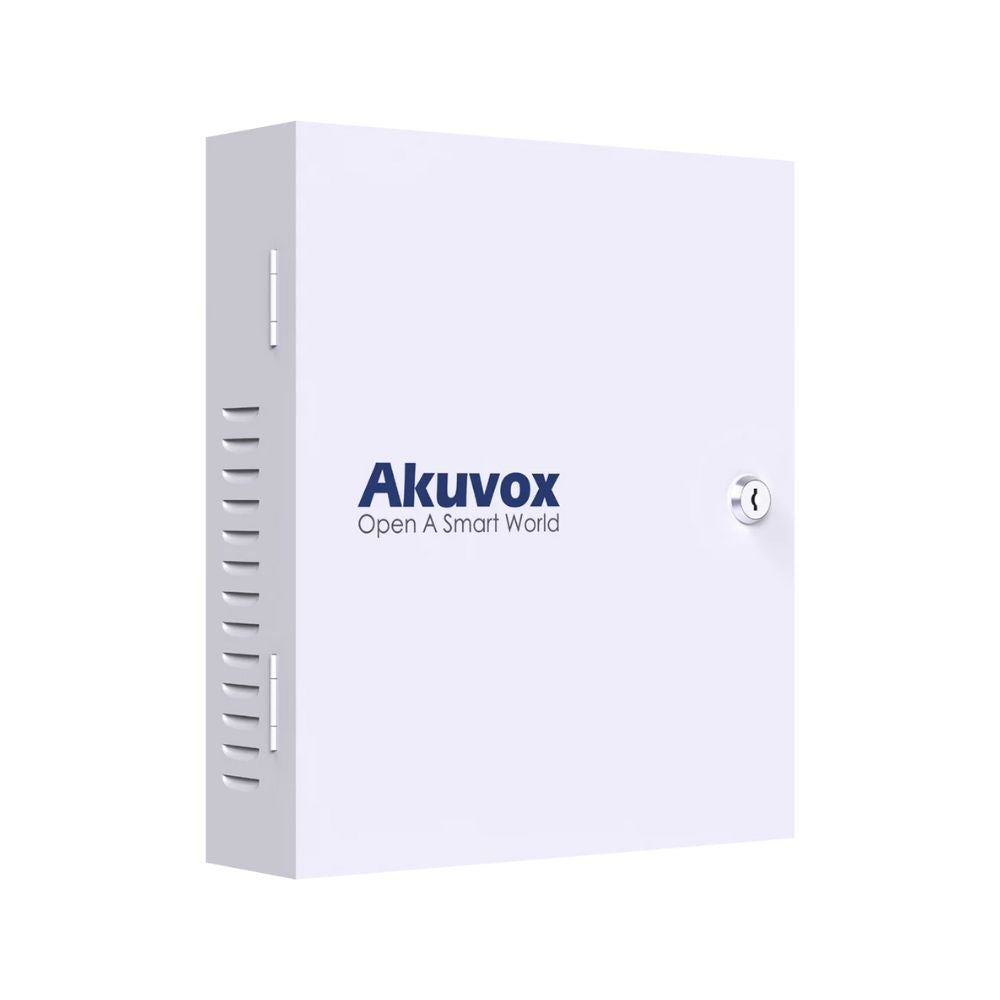

The Akuvox EC33 is an IP elevator controller which uses HTTP commands
to communicate with other Akuvox devices. Each controller has 32 outputs
and can expand to 64 outputs.
Features
- 10/100M Ethernet;
- Large storage for 20,000 card holders and 100,000 logs;
- EC33 supports 32 outputs an can connect to an expansion controller to expand to 64 outputs;
- RS485 port to connect to a expansion controller;
- Fire Alarm input to support emergency door release or normal lift commands;
- Works with other Akuvox devices by using HTTP commands
- Akuvox Cloud supported;
Datasheet
Tech Specs
| Physical & Power |
|
- RS485: Support
- RJ45 port: 1
|
|
- Relays out: 32
- Fire alarm input: 1
|
|
- Power supply：100～240VAC Input or PoE
|
|
- Power supply：100～240VAC Input or PoE
|
- Working temperature: <45℃
- Working humidity: 10%~90%
|
- Dimension: 320 x 270 x 75 (mm)
|
